Sherwood 9000 Series 1st Stage Only Regulator

Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.

Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.

Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.

Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.

A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.

The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.

Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.

It has six ports in total: two 7/16" threaded high pressure ports and four 3/8" threaded low pressure ports. That lets you run a primary second stage, an octopus, a BC or drysuit inflator hose and one more low pressure accessory, plus a submersible pressure gauge and a second high pressure accessory such as an air-integrated transmitter.

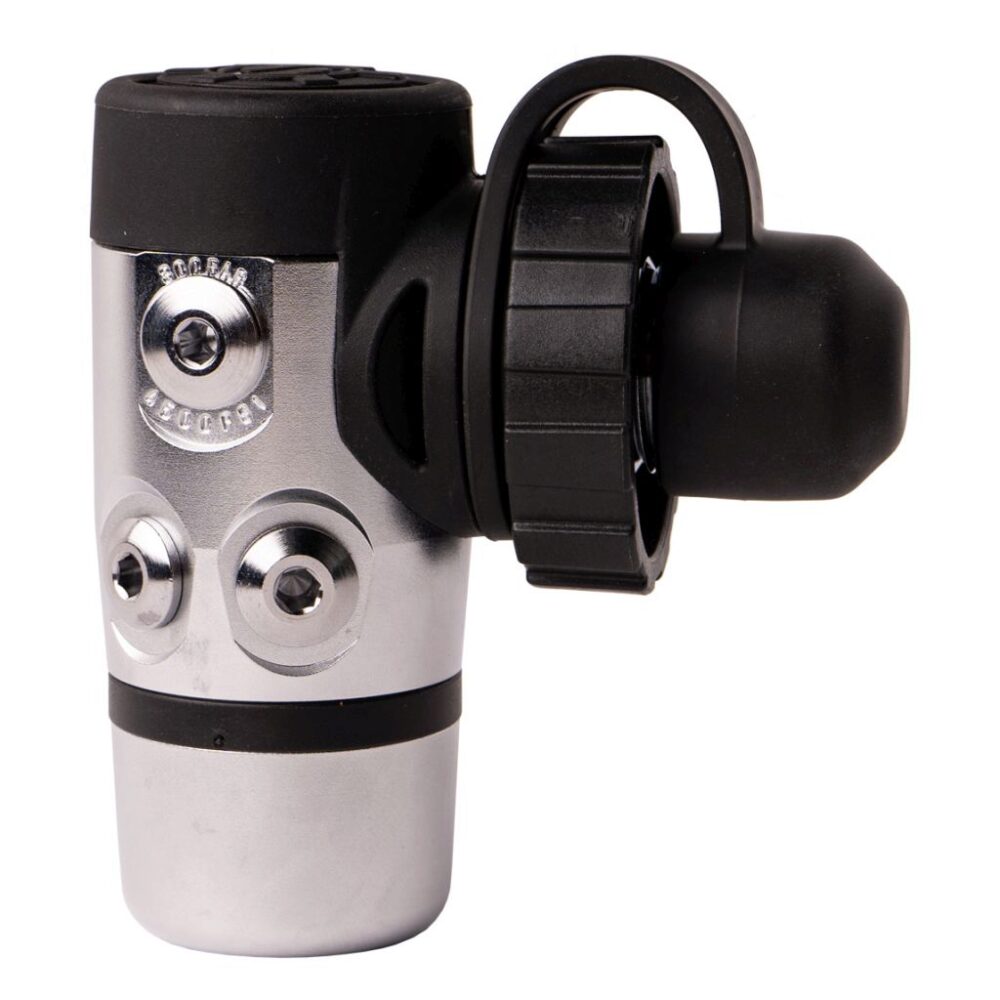

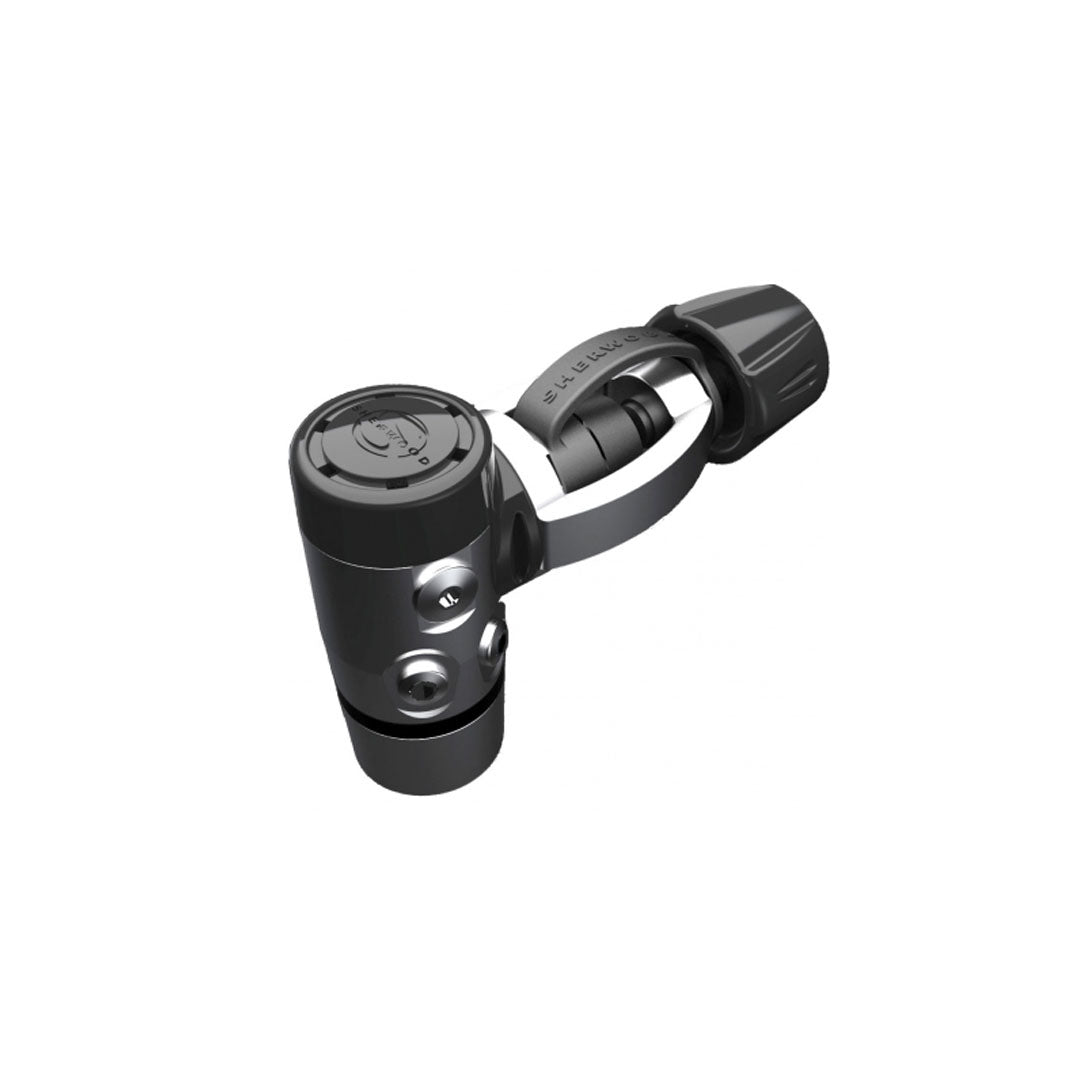

No. This listing is the first stage only, offered as SRB-9115 in INT (yoke) or SRB-9115D in DIN, so hoses, a primary second stage, an octopus and gauges are chosen separately. Sherwood uses the 9000 Series 1st Stage as the first stage of its Brut Pro Regulator set (SRB9150). Call 888-701-4017 if you want help matching components.

The patented dry seal internal mechanism isolates the spring chamber so salt, sand and chlorinated water cannot reach the intricate internal components. It achieves environmental sealing without the oils or grease used in some other sealed designs, so there is nothing messy to leak out, and Sherwood describes the 9000 Series as using Air-Assisted Depth-Compensation to keep the first stage sealed and dry.

The tee-shaped body lowers the regulator's profile where it mounts on the cylinder valve, which reduces the chance of the first stage contacting the back of your head while you dive.
