Description
Description
The Mares 28XR-HR brings cutting-edge regulator technology to technical and overhead diving environments. At its core is a balanced diaphragm first stage with a double piston design, delivering consistent, high-performance airflow even at depth.
Built for harsh conditions, AST (Auto Sealing Technology) protects the first stage from sand, debris, and contaminants ideal for cave diving and polluted waters. The rotating swivel turret, featuring 4 low-pressure ports plus 1 vertical LP port, provides exceptional hose routing flexibility for twinsets, stage bottles, and sidemount configurations.

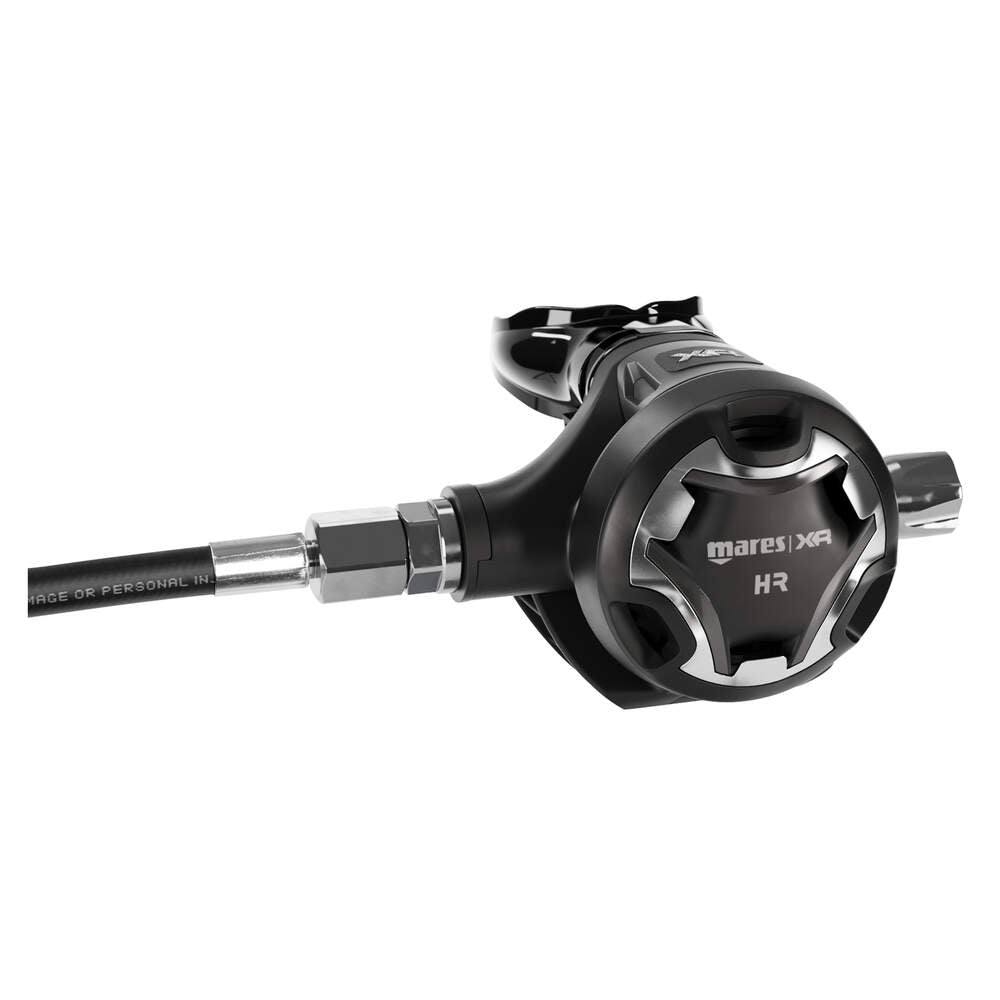

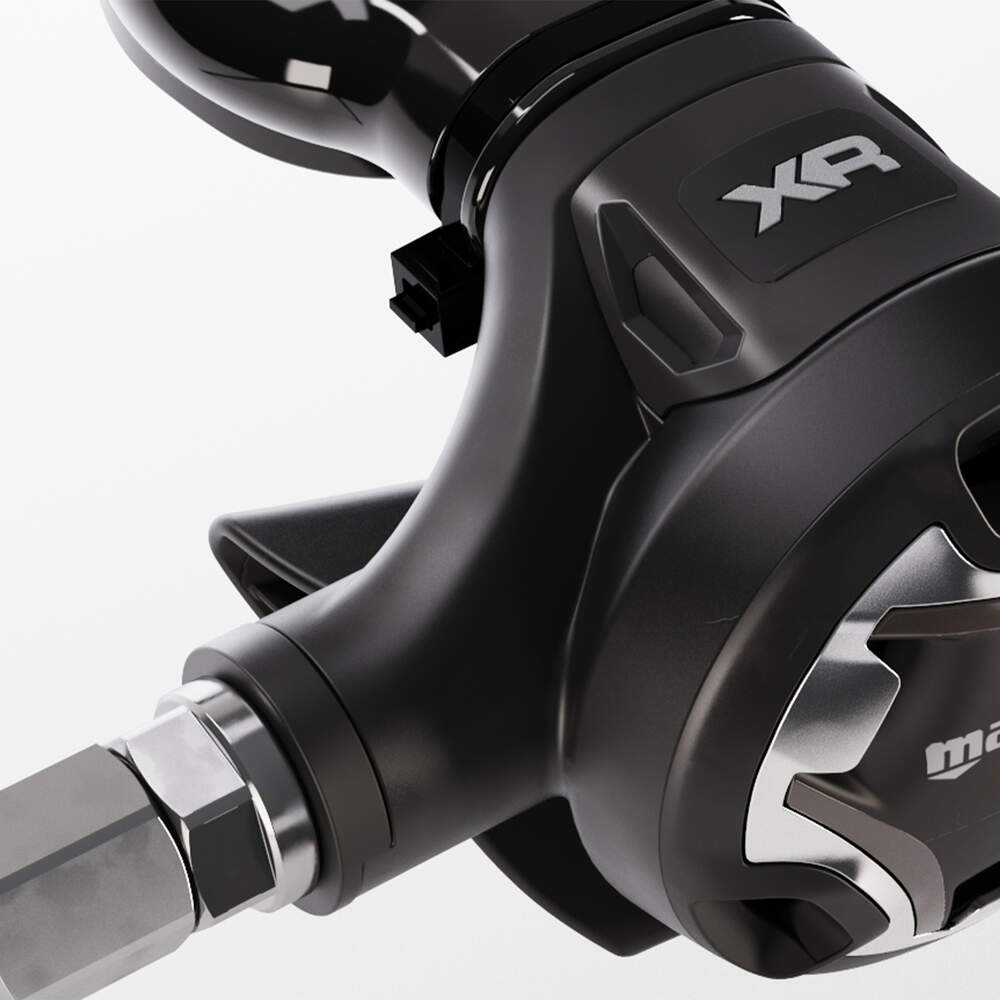

The HR second stage is constructed from ultralight technopolymer for durability without added bulk. A large, easy-to-grip side adjustment knob allows precise control of breathing effort even while wearing thick neoprene gloves.
Engineered for versatility, protection, and precision control, the 28XR-HR is built to perform wherever technical diving takes you.
Features
Features
- 2nd Stage
- For stage, main backmount, back-up backmount or “hard breathing” backmount use
- Extreme cold water use
- Adjustable breathing comfort system allows the diver to control inhalation effort
- VAD system with “curved” bypass for natural high air flow
- Simple, performing, ultralight technopolymer body
- PAD – Pneumatically Assisted Design
- Oversized purge button
- Soft rubber LP hose

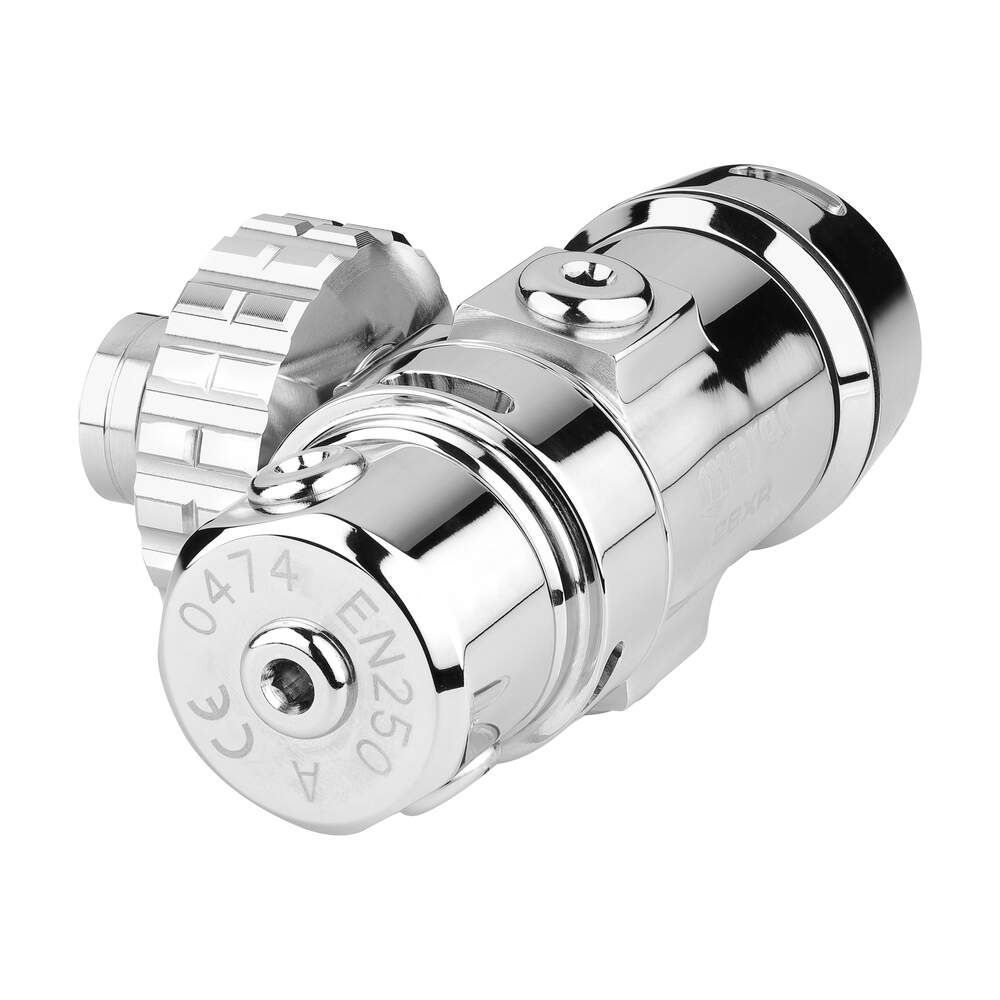

- 1st Stage
- Shiny chrome metal body
- Natural DFC on all LP ports
- TBP Dry Kit - environmentally sealed for better performance on cold water dives
- AST - auto sealing technology
- 4 LP ports on a swivel turret
- A 5th additional in-line LP port
- 2 symmetrical HP ports with a 10° port angle for perfect HP hose positioning
- NR - G5/8 connection, 300 bar (DIN)
- NX - M26 connection, 300 bar (nitrox)
Specifications
Specifications
| Material | Ultralight Technopolymer |
|---|---|
| First Stage Weight (DIN) | 827 g / 29.2 oz |
| First Stage Weight (NX) | 763 g / 26.9 oz |
| Second Stage Weight | 220 g / 7.7 oz |
| High Pressure Ports | 2 [7/16" UNF] |
| Low Pressure Ports | 5 [3/8" UNF] |
| Hose Type | Rubber Hose |
| Second Stage 1 | Technopolymer second stage |
| Second Stage 2 | Pneumatically Assisted Design |
| Flow Rate (STP) | 560 l/min - 20 cuft/min |
| Weight (without hose) | 225 g / 8 oz |
| Hose Length | 75 cm / 30 in - 210 cm / 7 ft |
