Oceanic Photon Air Men's BCD with Color Kit

Oceanic | SKU: 08.2310.52-PB1

Refer & Earn

$699.95

Shipping calculated at checkout.

In stock — ships from Irvine, CA

Color: Black

Oceanic Photon Air Men's BCD with Color Kit

Size

XS/S (X-Small / Small) M/L (Medium / Large) XL/2XL (X-Large / 2X-Large)

Pickup available at In Store

Usually ready in 2 hours

All Oceanic size charts on one page. Imperial in bold, metric underneath.

BCDs

Oceanic Excursion BCD

Height and weight

Size	Height ft/in · cm	Weight lb · kg
S	5′2″–5′7″ 157–170	120–155 54.4–70.3
M	5′7″–5′10″ 170–178	150–180 68–81.6
L	6′0″–6′2″ 183–188	180–210 81.6–95.2
XL	6′2″–6′5″ 188–196	195–240 88–109
2XL	6′2″–6′5″ 188–196	240–275 109–125

Chest and waist

Size	Chest in · cm	Waist in · cm
S	30–40 76–102	30–38 76–96.5
M	34–44 86–112	32–40 81–102
L	38–48 96.5–122	34–42 86–107
XL	40–50 102–127	38–46 96.5–117
2XL	50–55 127–140	46–50 117–127

Oceanic Hera BCD

Size	Height ft/in · cm	Weight lb · kg
XS	5′0″–5′5″ 152–165	100–125 45–56.7
S	5′2″–5′7″ 157–170	120–145 54.4–70.3
M	5′5″–5′10″ 165–178	135–160 61–72
L	5′7″–6′0″ 170–183	155–190 70–86

Oceanic Atmos BCD

Height and weight

Size	Height ft/in · cm	Weight lb · kg
XS	5′0″–5′5″ 152–165	100–125 45–56.7
S	5′2″–5′7″ 157–170	120–155 54.4–70.3
M	5′7″–5′10″ 170–178	150–180 68–81.6
L	6′0″–6′2″ 183–188	180–210 81.6–95.2
XL	6′2″–6′5″ 188–195	195–240 88–109
2XL	6′2″–6′5″ 188–195	240–275 109–125

Chest and waist

Size	Chest in · cm	Waist in · cm
XS	26–36 66–91	28–36 71–91
S	30–40 76–101	30–38 76–96.5
M	34–44 86–112	32–40 81–101
L	38–48 96.5–122	34–42 86–107
XL	40–50 101–127	38–46 96.5–117
2XL	50–55 127–140	46–50 117–127

Oceanic Biolite BCD

Height and weight

Size	Height ft/in · cm	Weight lb · kg
XS	5′0″–5′5″ 152.4–165	100–125 45–56.7
S	5′2″–5′7″ 157–170	120–155 54.4–70.3
M	5′7″–5′10″ 170–178	150–180 68–81.6
L	6′0″–6′2″ 183–188	180–210 81.6–95.2
XL	6′2″–6′5″ 188–196	195–240 88–109
2XL	6′2″–6′5″ 188–196	240–275 109–125

Chest and waist

Size	Chest in · cm	Waist in · cm
XS	26–36 66–91	28–36 71–91
S	30–40 76–102	30–38 76–96.5
M	34–44 86–112	32–40 81–102
L	38–48 96.5–122	34–42 86–107
XL	40–50 102–127	38–46 96.5–117
2XL	50–55 127–140	46–50 117–127

Oceanic OceanPro BCD

Height and weight

Size	Height ft/in · cm	Weight lb · kg
XS	5′0″–5′5″ 152.4–165	100–125 45–56.7
S	5′2″–5′7″ 157–170	120–155 54.4–70.3
M	5′7″–5′10″ 170–178	150–180 68–81.6
L	6′0″–6′2″ 183–188	180–210 81.6–95.2
XL	6′2″–6′5″ 188–196	195–240 88–109
2XL	6′2″–6′5″ 188–196	240–275 109–125

Chest and waist

Size	Chest in · cm	Waist in · cm
XS	26–36 66–91	28–36 71–91
S	30–40 76–102	30–38 76–96.5
M	34–44 86–112	32–40 81–102
L	38–48 96.5–122	34–42 86–107
XL	40–50 102–127	38–46 96.5–117
2XL	50–55 127–140	46–50 117–127

Oceanic OceanSport BCD

Height and weight

Size	Height ft/in · cm	Weight lb · kg
2XS	4′9″–5′3″ 145–160	90–115 41–52
XS	5′0″–5′5″ 152.4–165	99–125 45–56.7
S	5′2″–5′7″ 157–170	120–155 54.4–70.3
M	5′7″–5′10″ 170–178	150–180 68–81.6
L	6′0″–6′2″ 183–188	180–210 81.6–95.2
XL	6′0″–6′5″ 188–196	194–240 88–109
2XL	6′0″–6′5″ 188–196	240–276 109–125

Chest and waist

Size	Chest in · cm	Waist in · cm
2XS	22–24 56–61	26–28 66–71
XS	26–36 66–91	28–36 71–91
S	30–40 76–102	30–38 76–96.5
M	34–44 86–112	32–40 81–102
L	38–48 96.5–122	34–42 86–107
XL	40–50 102–127	38–46 96.5–117
2XL	50–55 127–140	46–50 117–127

Fins

Oceanic Manta Ray fins

Size	USA	EU
XS	5–7	37–41
SM	7–10	41–44
REG	10–12	44–46
XL	12+	46+

Oceanic Predator fins

Size	USA	EU
S	5.5–6	38–39
M	7–7.5	40–41
L	8.5–9	42–43
XL	10–11	44–45
2XL	11.5–12	46–47

Oceanic Accel fins

Size	USA	EU
XS	5–7	37–41
S/M	7–10	41–44
REG	10–12	44–46
XL/2XL	12+	46+

Oceanic Viper 2 open heel fins

Size	US men's shoe size	US women's shoe size	Euro shoe size
XS	5–7	7–9	37–39
SM/MD	7–10	9–12	39–44
REG	10–12	12–14	44–46
XL/2XL	12+	14+	46+

Oceanic Viper 2 full-foot fins

Size	USA	EU	UK
2XS	3–4	34–36	2–3
XS	4.5–5.5	36–38	3.5–4.5
SM	6–7	38–39	5–6
M	7.5–8.5	39.5–41	6.5–7.5
ML	9–10	42–43	8–9
L	10.5–11.5	44–45	9.5–10.5
XL	12–13	45.5–47	11–12

Source: Oceanic’s size chart and Oceanic’s current size chart. Values in the second unit come from Oceanic’s own chart where it prints them.

Pick an accessory — 90% off with your $250+ order

$2502 items $5003 items $1,0005 items $1,5006 items $2,0008 items $3,00010 items $4,00012 items $5,00015 items

DiveCatalog.com Quick Dry Multi Accessory Dive Gear Hanger for Boots, Gloves, Hood
$22.95$2.30
Nocturnal Lights Buoyancy & Protective Sleeve for the SLX Underwater LED Lights
$19.99$2.00
Nocturnal Lights YS Arm Adapter for M700 Lights ADP.M7YS
$19.99$2.00
Nocturnal Lights Ball Joint Adapter for Underwater Ball Joint Arm Strobe and Lighting Systems
$19.99$2.00
Nocturnal Lights Large Hand Mount with 1.75-2 Light Slot HM.LG
$19.99$2.00

90% off applies automatically at checkout on orders of $250+ — or free for signed-in members. Not combinable with discount codes.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save with a package

Ready-made packages that include this item

Oceanic Regulator + BCD Scuba PackagePhoton Air Men's BCD w/ Color Kit + Delta 5 EDX Regulator + Alpha 8 Octopus + Maxview ConsoleFrom $1,724.80

View package

Product Information

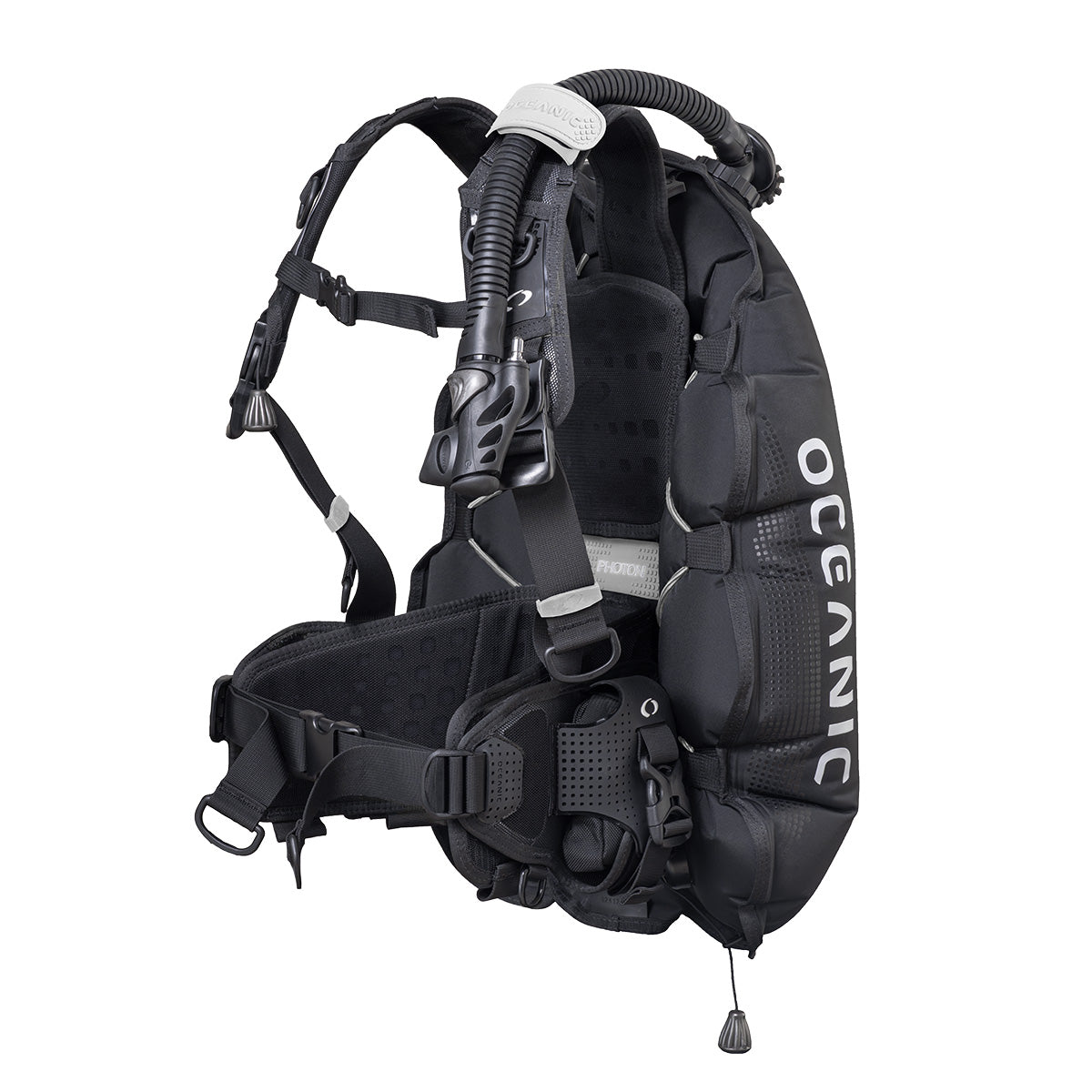

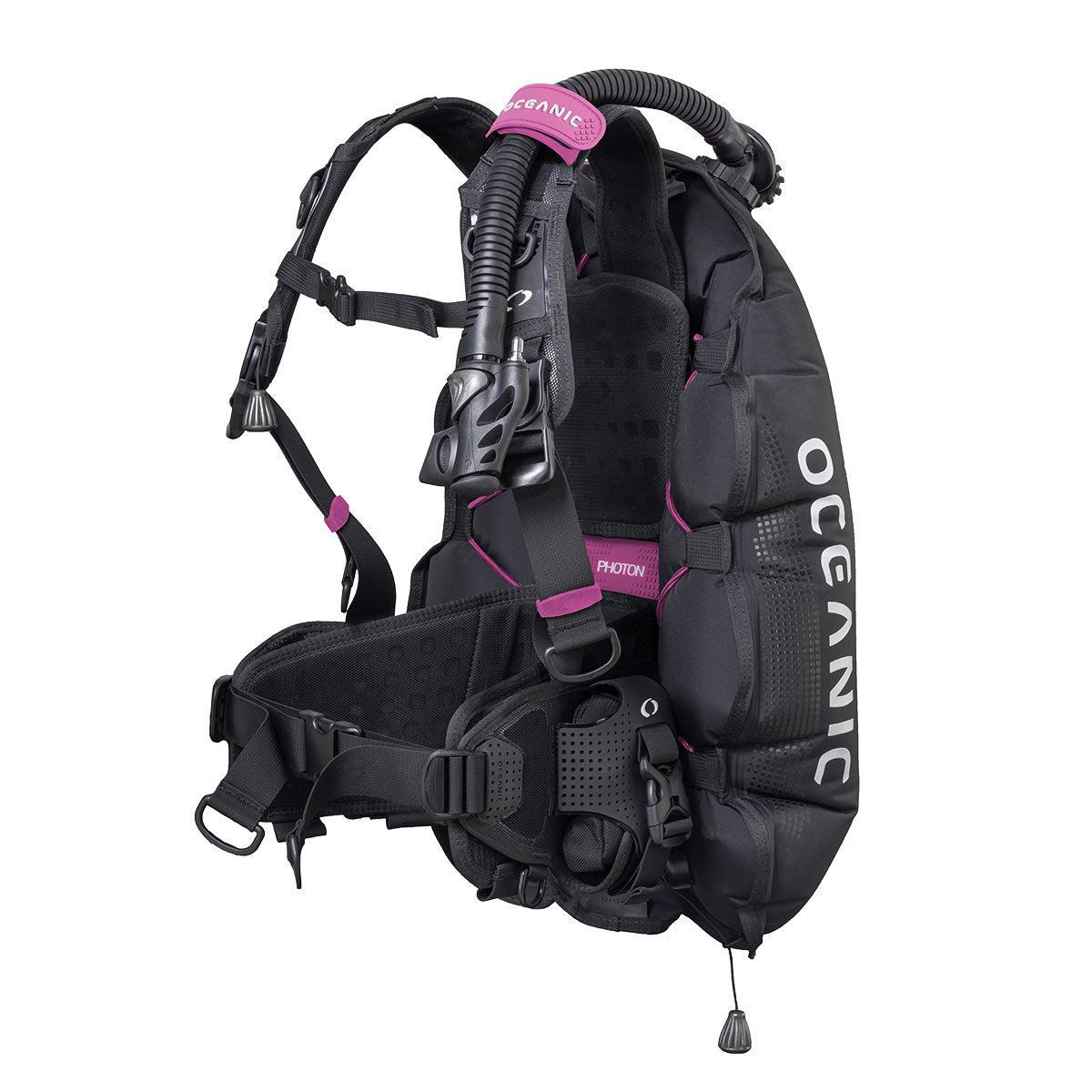

The Oceanic Photon Air Men's BCD with Color Kit is a compact, low-profile back-inflation buoyancy compensator built around a modular central frame for travel and day-boat diving, with quick-dry 3D mesh and UV-resistant 420D nylon materials, technopolymer hardware and a men's specific harness in XS/S, M/L and XL/2XL. It carries 25 to 34 lb (11 to 15 kg) of lift depending on size and weighs 6.4 lb (3 kg) in XL/2XL.

Who it is for

This is the Photon for the diver who flies to the water or dives from a day boat and wants a light travel setup with integrated weight and trim control. The minimalist quick-dry harness and technopolymer hardware keep weight and drag down, while the back-inflation wing keeps the chest clear and encourages a natural horizontal position. Divers who want higher lift and stainless hardware instead should look at the Photon Pro; the Air is the lighter, travel-oriented option in the same line.

Key details

Lift: 25 lb (11 kg) in XS/SM, 34 lb (15 kg) in MD/LG and XL/XXL
BC weight: 6.4 lb (3 kg) in Men's XL/XXL

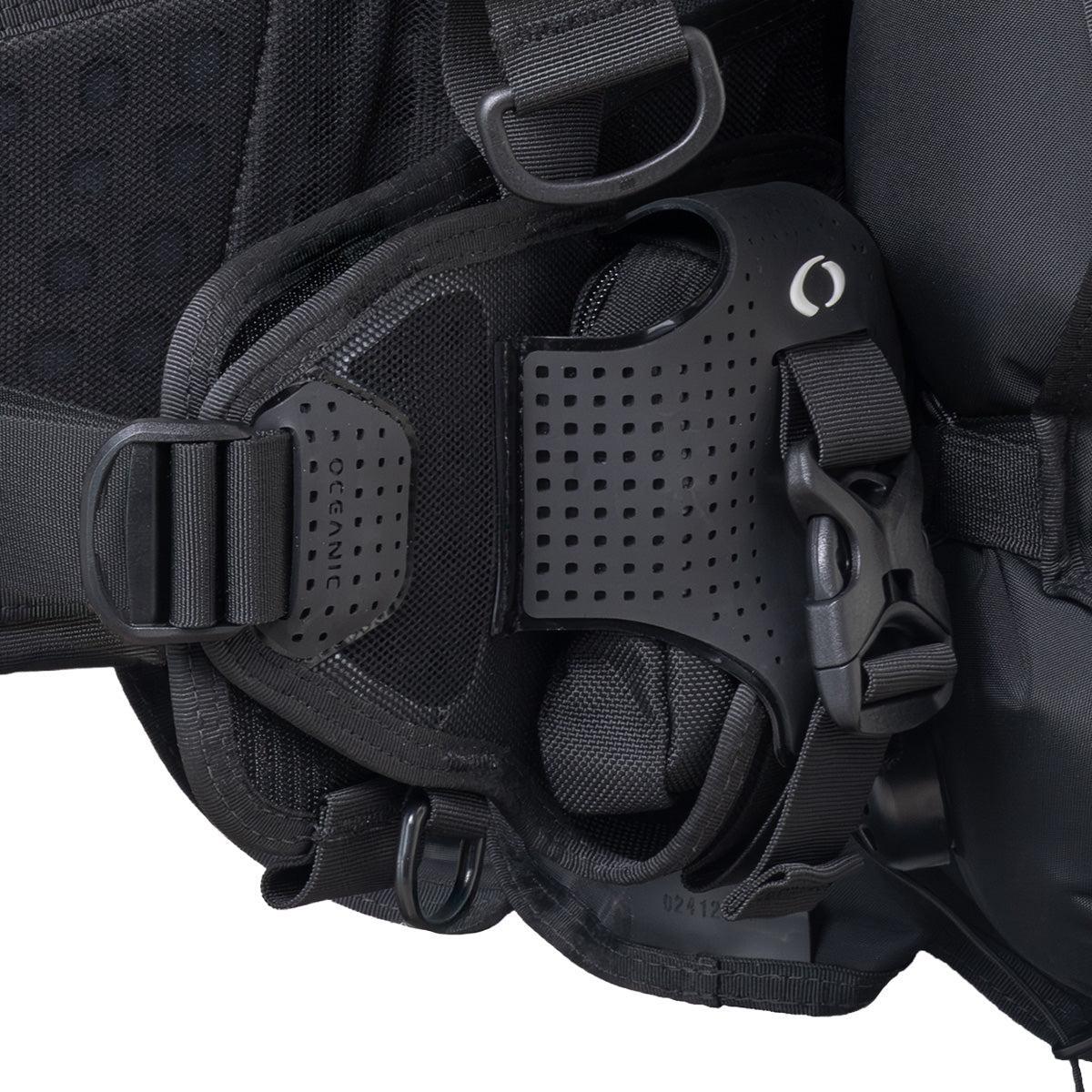

Ditchable weight: 2 x 5 lb (2.3 kg) pockets; trim weight: 2 x 5 lb (2.3 kg) pockets, 20 lb (9 kg) total
Materials: 3D mesh construction with UV-resistant 420D nylon
Hardware and TankTamer tank band: technopolymer
Infinite harness adjustment with ergonomic lumbar support

Compatibility and sizing

Men's fits are offered in XS/S, M/L and XL/2XL, with a women's specific version available in the same three size ranges. The TankTamer quick-adjust band makes switching between steel and aluminum cylinders fast. The modular frame accepts Oceanic Photon accessories including Color Kits, the Dive Housing Holster, Utility Pocket and Crotch Strap, and components are serviceable and interchangeable. Color choices here are Black, White, Blue, Aqua and Pink.

DiveCatalog.com is an authorized Oceanic dealer and a real dive shop in Irvine, California since 2003. Call 888-701-4017 or start a chat if you want help choosing between sizes or confirming accessory compatibility.

⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Frequently Asked Questions

How should a scuba BCD fit?

A BCD should fit snugly enough that it does not ride up toward your ears when inflated, while still letting you breathe fully. Fasten the waist and cummerbund first, then adjust the shoulder straps so the tank sits close to your back and the shoulders cannot slide off. With the BCD fully inflated at the surface you should still be able to take a deep, comfortable breath; if it squeezes your chest, loosen it or move up a size.

How do I rinse and care for a BCD after diving?

Rinse the outside in fresh water and also flush the inside of the bladder, because salt water gets in through the inflator and dump valves. Fill the bladder roughly a third full of fresh water through the oral inflator, slosh it around, then drain it out through the inflator and each dump valve. Hang it to dry out of direct sunlight and store it partially inflated so the bladder walls do not stick together.

Should I use integrated weights or a weight belt?

Integrated weight pockets carry the lead in the BCD itself, which many divers find more comfortable and easier on the hips, while a weight belt keeps the weight independent of your BCD. Either way, you must be able to release your ditchable weight quickly with one hand, and your buddy should know how your system releases. Non-ditchable trim pockets are useful for balance but should never hold weight you might need to drop.

How do I pack a BCD for travel?

Make sure the BCD is completely dry inside and out before packing so it does not mildew in transit. Remove all weights, deflate it fully, and fold or roll it around softer items such as a wetsuit to cushion the inflator and valves. Avoid hard creases in the air cell, and unpack and air it out as soon as you arrive.

When does a BCD need to be serviced?

Follow the service interval in the manufacturer's manual, which is commonly an annual inspection alongside the rest of your life-support gear. Have the inflator, dump valves, and bladder checked any time the inflator sticks, free-flows, feels rough, or the BCD holds air poorly. Between services, confirm that it inflates and deflates properly as part of every pre-dive check.

What is the difference between a jacket-style and a back-inflate BCD?

A jacket-style BCD holds air in panels that wrap around your sides as well as your back, while a back-inflate BCD keeps the entire air cell behind you. Jacket styles tend to feel very stable and upright at the surface, and back-inflate styles keep the chest clear and are often preferred for horizontal trim underwater. Neither is objectively better, so treat it as a fit and preference decision and try both if you can.

Will my BCD fit any scuba tank?

Most recreational BCDs use an adjustable cam band sized for common single-cylinder diameters, so standard aluminum and steel tanks generally work. Re-check the band tension after the first wetting, because webbing can relax slightly and let the tank shift. If you dive doubles or unusual cylinder diameters, confirm compatibility with the manufacturer before assuming it will hold.

How much lift does the Oceanic Photon Air Men's BCD have?

Lift depends on size. The Men's XS/SM provides 25 lb (11 kg) of lift, while both the MD/LG and XL/XXL provide 34 lb (15 kg). That lift range suits recreational diving, with the Photon Pro available for higher capacity. If you dive heavy steel cylinders or thick exposure protection and want more lift plus stainless hardware, the Photon Pro is the higher-capacity option in the same line.

What is the difference between the Photon Air and the Photon Pro?

Both are back-inflation BCDs on the same modular Photon platform, but the Air is the lighter, travel-oriented build. The Air uses technopolymer hardware and weighs 6.4 lb (3 kg) in Men's XL/XXL with 25 to 34 lb of lift, while the Pro uses stainless steel hardware, weighs 8.4 lb (3.8 kg) and offers 34 to 42 lb of lift with 30 lb of weight capacity.

How much weight can the Photon Air carry?

Total weight capacity is 20 lb (9 kg). That is split between two 5 lb (2.3 kg) ditchable pockets, giving 10 lb you can release in an emergency, and two 5 lb (2.3 kg) trim pockets that help balance your position in the water. If you need more lead than that, carry the remainder on a weight belt.

Which accessories fit the Photon Air?

The Photon Air uses a modular central frame that accepts Oceanic Photon accessories, including Color Kits, the Dive Housing Holster, the Utility Pocket and a Crotch Strap, so you can expand the BCD over time. Components are serviceable and interchangeable. This listing is offered in Black, White, Blue, Aqua and Pink in sizes XS/S, M/L and XL/2XL.

Model	Photon Air (Men's)
BCD Style	Back Inflation
Available Fits	Men's and Women's specific designs
Sizes (Men's)	XS/SM, MD/LG, XL/XXL
Lift Capacity - XS/SM	25 lb (11 kg)
Lift Capacity - MD/LG	34 lb (15 kg)
Lift Capacity - XL/XXL	34 lb (15 kg)
BC Weight (Men's XL/XXL)	6.4 lb (3 kg)
Ditchable Weight	2 x 5 lb (2.3 kg) pockets
Trim Weight	2 x 5 lb (2.3 kg) pockets
Total Weight Capacity	20 lb (9 kg)
Hardware	Technopolymer
Tank Band	Technopolymer (TankTamer)
Materials	3D mesh construction, UV-resistant 420D nylon

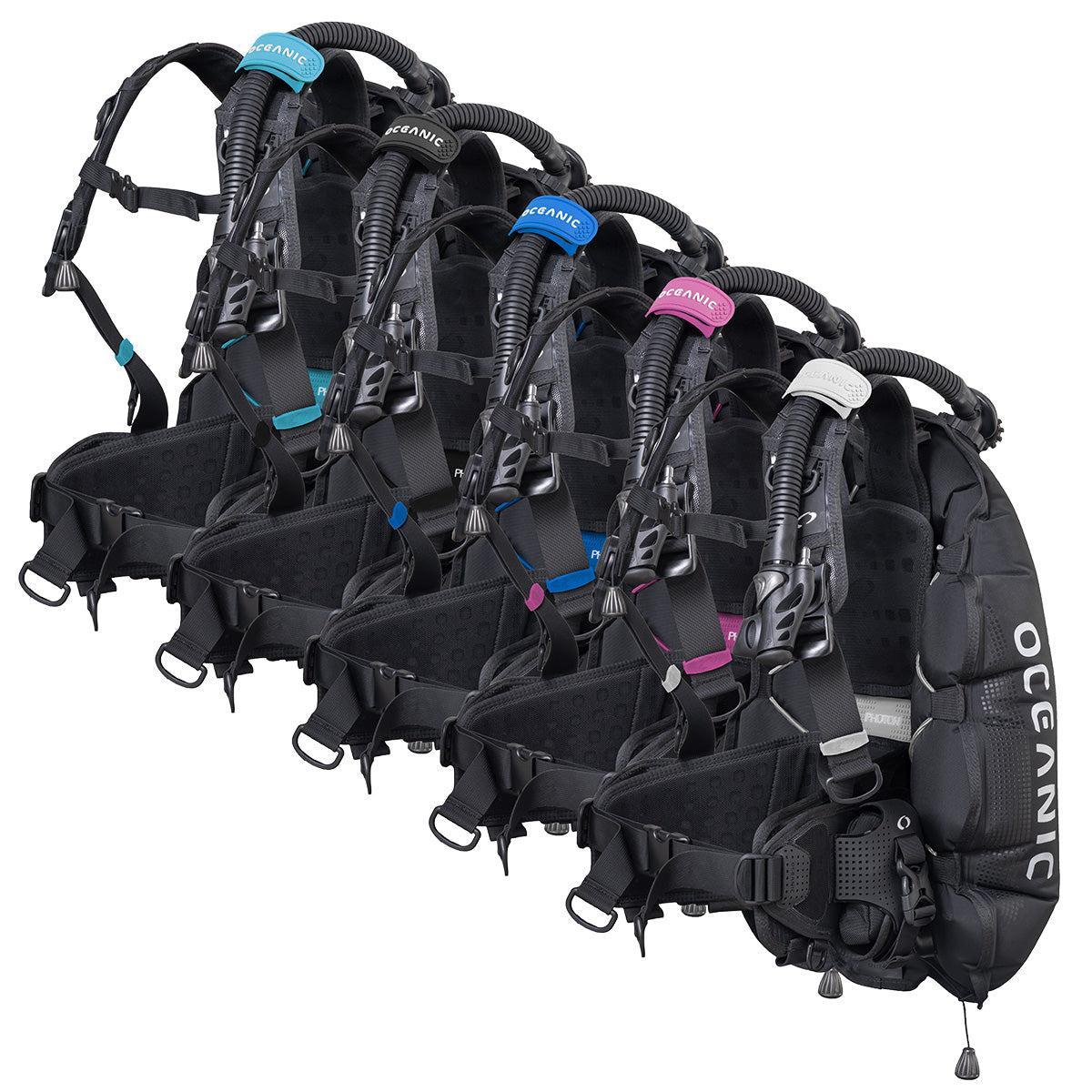

Colors	Black, White, Blue, Aqua, Pink
Accessory Compatibility	Photon Color Kits, Dive Housing Holster, Utility Pocket, Crotch Strap
Activity	Recreational diving, travel diving, local diving
