MARES HR SECOND STAGE - XR LINE REGULATOR NORMAL USE
MARES HR SECOND STAGE - XR LINE REGULATOR NORMAL USE is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at In Store
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information

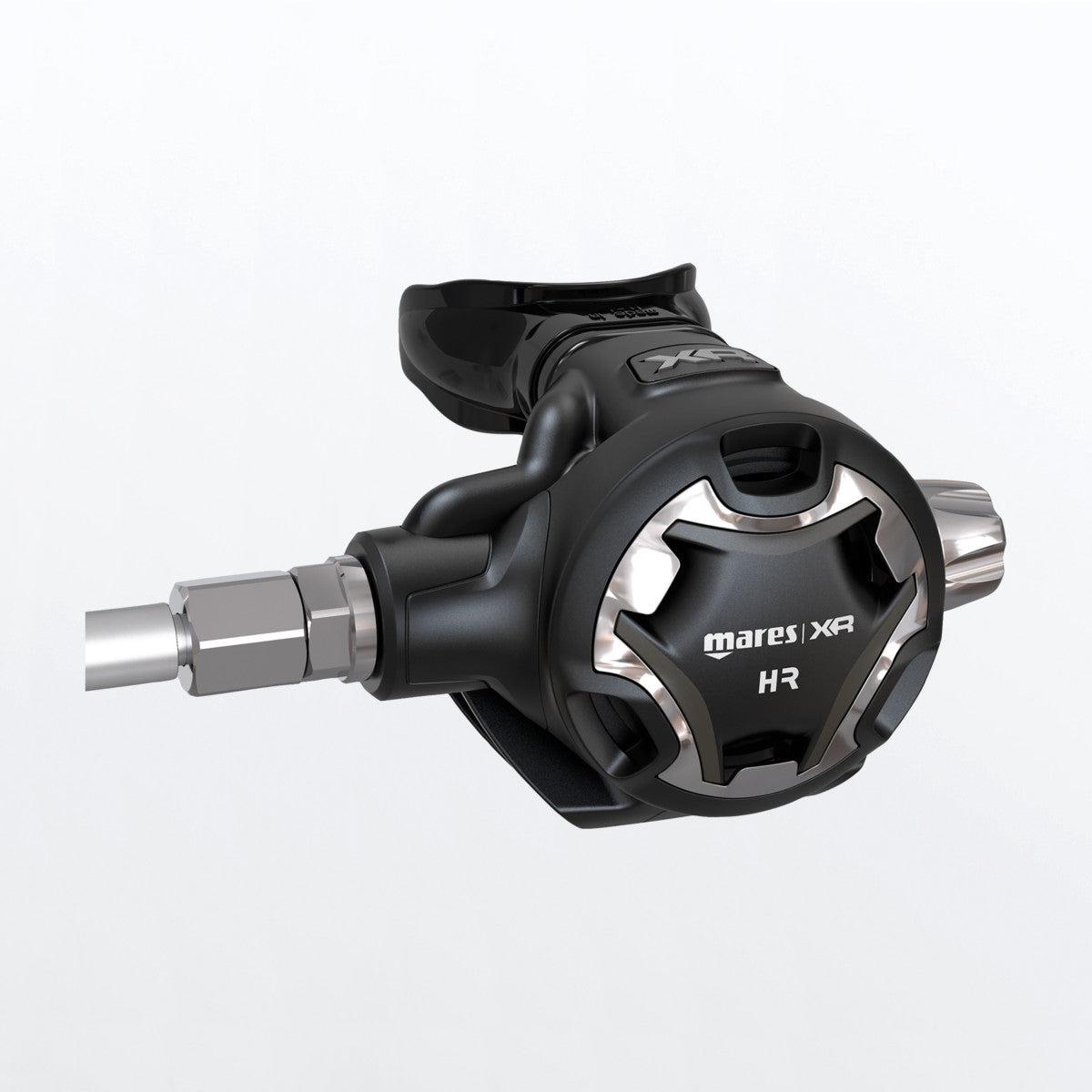

The Mares HR 2nd Stage is a technical-diving second stage regulator from Mares' XR line, built around an ultralight technopolymer body and designed for stage, sidemount, or backmount configuration. It pairs breathing effort adjustment with an oversized purge button, making it a dedicated choice for tech and cave divers who need a second stage that can be configured to their rig.
Who it is for
This second stage is built for tech and cave divers who run stage bottles, sidemount setups, or a backmount configuration and want a simple, purpose-built regulator rather than a recreational all-rounder. Mares designed it specifically with technical and cave diving use in mind, and its flexibility across stage, sidemount, and backmount roles is what makes it sought after in that segment of the market.
Key details
- Ultralight technopolymer body for a simple, lightweight second stage with important performance features
- Large side knob for breathing effort adjustment, sized to be usable even with thick neoprene gloves
- Pneumatically assisted (pad) design
- Oversized purge button
- Miflex XT-Tech hose
- Can be opened and cleaned or adjusted underwater
Compatibility and sizing
The HR 2nd Stage is built to be used in stage, sidemount, or backmount configuration.
DiveCatalog.com is an authorized Mares dealer and a dive shop in Irvine, California, open since 2003. Call 888-701-4017 or chat with us if you have questions about fit or configuration before you order.
- Technopolymer body: Ultralight construction with simple, important features built in.
- Configuration flexibility: Suitable for stage, sidemount, rear main, reserve, or hard breathing configuration.
- Breathing effort adjustment: Large side knob lets you dial in breathing resistance, sized to operate even with thick neoprene gloves.
- Tech and cave focus: Designed specifically for tech and cave divers as part of the Mares XR line.
- Pneumatically assisted design: Pad-based assist for the second stage mechanism.
- Oversized purge button: Larger flush button for easier purging.
- Miflex XT-Tech hose: Fitted with a Miflex XT-Tech hose.
- Serviceable underwater: Can be opened and cleaned or adjusted while submerged.
| Brand | Mares |
| Product Line | XR (technical diving) |
| Model | HR 2nd Stage |
| Product Type | Second stage regulator |
| MPN | 416412NR |
| Barcode | 194151005035 |
| Body Material | Technopolymer |
| Configuration Use | Stage, sidemount, or backmount |
| Breathing Effort Adjustment | Large side knob, usable with thick neoprene gloves |
| Assist Mechanism | Pneumatically assisted (pad) design |
| Purge Button | Oversized flush button |
| Hose | Miflex XT-Tech hose |
| Underwater Serviceability | Can be opened and cleaned or adjusted underwater |
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How often does a scuba regulator need servicing?
Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.
How do I rinse and care for a regulator after diving?
Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.
Can I fly with a scuba regulator?
Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.
Can I use my regulator with nitrox?
Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.
What is the difference between DIN and yoke regulators?
A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.
What is the octopus regulator for?
The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.
How should I store a regulator between dive trips?
Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.
What configurations is the Mares HR 2nd Stage designed for?
The HR 2nd Stage is built for stage, sidemount, rear main, reserve, or hard breathing configuration, and Mares designed it specifically for technical and cave diving. Its ultralight technopolymer body and flexible mounting make it a common choice for divers who run stage bottles or sidemount rigs rather than a single standard recreational setup.
Can I adjust the breathing effort on the HR 2nd Stage while wearing gloves?
Yes, the HR 2nd Stage has a large side knob dedicated to breathing effort adjustment, and Mares sized it to be usable even with thick neoprene gloves. This lets a diver fine-tune breathing resistance in the water without needing bare-hand dexterity.
What is the Mares HR 2nd Stage body made of?
The body is made from technopolymer, which Mares uses to keep the second stage ultralight while still including important functional features like the breathing effort knob and oversized purge button.
Does the Mares HR 2nd Stage come with a hose?
The listing notes a Miflex XT-Tech hose. Contact us to confirm exactly what ships in the box.
