Product Information

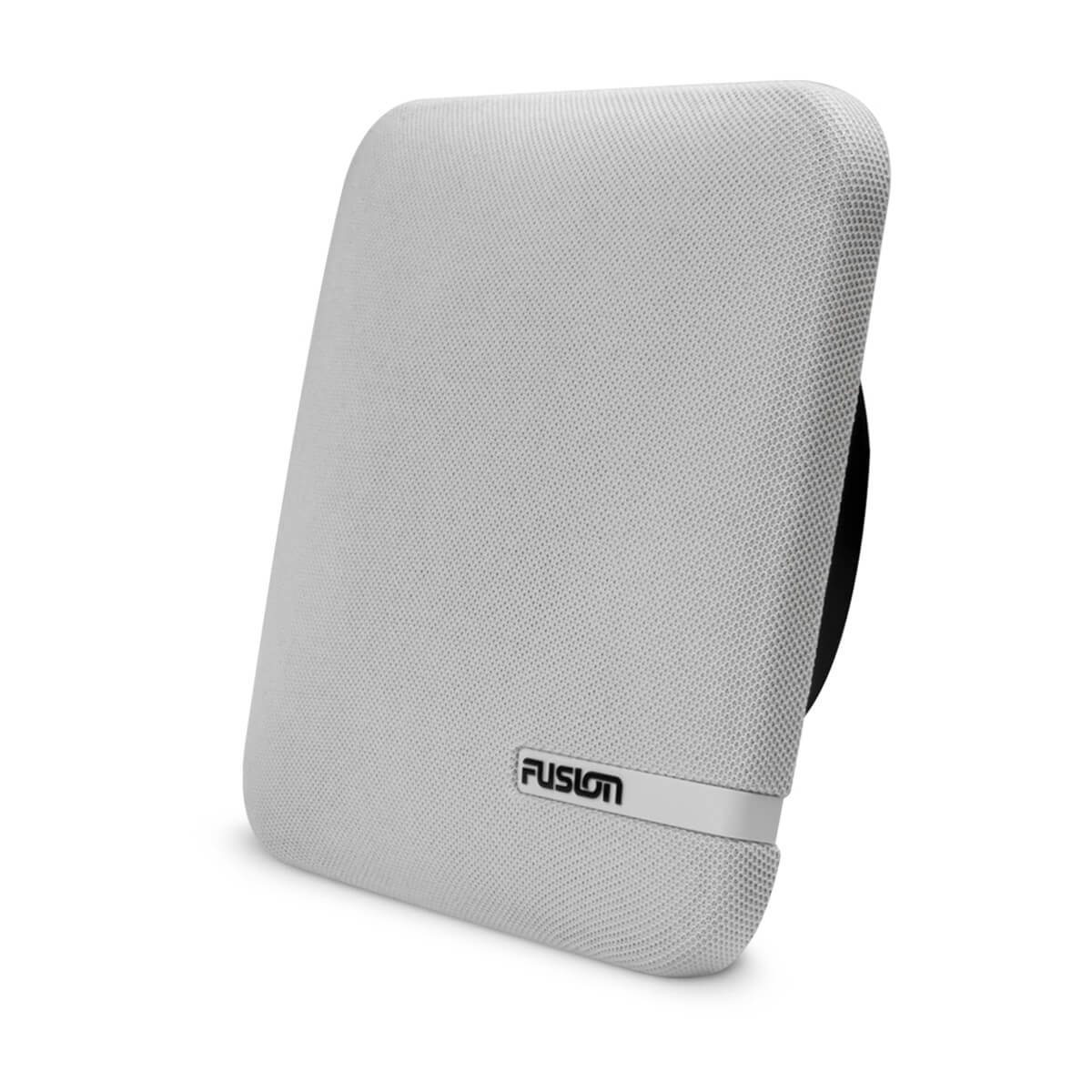

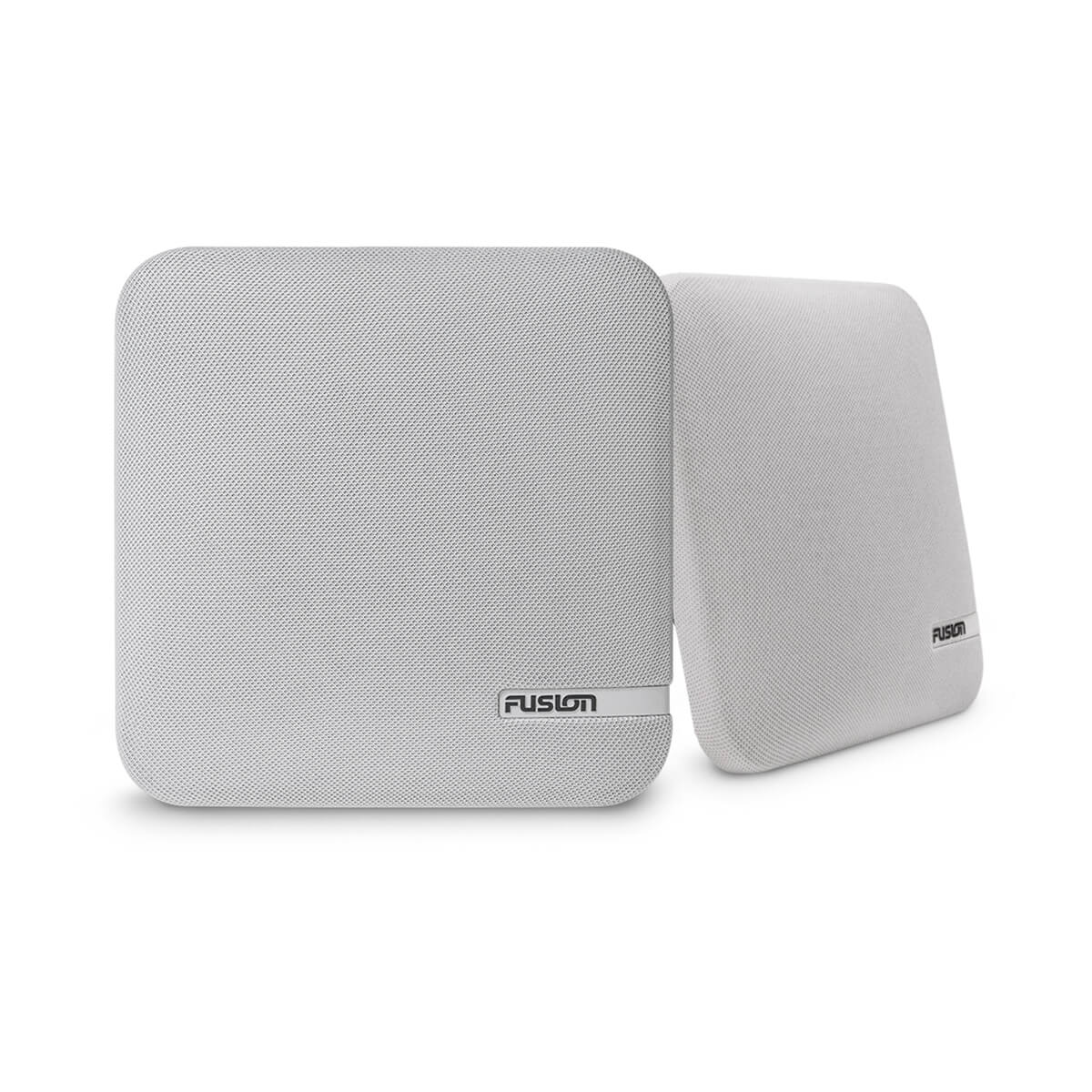

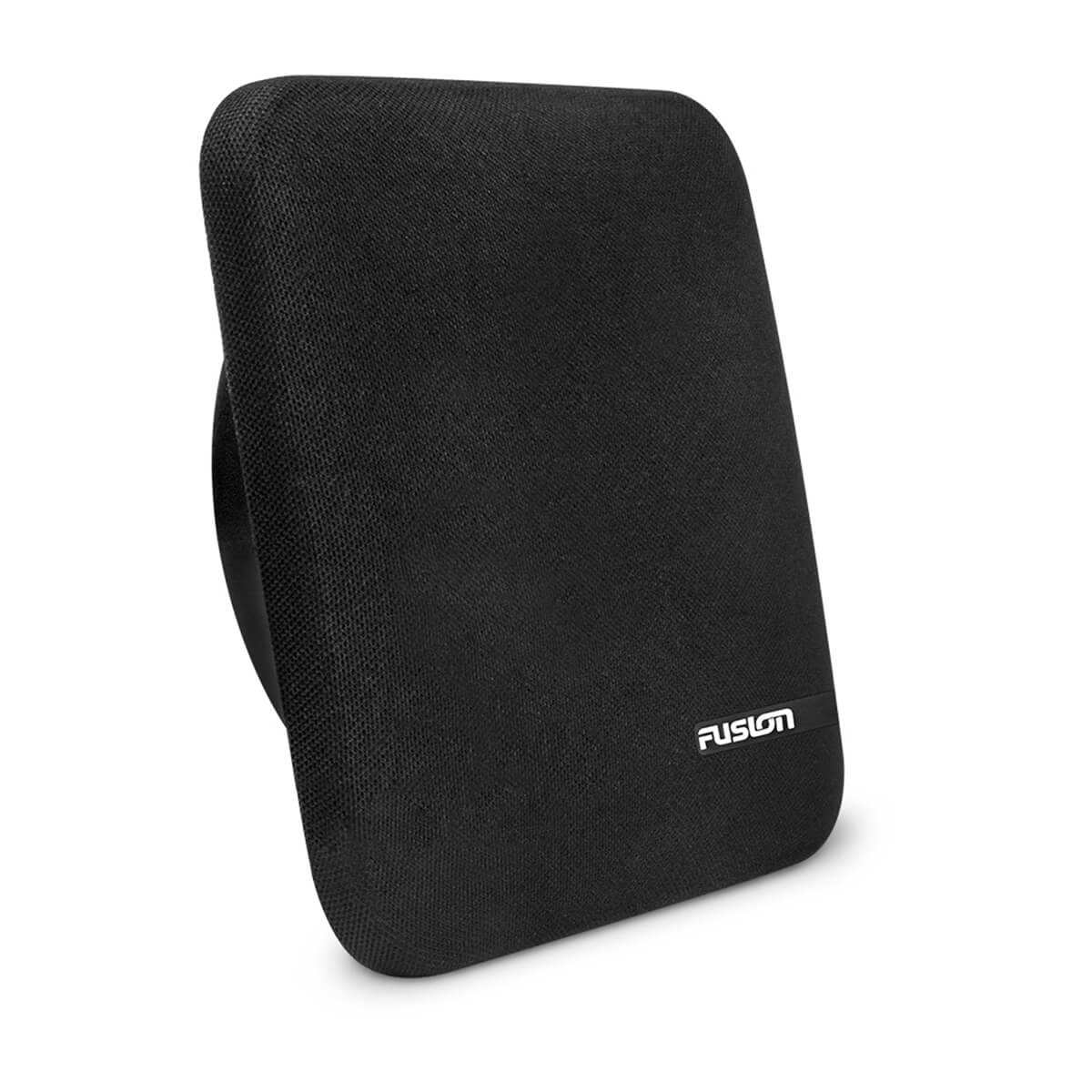

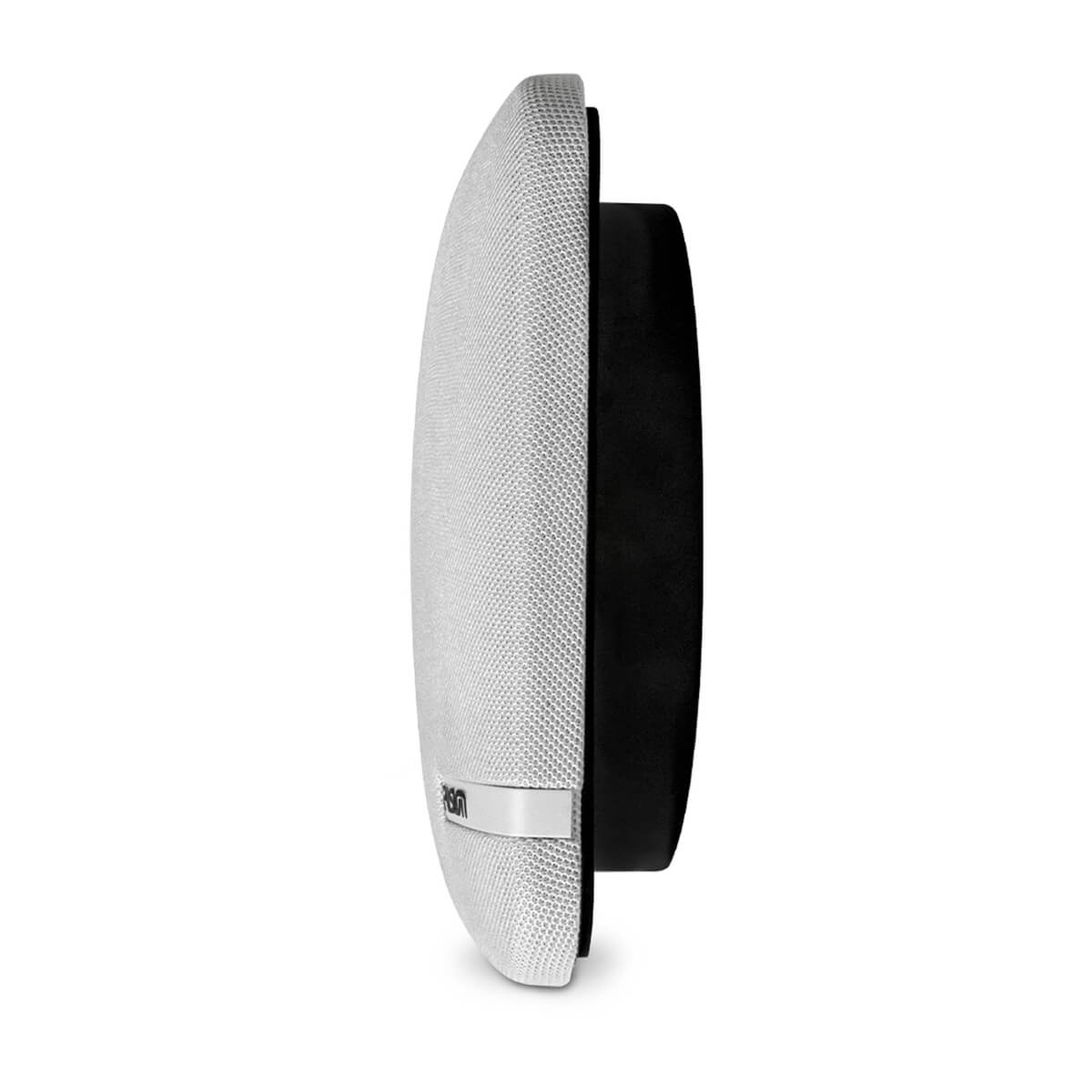

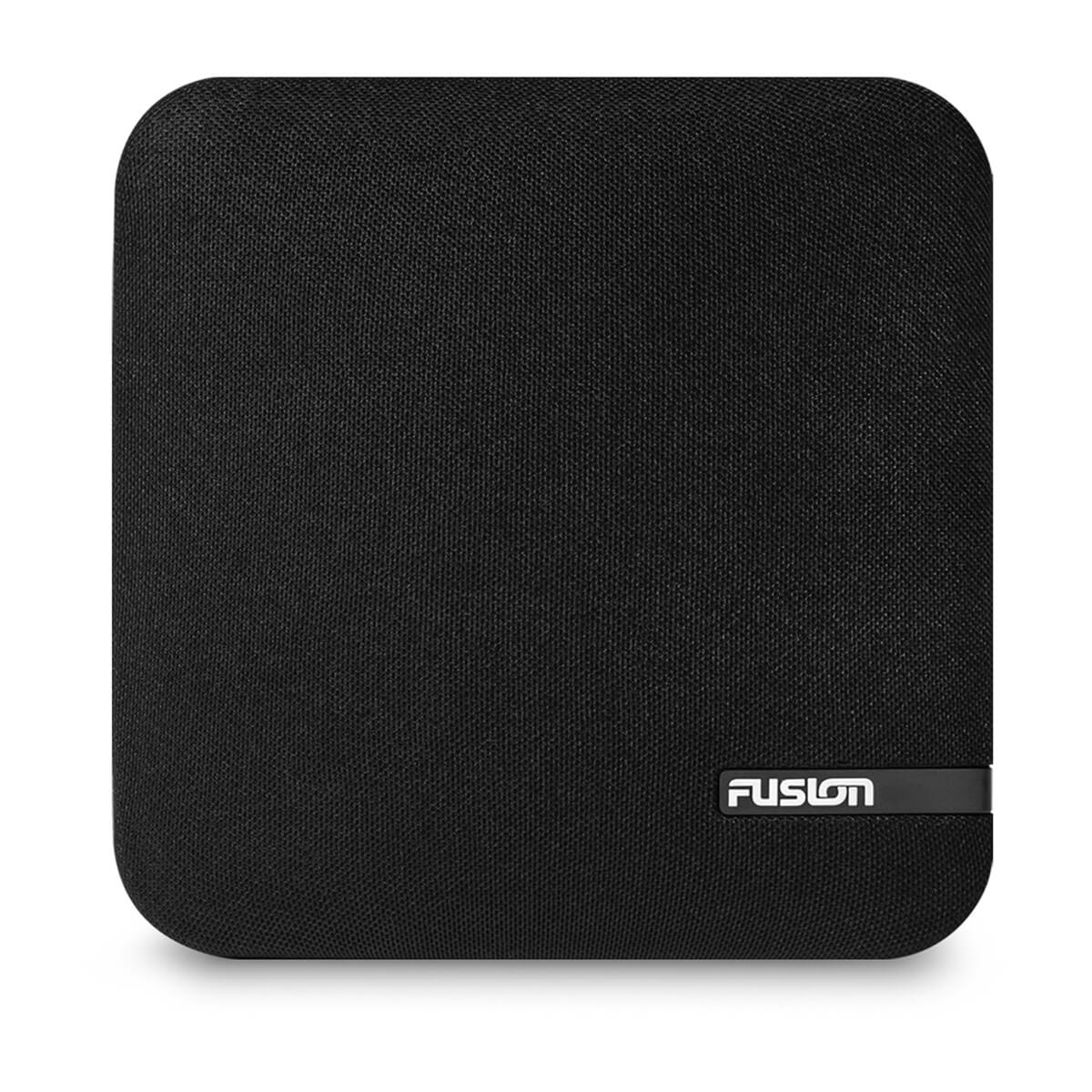

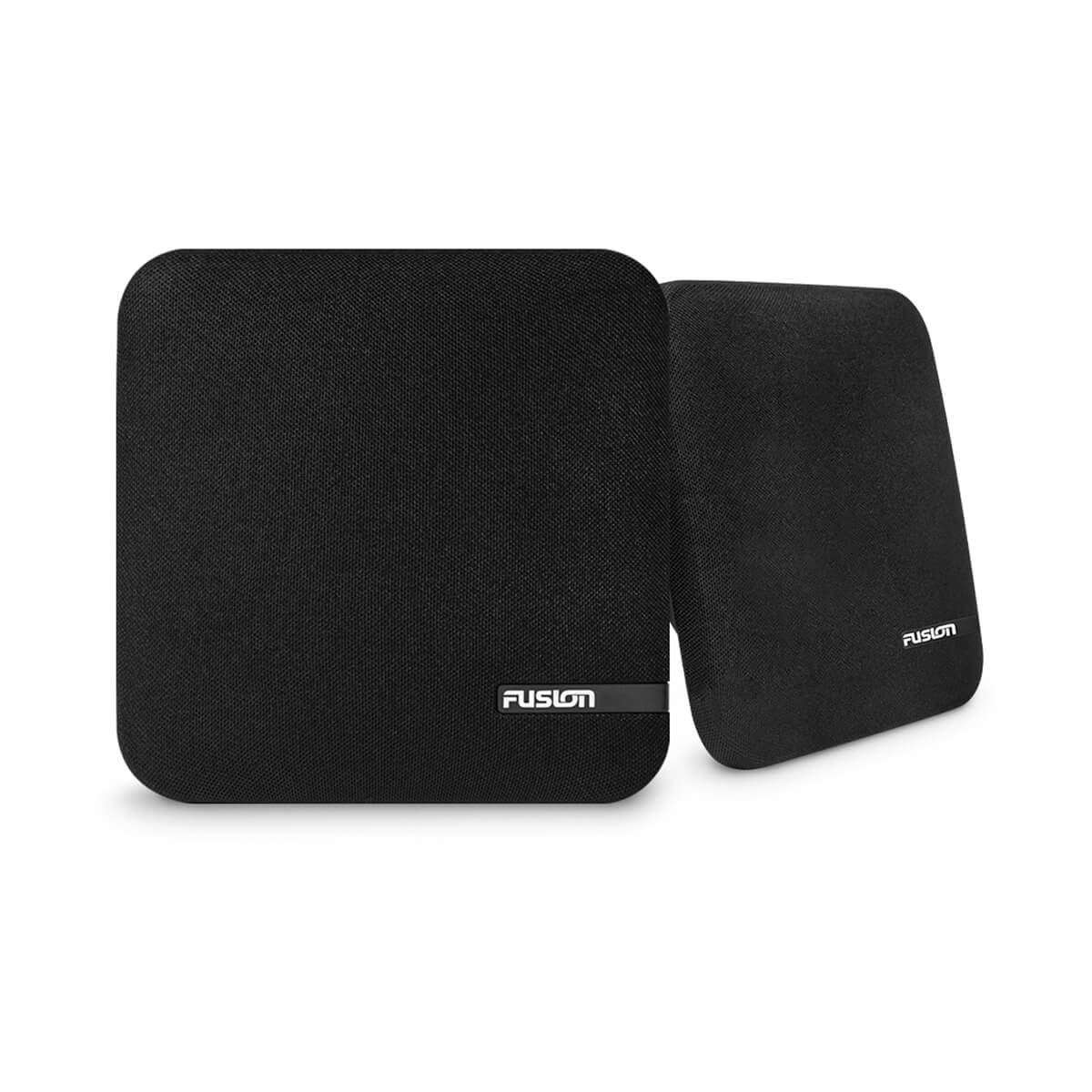

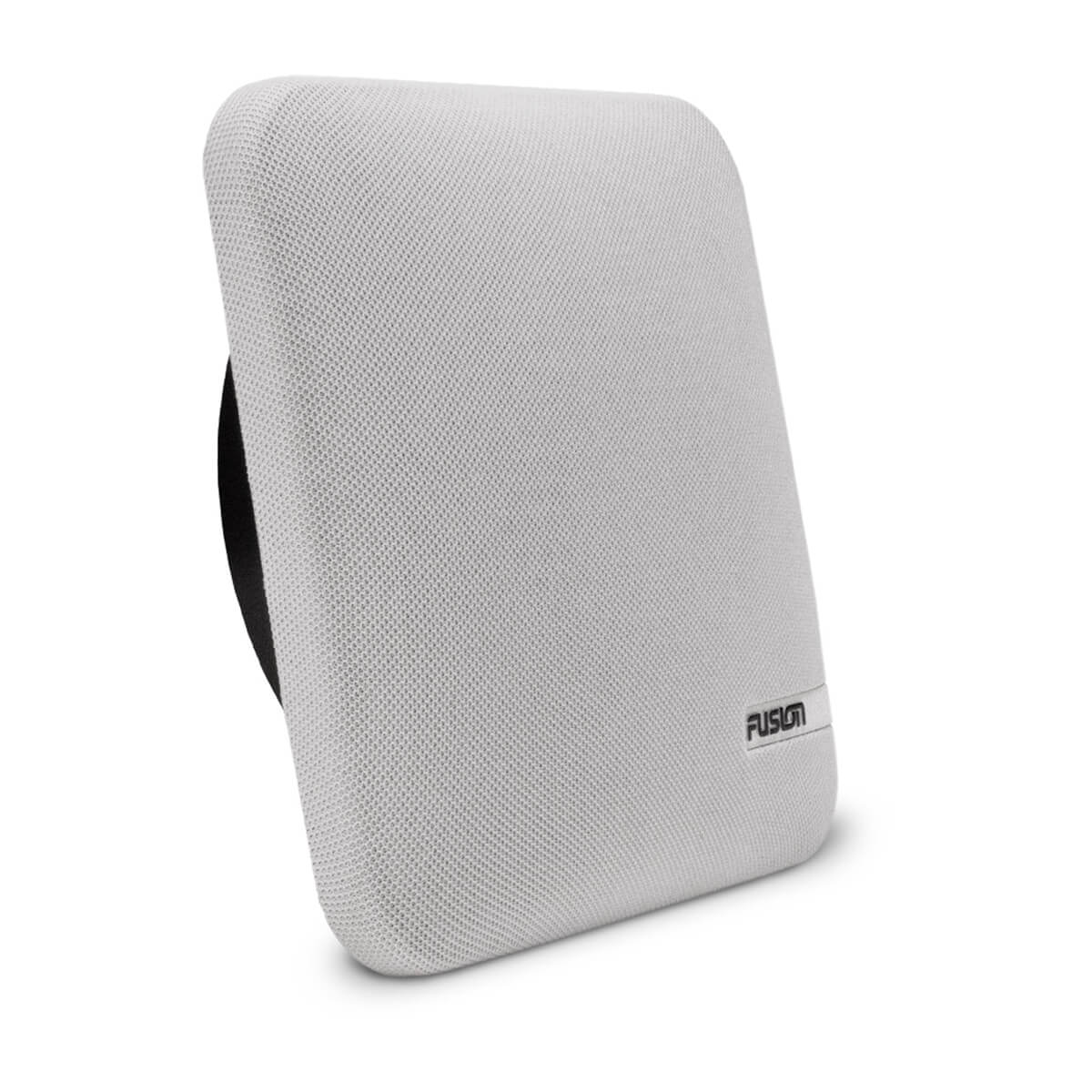

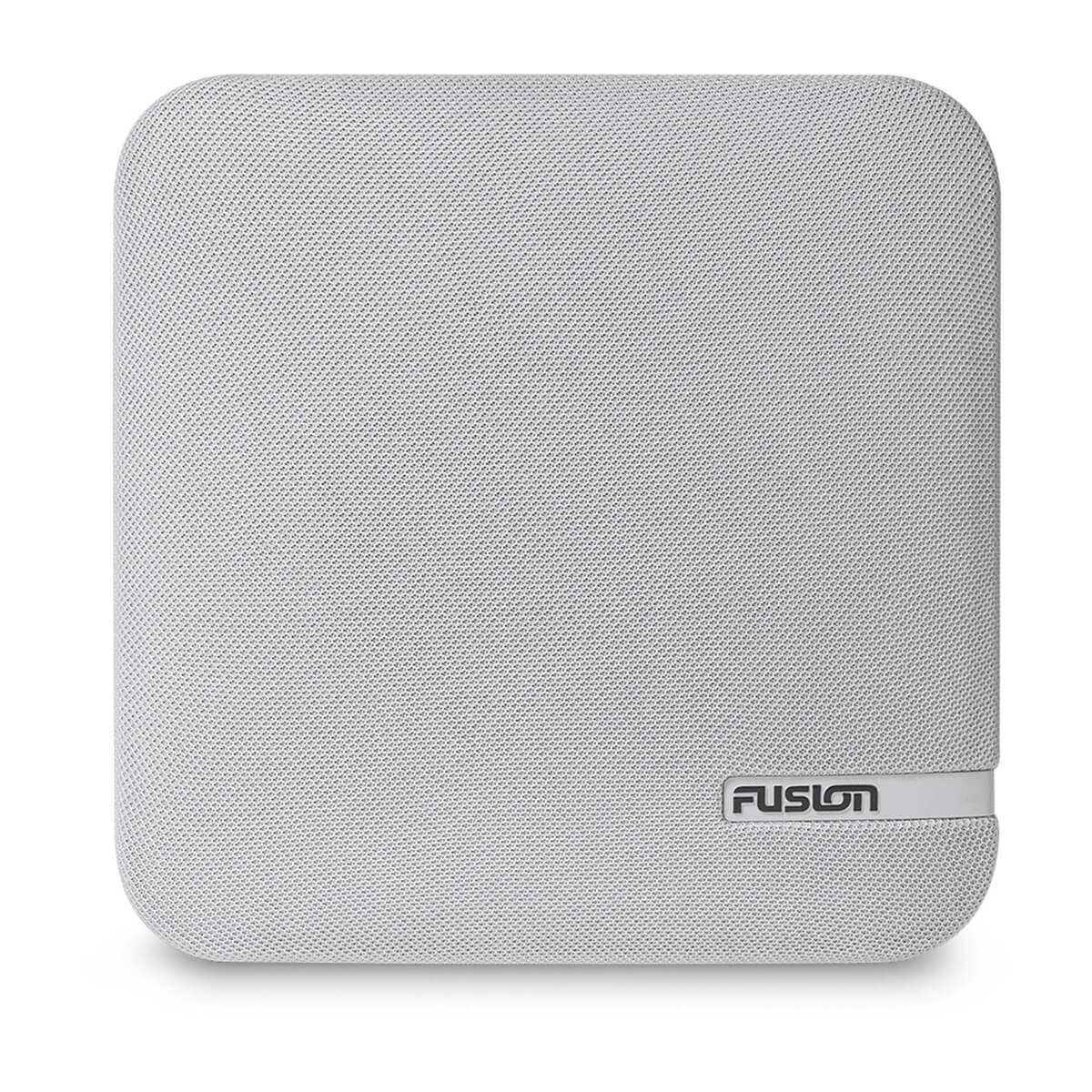

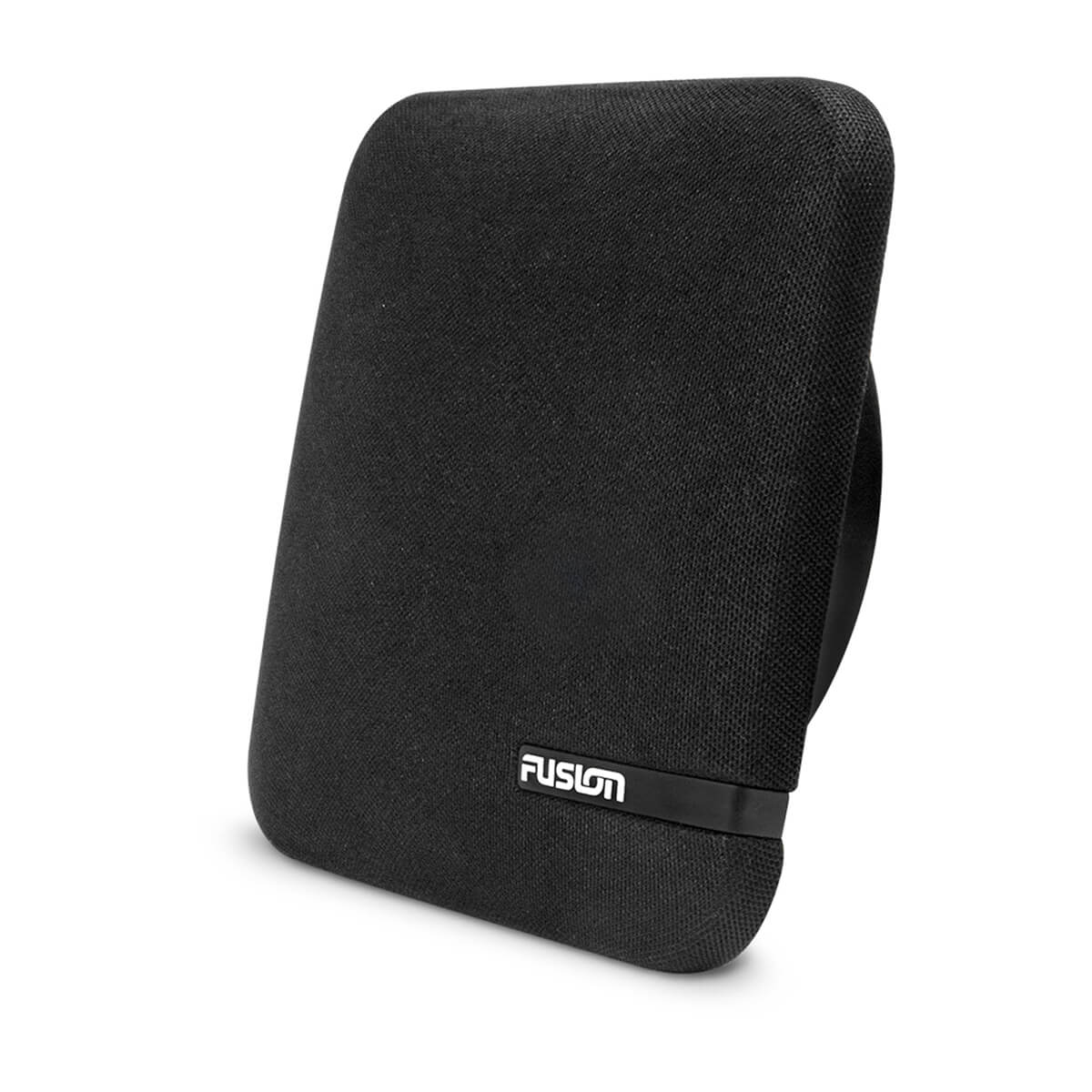

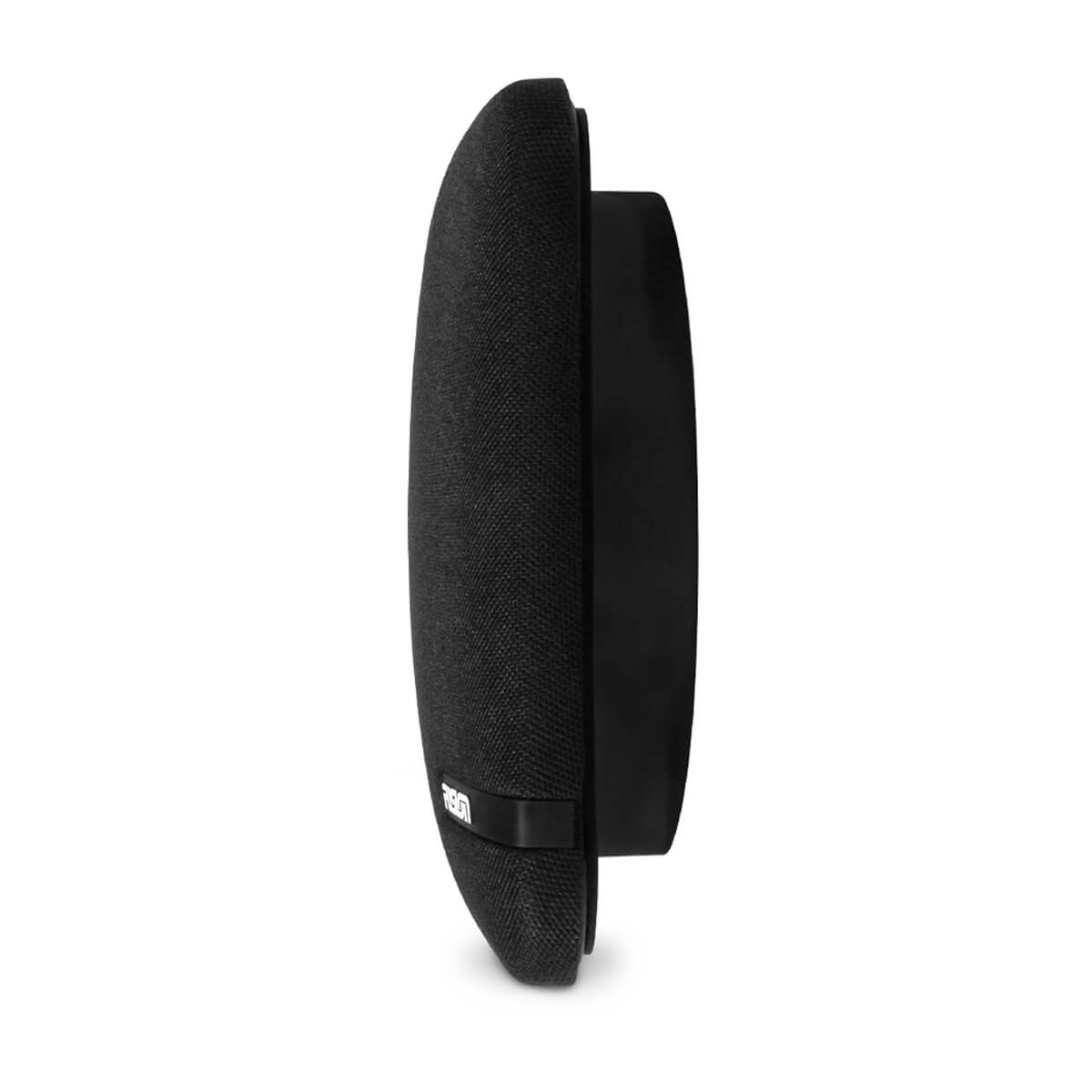

The Fusion SM Series 6.5 in Shallow-Mount Marine Speakers are a pair of 100-watt full-range marine speakers that need only 0.94 inch (24 mm) of mounting depth. They are intended for panels where a conventional speaker basket will not fit.
Each speaker places an optimized 3-inch driver inside a tuned, sealed enclosure, which protects the components and removes the need for a rear speaker cup. The 5.12-inch (130 mm) mounting diameter suits most existing 6.5-inch cutouts, and the front is finished in acoustic fabric with rounded edges.
The speakers are IP65 rated and tested against salt fog and UV, with 84 dB sensitivity and a 150 Hz-20 kHz frequency response at 4 ohms. Accessory mounting spacers are sold separately, and the speakers carry a 1-year warranty.
- Pair of 6.5 in full-range shallow-mount marine speakers, 100 W
- Mounting depth of only 0.94 in (24 mm)
- Tuned, sealed enclosure with optimized 3 in driver
- Fits most 6.5 in cutouts (5.12 in mounting diameter)
- Acoustic fabric finish with rounded edges
- IP65 water and dust rating
- Classic White or Classic Black
- 1-year warranty
| Brand | Fusion |
| Model | SM Series 6.5 in Shallow-Mount Marine Speaker |
| Part Numbers | 010-02263-10 (Classic White); 010-02263-11 (Classic Black) |
| UPC | 753759236595 (Classic White); 753759236601 (Classic Black) |
| Sold As | Pair |
| Color | White: Classic White; Black: Classic Black |
| Speaker Type | Full range |
| Size | 6.5 in |
| Peak Power | 100 W |
| Sensitivity (1 W / 1 m) | 84 dB |
| Frequency Response (+/- 3 dB) | 150 Hz-20 kHz |
| Nominal Impedance | 4 ohm |
| Cone Material | Polypropylene cone with rubber surround |
| Diameter | 6.1 in (155 mm) |
| Depth | 1.81 in (46 mm) |
| Weight | 1.21 lb (0.55 kg) |
| Mounting Diameter Clearance | 5.12 in (130 mm) |
| Mounting Depth Clearance | 0.94 in (24 mm) |
| Frontal Grille Protrusion | 0.98 in (25 mm) |
| Water Rating | IP65 |
| Speaker Connections | Spade connectors |
| Compass-Safe Distance | 96.5 in (245 cm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| In the Box | Pair of speakers, eight stainless mounting screws (6 gauge x 1 in) |
| Warranty | 1 year |
