Product Information
The Sherwood SR2 1st Stage Only Regulator is a first stage regulator sold on its own, available in DIN and Yoke connection options, built as a completely dry and environmentally sealed piston first stage that still includes a depth compensation mechanism. Sherwood describes this design as the only Flow Through Piston Regulator that is both environmentally sealed and internally dry while retaining depth compensation.
Who it is for
This listing is for divers who need a Sherwood SR2 first stage by itself, whether to replace an existing first stage, build a custom regulator setup, or choose between a DIN or Yoke connection to match their tank valve.
Key details
- Completely dry and environmentally sealed first stage
- Five low pressure ports arranged on a 360 degree swivel
- Two high pressure ports
- Two-piece piston for optimum balance and intermediate pressure control
- Three Pin Link (3PL) system that transfers environmental pressure to the piston for consistent airflow
Compatibility and sizing

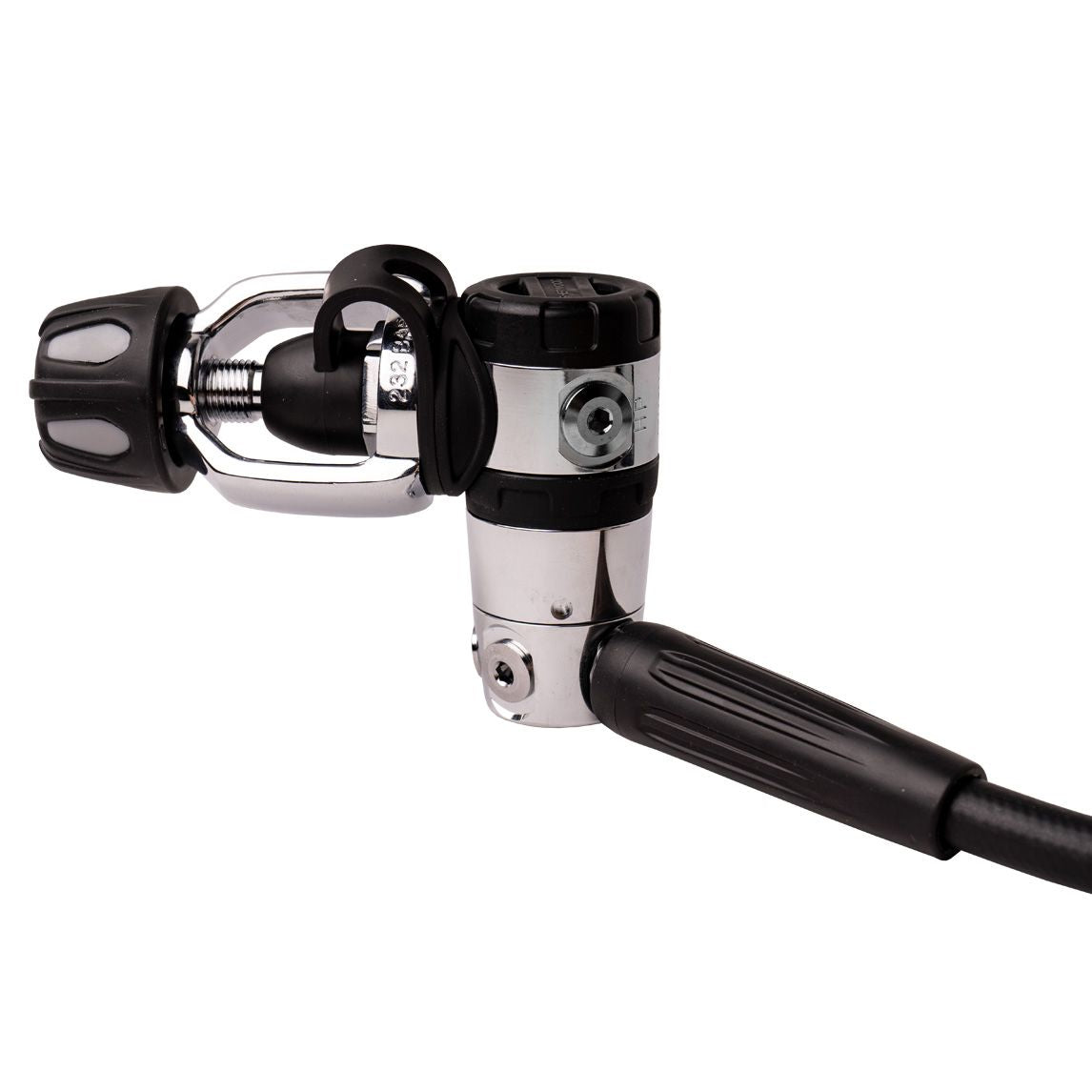

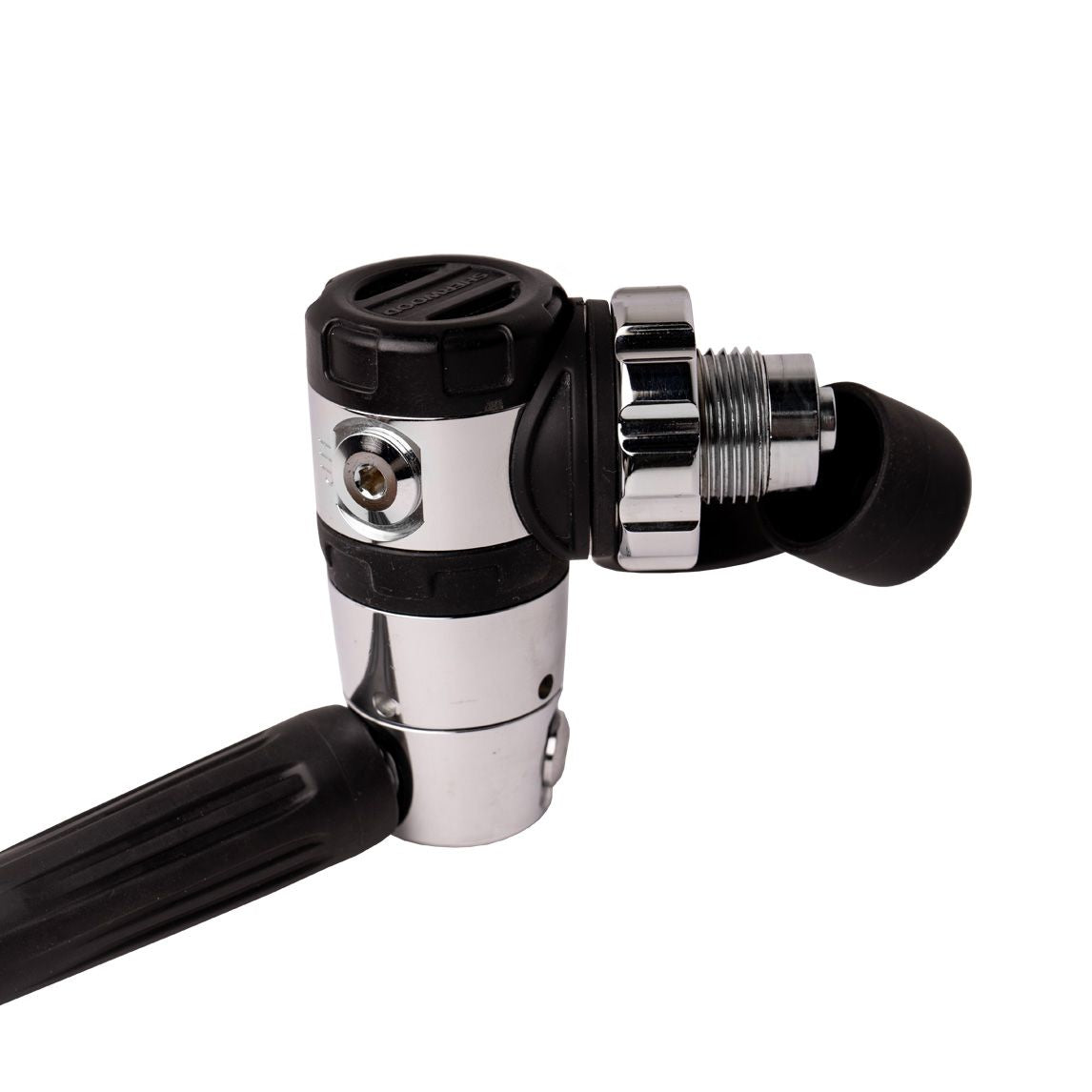

The SR2 1st Stage Only is offered in two connection types: DIN (SKU SRB-1005D, barcode 697777806753) and Yoke, also called A-Clamp (SKU SRB-1005, barcode 697777806746). Choose the connection that matches your tank valve.
DiveCatalog.com is an authorized Sherwood dealer and a dive shop in Irvine, California, serving divers since 2003. Call 888-701-4017 or start a chat if you have questions about fit or connection type before you order.
- Environmentally sealed design: The first stage is completely dry and environmentally sealed for protection from water intrusion.
- Depth compensation retained: Sherwood describes the SR2 as the only Flow Through Piston Regulator that is both environmentally sealed and internally dry while still incorporating a depth compensation mechanism.
- Five low pressure ports: Low pressure ports are arranged on a 360 degree swivel for hose routing flexibility.
- Two high pressure ports: Two high pressure ports are provided on the first stage.
- Two-piece piston: A two-piece piston design supports optimum balance and intermediate pressure control.
- Three Pin Link (3PL) system: The 3PL system transfers environmental pressure to the piston for consistent airflow.
- Connection options: Available in DIN and Yoke (A-Clamp) connection types.
| Brand | Sherwood |
| Product Type | Regulator, First Stage Only |
| Piston Type | Two-piece piston |
| Low Pressure Ports | Five, on a 360 degree swivel |
| High Pressure Ports | Two |
| Sealing | Completely dry and environmentally sealed |
| Pressure Transfer System | Three Pin Link (3PL) |
| Connection Type Options | DIN, Yoke (A-Clamp) |
| SKU, DIN | SRB-1005D |
| Barcode, DIN | 697777806753 |
| SKU, Yoke | SRB-1005 |
| Barcode, Yoke | 697777806746 |
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How often does a scuba regulator need servicing?
Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.
How do I rinse and care for a regulator after diving?
Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.
Can I fly with a scuba regulator?
Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.
Can I use my regulator with nitrox?
Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.
What is the difference between DIN and yoke regulators?
A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.
What is the octopus regulator for?
The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.
How should I store a regulator between dive trips?
Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.
Does the Sherwood SR2 1st Stage Only Regulator include a second stage?
No, this listing is for the first stage only. It does not include a second stage, so it is intended for divers who already have a second stage to pair with it or who are assembling a custom regulator setup.
What is the difference between SKU SRB-1005 and SRB-1005D?
SRB-1005 is the Yoke, or A-Clamp, connection version of the SR2 first stage, with barcode 697777806746. SRB-1005D is the DIN connection version, with barcode 697777806753. Choose based on the connection your tank valve requires.
How many ports does the SR2 first stage have?
The SR2 first stage has five low pressure ports arranged on a 360 degree swivel plus two high pressure ports. This port layout allows multiple hose connections for the second stage, octopus, inflator hoses, and gauges.
