Product Information

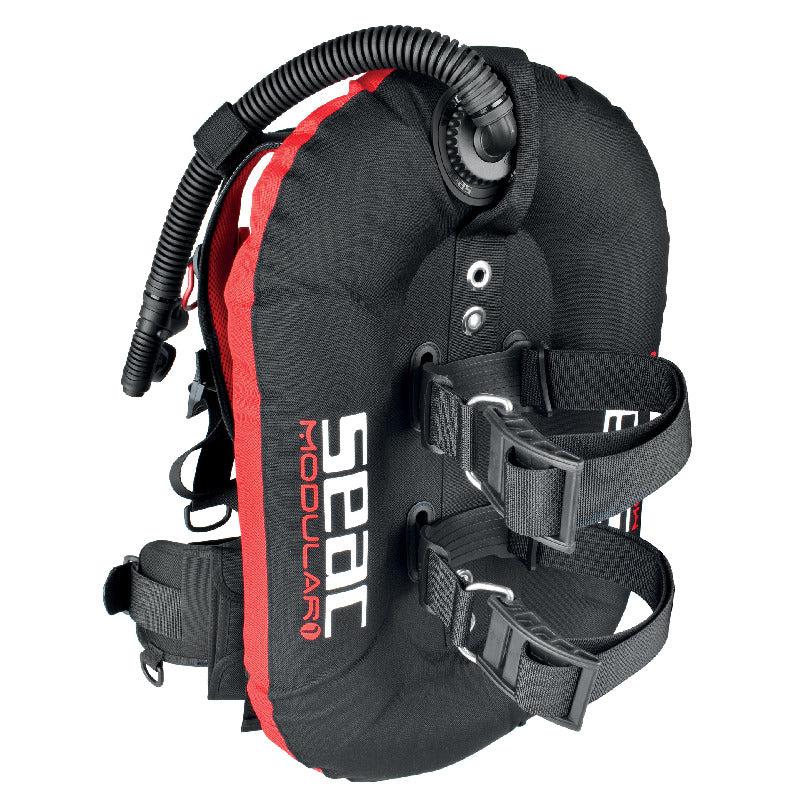

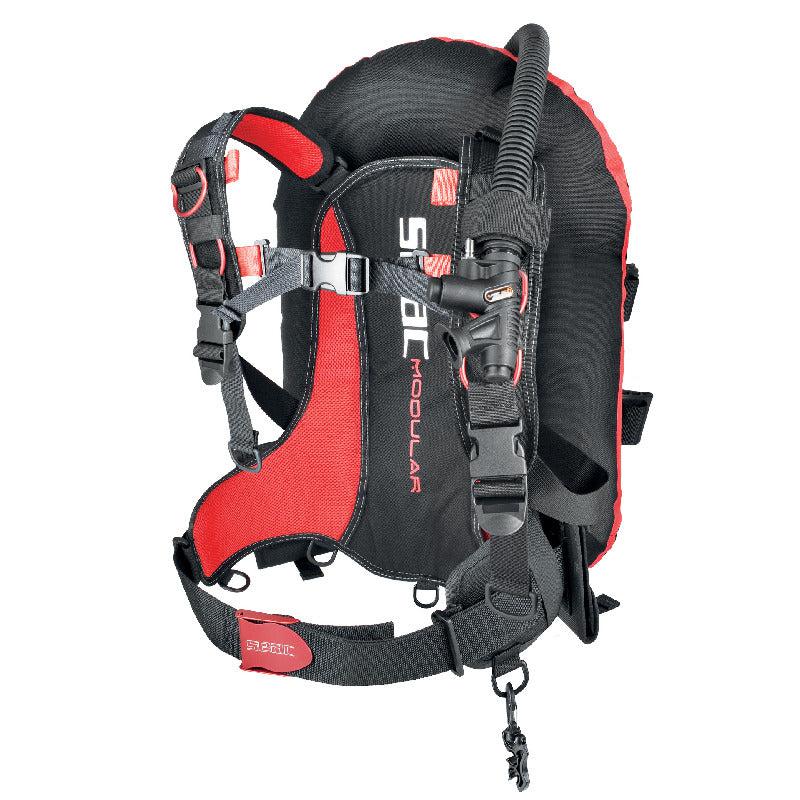

The SEAC Modular BCD is a fully modular, rear-bladder wing BCD built on a soft back plate with a removable steel core, where the harness, bladder, back plate, and pockets can all be swapped out or replaced on their own. It uses a 13.6-liter double (donut) bladder wing with a 400-micron polyurethane air chamber and a Cordura 1000 denier outer bag, and the entire rig weighs 3 kg in one universal size.
Who it is for
This BCD suits divers who want to build and reconfigure their own rig rather than buy a fixed jacket or back-inflate BCD, including travel divers who need a setup that disassembles small and light, and technical or recreational divers who plan to swap back plates, pockets, or bladders as their diving changes. Because the back plate uses standard-pitch eyelets, it also suits divers who already own compatible SEAC Modular parts.
Key details
- Bladder: 13.6-liter double/donut wing with a 400-micron polyurethane air chamber and Cordura 1000 denier outer bag

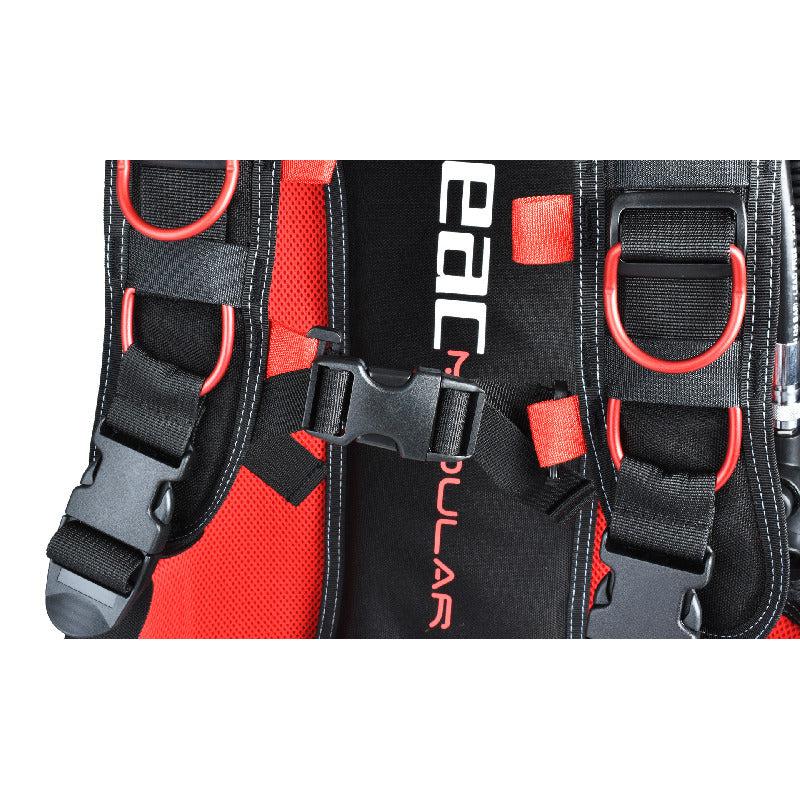

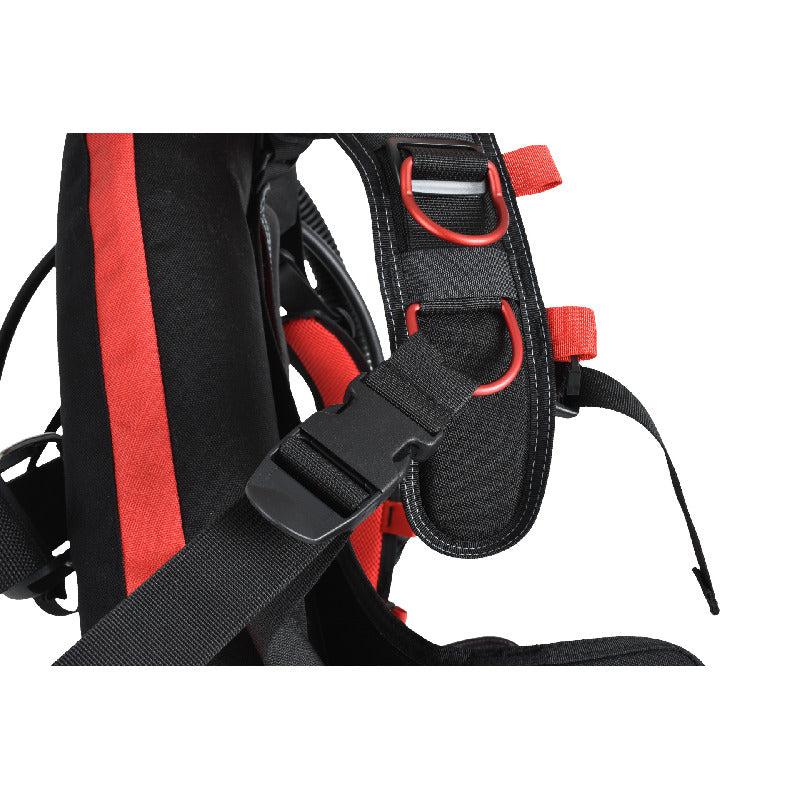

- Harness: super-resistant ballistic nylon and 3D mesh, with shoulder straps on a Frame-to-Back fastening system
- Back plate: soft back plate with a removable steel core and standard-pitch eyelets for alternate back plates
- Weight pockets: two pockets, 2 kg capacity each, with Velcro quick-release
- Hardware: anodized aluminum D-ring and belly buckle
- Total weight: 3 kg, one universal size
Compatibility and sizing

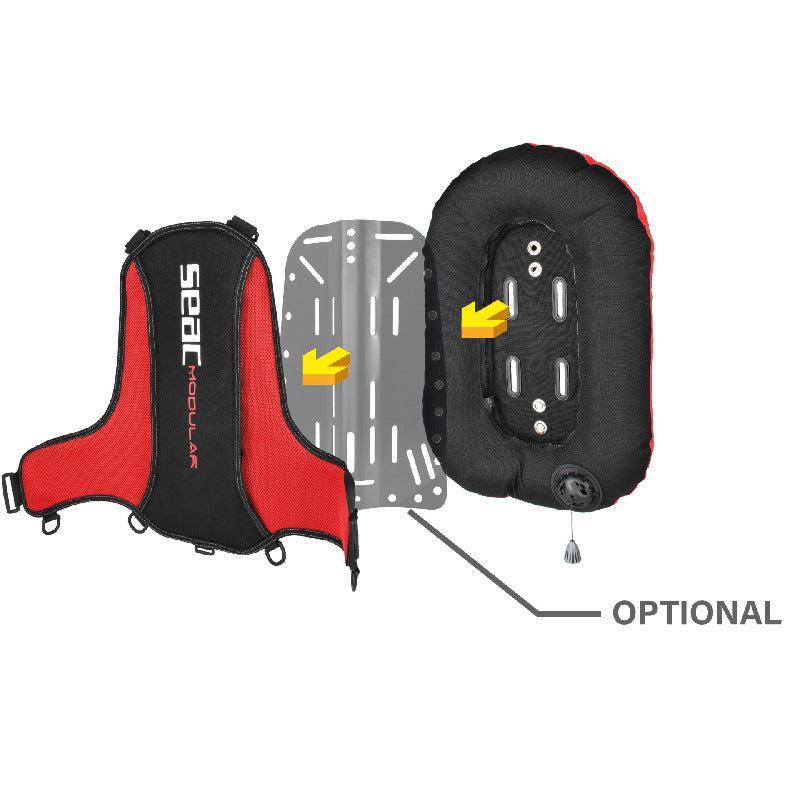

The soft back plate uses standard-pitch eyelets so it accepts alternate back plates or backpacks fastened with straps or bolts, and the harness's removable shoulder straps let the rig be reconfigured rather than sized. The Modular line also includes a multipurpose accessory and weight pocket, a Q&S quick-release weight pocket, and an aluminum backpack. SEAC also offers a Modular R.E.V. version that adds a Rapid Exhaust Valve on the corrugated inflator hose.
What's in the box
- Harness with removable shoulder straps and soft back with removable steel core
- Double bladder wing, 13.6 L
- Two weight pockets, 2 kg each, with Velcro quick-release
- D-ring
- Anodized aluminum belly buckle
DiveCatalog.com is an authorized SEAC dealer and a dive shop in Irvine, California, open since 2003. Call or chat with us at 888-701-4017 if you have questions about fit, back plate swaps, or compatibility with other Modular accessories before you order.
- Fully modular build: harness, bladder, back plate, and pockets are all interchangeable so you can adjust the BCD's structure for different diving situations.
- Standard-pitch eyelets: the soft back plate accepts different back plates or backpacks fastened with straps and bolts, with padding to prevent clamp irritation against the back.
- Travel-ready weight: disassembles quickly, packs small, and weighs 3 kg total.
- Frame-to-Back shoulder straps: the shoulder straps use a Frame-to-Back fastening system.
- Integrated weight pockets: two trim pockets rated to 2 kg each with a Velcro flap for quick release.
- Removable crotch strap: included on the harness for a more secure fit.
- Durable fabrics: Cordura 1000 denier outer bag paired with a 400-micron polyurethane air chamber for the bladder, and ballistic nylon and 3D mesh for the harness.
- Anodized aluminum hardware: D-ring and belly buckle are anodized aluminum.
- Removable steel-core back plate: the soft backpack houses a removable steel core for structure.
- Two build options: available as the standard Modular or as the Modular R.E.V. with a Rapid Exhaust Valve on the corrugated inflator hose.
| Bladder capacity | 13.6 liters, double/donut bladder wing |
| Air chamber material | 400 micron polyurethane |
| Outer bag fabric | Cordura 1000 denier |
| Harness fabric | Super-resistant ballistic nylon and 3D mesh |
| Back plate | Soft back plate with removable steel core; standard-pitch eyelets for alternate back plates |
| Weight pockets | Two pockets, 2 kg each, Velcro quick-release |
| Inflator position | Elbow |
| Hardware | Anodized aluminum D-ring and belly buckle |
| Crotch strap | Removable |
| Total weight | 3 kg |
| Size | One size |
| Certification | CE marked |
| Color | Black/Red |
- Harness with removable shoulder straps and soft back with removable steel core
- Double bladder wing, 13.6 L
- Two weight pockets, 2 kg each, with Velcro quick-release
- D-ring
- Anodized aluminum belly buckle
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How should a scuba BCD fit?
A BCD should fit snugly enough that it does not ride up toward your ears when inflated, while still letting you breathe fully. Fasten the waist and cummerbund first, then adjust the shoulder straps so the tank sits close to your back and the shoulders cannot slide off. With the BCD fully inflated at the surface you should still be able to take a deep, comfortable breath; if it squeezes your chest, loosen it or move up a size.
How do I rinse and care for a BCD after diving?
Rinse the outside in fresh water and also flush the inside of the bladder, because salt water gets in through the inflator and dump valves. Fill the bladder roughly a third full of fresh water through the oral inflator, slosh it around, then drain it out through the inflator and each dump valve. Hang it to dry out of direct sunlight and store it partially inflated so the bladder walls do not stick together.
Should I use integrated weights or a weight belt?
Integrated weight pockets carry the lead in the BCD itself, which many divers find more comfortable and easier on the hips, while a weight belt keeps the weight independent of your BCD. Either way, you must be able to release your ditchable weight quickly with one hand, and your buddy should know how your system releases. Non-ditchable trim pockets are useful for balance but should never hold weight you might need to drop.
How do I pack a BCD for travel?
Make sure the BCD is completely dry inside and out before packing so it does not mildew in transit. Remove all weights, deflate it fully, and fold or roll it around softer items such as a wetsuit to cushion the inflator and valves. Avoid hard creases in the air cell, and unpack and air it out as soon as you arrive.
When does a BCD need to be serviced?
Follow the service interval in the manufacturer's manual, which is commonly an annual inspection alongside the rest of your life-support gear. Have the inflator, dump valves, and bladder checked any time the inflator sticks, free-flows, feels rough, or the BCD holds air poorly. Between services, confirm that it inflates and deflates properly as part of every pre-dive check.
What is the difference between a jacket-style and a back-inflate BCD?
A jacket-style BCD holds air in panels that wrap around your sides as well as your back, while a back-inflate BCD keeps the entire air cell behind you. Jacket styles tend to feel very stable and upright at the surface, and back-inflate styles keep the chest clear and are often preferred for horizontal trim underwater. Neither is objectively better, so treat it as a fit and preference decision and try both if you can.
Will my BCD fit any scuba tank?
Most recreational BCDs use an adjustable cam band sized for common single-cylinder diameters, so standard aluminum and steel tanks generally work. Re-check the band tension after the first wetting, because webbing can relax slightly and let the tank shift. If you dive doubles or unusual cylinder diameters, confirm compatibility with the manufacturer before assuming it will hold.
What is the difference between the SEAC Modular and the SEAC Modular R.E.V.?
The Modular R.E.V. (code 0420038) adds a Rapid Exhaust Valve on the corrugated inflator hose.
Can I replace the back plate on the SEAC Modular BCD?
Yes. The soft back plate has standard-pitch eyelets, so it can accept a different back plate or backpack fastened with straps and bolts, which is the core idea behind the Modular system. This lets you swap the back plate as your diving setup changes without replacing the harness or bladder.
How much weight can the SEAC Modular's pockets hold?
The two integrated trim pockets on the SEAC Modular each hold up to 2 kg and release with a Velcro quick-release flap. If you need to carry more integrated weight, the Modular accessory line includes a Q&S quick-release pocket rated for higher capacity that fits the same harness.
Does the SEAC Modular BCD come in multiple sizes?
No, the SEAC Modular is built in one universal size weighing 3 kg. Fit is adjusted through the harness rather than a size chart: the shoulder straps are removable and the whole rig is modular, so components can be reconfigured instead of swapped for a different size.
