Ocean Reef IRON SYSTEM - Diving Full Face Mask w/ INT 2nd Stage & SAV & Hose
Ocean Reef IRON SYSTEM - Diving Full Face Mask w/ INT 2nd Stage & SAV & Hose - Red w/ 1st Stage INT / ML (Medium Large) is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at In Store
Ocean Reef integrated dive mask sizing. Imperial in bold, metric underneath.
| Size | Nose bridge to chin in · cm |
|---|---|
| S/M |
3.9–4.5 10–11.5 |
| M/L |
>4.5 >11.5 |
How Ocean Reef measures
It is essential to choose a suitable size. You can choose between size S/M (for adults with smaller faces, women and children over 12 years old) and size M/L (for an adult male, or larger faces).
- Nose bridge to chin: Measure the distance between the bridge at the top of your nose and the bottom of your chin.
- Try-on: There are two different size categories on the chart: Small/Medium and Medium/Large. If the measurements fall within the both ranges, then the diver should technically be able to wear either full face mask (M/L or S/M), and in that case should try on a mask to select the best fit. Once the mask is tight on your face, if there is NO SPACE between your chin and the silicone skirt of the mask, you've got the right size.
Source: Ocean Reef’s size chart (original chart). Values in the second unit come from Ocean Reef’s own chart where it prints them.
Ocean Reef IRON SYSTEM - Diving Full Face Mask w/ INT 2nd Stage & SAV & Hose - Red w/ 1st Stage INT / ML (Medium Large) is backordered and will ship as soon as it is back in stock.
-
DiveCatalog.com Silicone Frameless Dive Mask
$59.95$6.00
1 -
DiveCatalog.com Retro Oval Dive Mask Without Nose Pocket Compensator
$44.95$4.50
1 -
DiveCatalog.com Classic Oval Dive Mask Silicone
$44.95$4.50
1 -
DiveCatalog.com Metal Coil Lanyard with Snap Clips
$39.95$4.00
1 -
DiveCatalog.com Junior Rubber Oval Dive Mask (15% smaller)
$34.95$3.50
1
-
DiveCatalog.com Compact Dive Knife
$34.95$3.50
1 -
DiveCatalog.com Dive Retractor
$34.95$3.50
1 -
DiveCatalog.com Auto Lock Retractor 90cm - Black
$34.95$3.50
1 -
DiveCatalog Dive Essentials - Auto-Rebound Style Retractor
$39.95$4.00
1 -
DiveCatalog Quick Release Coil Lanyard with Buckle Scuba Essentials
$29.95$3.00
1 -
DiveCatalog.com Air Gun - Blue
$27.95$2.80
1 -
DiveCatalog.com Folding Dive Knife
$32.95$3.30
1 -
DiveCatalog.com Diving Double Layer Slate Palm Size (5x7.25") with Pencil
$26.95$2.70
1 -
DiveCatalog.com Line Cutter
$24.95$2.50
1 -
DiveCatalog.com Semi-Dry Snorkel
$23.95$2.40
1 -
DiveCatalog.com Nylon Weight Belt
$22.95$2.30
1 -
DiveCatalog.com Finger Reel with Bolt Snap
$26.95$2.70
1 -
Nocturnal Lights Adjustable Goodman Handle with 1 / 4 Mounting Points HM.GM
$47.99$4.80
1 -
Nocturnal Lights Triple Ball Joint Clamp standard 1 balls BJCLAMP.TRIPLE
$27.99$2.80
1 -
Nocturnal Lights Ball Joint Clamp fits all standard 1 balls BJCLAMP.DOUBLE
$23.99$2.40
1 -
Nocturnal Lights T-base Connector for Ikelite quick release handles TBASE.IKEQR
$23.99$2.40
1 -
Nocturnal Lights YS Arm Adapter for M700 Lights ADP.M7YS
$19.99$2.00
1 -
Nocturnal Lights Ball Joint Adapter for Underwater Ball Joint Arm Strobe and Lighting Systems
$19.99$2.00
1 -
Nocturnal Lights 45 Degree Ball Joint Adapter with T-base Slot BJADAPTER.TBASE45
$18.99$1.90
1 -
Nocturnal Lights 90 Degree Ball Joint Adapter with T-base Slot BJADAPTER.TBASE90
$15.99$1.60
1
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information

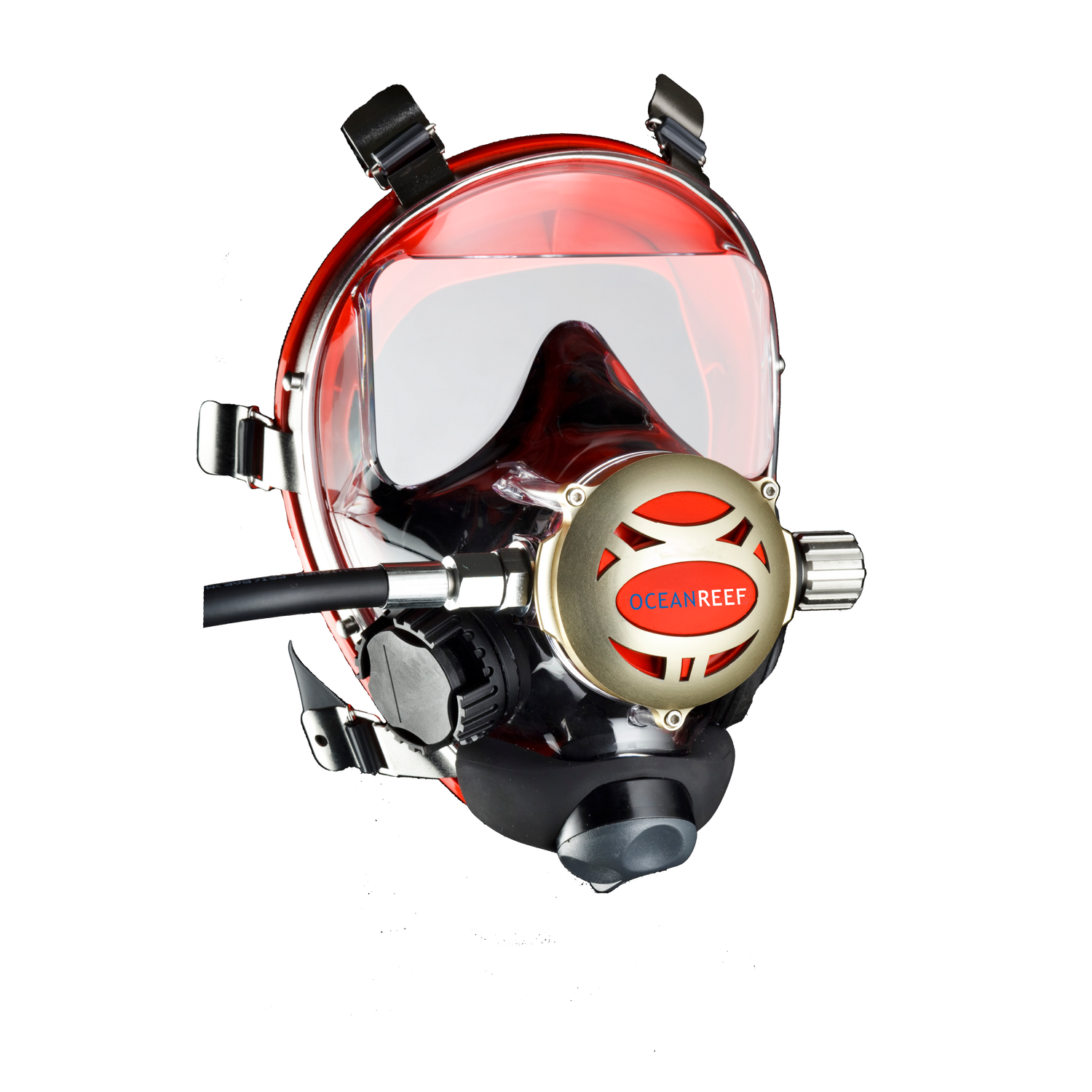

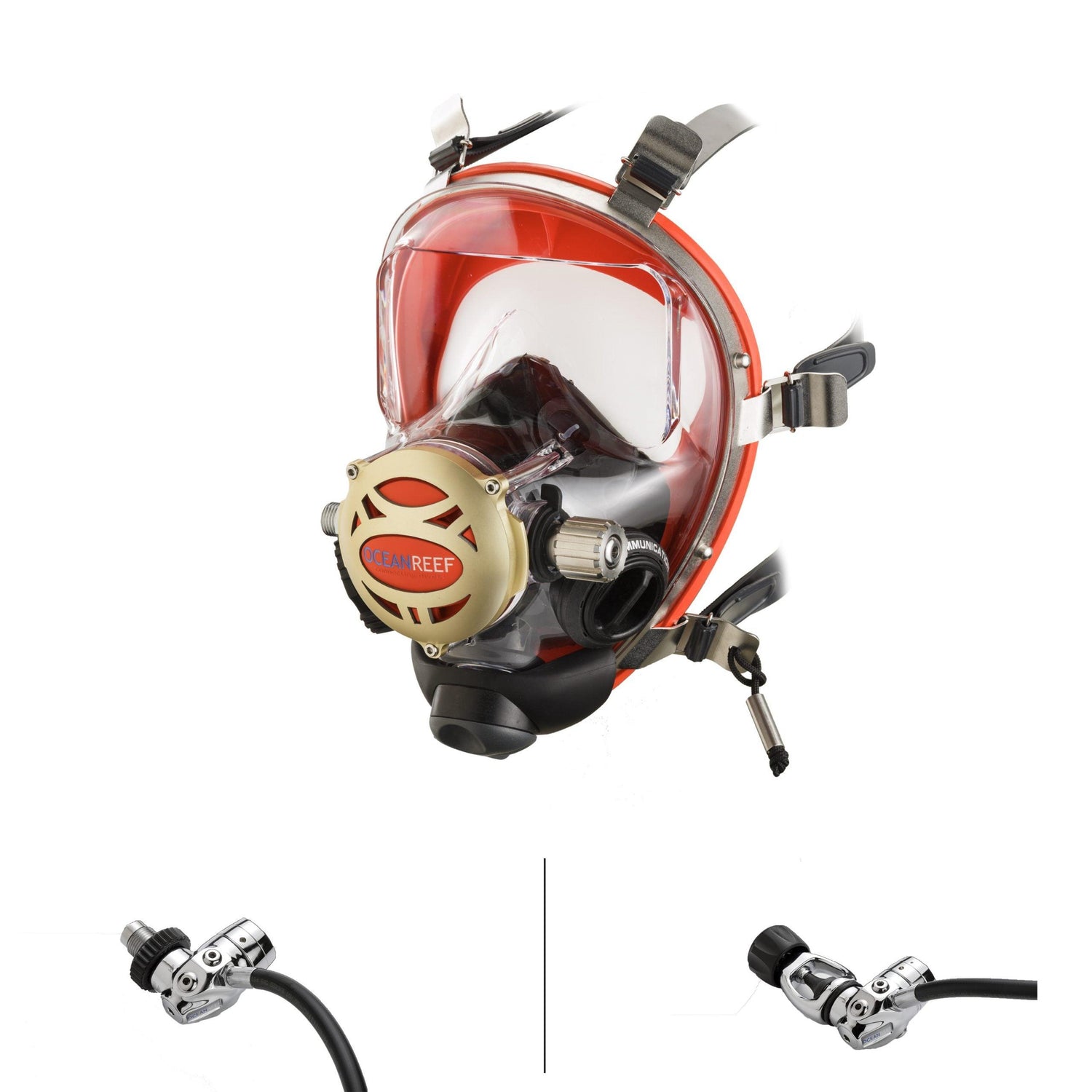

The Ocean Reef Neptune Space IRON Mask is a Chem Haz rated integrated full face dive mask built for divers working in contaminated or hydrocarbon laden water, pairing a pneumatically balanced, on-demand second-stage regulator with an AISI 316 stainless steel frame and an FVMQ rubber face seal for chemical resistance. Total mask weight is 1090 g (2.40 lb) with only 172 g (0.40 lb) of positive buoyancy, and it ships with a Surface Air Valve (SAV) that lets the diver breathe ambient air without removing the mask.
Who it is for
This IDM is designed for diving in contaminated or hydrocarbon-laden water environments, with a Chem Haz rating and chemically resistant materials. It is offered with either an INT (Yoke) or DIN first stage, so divers can match it to the cylinder valve configuration they already use.
Key details
- Regulator cover in Anodized Anticorodal aluminum; frame, buckles (FRB II fast-rotating system), and adjustment knob in AISI 316 stainless steel.
- FVMQ rubber face seal, inhalation diaphragm, exhalation valve, and purge button for resistance to contaminated water.
- Polycarbonate visor with siloxane scratch-resistant coating, 92% light transmission.
- Patented 3-D equalization system, four-directional adjustable exhaust valve, Dive/Pre-dive (Venturi) lever, and six-strap head harness.
- SL35TX first stage rated to 232 bar, balanced diaphragm design with anti-freeze kit, brass chrome-plated body, stainless steel piston and spring, Teflon seat, 2 high-pressure ports (7/16-20 UNF) and 4 low-pressure ports (3/8-24 UNF), flow rate of approximately 4800 l/min at 140 bar.
- Backed by a lifetime warranty with free annual service for 4 years from the purchase date at Ocean Reef facilities.
Compatibility and sizing
This listing is the Medium/Large size in Red/Gold/Steel, available with either the INT or DIN first stage. An Extender Frame and Kit cannot be mounted on this mask unless the clamping band is switched to nylon; ask for a quote on that swap when ordering.

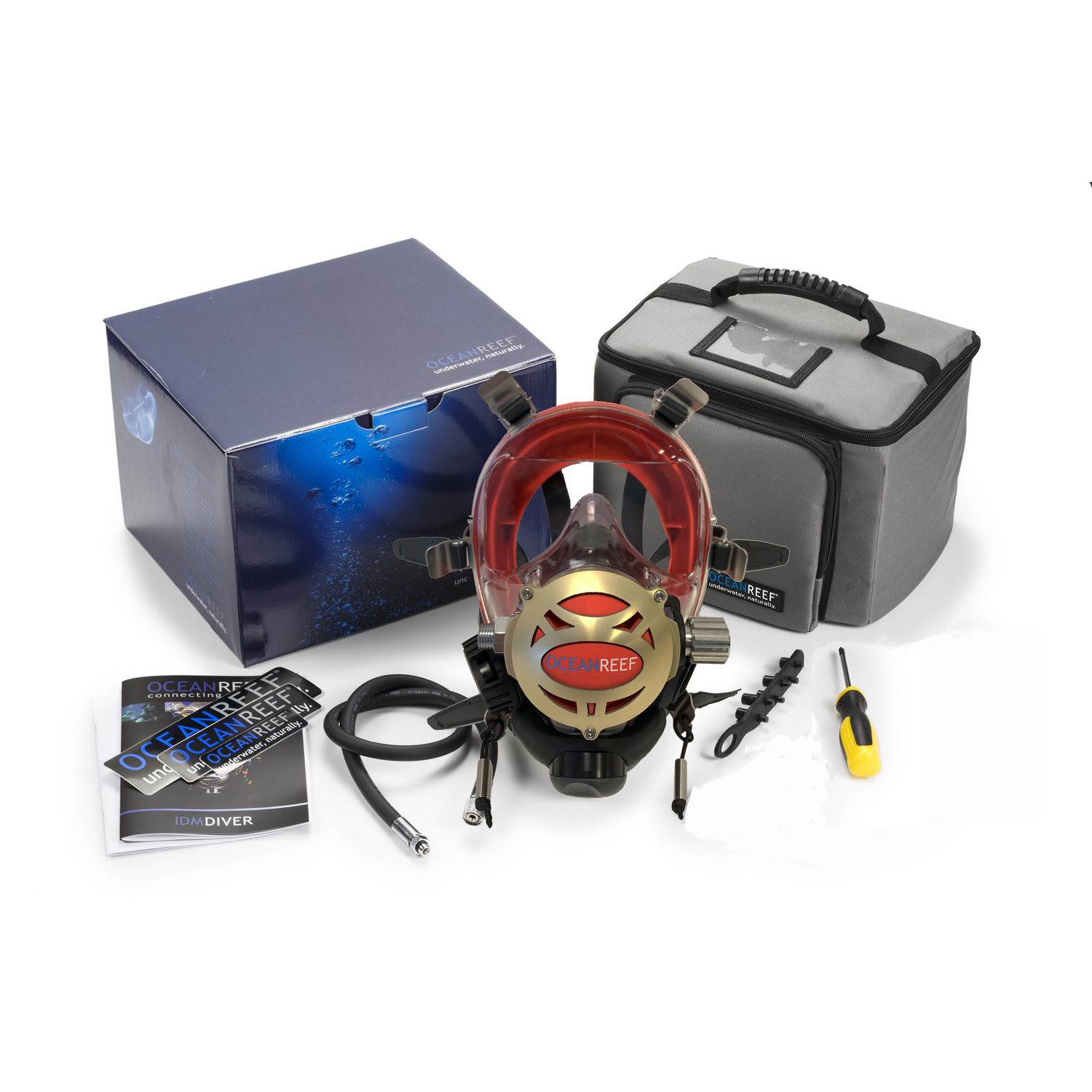

What's in the box
- IRON full face mask with integrated second-stage regulator
- Surface Air Valve (SAV)
- SL35TX first stage, INT or DIN per variant selected
- Hose
DiveCatalog.com is an authorized Ocean Reef dealer and a dive shop in Irvine, California, open since 2003. Call 888-701-4017 or chat with us if you have questions about sizing, INT versus DIN compatibility, or accessory options for the IRON mask.
- Chem Haz rated: Integrated full face mask built for diving in hydrocarbon laden or contaminated water.
- Balanced second stage: Pneumatically balanced, on-demand regulator integrated directly into the mask.
- Stainless steel hardware: AISI 316 stainless steel frame, buckles with FRB II fast-rotating system, and regulator adjustment knob.
- Aluminum regulator cover: Anodized Anticorodal aluminum cover, lightweight and corrosion resistant.
- Chemical-resistant rubber: FVMQ rubber face seal, inhalation diaphragm, exhalation valve, and purge button.
- Scratch-resistant visor: Polycarbonate visor with siloxane resin coating and 92% light transmission.
- Adjustable breathing control: Four-directional adjustable exhaust valve and Dive/Pre-dive (Venturi) lever.
- Equalization and harness: Patented 3-D equalization system and six-strap head harness.
- Surface Air Valve: SAV included for breathing ambient air without removing the mask.
- Low weight, low buoyancy: 1090 g (2.40 lb) total weight with only 172 g (0.40 lb) of positive buoyancy.
- SL35TX first stage: Balanced diaphragm with anti-freeze kit, brass chrome-plated body, stainless piston and spring, Teflon seat; INT version rated 232 bar.
- Lifetime warranty: Limited lifetime warranty plus free annual service for 4 years from the purchase date at Ocean Reef facilities.
| Total mask weight | 1090 g (2.40 lb) |
| Positive buoyancy | 172 g (0.40 lb) |
| Visor light transmission | 92% |
| Available size (this listing) | Medium/Large |
| Color | Red/Gold/Steel |
| First stage options | SL35TX, INT (Yoke, 232 Bar) or DIN |
| SKU | OR025021 |
| UPC | 764500000327 |
| Frame and buckle material | AISI 316 stainless steel |
| Regulator cover material | Anodized Anticorodal aluminum |
| Face seal, diaphragm, exhaust valve material | FVMQ rubber |
| Visor material | Polycarbonate with siloxane scratch-resistant coating |
| Certifications | CE 89/686/EEC PPE directive, UNI EN250, Italcert PPE-05 (Ref. 1332/05), Germanischer Lloyd low-temperature approval, STANAG 4296 impact resistance |
| Warranty | Lifetime warranty; free annual service for 4 years; free upgrades for 2 years; 10% accessory discount for 1 year |
| First stage flow rate | Approx. 4800 l/min at 140 bar |
| First stage ports | 2 high pressure (7/16-20 UNF), 4 low pressure (3/8-24 UNF) |
- IRON full face mask with integrated second-stage regulator
- Surface Air Valve (SAV)
- SL35TX first stage, INT or DIN per variant selected
- Hose
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
What is the difference between the INT and DIN versions of the IRON mask?
Both use the SL35TX first stage: INT (232 bar, SKU 9922, UPC 764500000402) connects to Yoke; DIN is SKU 9923, UPC 764500000419. Choose based on the cylinder valve fitting you dive with.
What sizes and colors does the IRON mask come in?
Ocean Reef makes the IRON mask in Small/Medium and Medium/Large. This listing is the Medium/Large size in Red/Gold/Steel, which is the size and color configuration sold under SKU OR025021.
Can I mount an Extender Frame and Kit on the IRON mask?
Not as it ships standard. An Extender Frame and Kit cannot be mounted unless the clamping band is switched to nylon. Ask DiveCatalog.com for a quote on that modification when ordering if you need an extender frame.
How often does the IRON mask need to be serviced?
Ocean Reef includes free annual service for 4 years from the purchase date, performed at Ocean Reef facilities, with shipping not included, along with free upgrades for 2 years and a 10% accessory discount for 1 year, all under the mask's limited lifetime warranty.
