Ocean Reef Alpha Pro X-Divers

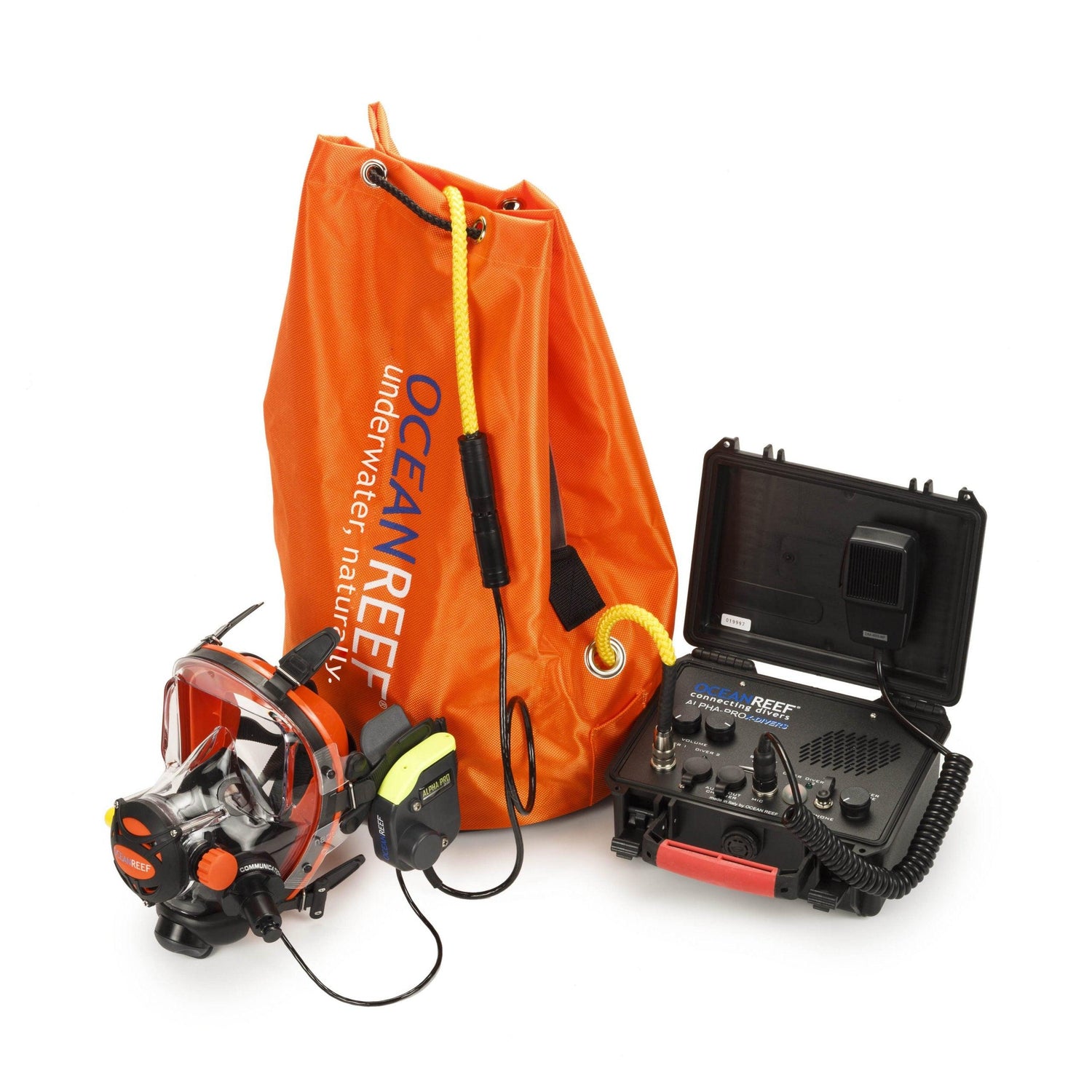

The Ocean Reef Alpha Pro X-Divers is a hardwired, full-duplex underwater communication system that lets a surface operator talk with one or two divers at the same time, built for commercial and technical diving. The set includes an underwater unit, a surface unit, and a professional 50-meter cable, and it connects to professional Ocean Reef masks through the Ocean Reef Extender Frame.

Who it is for

This system is designed for professional and commercial diving teams that cannot compromise on clear, hands-free, full-duplex communication between a tender on the surface and divers below. Because it is a hardwired, cable-based unit, it suits commercial and technical diving operations where a tethered connection is standard.

Key details

• Full-duplex communication lets both sides talk and listen simultaneously, with powered volume control adjustable from the surface unit.
• The surface unit has 2 ports for two communication cables, a switch to talk with diver 1, diver 2, or both, a microphone, incorporated speaker, and an optional headset port.
• The professional cable included measures 50 meters, with a 10mm diameter, 4000+ Newton resistance, a 6-pin waterproof rubber connector at the diver end, and a DIN metal connector at the surface end; cable length can be customized up to 200 meters on request.
• The surface unit runs on a 12V rechargeable battery with 24 hours of standby autonomy.
• The surface unit offers audio/video recall, while the underwater unit has an audio recall button that looks like a push-to-talk button.

Compatibility and sizing

The underwater unit is engineered to pair specifically with the ALPHA PRO X DIVERS surface unit, though it can be purchased separately. It connects to professional Ocean Reef masks via the Ocean Reef Extender Frame; masks such as the Neptune III are not included and must be purchased separately.

What's in the box

• UW (underwater) unit
• Surface unit
• Professional 50-meter cable

DiveCatalog.com is an authorized Ocean Reef dealer and a dive shop in Irvine, California, serving divers since 2003. Call 888-701-4017 or start a chat if you have questions about cable length, mask compatibility, or fitting this system to your dive operation.

• Full-duplex communication lets both the surface operator and divers talk and listen at the same time, hands-free.
• Powered volume control allows the volume of the underwater unit to be adjusted directly from the surface unit.
• Dual diver cable ports on the surface unit support 2 communication cables for conversations with diver 1, diver 2, or both at once.
• Switch-based crosstalk control lets the surface operator choose which diver, or both divers, to communicate with.
• Professional 50-meter cable included, with a 10mm diameter and 4000+ Newton resistance for durable, hardwired use.
• 6-pin waterproof connector with a rubber connector at the diver end and a DIN metal connector at the surface end.
• Customizable cable length up to 200 meters on request for extended range beyond the included 50-meter cable.
• Recall functionality with audio/video recall on the surface unit and an audio recall button on the underwater unit.
• Optional headset port on the surface unit for hands-free operator communication.
• Waterproof piezoelectric speakers (dual) and a D-Mic microphone built into the underwater unit for clear diver-side audio.
• 12V rechargeable battery powers the surface unit with 24 hours of standby autonomy.
• Compatible with professional Ocean Reef masks via the Ocean Reef Extender Frame.

• UW (underwater) unit
• Surface unit
• Professional 50-meter cable
