Product Information

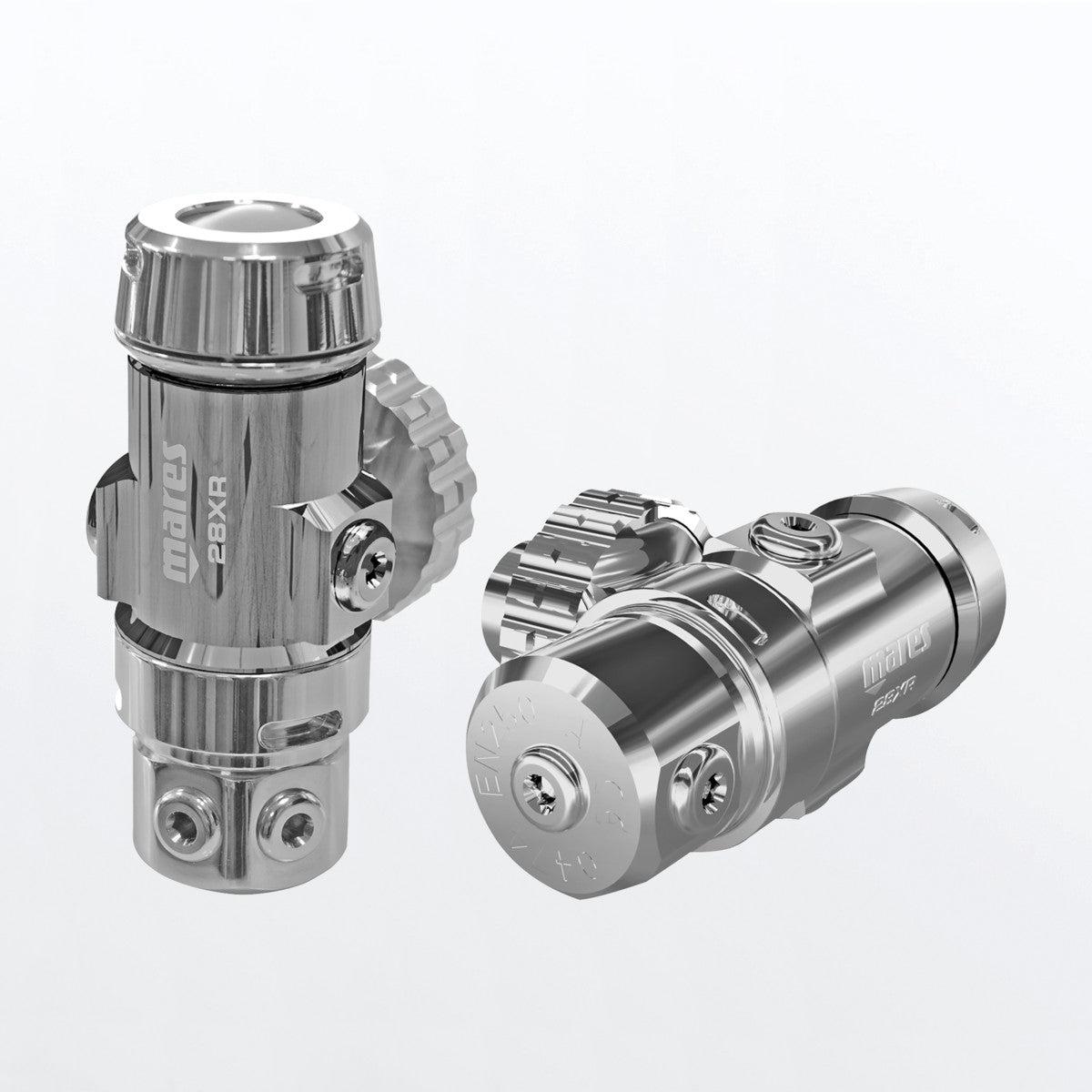

The Mares 28XR First Stage is a DIN-only, 300 bar technical-diving regulator first stage built around a balanced diaphragm concept driven by a double piston, known as the Twin Balanced Piston (TBP) system, and sealed with Mares' Auto Sealing Technology (AST). It is designed for stage, double-tank (twin-set), and sidemount configurations, with a rotating turret carrying a vertical low-pressure outlet plus 4 additional lateral low-pressure ports.
Who it is for
This first stage is built for technical and configuration-flexible diving, including cave diving or diving in polluted water where sand or particle intrusion is a concern. AST sealing lets the first stage be removed underwater without flooding, and the multiple LP port layout on a revolving turret supports divers who need to route hoses for backmount doubles, staged cylinders, or sidemount rigs.
Key details
- Connection: DIN only, 300 bar.
- Balancing: balanced diaphragm concept operated by a double piston (Twin Balanced Piston, TBP system).
- Sealing: Auto Sealing Technology (AST) against sand and particle entry, with underwater removal capability.
- Ports: 1 vertical LP outlet on a rotating turret, 4 additional lateral LP outlets, and 2 symmetrical HP ports angled at 10 degrees for hose positioning.
- Body: polished chrome metal body with natural DFC on all LP outlets.
- Weight: less than 790 grams.
- MPN: 416411NR, indicating nitrox-listed compatibility on the manufacturer's model code.
Compatibility and sizing
The 28XR is published for stage configuration, double-tank (twin-set/backmount) configuration, and sidemount configuration. It is offered only as a DIN 300 bar connection; there is no yoke version listed by the manufacturer.
DiveCatalog.com is an authorized Mares dealer and a dive shop in Irvine, California, open since 2003. Call 888-701-4017 or start a chat if you have questions about DIN fitment or configuration compatibility before you order.
- DIN 300 bar connection. The 28XR is a DIN-only first stage rated to 300 bar.
- Twin Balanced Piston (TBP) system. Uses a balanced diaphragm concept operated by a double piston for first-stage performance.
- Auto Sealing Technology (AST). Environmentally seals the first stage against sand or particle entry, useful in cave diving or polluted water.
- Underwater removal capability. AST sealing allows the first stage to be removed underwater without flooding.
- Rotating turret with vertical LP outlet. One vertical low-pressure port sits on a revolving turret for hose routing flexibility.
- 4 additional lateral LP ports. Gives a total low-pressure port layout suited to multiple configurations.
- 2 symmetrical HP ports at 10 degrees. Angled high-pressure ports are positioned for hose placement.
- Polished chrome metal body. The first stage body is finished in polished chrome.
- Natural DFC on all LP outlets. Natural DFC is featured on every low-pressure outlet.
- Multi-configuration use. Suited to stage, double-tank (twin-set), and sidemount configurations.
- Weight under 790 grams. The first stage weighs less than 790 g.
| Connection | DIN only, 300 bar |
| Balancing system | Balanced diaphragm concept operated by a double piston (Twin Balanced Piston, TBP) |
| Environmental sealing | Auto Sealing Technology (AST) |
| Vertical LP outlet | 1, on a rotating turret |
| Lateral LP outlets | 4 |
| HP ports | 2, symmetrical, angled at 10 degrees |
| Body material | Polished chrome metal |
| LP outlet feature | Natural DFC on all LP outlets |
| Weight | Less than 790 g |
| Supported configurations | Stage, double-tank (twin-set), sidemount |
| MPN | 416411NR |
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How often does a scuba regulator need servicing?
Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.
How do I rinse and care for a regulator after diving?
Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.
Can I fly with a scuba regulator?
Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.
Can I use my regulator with nitrox?
Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.
What is the difference between DIN and yoke regulators?
A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.
What is the octopus regulator for?
The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.
How should I store a regulator between dive trips?
Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.
Is the Mares 28XR first stage compatible with sidemount diving?
Yes. The 28XR is published by Mares for sidemount configuration along with stage and double-tank (twin-set) setups. Its rotating turret with a vertical low-pressure outlet plus 4 additional lateral LP ports gives the hose routing flexibility that sidemount, stage, and backmount double-tank rigs typically require.
Can the Mares 28XR be converted to a yoke connection?
No. The 28XR is listed by the manufacturer only as a DIN 300 bar first stage. There is no yoke (A-clamp) version published for this model, so divers who need a yoke connection should confirm fitment before ordering.
What does Auto Sealing Technology (AST) do on the 28XR?
AST environmentally seals the first stage to resist sand or particle entry, which matters in cave diving or polluted water. It also allows the first stage to be removed underwater without the regulator flooding, a feature built into the 28XR's balanced diaphragm and double piston design.
Is the Mares 28XR first stage nitrox compatible?
The 28XR's manufacturer model listing uses the designation "NR," indicating nitrox compatibility on the published model code. As with any regulator, confirm the specific oxygen percentage limits in the product manual before diving a nitrox blend.
