Ikelite 5511.1 Modular 8

Name: Ikelite 5511.1 Modular 8
Brand: Ikelite
SKU: 5511.1
Price: 395.99 USD
Availability: OutOfStock

Ikelite | SKU: 5511.1

Refer & Earn

Sold out

Sale

⚠️ FINAL SALE - NO REFUNDS

$395.99 $550.00

Shipping calculated at checkout.

Pick accessories — 90% off with your $250+ order

Start $501 pick $1252 picks

DiveCatalog Moldable Mouthpiece w/ installation for Regulators
$34.95$3.50

1
DiveCatalog.com Upside Down Drysuit Hanger w/ Regulator and Accessory Hooks
$29.95$3.00

1
DiveCatalog.com Universal Dive Gear Hanger with Accessory Arms fits Wetsuits, Drysuits, BCDs, Backpacks
$29.95$3.00

1
DiveCatalog.com Small Retractor
$24.95$2.50

1
DiveCatalog.com Heavy Duty Wetsuit and Drysuit Hanger with Extra Wide Shoulder Saver
$22.95$2.30

1

90% off applies automatically at checkout on orders of $250+ — or free for signed-in members. Not combinable with discount codes.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product Information

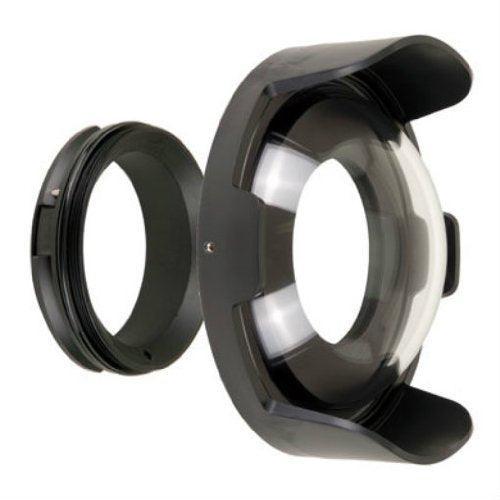

The Ikelite 5511.1 FL 8 Inch Dome Kit pairs the injection-molded acrylic Modular 8" Dome (5510.45) with the FL Port Extension for Lenses Up To 2.75 Inches (5510.11), giving underwater photographers an 8-inch diameter dome port, with the dome component rated to 200 feet (60 meters), built for compact super-wide angle lenses.

Who it is for

This kit suits underwater photographers shooting super-wide angle lenses on Ikelite housings who want less edge distortion than a 4- or 6-inch dome produces and who shoot over-under (half-in, half-out) compositions. It is built for wide-angle work; Ikelite recommends the Modular Glass Flat Front instead for macro lenses.

Key details

Injection-molded acrylic dome, 8 inches in diameter
Depth rated to 200 feet (60 meters)
Dome component weighs 3.9 lb
Included FL Port Extension accommodates lenses up to 2.75 inches (7.0 cm) long
Extension threads onto the base of the dome for assembly
Bayonet-style attachment to the housing body
Made in the USA

Compatibility and sizing

The kit works with all newer Ikelite 4-lock FL housings and older 2-lock housings, and fits both the FL and DLM port systems. It is not compatible with Ikelite's newer Dry Lock (DL) port system. Other Modular Lens Extensions, sold separately, can be substituted if your lens is longer than 2.75 inches.

What's in the box

Modular 8" Dome (#5510.45)
FL Port Extension for Lenses up to 2.75" (#5510.11)
Dome shade (#5510.04)
Neoprene front cover (#0200.84)
Silicone lubricant (1cc tube)
Instruction manuals for dome and extension
FL System Port Chart documentation

DiveCatalog.com is an authorized Ikelite dealer and a dive shop in Irvine, California since 2003, so call 888-701-4017 or chat with us if you have questions about fit or compatibility with your housing.

⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Frequently Asked Questions

What lenses can I use with the Ikelite 5511.1 dome kit?

This kit's included FL Port Extension (5510.11) accommodates lenses up to 2.75 inches (7.0 cm) long, making it suited to compact super-wide angle lenses. If your lens is longer, you can substitute one of Ikelite's other Modular Lens Extensions, sold separately, to match its length.

Will this dome work with Ikelite's Dry Lock (DL) port system?

No. The Modular 8" Dome and FL Port Extension in this kit are built for Ikelite's FL and DLM port systems and are not compatible with the newer Dry Lock (DL) port system. Confirm which port system your housing uses before ordering.

Is this dome kit suitable for macro photography?

No, this kit is designed for wide-angle lenses. Ikelite recommends using the Modular Glass Flat Front instead when shooting macro lenses, since a dome port is optimized to reduce edge distortion on wide-angle shots rather than for macro work.

What housings is the Ikelite 5511.1 compatible with?

The kit attaches via a bayonet-style mount and works with all newer Ikelite 4-lock FL housings as well as older 2-lock housings. It is compatible with the FL and DLM port systems, but not with the newer Dry Lock (DL) system.

86%

(1177)

(114)

(37)

(16)

(31)

Excellent wetsuit but will it crush quickly like other wetsuits?

I purchased a BARE 5mm Reactive wetsuit (open box), which was like new, to replace my 1.5 yr old BARE 5mm Velocity wetsuit which had collapsed to only 2.5mm after 3 diving trips (~100 dives). The Reactive wetsuit is well constructed and very flexible. I had to increase the size of the Reactive suit, as it was smaller than the BARE Velocity suit of the same size. Tremendous customer service by Dive Catalog to exchange the wetsuit for proper size. I hope the Reactive suit does not crush so quickly like my other wetsuits (BARE, Henderson, Pinnacle). Hoping that the new technology in this suit will keep me warm below the thermocline.

Perfectly Built

Best of the many many diver hangers in my life. Easily supports my steel-plated BCD, while still donned with all of my accessories. No cracks, bends, or dents. Has even supported my BCD w/ a steel 100 tank attached (not recommended, for safety purposes, though).

Will continue to use this hanger for the long-term. No brainer.

Go-to Dive Hanger

This is a must-have for every diver. It's the quintessential hanger for all dive gear in one small package.

DiveCatalog's "Quick Dry Multi Accessory Dive Gear Hanger for Boots, Gloves, Hood" is set at a great price for a great product. Versatile enough that I've purchased extra hangers to organize my BMX racing gear.

Must-have for divers and anyone looking to organize their adventurous outdoor activities equipment.

Solid Hanger w/ Tons of Options

Does it's job and then some. The added accessory arms gives you options for a multitude of storage solutions. Solid build, solid pricing, must have for owns of dive gear.

New to this hanger...Now I'm a believer

Used tons of dive hangers, but never an upside down hanger. Game-changer for me. Will now add more of these in the near-future.

With it's swivel head design, it can cram itself into my tight dive locker, while still donning a ton of gear.

DiveCatalog's "Upside Down Drysuit Hanger w/ Regulator and Accessory Hooks" is a great product with solid construction at an affordable price. All of that with Dive Catalog's customer support/satisfaction guarantee.

Kit SKU/MPN	5511.1
Dome component SKU	5510.45
Lens extension component SKU	5510.11
Dome diameter	8 inches
Depth rating (dome)	200 feet (60 meters)
Weight (dome)	3.9 lb
Lens length accommodated	Up to 2.75 inches (7.0 cm)
Dome material	Injection-molded acrylic
Attachment type	Bayonet-style to housing body
Housing compatibility	Newer 4-lock FL housings and older 2-lock housings
Port system compatibility	FL and DLM port systems
Country of origin	Made in USA
