Product Information

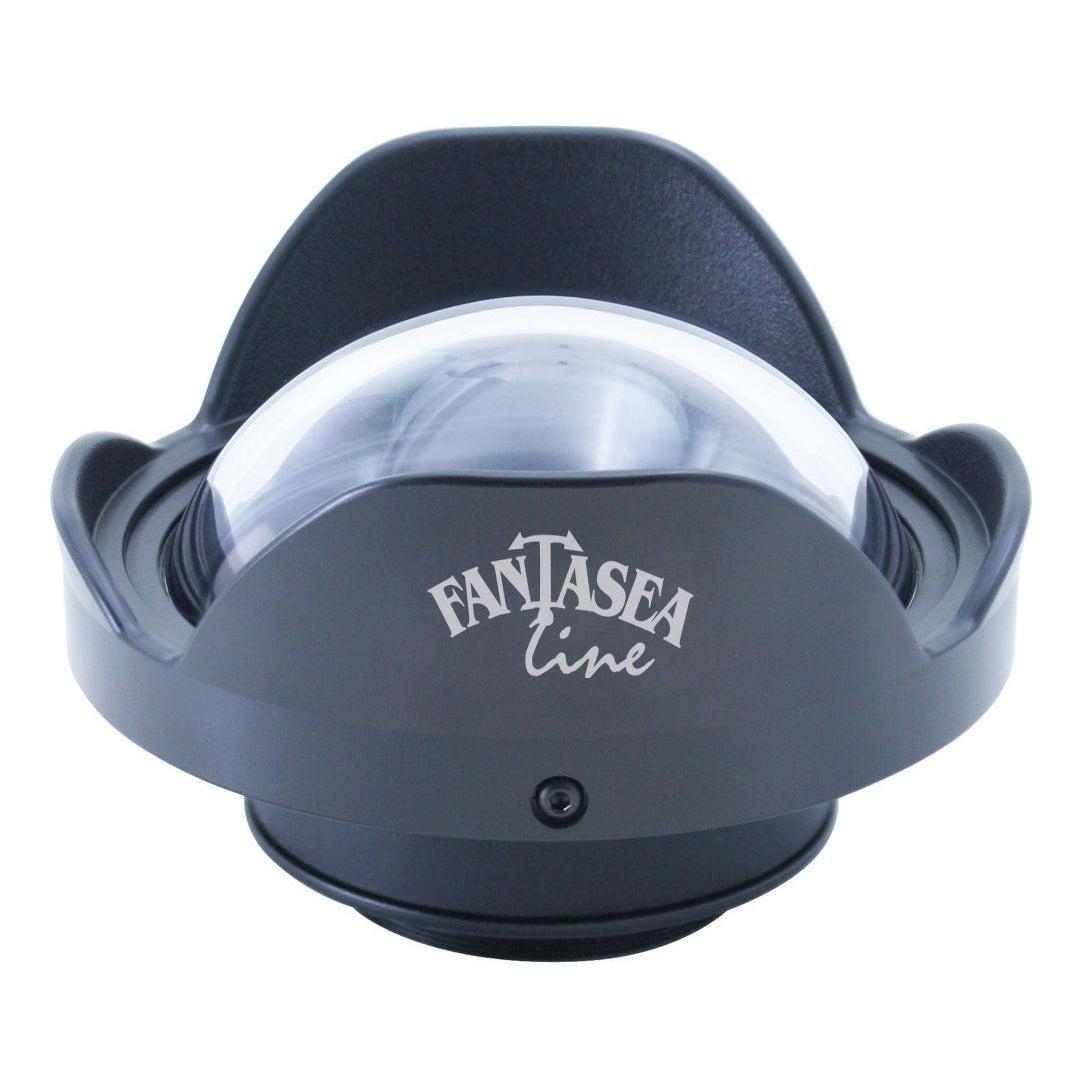

The Fantasea UWL-400Q Wide Angle Lens is a 0.50X wide angle conversion lens. It attaches to the housing lens port thread, can be installed and removed during the dive, and is compatible with the Fantasea Bayonet System (QRS). It is designed for cameras featuring a 24mm lens (35mm equivalent) or a higher focal range, delivers a 120 degree diagonal angle of view, and is depth rated to 100 meters (330 feet).

Who it is for

This lens suits underwater photographers shooting seascapes, divers, shipwrecks and schools of fish without needing to move further from the subject, which keeps the benefit of water clarity and artificial lighting. A focus distance of 0mm from the dome also makes it suited to CFWA (Close Focus Wide Angle) photography. It works with most cameras that feature a 24mm lens or a higher focal range, and can be used with some wider lens cameras by zooming in to avoid vignetting.

Key details

Bezel and barrel material: aluminum alloy with black hard anodize, plus ABS
Lens construction: 5 groups and 5 elements
Lens coating: hard coating on the polycarbonate dome lens, multi layer AR coating on all glass lenses
Magnification: 0.50X, angle of view: 120 degrees diagonal
Focus distance: 0mm from the dome
Weight: 606 g (21.4 oz) on land, 224 g (7.9 oz) underwater
Dimensions: 121.8 x 76 mm (4.8 x 3.0 inch), diameter by height

Compatibility and sizing

The UWL-400Q features a 52mm thread and mounts directly on lens ports with a 52mm thread. For housings with a 67mm threaded lens port, the included EyeDaptor M67-F52 lens adaptor allows mounting. The 52mm threaded adaptor mount screwed into the lens can also be swapped for a Bayonet mount, sold separately, for quick installation and removal of the lens with a compatible Bayonet system (QRS).

What's in the box

Neoprene dome cover
Rear lens cap
EyeDaptor M67-F52 lens adaptor
Secure string
Microfiber cloth
O-ring remover
Lens padded carrying case

DiveCatalog.com is an authorized Fantasea dealer and a dive shop in Irvine, California since 2003. Call or chat with us at 888-701-4017 if you have questions about port thread fit or Bayonet system compatibility before you buy.

⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Frequently Asked Questions

What cameras is the Fantasea UWL-400Q compatible with?

The UWL-400Q is compatible with most cameras that feature a 24mm lens (35mm equivalent) or a higher focal range. It can also be used with some cameras that have a wider lens by zooming in to avoid vignetting. Always confirm the housing's lens port thread matches the 52mm mount or the included 67mm adaptor.

Can the UWL-400Q be attached and removed during a dive?

Yes, the lens can be installed and removed during the dive. A separately purchased Bayonet mount allows quick changes with the Fantasea Bayonet System (QRS).

What port thread size does the UWL-400Q use?

The lens has a 52mm thread and mounts directly on lens ports with a 52mm thread. For housings with a 67mm threaded lens port, the included EyeDaptor M67-F52 lens adaptor allows the UWL-400Q to be mounted.

What comes in the box with the Fantasea UWL-400Q?

Each UWL-400Q ships with a neoprene dome cover, rear lens cap, EyeDaptor M67-F52 lens adaptor, secure string, microfiber cloth, O-ring remover and a lens padded carrying case.

86%

(1177)

(114)

(37)

(16)

(31)

Excellent wetsuit but will it crush quickly like other wetsuits?

I purchased a BARE 5mm Reactive wetsuit (open box), which was like new, to replace my 1.5 yr old BARE 5mm Velocity wetsuit which had collapsed to only 2.5mm after 3 diving trips (~100 dives). The Reactive wetsuit is well constructed and very flexible. I had to increase the size of the Reactive suit, as it was smaller than the BARE Velocity suit of the same size. Tremendous customer service by Dive Catalog to exchange the wetsuit for proper size. I hope the Reactive suit does not crush so quickly like my other wetsuits (BARE, Henderson, Pinnacle). Hoping that the new technology in this suit will keep me warm below the thermocline.

Perfectly Built

Best of the many many diver hangers in my life. Easily supports my steel-plated BCD, while still donned with all of my accessories. No cracks, bends, or dents. Has even supported my BCD w/ a steel 100 tank attached (not recommended, for safety purposes, though).

Will continue to use this hanger for the long-term. No brainer.

Go-to Dive Hanger

This is a must-have for every diver. It's the quintessential hanger for all dive gear in one small package.

DiveCatalog's "Quick Dry Multi Accessory Dive Gear Hanger for Boots, Gloves, Hood" is set at a great price for a great product. Versatile enough that I've purchased extra hangers to organize my BMX racing gear.

Must-have for divers and anyone looking to organize their adventurous outdoor activities equipment.

Solid Hanger w/ Tons of Options

Does it's job and then some. The added accessory arms gives you options for a multitude of storage solutions. Solid build, solid pricing, must have for owns of dive gear.

New to this hanger...Now I'm a believer

Used tons of dive hangers, but never an upside down hanger. Game-changer for me. Will now add more of these in the near-future.

With it's swivel head design, it can cram itself into my tight dive locker, while still donning a ton of gear.

DiveCatalog's "Upside Down Drysuit Hanger w/ Regulator and Accessory Hooks" is a great product with solid construction at an affordable price. All of that with Dive Catalog's customer support/satisfaction guarantee.

Thread mount	52mm
Bezel/Barrel material	Aluminum alloy with black hard anodize, ABS
Lens construction	5 groups, 5 elements
Lens coating	Hard coating on polycarbonate dome lens, multi layer AR coating on all glass lenses
Depth rating	100 meters / 330 feet
Magnification	0.50X
Angle of view	120 degrees diagonal (24mm equivalent, 35mm format sensor)
Focus distance	0mm from the dome
Weight (on land)	606 g / 21.4 oz
Weight (underwater)	224 g / 7.9 oz
Dimensions (diameter x height)	121.8 x 76 mm / 4.8 x 3.0 inch
Mount options	52mm thread, EyeDaptor M67-F52 for 67mm threaded ports, optional Bayonet mount for QRS systems
