Product Information

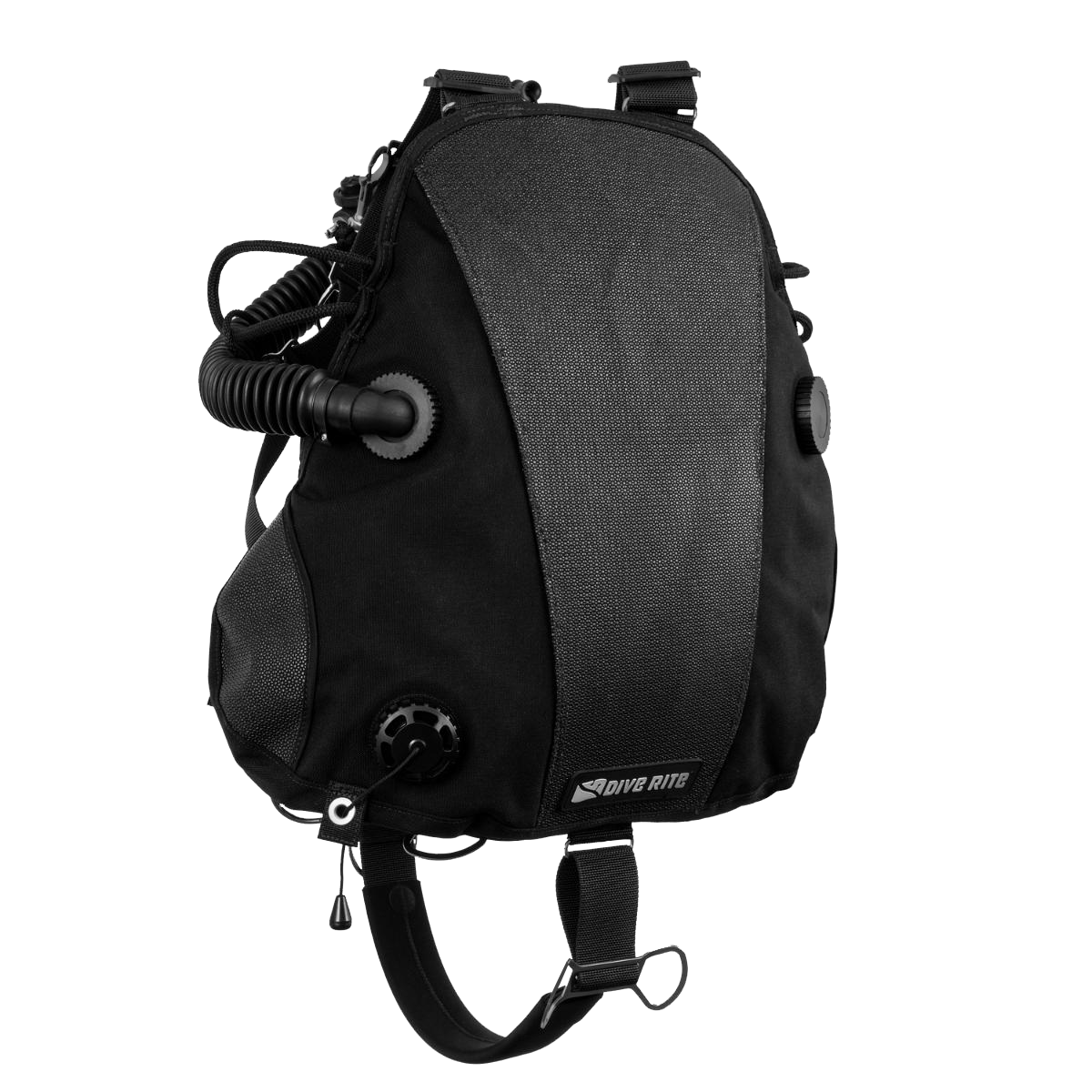

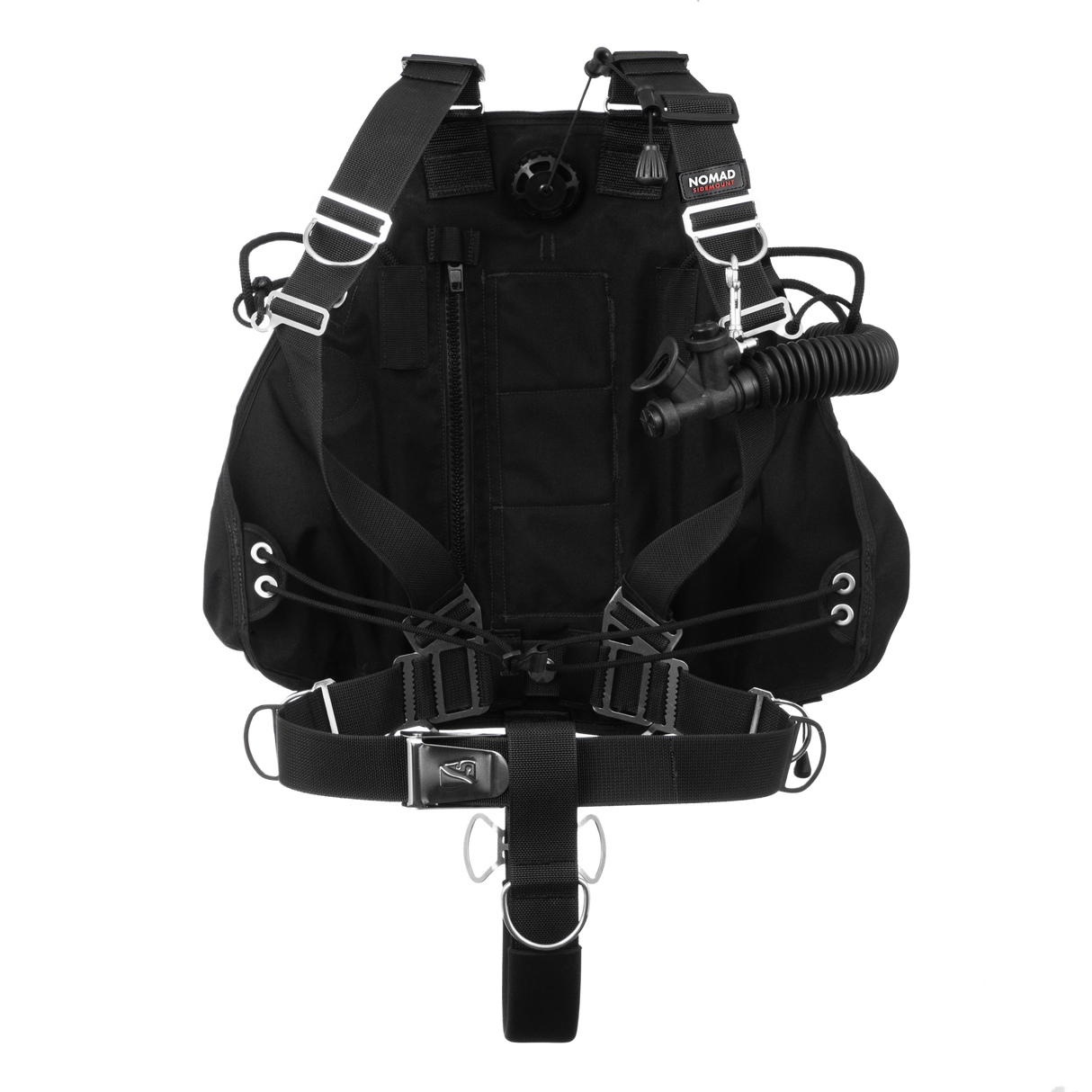

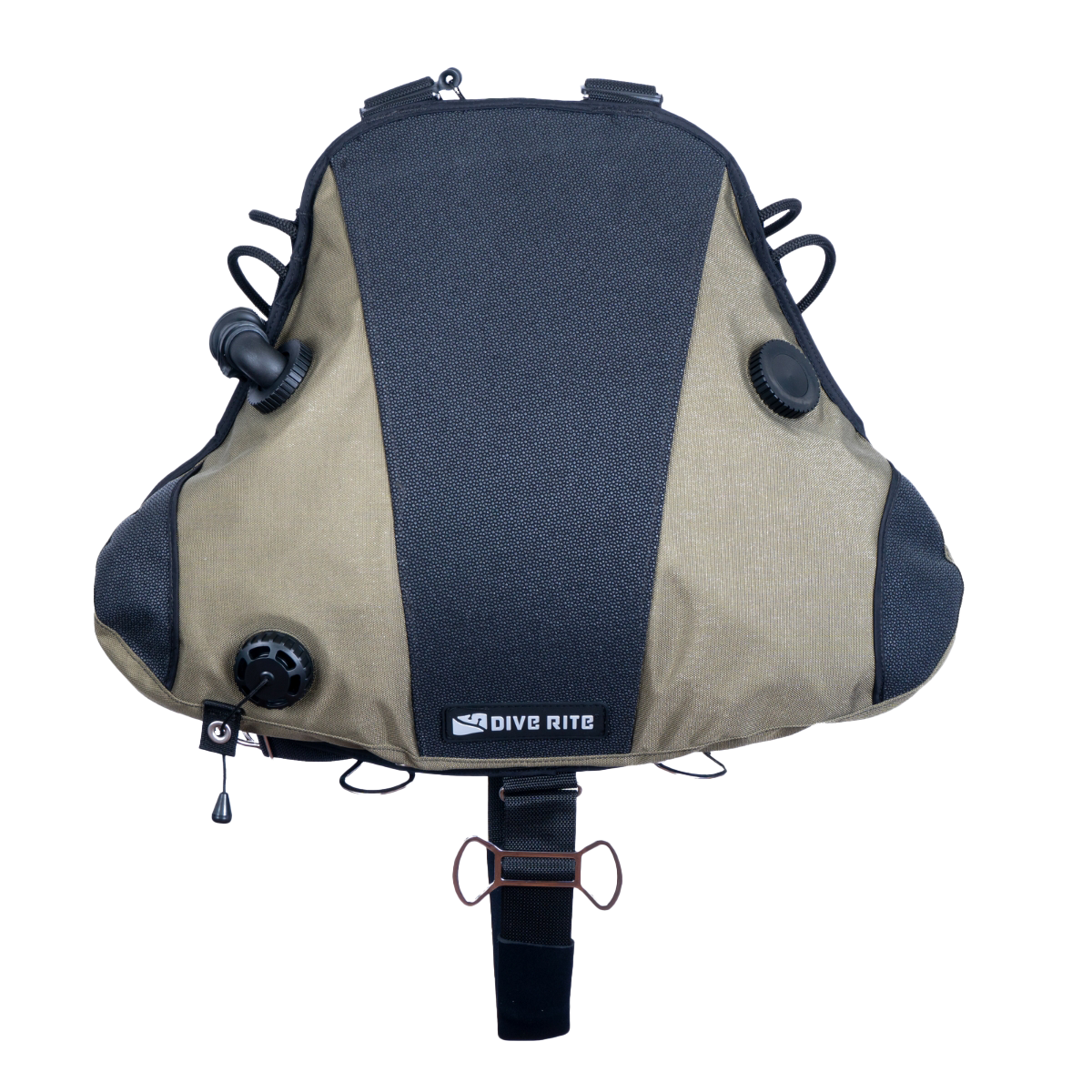

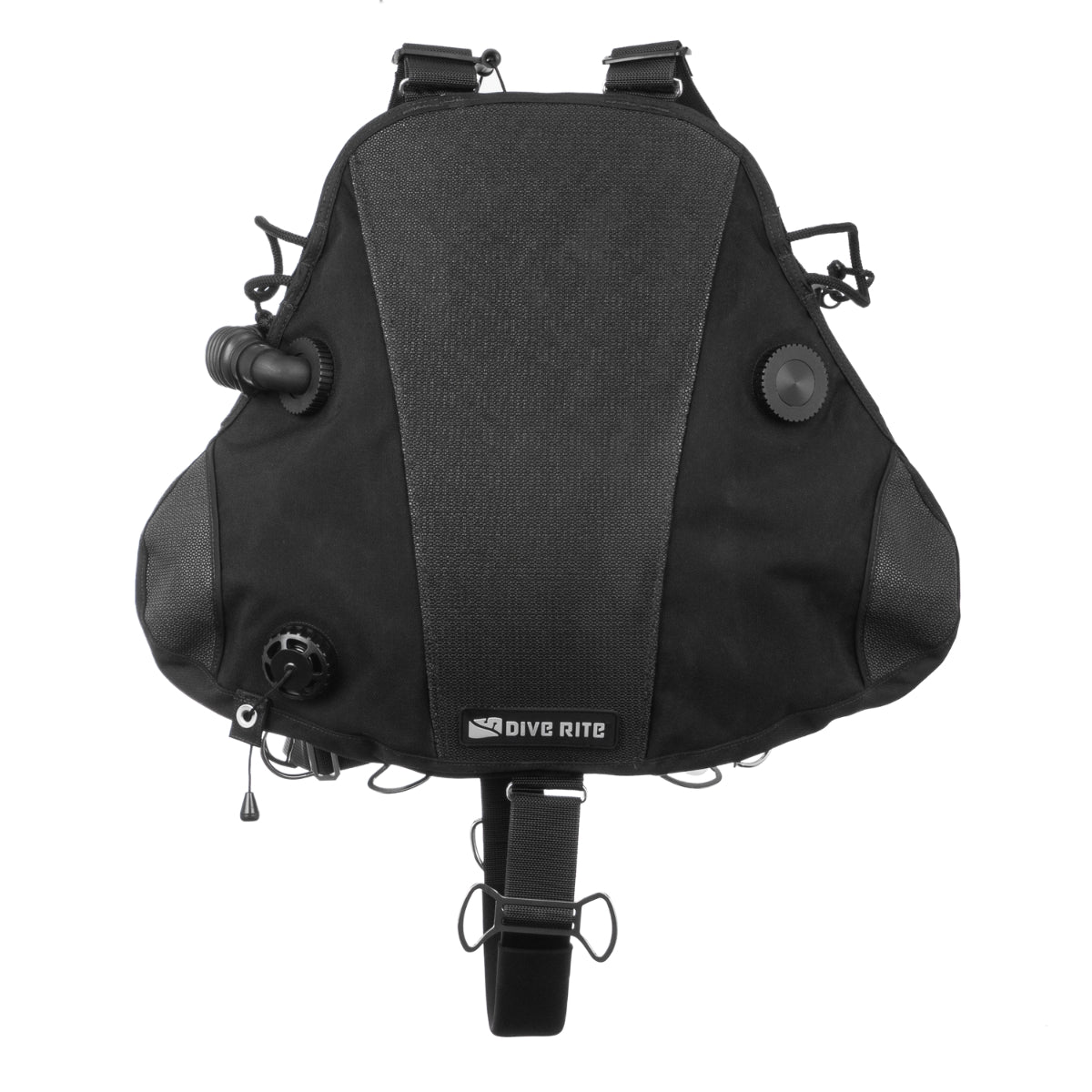

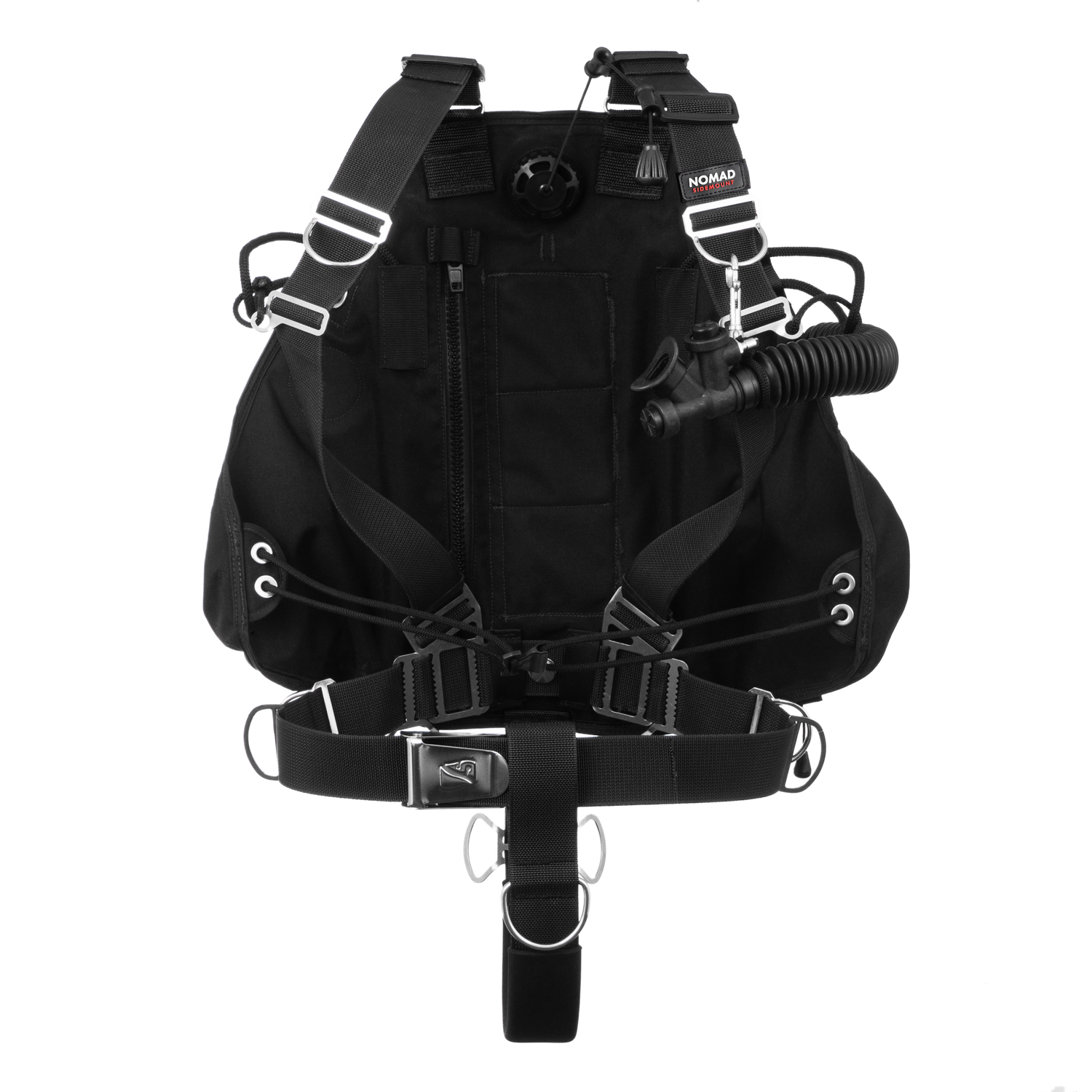

The Dive Rite Nomad Ray Sidemount System is a technical sidemount BCD developed through years of design, field testing, and feedback from sidemount divers and instructors. The harness holds a flat, streamlined profile and an ergonomic shape that sits close against the diver’s body, keeping the wing at the diver’s fulcrum for stable trim. With 42 pounds (19 kg) of lift, this sidemount system supports heavy steel cylinders along with multiple stage or deco bottles, and works equally well with aluminum tanks in warm water.

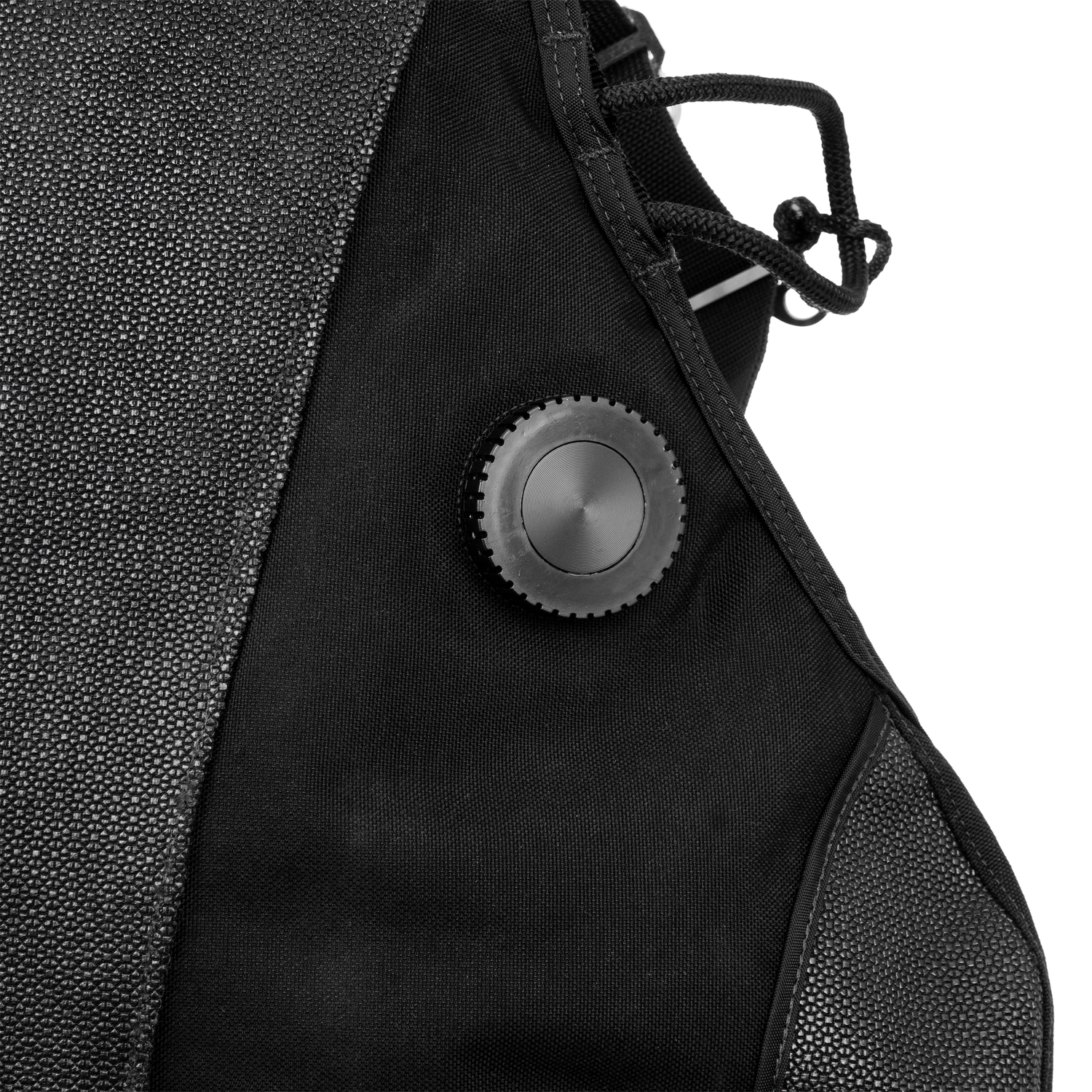

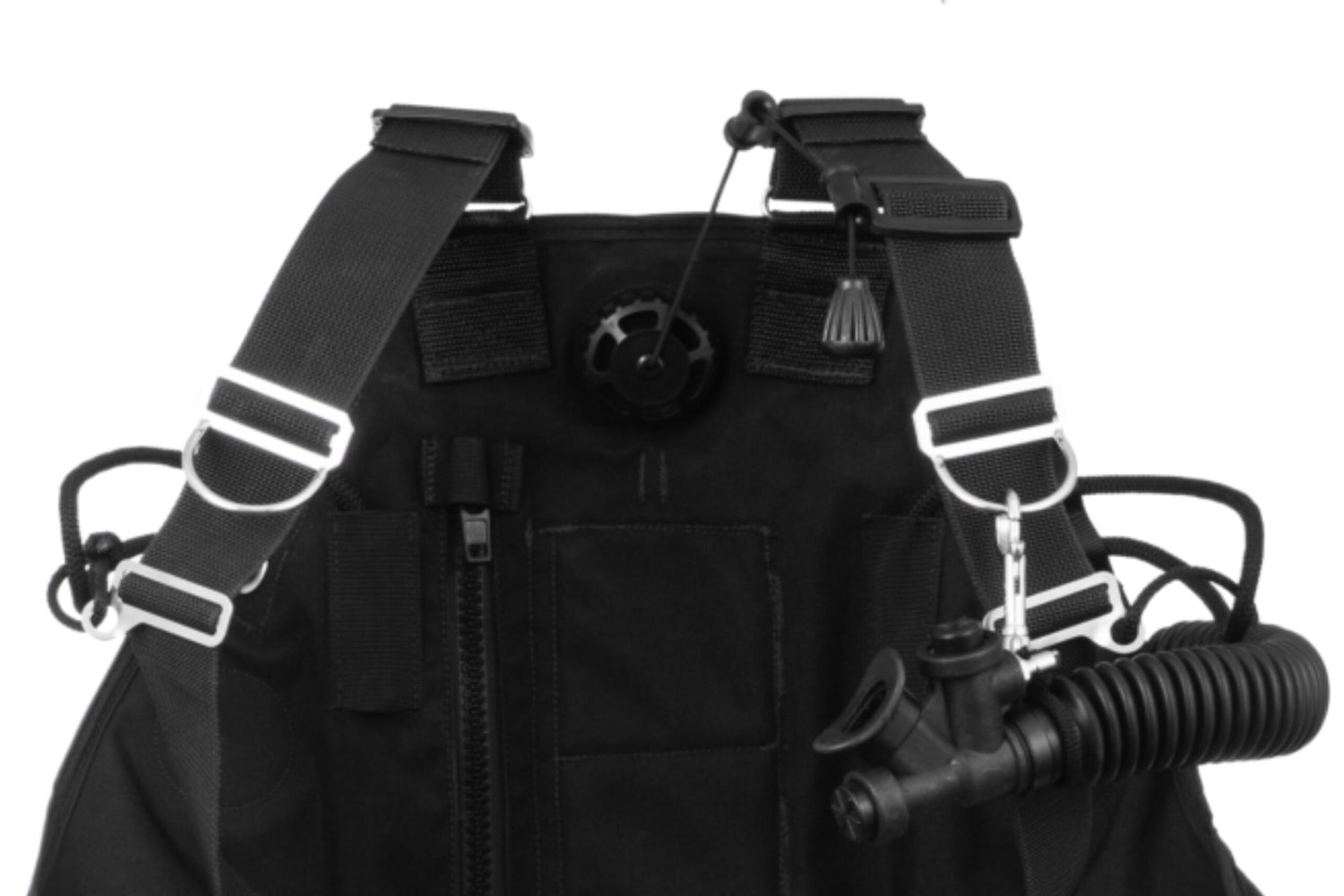

The outer shell combines SuperFabric® material with 600 denier nylon across the backside center panel and 1000 denier nylon on the diver’s side, over a laminated heavy-duty 420 denier nylon inner bladder. A 16 inch (30.4 cm) corrugated hose with an inflate/deflate valve can be configured on the left or right side to suit the diver’s preference. Marine-grade stainless steel hardware runs throughout, including two angled shoulder D-rings, two angled waist D-rings, two sliding waist D-rings, and two chest bungee retainers.

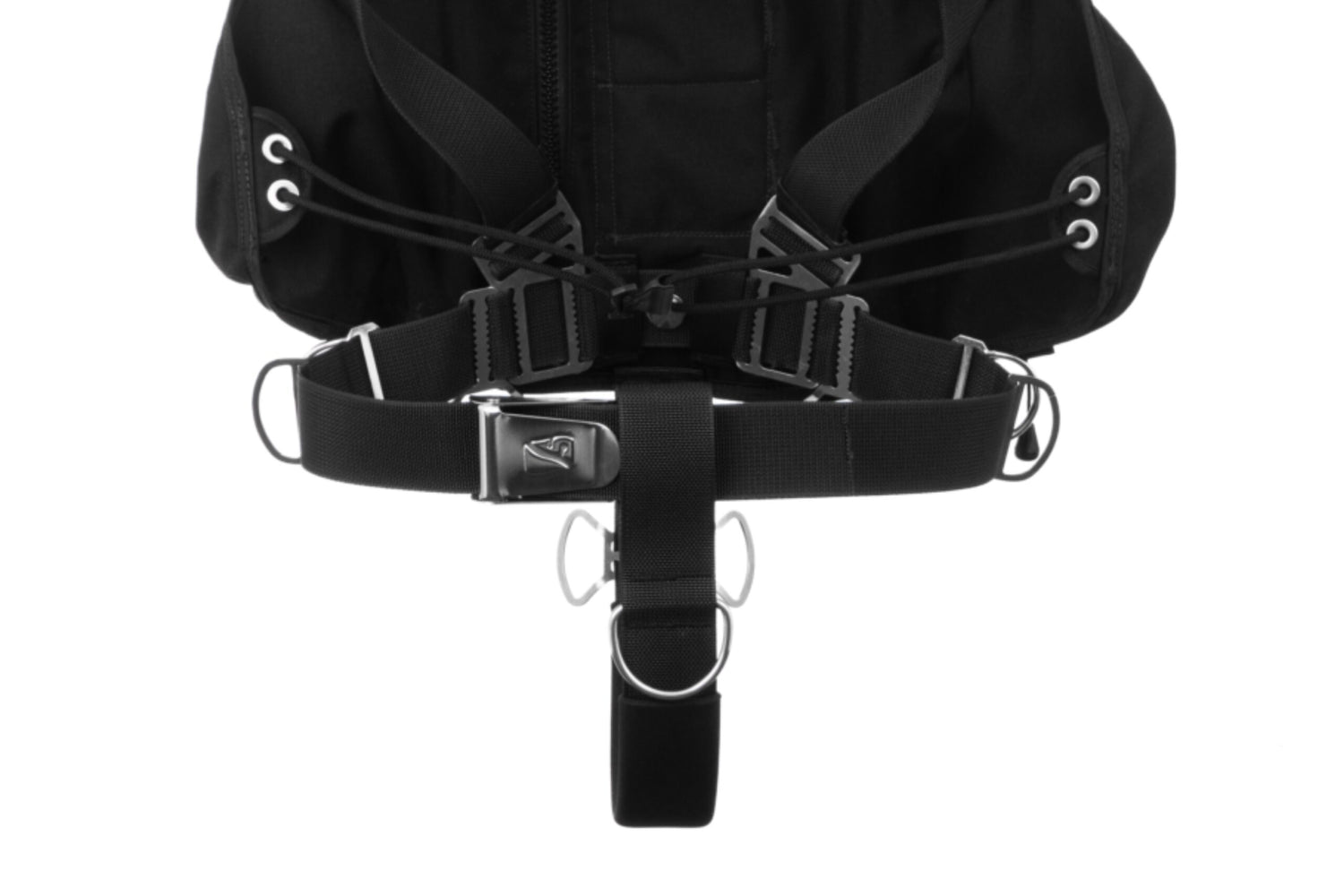

The harness is fully adjustable in a one-size-fits-all format built on user-replaceable 2-inch webbing, so shoulder and waist sections can be swapped independently if damaged or trimmed short. Each side adjustment uses 42 inches of diamond braid bungee, and three padded internal weight pockets hold up to five pounds of hard or soft weight. A 2 inch (5 cm) padded crotch strap with a scooter ring completes the sidemount rig. The bailout bladder configuration adds a second bladder with 25 pounds (11.3 kg) of lift and one pound to the dry weight. Made in the USA.
- Lift capacity of 42 pounds (19 kg) for heavy steel tanks plus stage or deco bottles
- SuperFabric® outer shell with 600 denier backside center panel and 1000 denier diver-side nylon
- Laminated 420 denier nylon inner bladder for pinch and puncture resistance
- Fully adjustable one-size harness built on user-replaceable 2-inch webbing throughout
- Independently adjustable shoulder and waist webbing for quick sizing across body types
- Three padded internal weight pockets holding up to five pounds of hard or soft weight
- Reversible 16 inch (30.4 cm) corrugated hose with inflate/deflate valve for left or right mounting
- Marine-grade stainless steel hardware with angled shoulder and waist D-rings, sliding waist D-rings, and chest bungee retainers
- 42 inch diamond braid bungee for each side cylinder adjustment
- 2 inch (5 cm) padded crotch strap with scooter ring
- Bailout bladder option adding 25 pounds (11.3 kg) of redundant lift
- Made in the USA
| Brand | Dive Rite |
| Model | Nomad Ray Sidemount System |
| Lift Capacity | 42 pounds (19 kg) |
| Sizing | Fully adjustable, one size fits all (user replaceable 2-inch webbing used throughout) |
| Weight | 5.7 pounds (2.6 kg) |
| Outer Shell | SuperFabric® material with 600 denier nylon fabric on the backside center panel and 1000 denier nylon fabric on the diver’s side |
| Inner Bladder | Heavy-duty 420 denier nylon fabric (laminated) |
| Adjustable Bungee System | 42 inches of diamond braid bungee for each side adjustment |
| Hose | 16 inch (30.4 cm) corrugated hose with an inflate/deflate valve. Can be configured on the left or right side |
| Internal Weight Pockets | Three padded, internal pockets that can hold up to five pounds of either hard or soft weight |
| Hardware | Marine-grade stainless steel throughout. Two angled D-rings on the shoulders, two angled D-rings on the waist, two sliding waist D-rings, two chest bungee retainer |
| Crotch Strap | 2 inch (5 cm) padded strap with a scooter ring |
| Bailout Bladder Lift Capacity | 25 pounds (11.3 kg) |
