Product Information
The Atomic Aquatics M1 Regulator First Stage is a sealed first stage built for scuba divers who want a piston regulator rated for high-oxygen gas mixes, available in DIN Sealed and Yoke Sealed configurations. It uses Atomic's exclusive balanced Jet Seat high-flow piston design in a chrome-plated brass body with Monel, 316 stainless steel and titanium internal components, and it is factory-ready for Nitrox up to 50% with oxygen mixes to 80% possible when special guidelines are followed.
Who it is for
This first stage suits divers running Nitrox or higher-oxygen mixed-gas dives who want a sealed, corrosion-resistant piston first stage as the core of their regulator setup. Because it ships as a first stage only, it is intended for divers building or upgrading a regulator system rather than buying a complete first-and-second-stage package.
Key details
- Design: balanced Jet Seat high-flow piston, an Atomic Aquatics exclusive
- Body: chrome-plated brass with a Zirconium/Nickel coating over the brass valve body
- Internal components: Monel, 316 stainless steel and titanium elements for corrosion resistance and oxygen compatibility
- Construction: factory environmentally sealed and freeze-protected
- Ports: 2 fixed high-pressure ports and 5 low-pressure ports on a swivel cap
- Gas compatibility: Nitrox to 50% factory-ready; oxygen mixes to 80% with special guidelines
- Color: gray
- Service interval: 2 years or 300 dives, whichever occurs first, with an annual safety inspection recommended
- Warranty: limited lifetime warranty on metal parts against corrosion, not contingent on proof of service
Compatibility and sizing

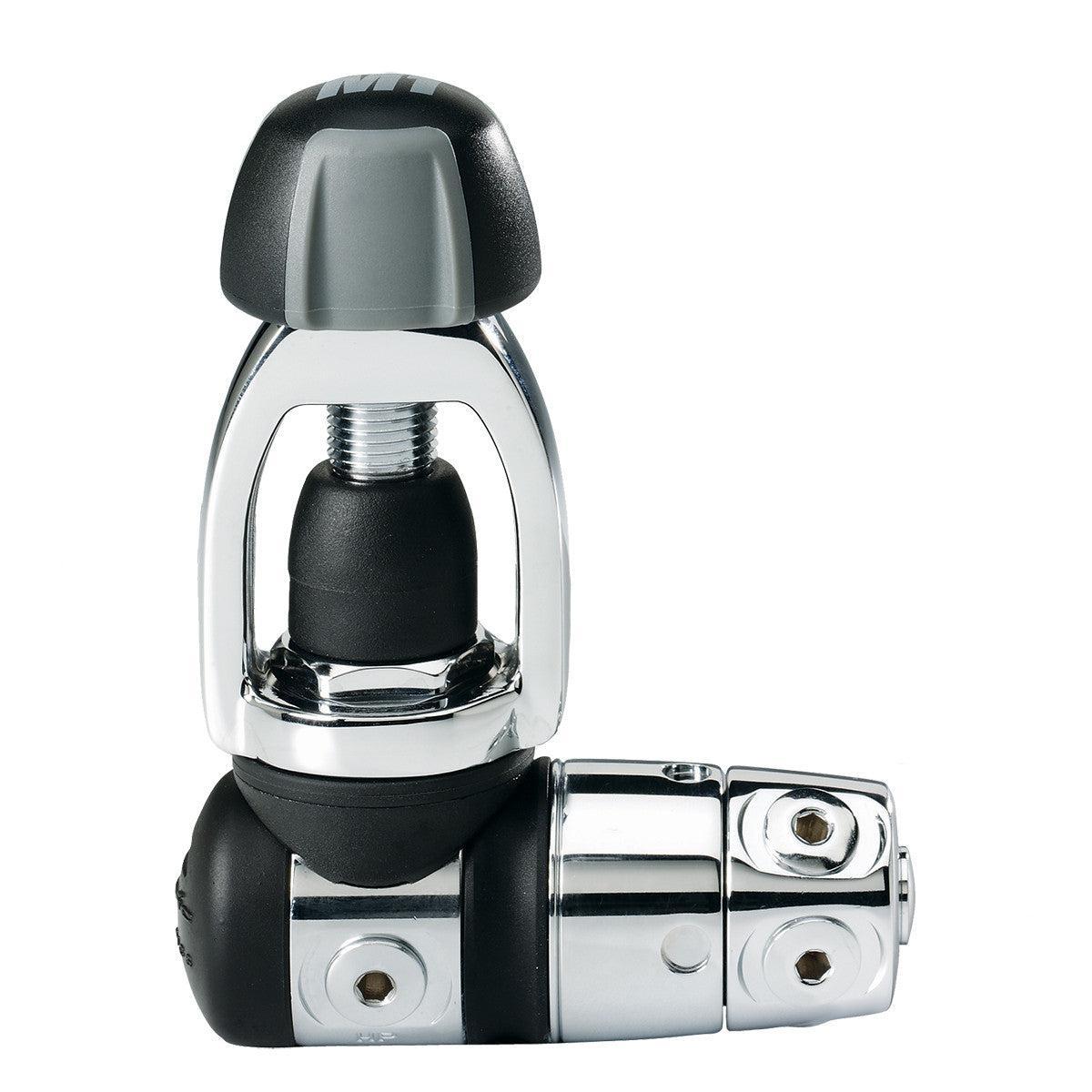

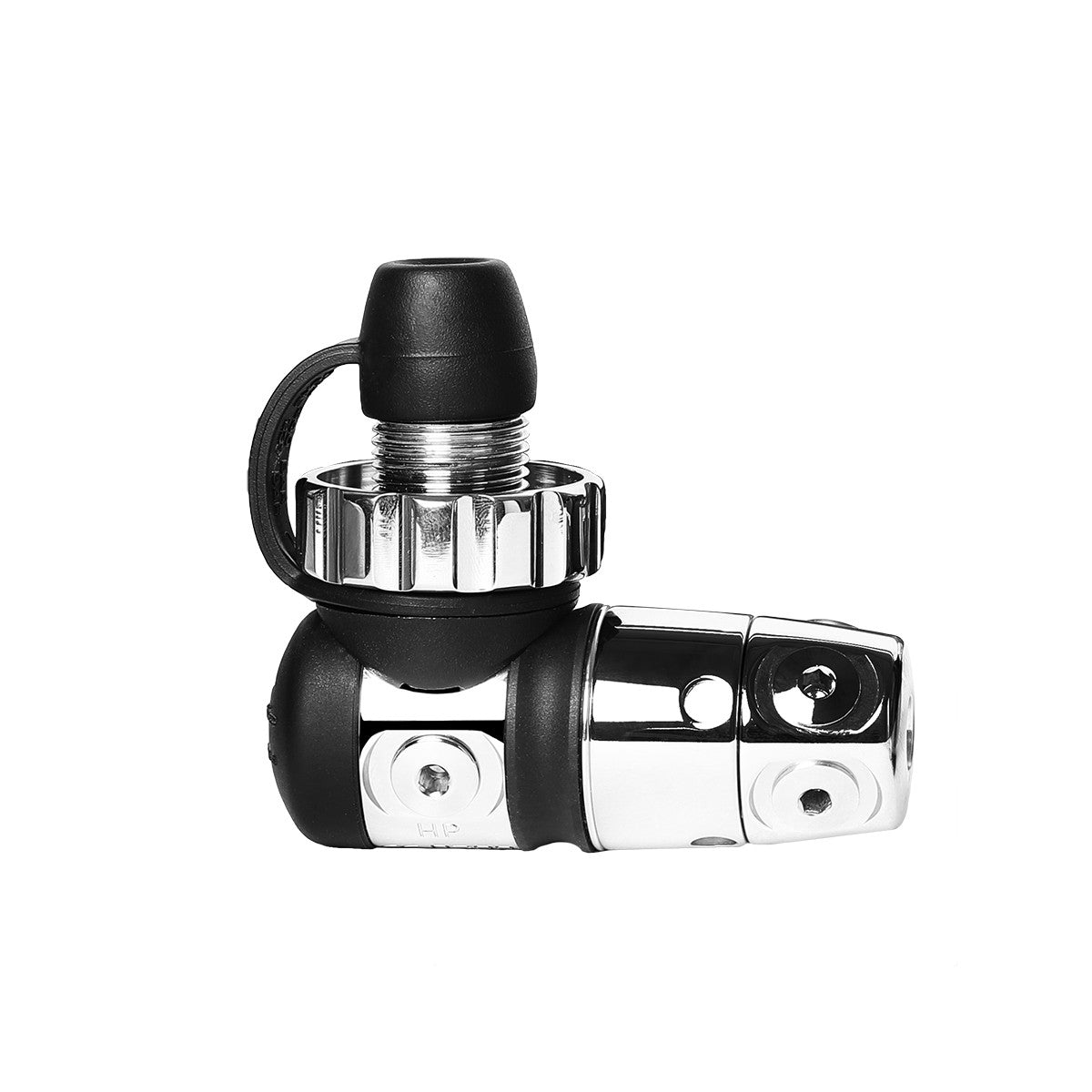

The M1 first stage is sold in two connection options: DIN Sealed (SKU 01-0065-7P-S) and Yoke Sealed (SKU 01-0065-6P-S), so you can choose the tank valve fitting that matches your cylinder setup and diving environment.
DiveCatalog.com is an authorized Atomic Aquatics dealer and has been a dive shop in Irvine, California since 2003. Call 888-701-4017 or start a chat if you have questions about DIN versus Yoke fit or compatibility with your current second stage.
- Balanced Jet Seat piston: Uses Atomic Aquatics' exclusive balanced Jet Seat high-flow piston design.
- Factory sealed construction: Environmentally sealed first stage protects internal components from contaminants.
- Freeze-protected: Built with a freeze-protected design.
- Corrosion-resistant metals: Chrome-plated brass body with Monel, 316 stainless steel and titanium internal components.
- Zirconium/Nickel coating: Valve body coating applied over the brass for added corrosion resistance.
- Port layout: 2 fixed high-pressure ports and 5 low-pressure ports on a swivel cap.
- High-oxygen gas ready: Factory-ready for Nitrox mixtures up to 50%, and compatible with oxygen mixes up to 80% when special guidelines are followed.
- Oxygen-compatible materials: Built throughout with oxygen-compatible materials.
- Lifetime corrosion warranty: Limited lifetime warranty on metal parts against corrosion.
- No proof-of-service requirement: Warranty coverage is not contingent on proof of service.
| Brand | Atomic Aquatics |
| Model | M1 Regulator First Stage |
| Product Type | Regulator first stage only |
| Design | Balanced Jet Seat high-flow piston (Atomic Aquatics exclusive) |
| Body Material | Chrome-plated brass |
| Internal Components | Monel, 316 stainless steel, titanium elements |
| Valve Body Coating | Zirconium/Nickel coating over brass |
| Port Configuration | 2 fixed high-pressure ports, 5 low-pressure ports on swivel cap |
| Gas Compatibility | Nitrox to 50% factory-ready; oxygen mixes to 80% with special guidelines |
| Color | Gray |
| Service Interval | 2 years or 300 dives, whichever occurs first; annual safety inspection recommended |
| Warranty | Limited lifetime warranty on metal parts against corrosion; not contingent on proof of service |
| Available Options | DIN Sealed, Yoke Sealed |
| SKU (Yoke Sealed) | 01-0065-6P-S |
| SKU (DIN Sealed) | 01-0065-7P-S |
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How often does a scuba regulator need servicing?
Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.
How do I rinse and care for a regulator after diving?
Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.
Can I fly with a scuba regulator?
Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.
Can I use my regulator with nitrox?
Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.
What is the difference between DIN and yoke regulators?
A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.
What is the octopus regulator for?
The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.
How should I store a regulator between dive trips?
Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.
Can the Atomic Aquatics M1 first stage be used with oxygen mixes above the standard Nitrox limit?
Yes. The M1 first stage is factory-ready for Nitrox mixtures up to 50% out of the box, and it can be used with oxygen mixes up to 80% when special guidelines are followed. The M1 is factory-ready for Nitrox to 50% and can be used with oxygen mixes to 80% when special guidelines are followed.
How many ports does the M1 first stage have for gauges and hoses?
The M1 first stage has 2 fixed high-pressure ports and 5 low-pressure ports arranged on a swivel cap. This port configuration gives you fixed HP connections for your pressure gauge or transmitter and 5 LP positions on a rotating cap for routing your primary, octopus, BCD inflator and other low-pressure hoses.
Is the M1 first stage warranty voided if I do not keep service records?
No. Atomic Aquatics backs the M1 first stage with a limited lifetime warranty on metal parts against corrosion, and that warranty is not contingent on proof of service. The manufacturer still recommends an annual safety inspection and a full service every 2 years or 300 dives, whichever comes first.
What materials make the M1 first stage resistant to saltwater corrosion?
The M1 first stage uses a chrome-plated brass body with a Zirconium/Nickel coating over the brass valve body, plus internal components made from Monel, 316 stainless steel and titanium. These materials, combined with the factory environmentally sealed and freeze-protected construction, are chosen for corrosion resistance and oxygen compatibility.
