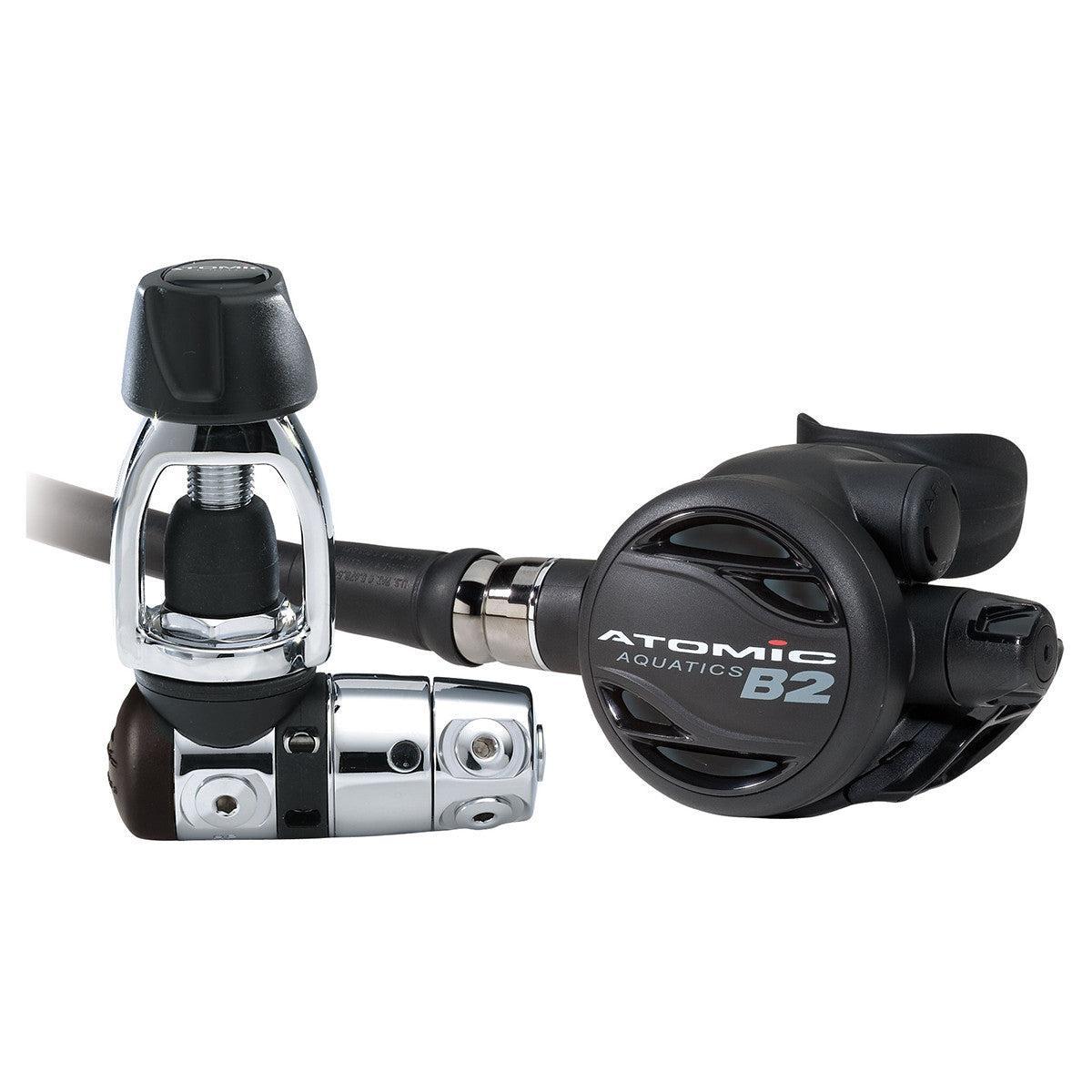

Atomic Aquatics B2 Regulator

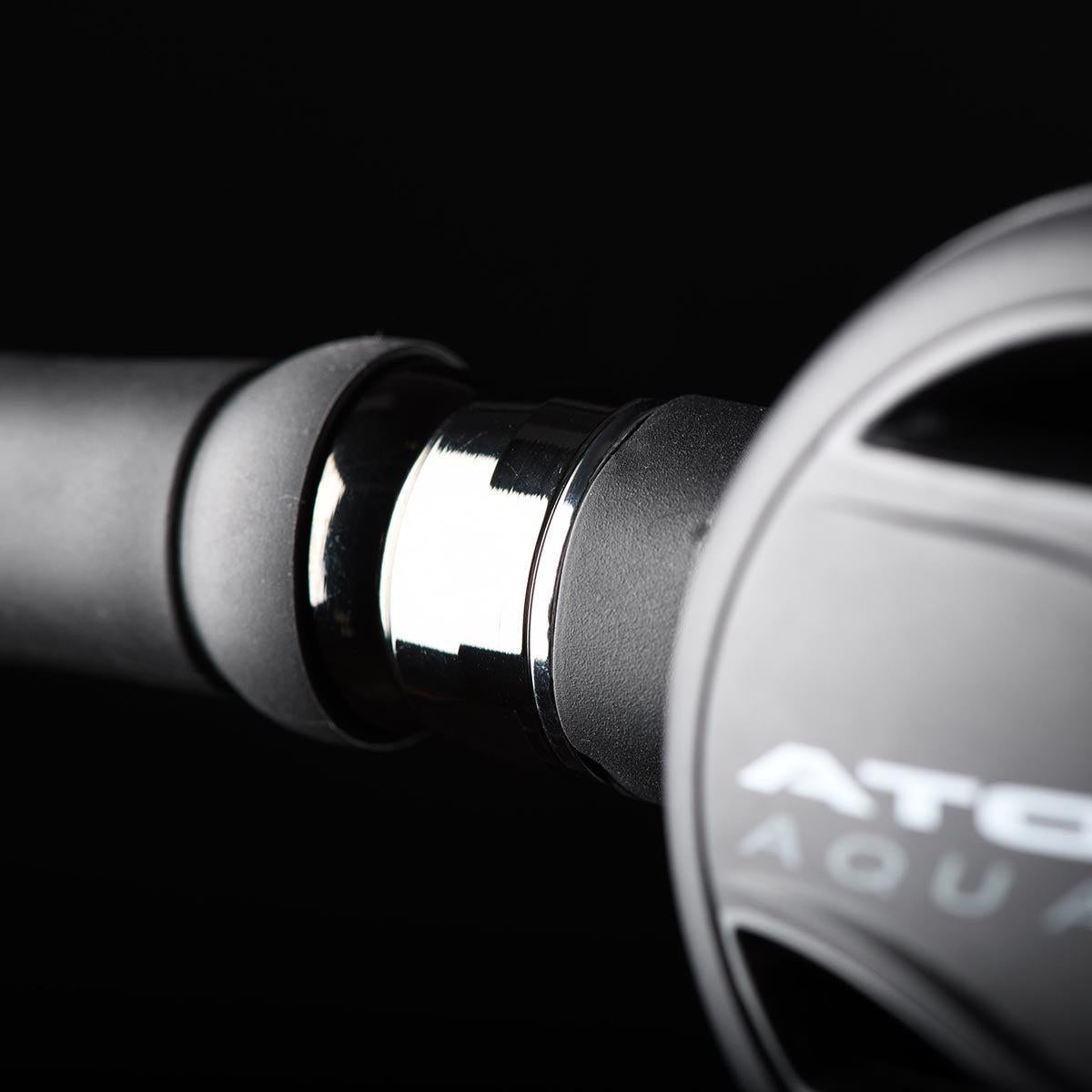

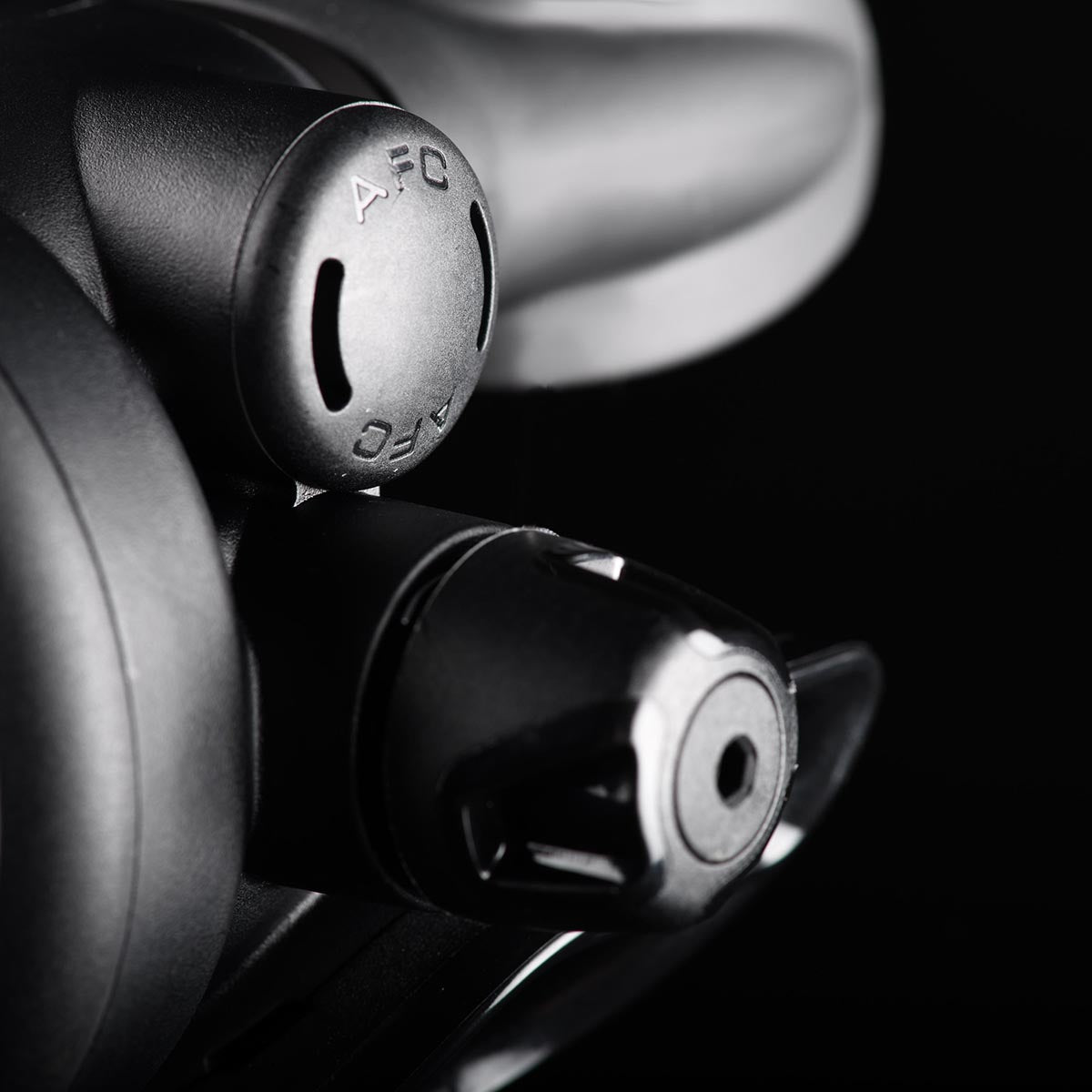

The B2 pairs Atomic's balanced Jet Seat high-flow piston first stage (chrome-plated brass with 316 stainless steel) with a second stage built from the same titanium components as their flagship T3 — including the patented titanium Seat Saving Dynamic Orifice that keeps the regulator breathing like it was just tuned. You also get Atomic's Automatic Flow Control, a rapid adjustment knob for surf entries, and the stainless Comfort Swivel that stops hose pull. At about 2.5 lbs for the yoke version, it is Atomic's most popular regulator for a reason.

The environmental seal is optional on the B2 — Atomic offers factory-sealed DIN and yoke versions that keep silt, sand, and contamination out of the first stage. For diving in water below 50°F (10°C), Atomic recommends the sealed version with the anti-freeze kit. If you dive cold water regularly and want the seal standard rather than optional, that is exactly what the ST1 offers.

Every 2 years or 300 dives, whichever comes first — Atomic's officially published interval, and one of the longest in the industry (most brands require service annually or every 100 dives). Atomic also recommends a quick annual inspection by an authorized dealer between services. Over years of ownership, that service schedule is a real cost saving.

A limited lifetime warranty for the original owner — and unusually, Atomic states the warranty is NOT contingent on proof of service. All titanium and metal parts are additionally warranted against corrosion for life. To activate it, register within 30 days of purchase, and buy from an authorized Atomic dealer (purchases from us qualify). Wear items like mouthpieces, hoses, and o-rings carry a 2-year warranty.

Both breathe through the same titanium second-stage design as Atomic's T3 flagship. The difference is the first stage: the B2 uses chrome-plated brass — Atomic's value pick with flagship performance — while the ST1 is machined from solid 316 stainless steel with roughly twice the strength of brass and corrosion resistance approaching titanium, and it comes factory-sealed and freeze-protected as standard. Choose the ST1 for cold water, heavy use, or maximum durability; the B2 covers everything else for less.

Follow the interval in your regulator's manual, since manufacturers commonly specify an annual inspection or a set number of dives and many warranties depend on it. A regulator is life-support equipment, so service belongs with a factory-trained technician rather than being attempted at home. Have it looked at sooner than scheduled if you notice increased breathing effort, free-flow, bubbles, or water in the second stage.

Make sure the dust cap is dry and firmly seated over the first-stage inlet before the regulator goes anywhere near water, because water inside the first stage is the leading cause of internal corrosion. Rinse in fresh water without pressing the purge button, since purging while depressurized can draw water back into the second stage. Shake out the water and hang it to dry with the hoses in wide, gentle loops rather than tight bends.

Regulators travel well and are usually best carried in hand luggage where they will not be crushed or lost. A regulator holds no gas of its own, so there is nothing inherently problematic about it on an aircraft, though the airline and security screeners always have the final say. Pack it dry with the dust cap in place, in a padded regulator bag or wrapped in soft gear.

Many modern regulators are supplied as suitable for nitrox mixes up to 40 percent oxygen, which is the widely used recreational industry standard, while anything above that requires dedicated oxygen-clean equipment and procedures. Confirm what your specific regulator's manual states, and follow your nitrox training and your fill station's requirements. Never assume a regulator is oxygen-service clean simply because it looks clean or is new.

A yoke (A-clamp) fitting clamps over the tank valve and is the most common connection across much of the recreational world, while a DIN fitting screws into the valve and is standard in much of Europe and in technical diving. DIN captures the o-ring inside the threads, which many divers consider more secure, but yoke is often what rental cylinders provide. Adapters exist in both directions, so check what is used where you dive before deciding.

The octopus is your backup second stage, carried so you can share air with a buddy who is out of gas, or breathe from it yourself if your primary fails or free-flows. It is normally on a longer, brightly colored hose so it is easy to find and hand over under stress. Secure it in the triangle between your chin and the bottom of your rib cage so it is instantly accessible and not dragging through sand or coral.

Store it fully dry, out of sunlight, with the dust cap in place and the hoses in wide loops rather than tightly coiled. Avoid hanging it by the second stages for long periods, which stresses the hose fittings; laying it flat in a padded bag or hanging it by the first stage is kinder. If it has sat unused for a long stretch, have it checked before your next trip rather than assuming it is ready to dive.

The M1 is the sealed specialty regulator: chrome-plated brass with Monel key internals for strength, corrosion and oxygen compatibility, factory-sealed as standard, factory-ready for nitrox to 50% (and oxygen to 80% under special guidelines), at 2.6 lbs in yoke. The B2 uses Atomic's balanced Jet Seat piston first stage with the environmental seal as an option rather than standard, paired with the titanium second stage shared with the T3 flagship, at about 2.5 lbs in yoke. Both carry the same 2-year/300-dive service interval and Atomic's lifetime warranty that is not contingent on proof of service.

The T3 is Atomic's all-titanium flagship — the first stage is machined from a solid titanium billet, it uses a titanium Comfort Swivel with black PVD, and at under 1.8 lbs in yoke it is the lightest regulator in the industry. It also stretches the service interval to 3 years or 300 dives, against the B2's 2 years or 300 dives. The B2 already breathes through the same titanium second-stage components, so what the T3 really buys you is weight, materials and a longer time between services.

The key part is the patented titanium Seat Saving Dynamic Orifice in the second stage, which protects the seat so the regulator keeps breathing like it was just tuned. It is a big reason Atomic can publish a 2-year or 300-dive service interval — one of the longest in the industry — while most brands ask for annual service or every 100 dives. Atomic still recommends a quick annual inspection by an authorized dealer between full services.

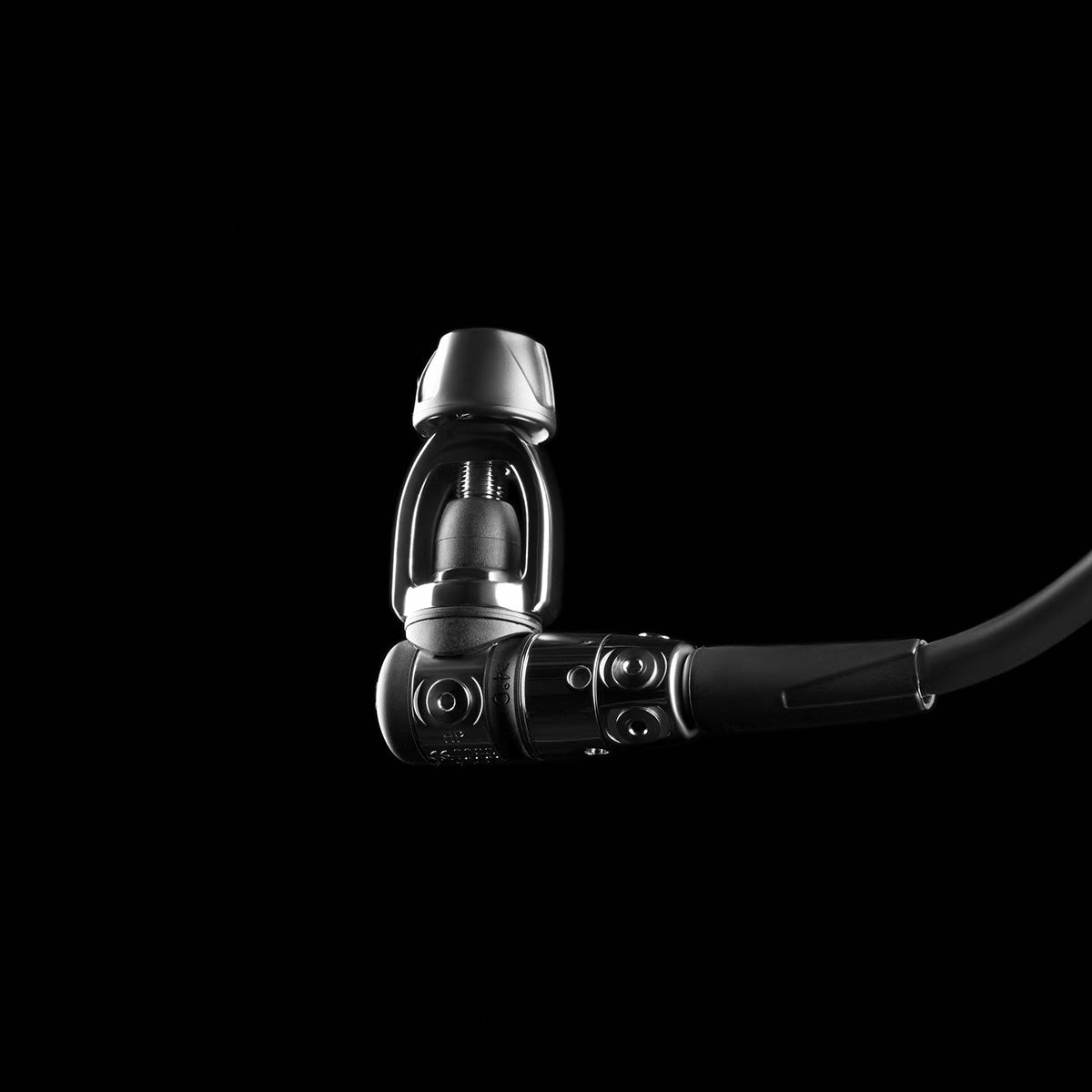

The B2 first stage has 2 high pressure fixed ports and 5 low pressure ports located on a swivel cap. The swiveling cap lets you rotate the LP port cluster to route your primary, octopus, BCD inflator and other low pressure hoses cleanly over the shoulder. The B2 first stage has 2 high pressure fixed ports and 5 low pressure ports on a swivel cap.

The B2 weighs 2.5 pounds in the Yoke version, according to Atomic Aquatics. The B2 uses the same second stage design and materials as Atomic's T3.

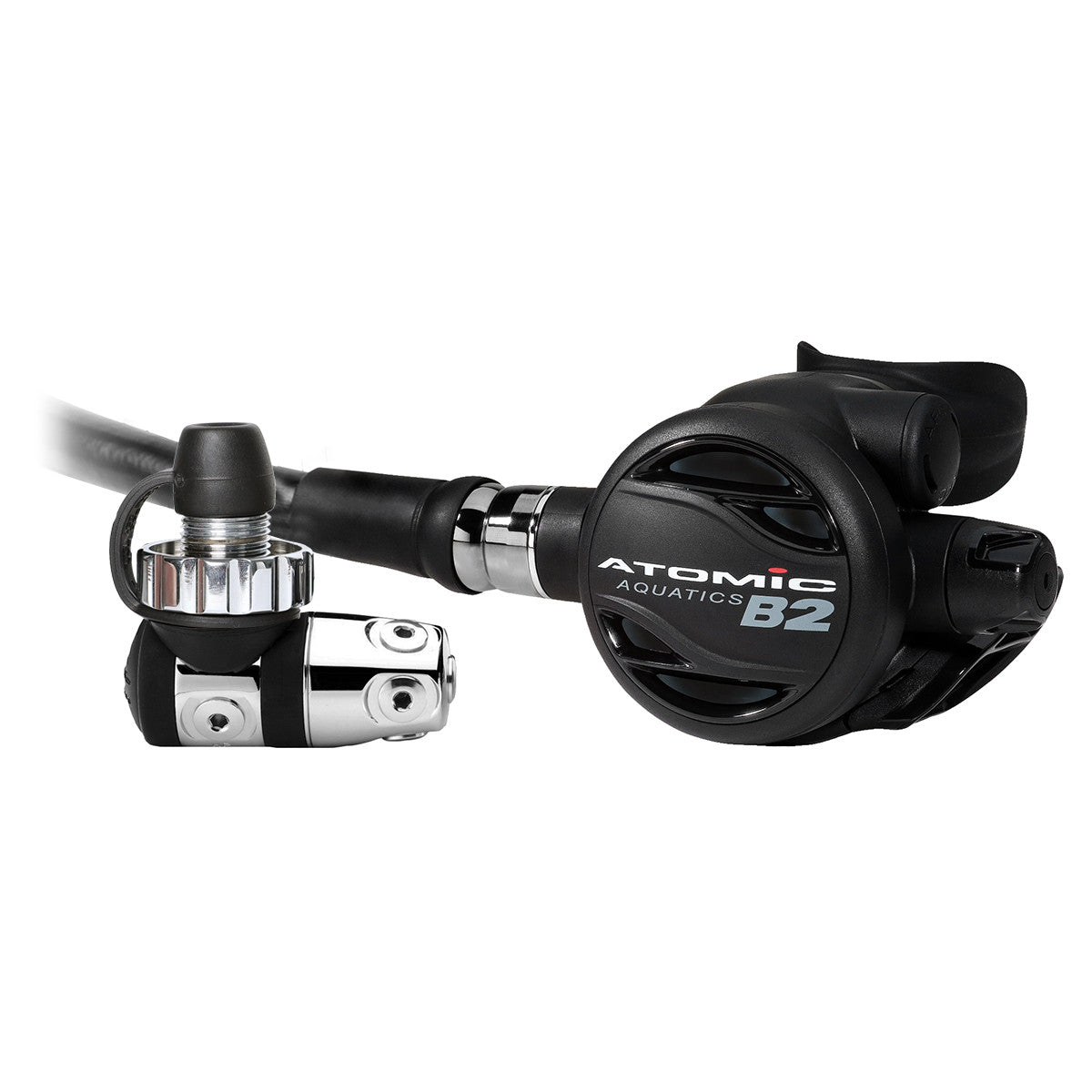

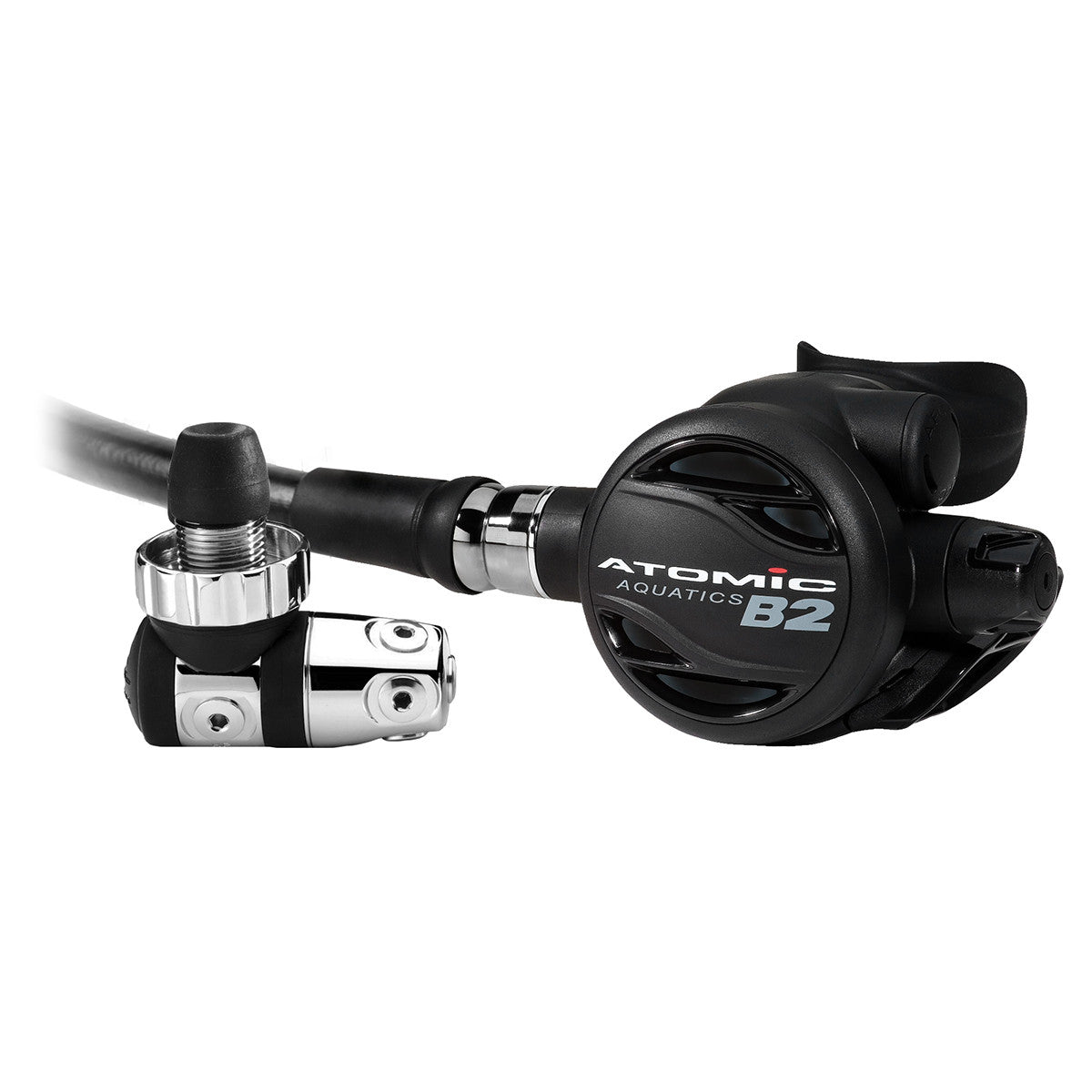

Atomic publishes four B2 configurations: Yoke, Yoke Sealed, DIN and DIN Sealed. Yoke and DIN refer to the tank valve connection. The Sealed versions carry Atomic's optional factory sealing. The corresponding SKUs are 03-0027-3P for Yoke, 03-0027-4P for DIN, 03-0027-6P for Yoke Sealed and 03-0027-7P for DIN Sealed.

Yes. Atomic states the B2 is approved for non-dedicated EAN use with compressed air or nitrox mixtures up to 40% oxygen at a maximum of 3500 psi, so no separate oxygen-clean conversion is needed for standard recreational nitrox blends. Mixtures above 40% oxygen require dedicated oxygen service equipment and procedures, and you should always follow your training agency's guidelines and your fill station's requirements.
