Tusa T-Wing Aluminum Harness, Back Inflate, Adjustable BC
Tusa T-Wing Aluminum Harness, Back Inflate, Adjustable BC is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 23D
| XS-XL | |
|---|---|
| Model # | BC0502B |
| Product Name | t-wing |
| Lift Capacity (n) | 120 |
| Lift Capacity (lbf) | 27 |
| Lift Capacity (kgf) | 12.8 |
| Waist (in) | 22.1-39.4 |
| Waist (cm) | 56-100 |
| BC Weight (dry) (lb) | 6.6 |
| BC Weight (dry) (kg) | 3 |
| Releasable Weight (lb) | N/A |
| Releasable Weight (kg) | N/A |
| Dump Valves | 2 (O.P.E.V.+1) |
| Material | "Inner bladder: 210D Nylon Outer bladder: 1000D CORDURA" |
You May Need These
Description
Description

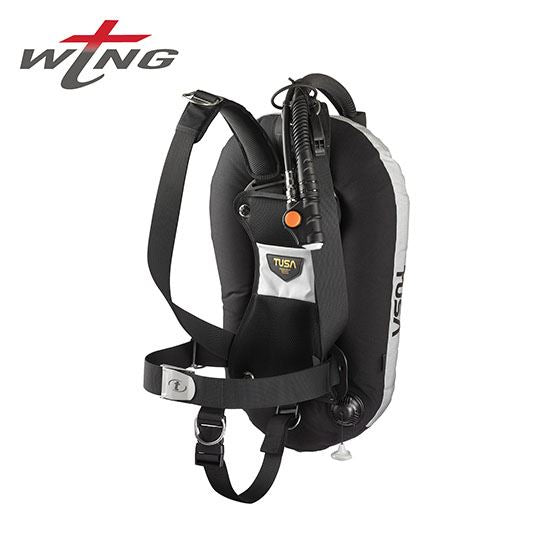

The TUSA T-Wing Aluminum Harness Back Inflate BC is a lightweight, customizable platform designed for scuba adventures. An aluminum back plate and a circular donut bladder deliver stable buoyancy and balanced trim in varying conditions, helping divers maintain controlled positioning in the water during underwater exploration. Optional accessory pockets and a single-tank adapter provide flexible customization for gear arrangement and payload.
Built for travel and everyday use, this back-inflate BC features a single-feed adjustable webbing with rollers for a precise, secure fit. It supports a range of sizes (XS–XL) and offers a lift capacity of 27.0 lbf. The system is compatible with the TUSA Duo Air II regulator/power inflator, and you can further tailor the rig with an aluminum tank adapter set or removable weight pockets as needed.
Features
Features

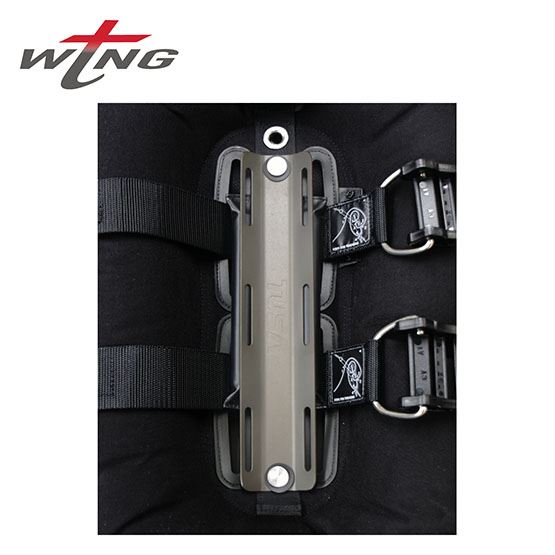

- Aluminum back plate design — provides rigid support and helps stabilize trim.
- Circular, donut bladder fixed with three exhaust valves — precise buoyancy control and quick venting.
- Customize with accessory weight pockets and aluminum single tank adapter — flexible configuration for gear balance.
- Single feed adjustable webbing with rollers — smooth donning and secure fit.
- Dual RiteTite Buckle system — reliable adjustment and stability during movement.
- Lightweight, travel-friendly — convenient for expeditions and check-in.
- Sizes: XS–XL — broad sizing to fit most divers.
- Lift Capacity: XS–XL: 27.0 lbf — measurable buoyancy support for diverse setups.
- Optional Aluminum Tank Adapter Set available — expands compatibility with tanks.

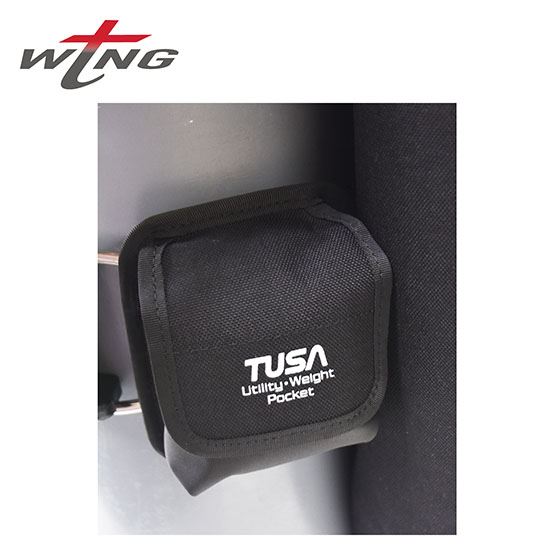

- Optional Removable Weight Pockets available — add or remove ballast as needed.
- TUSA Duo Air II compatible — integrates with a common regulator/power inflator system.
Specifications
Specifications
The RiteTite Buckle is a two (2)-position cam strap for quick and easy adjustment. While the strap is being looped through the buckle, the buckle stays in place without needing to be held. This allows for more control and stability. This feature is part of all TUSA BC’s.
TUSA Duo Air II, integrated second stage regulator/power inflator is compatible.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How should a scuba BCD fit?
A BCD should fit snugly enough that it does not ride up toward your ears when inflated, while still letting you breathe fully. Fasten the waist and cummerbund first, then adjust the shoulder straps so the tank sits close to your back and the shoulders cannot slide off. With the BCD fully inflated at the surface you should still be able to take a deep, comfortable breath; if it squeezes your chest, loosen it or move up a size.
How do I rinse and care for a BCD after diving?
Rinse the outside in fresh water and also flush the inside of the bladder, because salt water gets in through the inflator and dump valves. Fill the bladder roughly a third full of fresh water through the oral inflator, slosh it around, then drain it out through the inflator and each dump valve. Hang it to dry out of direct sunlight and store it partially inflated so the bladder walls do not stick together.
Should I use integrated weights or a weight belt?
Integrated weight pockets carry the lead in the BCD itself, which many divers find more comfortable and easier on the hips, while a weight belt keeps the weight independent of your BCD. Either way, you must be able to release your ditchable weight quickly with one hand, and your buddy should know how your system releases. Non-ditchable trim pockets are useful for balance but should never hold weight you might need to drop.
How do I pack a BCD for travel?
Make sure the BCD is completely dry inside and out before packing so it does not mildew in transit. Remove all weights, deflate it fully, and fold or roll it around softer items such as a wetsuit to cushion the inflator and valves. Avoid hard creases in the air cell, and unpack and air it out as soon as you arrive.
When does a BCD need to be serviced?
Follow the service interval in the manufacturer's manual, which is commonly an annual inspection alongside the rest of your life-support gear. Have the inflator, dump valves, and bladder checked any time the inflator sticks, free-flows, feels rough, or the BCD holds air poorly. Between services, confirm that it inflates and deflates properly as part of every pre-dive check.
What is the difference between a jacket-style and a back-inflate BCD?
A jacket-style BCD holds air in panels that wrap around your sides as well as your back, while a back-inflate BCD keeps the entire air cell behind you. Jacket styles tend to feel very stable and upright at the surface, and back-inflate styles keep the chest clear and are often preferred for horizontal trim underwater. Neither is objectively better, so treat it as a fit and preference decision and try both if you can.
Will my BCD fit any scuba tank?
Most recreational BCDs use an adjustable cam band sized for common single-cylinder diameters, so standard aluminum and steel tanks generally work. Re-check the band tension after the first wetting, because webbing can relax slightly and let the tank shift. If you dive doubles or unusual cylinder diameters, confirm compatibility with the manufacturer before assuming it will hold.
