Product Information

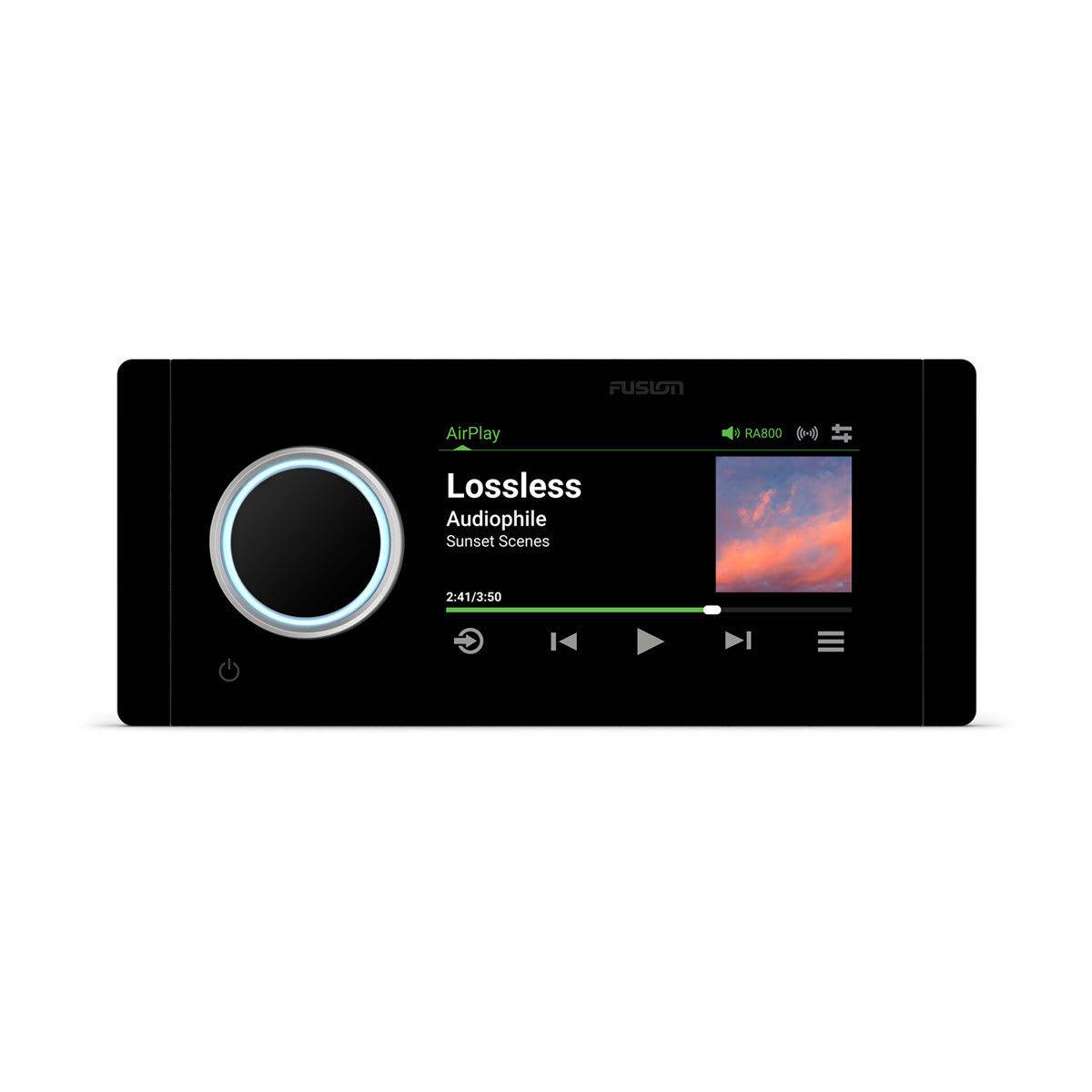

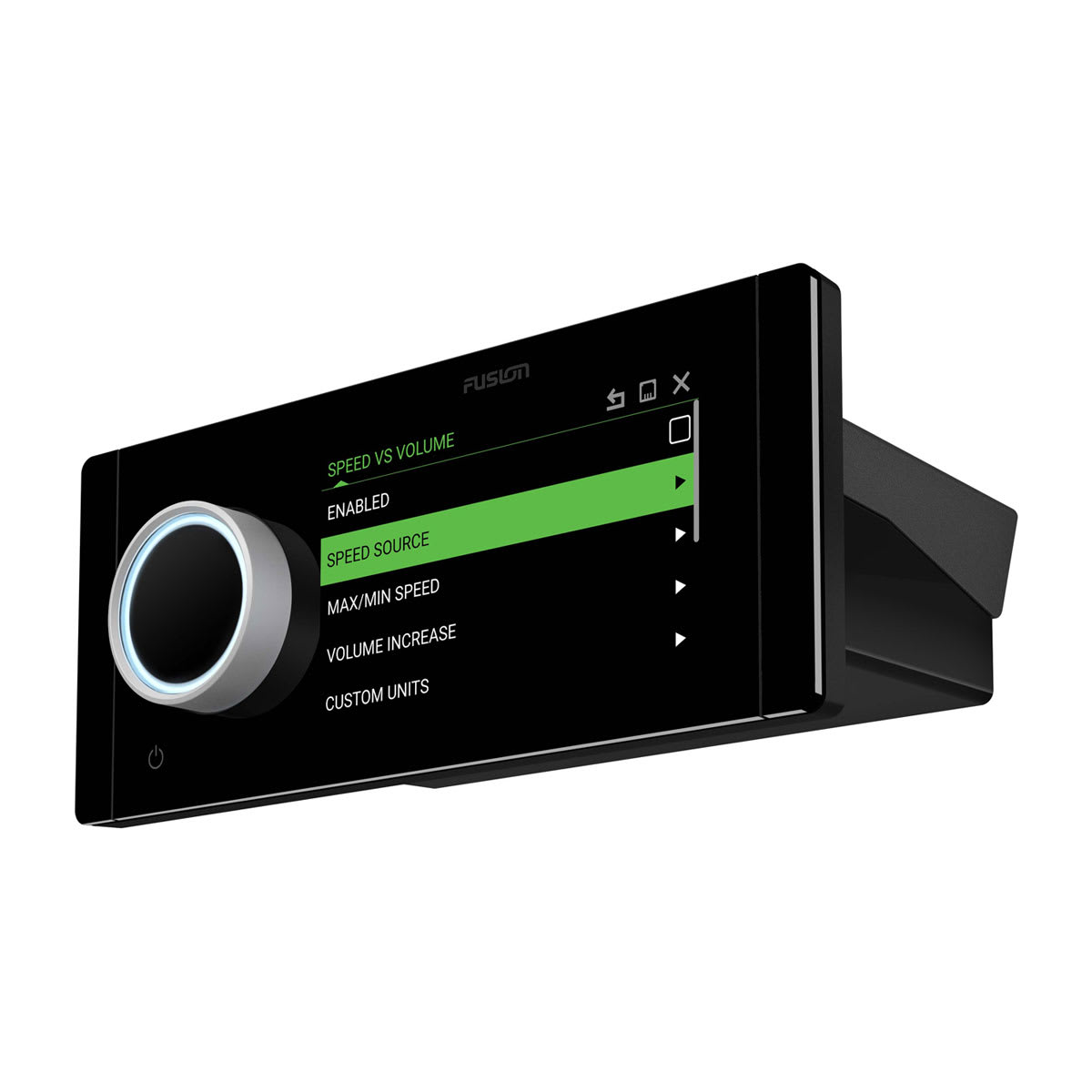

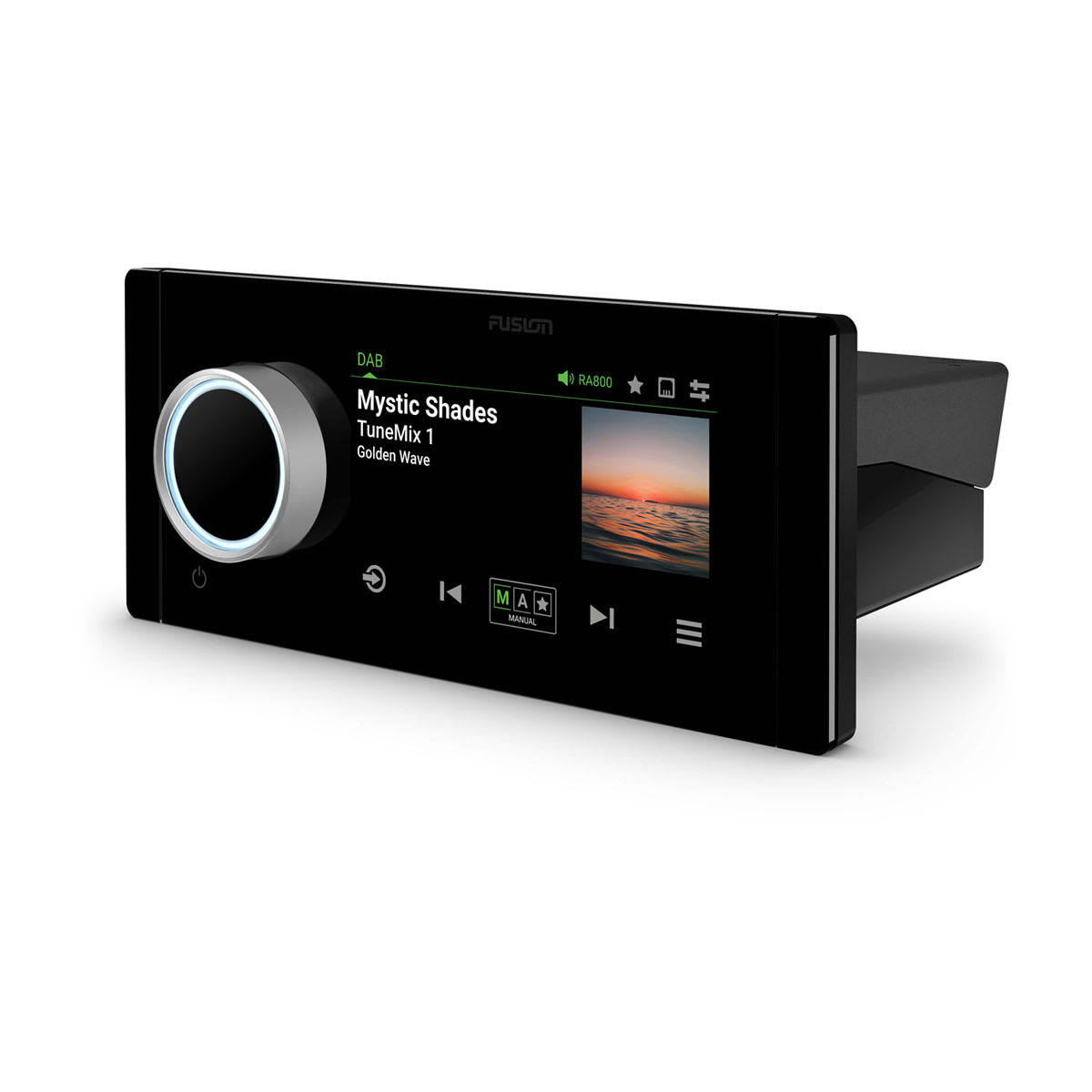

The Fusion Apollo MS-RA800 Marine Stereo is a touchscreen marine head unit with built-in Wi-Fi, a 4.3-inch 800 x 480 capacitive color display and a Class D amplifier rated at 4 x 40 watts RMS into 4 ohms. It is the first Fusion stereo to support high-resolution lossless audio, and AirPlay 2 streaming from Apple devices runs over its Wi-Fi connection.
Source options include AM/FM, Bluetooth 5.3, AirPlay 2, HDMI ARC, USB audio (MP3, AAC/ALAC, FLAC and WAV) and two auxiliary inputs, with ports for a DAB+ antenna. Multi-Zone technology controls four audio zones, each with line, subwoofer and RCA pre-outs for external amplification, and custom DSP profiles are configured through the Garmin Audio app. Ethernet and NMEA 2000 ports allow networking with other Apollo stereos and control from a compatible Garmin chartplotter, smart device or Garmin watch.
The RA800 shares the RA770's form factor, so it fits an existing RA770 cutout. It accepts 10.8 to 32 VDC, which covers 12-volt and 24-volt boats, and the edge-to-edge glass front is rated IPX6 and IPX7 when properly installed. Software updates are delivered over the air through the Garmin Audio app or by USB, and the stereo carries a 3-year warranty.
- 4.3 in (109 mm) capacitive touchscreen, 800 x 480, optically bonded
- Built-in Wi-Fi with Apple AirPlay 2 streaming
- High-resolution lossless audio support
- Class D amplifier: 4 x 40 W RMS at 4 ohms
- Multi-Zone technology with 4 zones
- Custom DSP profiles via the Garmin Audio app
- Bluetooth 5.3 and ANT wireless

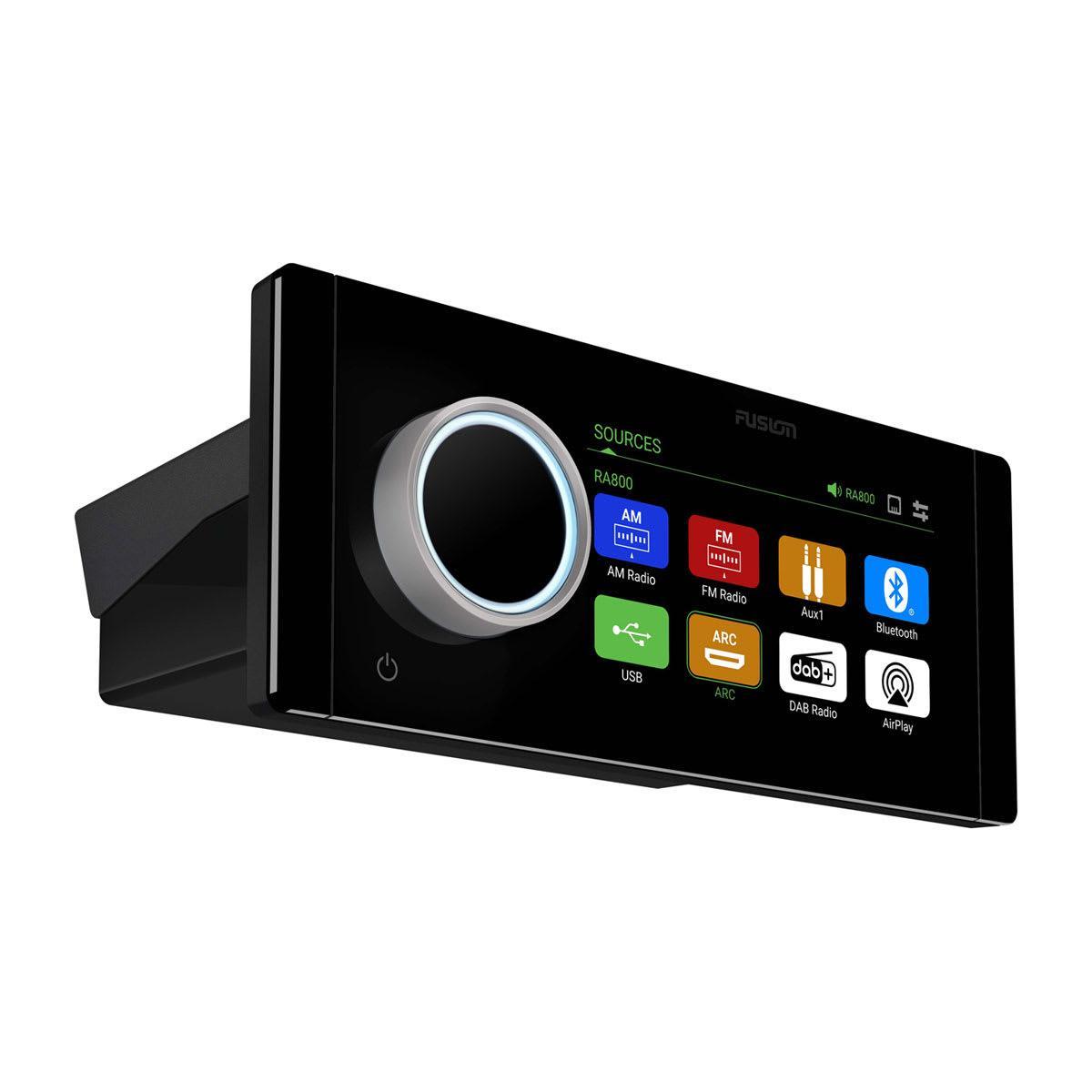

- Sources: AM, FM, Bluetooth, AirPlay 2, HDMI ARC, USB audio, AUX x2
- USB-C port plays MP3, M4A (AAC/ALAC), FLAC and WAV

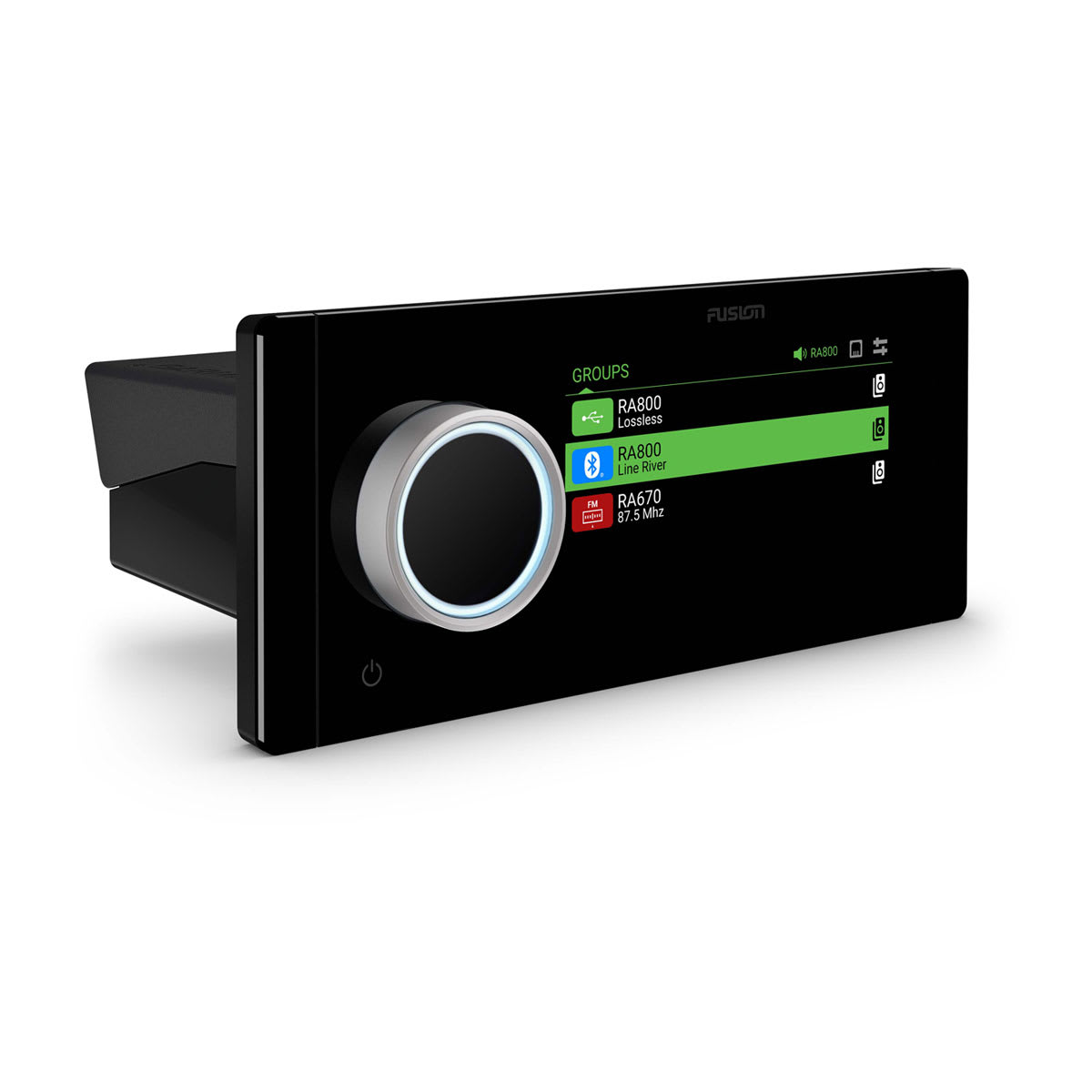

- Ethernet and NMEA 2000 networking; wired or wireless stereo networking
- Control from a compatible Garmin MFD, smart device or Garmin watch
- 10.8-32 VDC power input for 12 V or 24 V systems
- Same form factor as the Apollo RA770
- IPX6/IPX7 control surface; 3-year warranty
| Brand | Fusion |
| Model | Apollo MS-RA800 |
| Part Number | 010-02937-00 |
| UPC | 753759330361 |
| Display | 4.3 in (109 mm) capacitive touchscreen color LCD, 800 x 480, optically bonded |
| Built-in Amplifier | Class D (4 ohm) |
| Rated RMS Power (4 ohm, 14.4 V, <1% THD) | 40 W x 4 |
| Multi-Zone Technology | 4 zones |
| Built-in Wi-Fi | Yes |
| Digital Signal Processing | Yes, custom DSP profiles via Garmin Audio app |
| Stereo Networking | Wired or wireless |
| Garmin Audio Control | MFD, smart device and Garmin watch |
| Bluetooth | Yes, Bluetooth 5.3 (range up to 30 ft) |
| ANT Wireless | Yes (range up to 10 ft) |
| Supported Sources | AM, FM, Bluetooth, Apple AirPlay 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2 |
| USB Audio Formats | MP3, M4A (AAC/ALAC), FLAC, WAV |

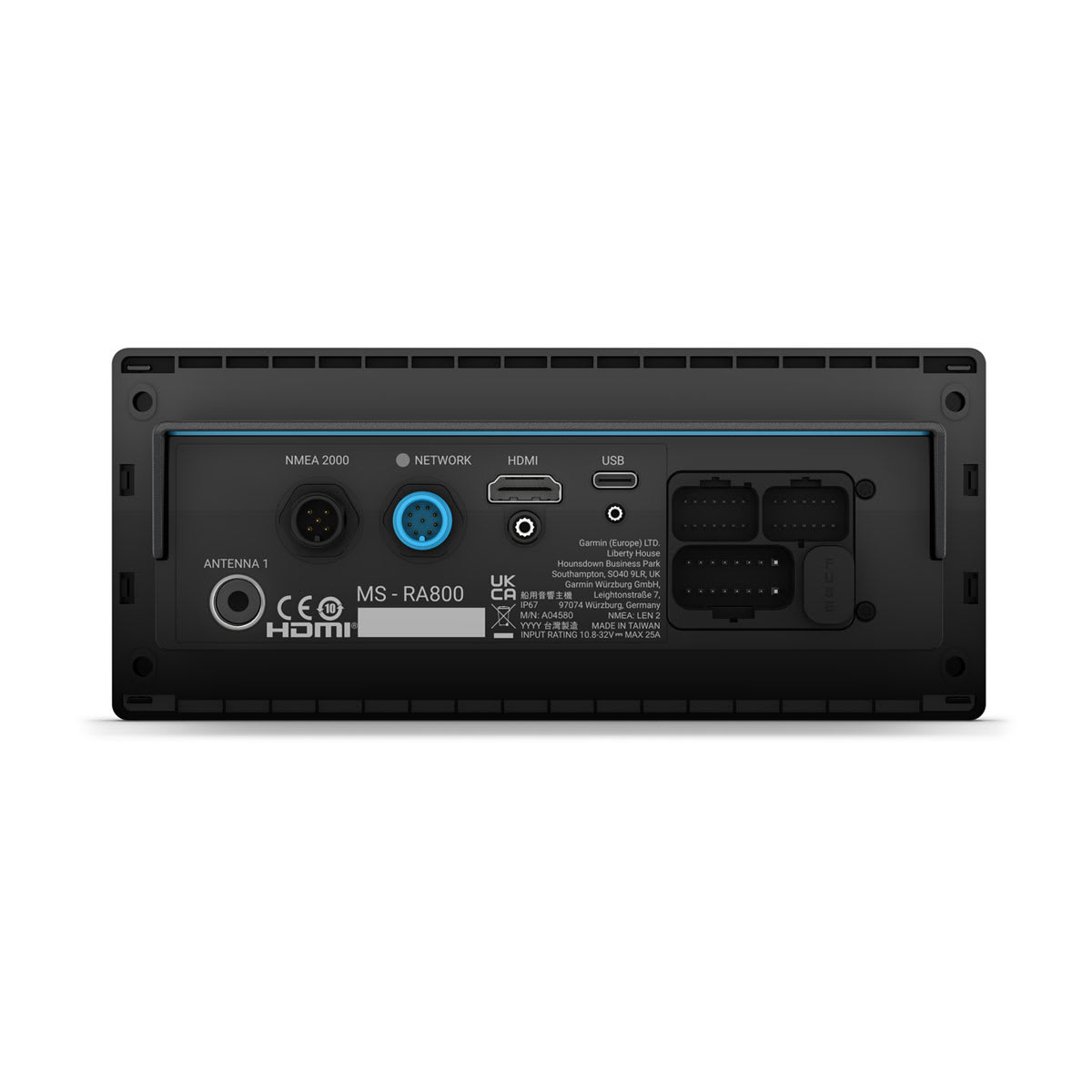

| Ports | 2 RCA aux in, 1 HDMI ARC, 1 Ethernet, 1 NMEA 2000, 1 USB-C (USB 2.0), AM/FM (Motorola), DAB+ (FAKRA) |
| NMEA 2000 LEN | 2 (65 mA) |
| Speaker Connections | 4 (2 zones amplified) |
| Pre-Outs | RCA left, right and subwoofer for 4 zones (external amplification) |
| Power Input | 10.8-32 VDC |
| Current Draw (Max) | 25 A at 14.4 V; 15 A at 28.8 V |

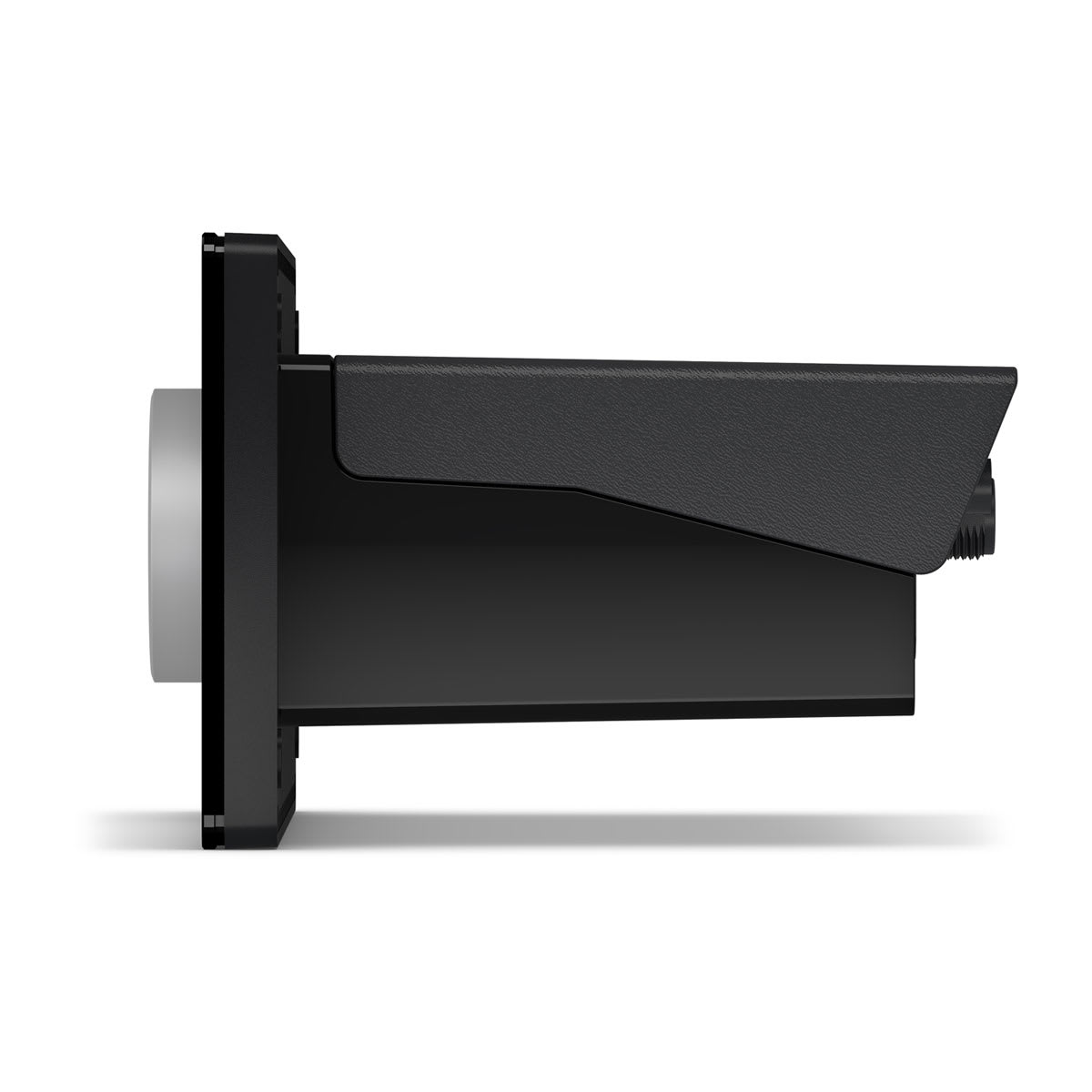

| Dimensions (H x W x D) | 3.23 x 7.56 x 4.7 in (82 x 192 x 119.4 mm) |
| Weight | 1.37 lb (620 g) |
| Water Rating | Control surface IPX6 and IPX7; rear IPX3 (when properly installed) |
| Compass-Safe Distance | 5.9 in (150 mm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Software Updates | Over the air via Garmin Audio app, or USB |
| In the Box | Stereo, mounting gasket, four 8-gauge screws, two screw covers, wiring harnesses, 6 ft (2 m) NMEA 2000 drop cable, dust cover |
| Warranty | 3 years |
