Product Information

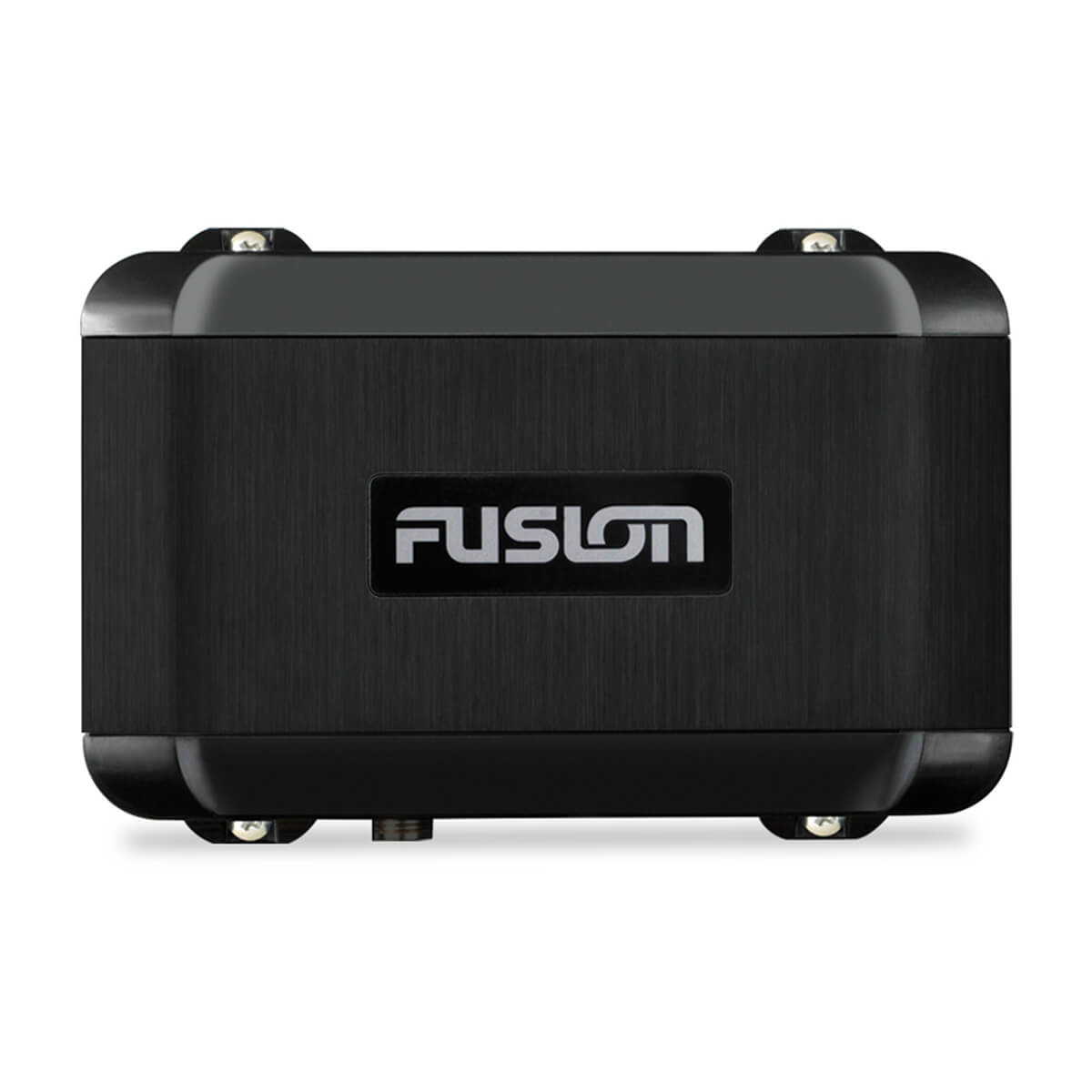

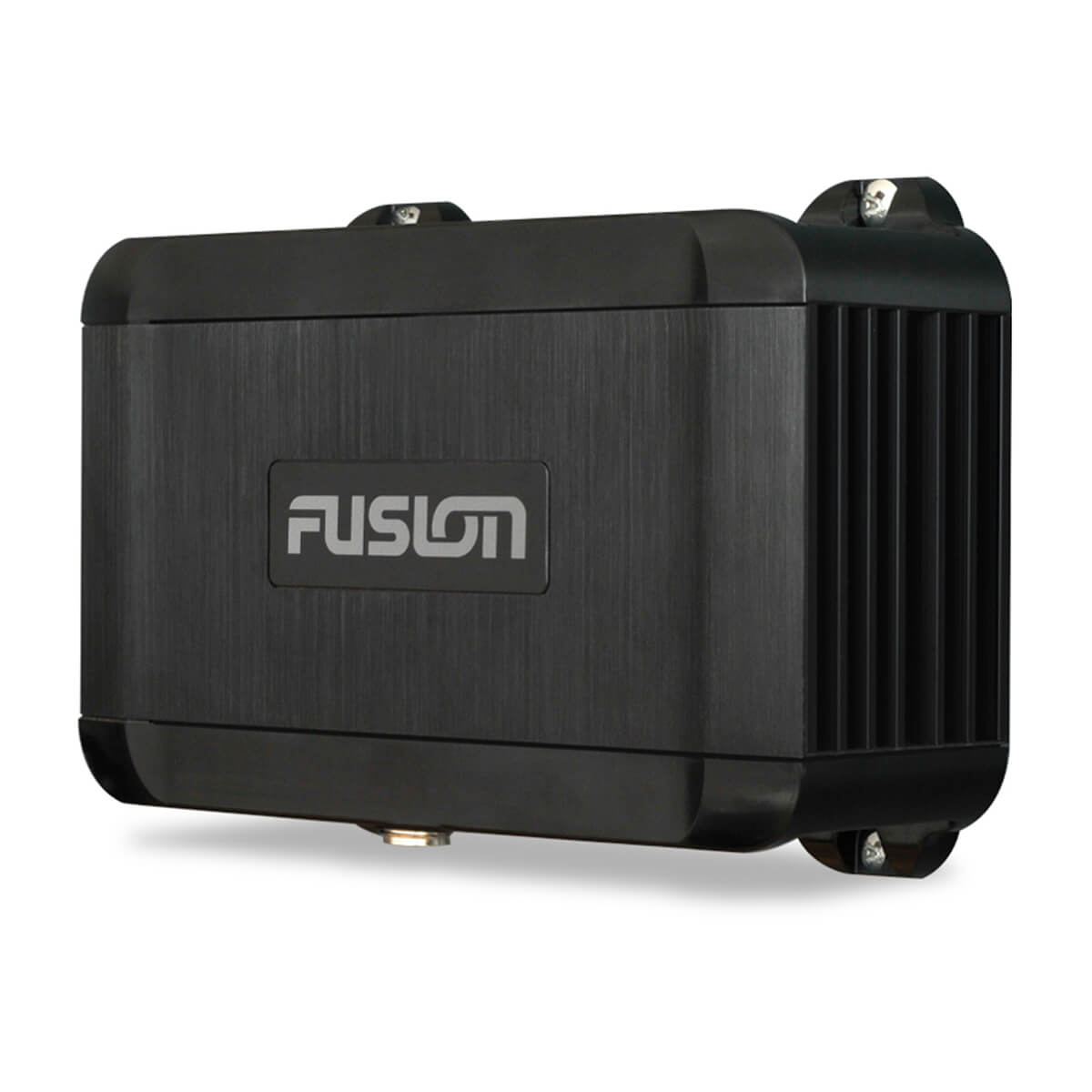

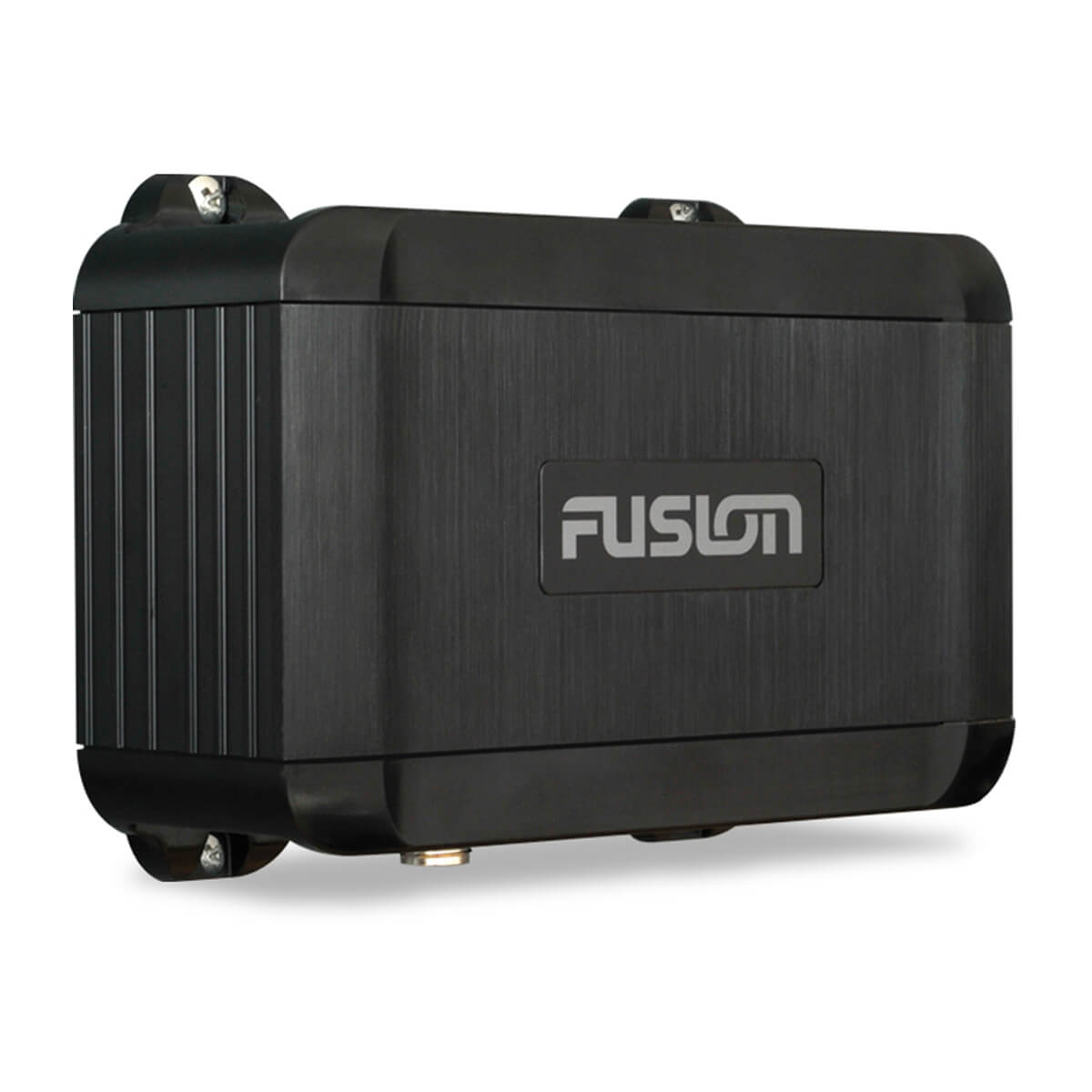

The Fusion MS-BB100 Marine Black Box Stereo is a hideaway marine entertainment unit supplied with an IPX7 wired remote control. The 6.1 x 3.7 x 2.63-inch black box mounts out of sight in a locker or console, and its Class AB amplifier is rated at 26 watts RMS x 4 into 4 ohms (200 watts peak).
Multi-Zone technology controls two audio zones, with RCA pre-outs and line outputs for both zones and a subwoofer output on zone 1. Sources include AM/FM, Bluetooth, USB audio and an auxiliary input. The NMEA 2000 port allows control from a compatible Garmin chartplotter, and a smart device, Garmin watch or Fusion NRX wired remote can also be used.

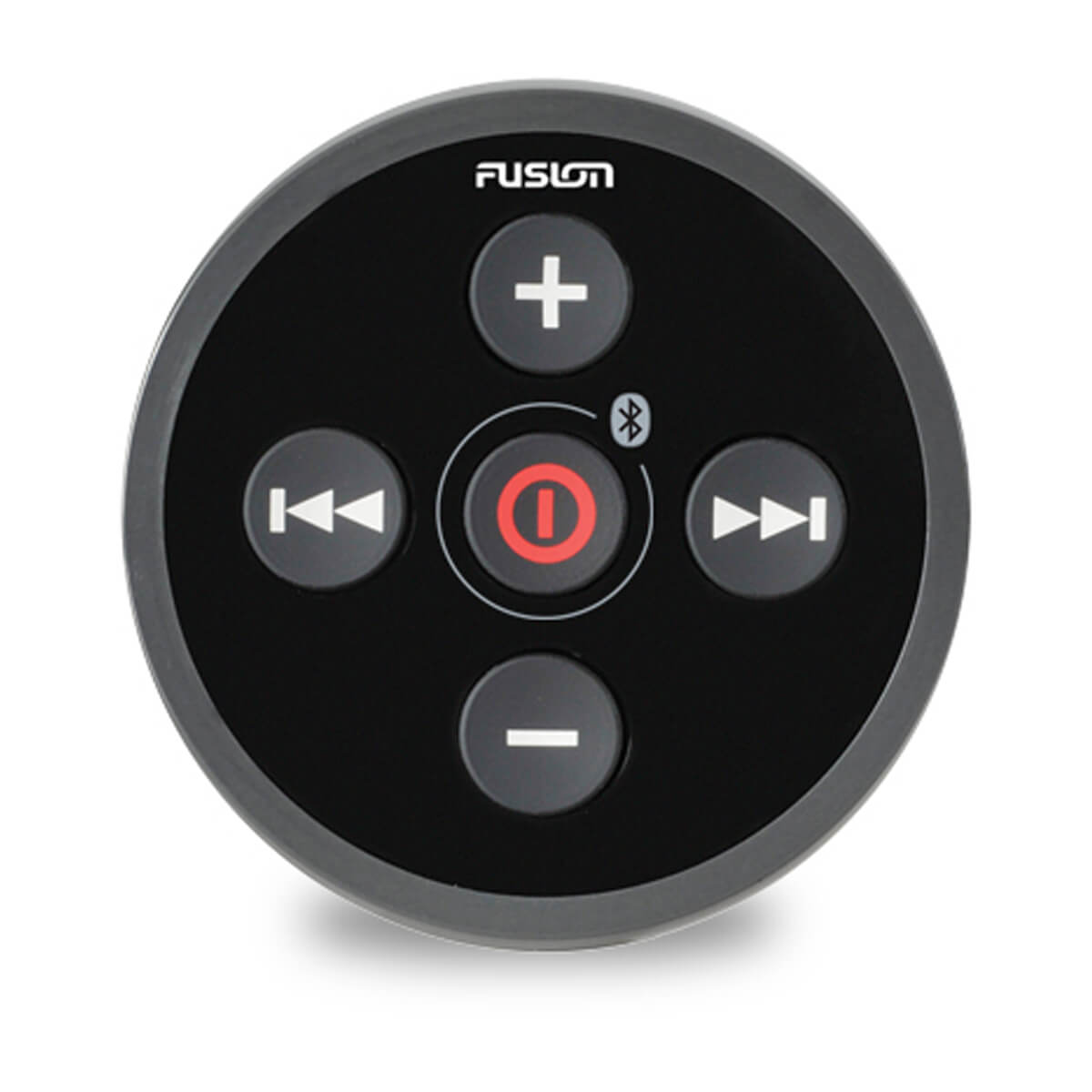

The included wired remote can be fitted with a conventional flush finish or integrated into the helm for a flat finish. The black box is rated IPX3 and the remote IPX7 (front panel) when properly installed. Garmin covers the MS-BB100 with a 1-year warranty.

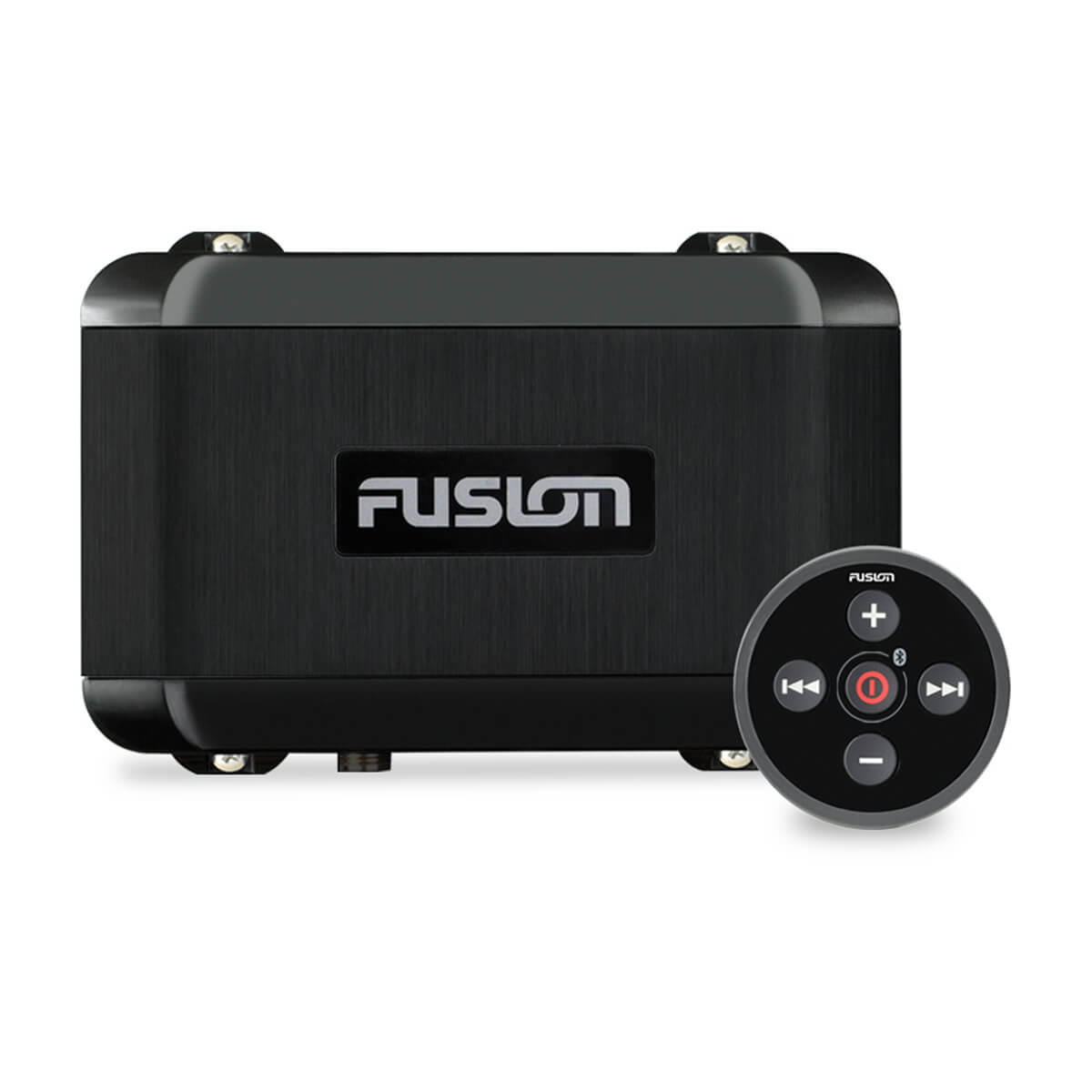

- Hideaway black box with included IPX7 wired remote
- Class AB amplifier: 26 W RMS x 4 at 4 ohms, 200 W peak
- Multi-Zone technology with 2 zones
- Bluetooth and ANT wireless
- Sources: AM, FM, Bluetooth, USB audio, AUX
- NMEA 2000 port; supports NRX wired remote
- Control from a compatible Garmin MFD, smart device or Garmin watch
- Black box 6.1 x 3.7 x 2.63 in; remote 2.56 x 2.56 x 2.13 in
- 6 ft (2 m) NMEA 2000 drop cable included
- 1-year warranty
| Brand | Fusion |
| Model | MS-BB100 |
| Part Number | 010-01517-01 |
| UPC | 753759149864 |
| Built-in Amplifier | Class AB (4 ohm) |
| Peak Power | 200 W |
| Rated Power Output (4 ohm) | 26 W RMS x 4 at 14.4 V, < 10% THD |
| Multi-Zone Technology | 2 zones |
| Garmin Audio Control | MFD, smart device and Garmin watch |
| Bluetooth | Yes (range up to 30 ft) |
| ANT Wireless | Yes (range up to 10 ft) |
| Supported Sources | AM, FM, Bluetooth, USB audio, iPhone, iPod, AUX x1, AOA |
| Wired Remote Support | NRX |
| Ports | 1 RCA aux in, 1 NMEA 2000, 1 USB 2.0, AM/FM (Motorola) |
| NMEA 2000 LEN | 1 (50 mA) |
| Speaker Connections | 4 (2 zones amplified) |
| Pre-Outs | RCA left, right and subwoofer for 2 zones; subwoofer out zone 1 |
| Power Input | 10.8-16 VDC |
| Current (Max) | 15 A |
| Dimensions | Black box 6.1 x 3.7 x 2.63 in (155 x 94 x 60 mm); remote 2.56 x 2.56 x 2.13 in (65 x 65 x 54 mm) |
| Weight | 1.23 lb (560 g) |
| Water Rating | Black box IPX3; wired remote IPX7 (front panel, when properly installed) |
| Compass-Safe Distance | 5.9 in (150 mm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Software Updates | USB |
| In the Box | Black box, IPX7 wired remote, remote mounting nut and gasket, four 8-gauge screws, wiring harnesses, 6 ft (2 m) NMEA 2000 drop cable |
| Warranty | 1 year |
