Product Information

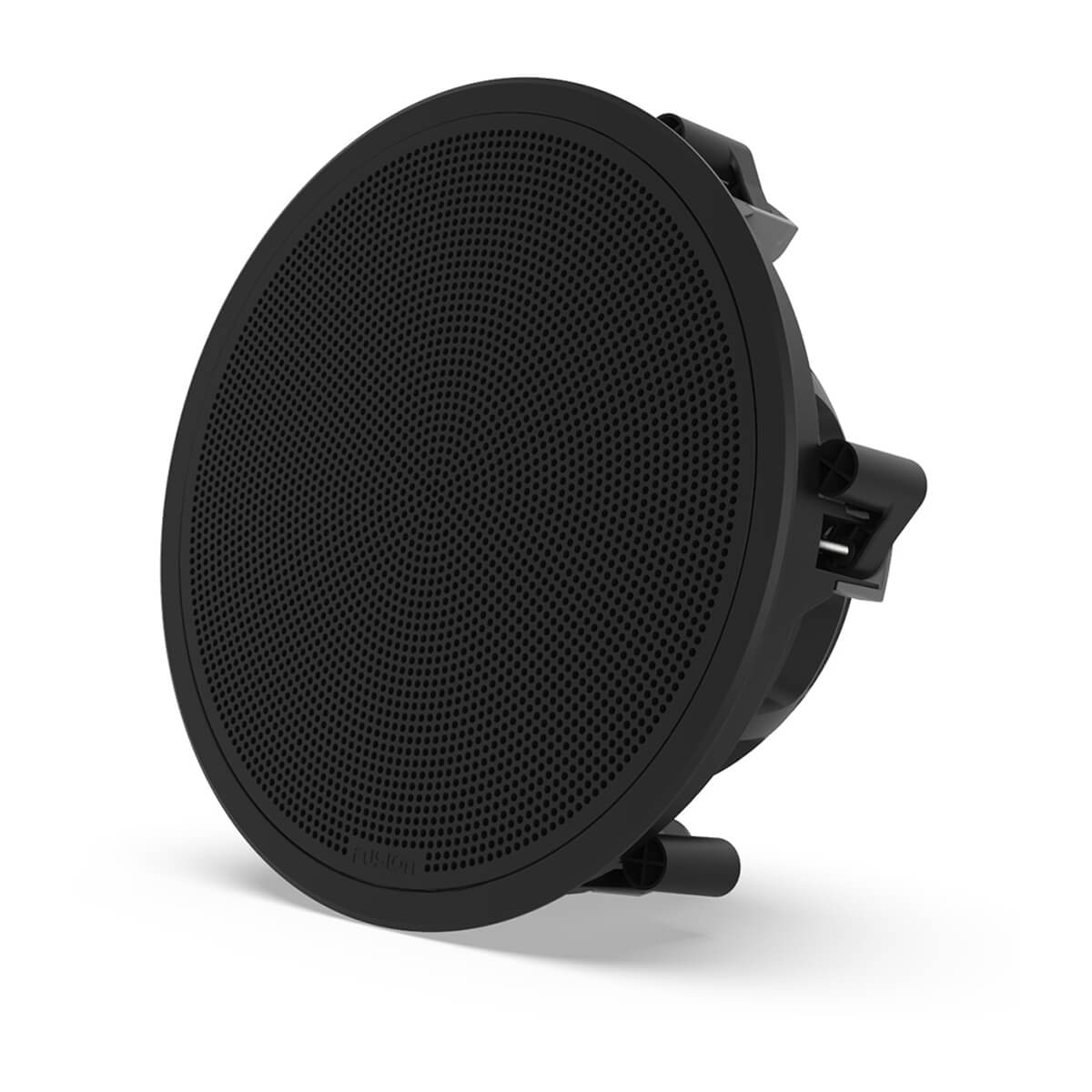

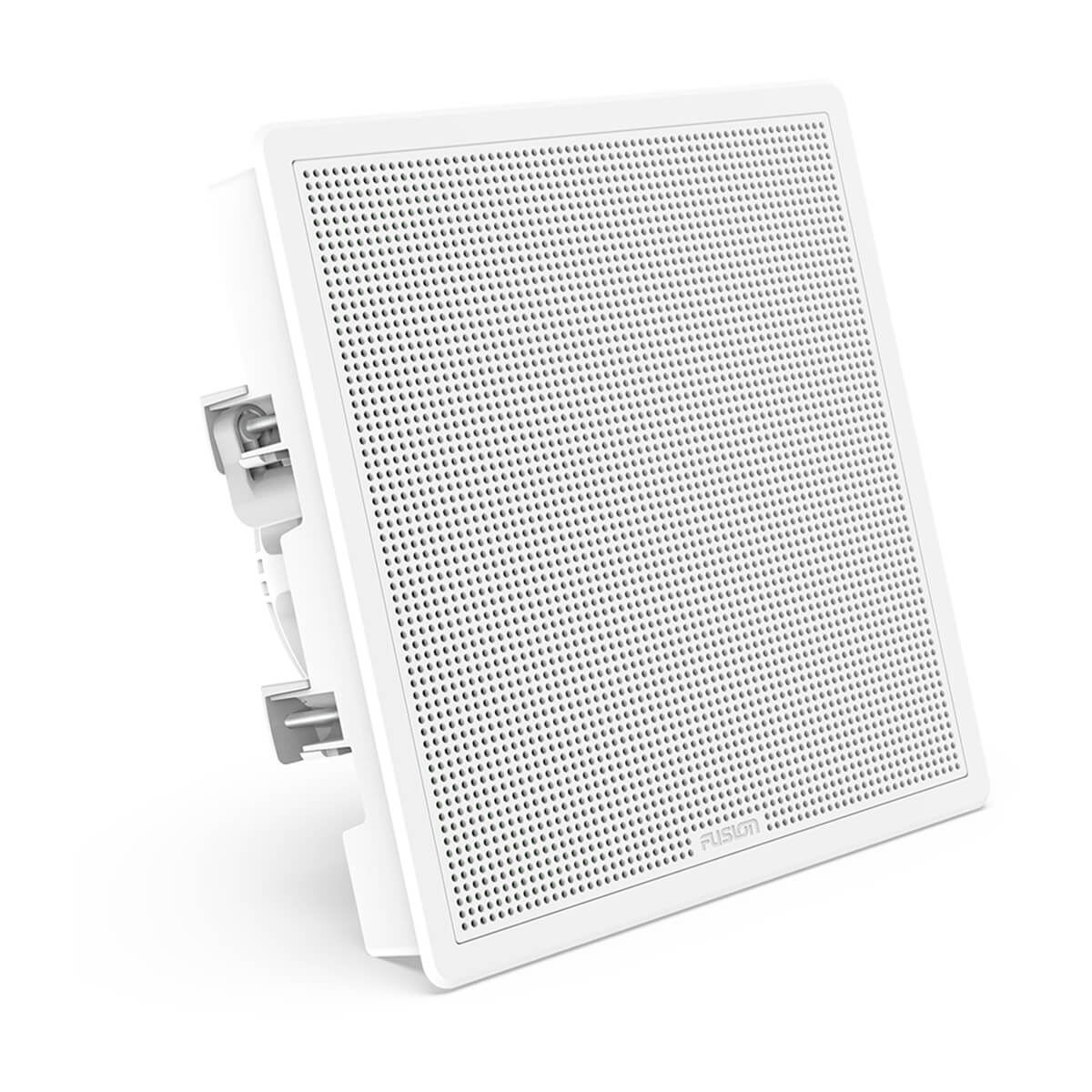

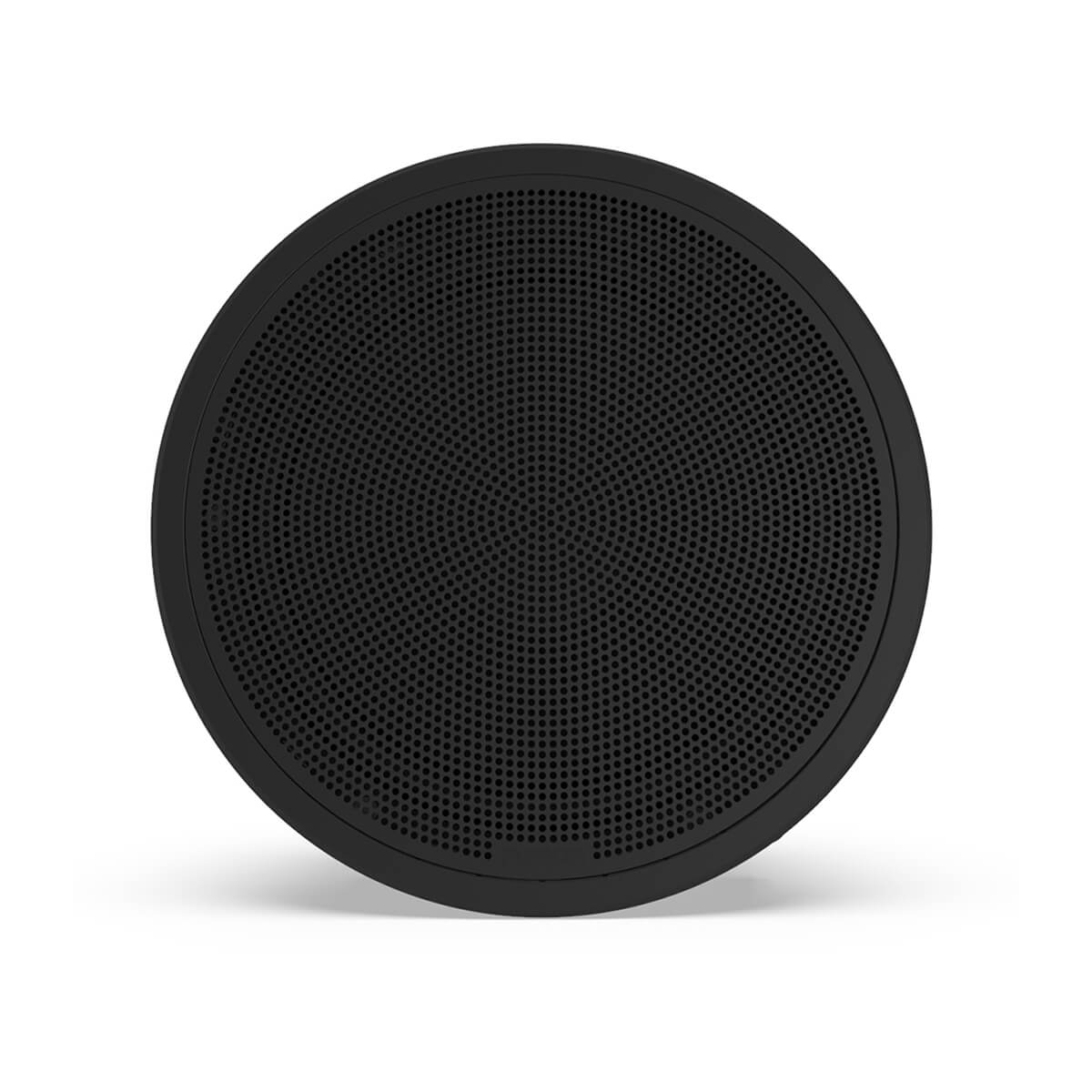

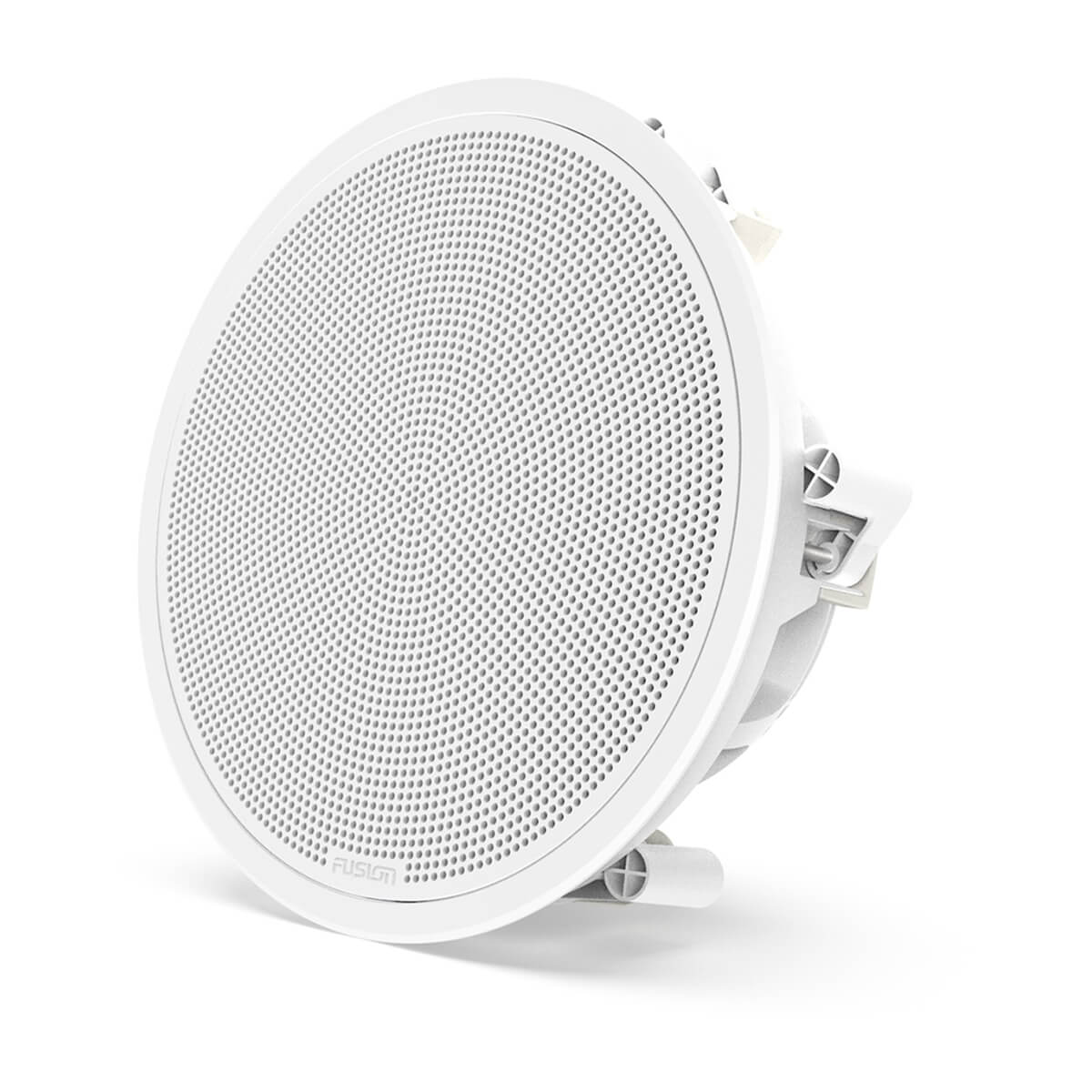

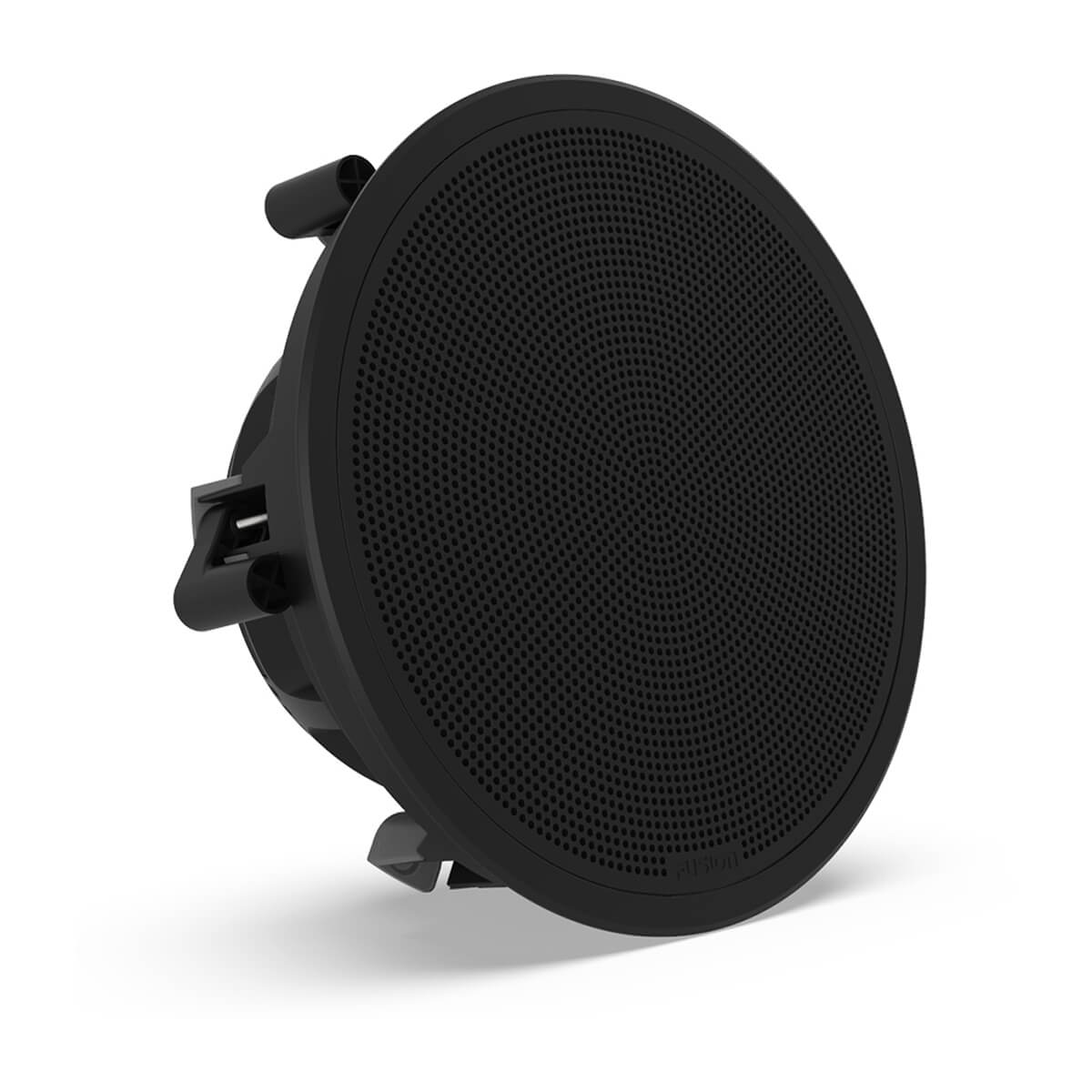

The Fusion FM Series 10 in Flush-Mount Marine Subwoofer is a single 10-inch marine subwoofer rated at 400 watts peak and 120 watts RMS, designed to sit nearly flat with a frontal protrusion of about 3 mm. It is offered with a round or square grille in white or black.
Garmin designed it to connect directly to a 2.1 audio zone on a compatible stereo such as the Apollo Series, which can remove the need for a separate amplifier in smaller systems. It reproduces 30 Hz to 2 kHz at 87 dB sensitivity into 4 ohms with an injection-molded polypropylene cone and rubber surround.
The subwoofer is IP65 rated, designed to comply with ISO 12216 and built to Fusion's True-Marine standard. It needs a 10.59-inch (269 mm) cutout with 5.51 inches (140 mm) of depth, connects through spade terminals, and carries a 3-year warranty.
- 10 in flush-mount marine subwoofer, 400 W peak / 120 W RMS
- Near-flat installation with about 3 mm frontal protrusion
- Connects directly to a 2.1 audio zone on compatible stereos
- 30 Hz-2 kHz frequency response; 87 dB sensitivity
- Polypropylene cone with rubber surround

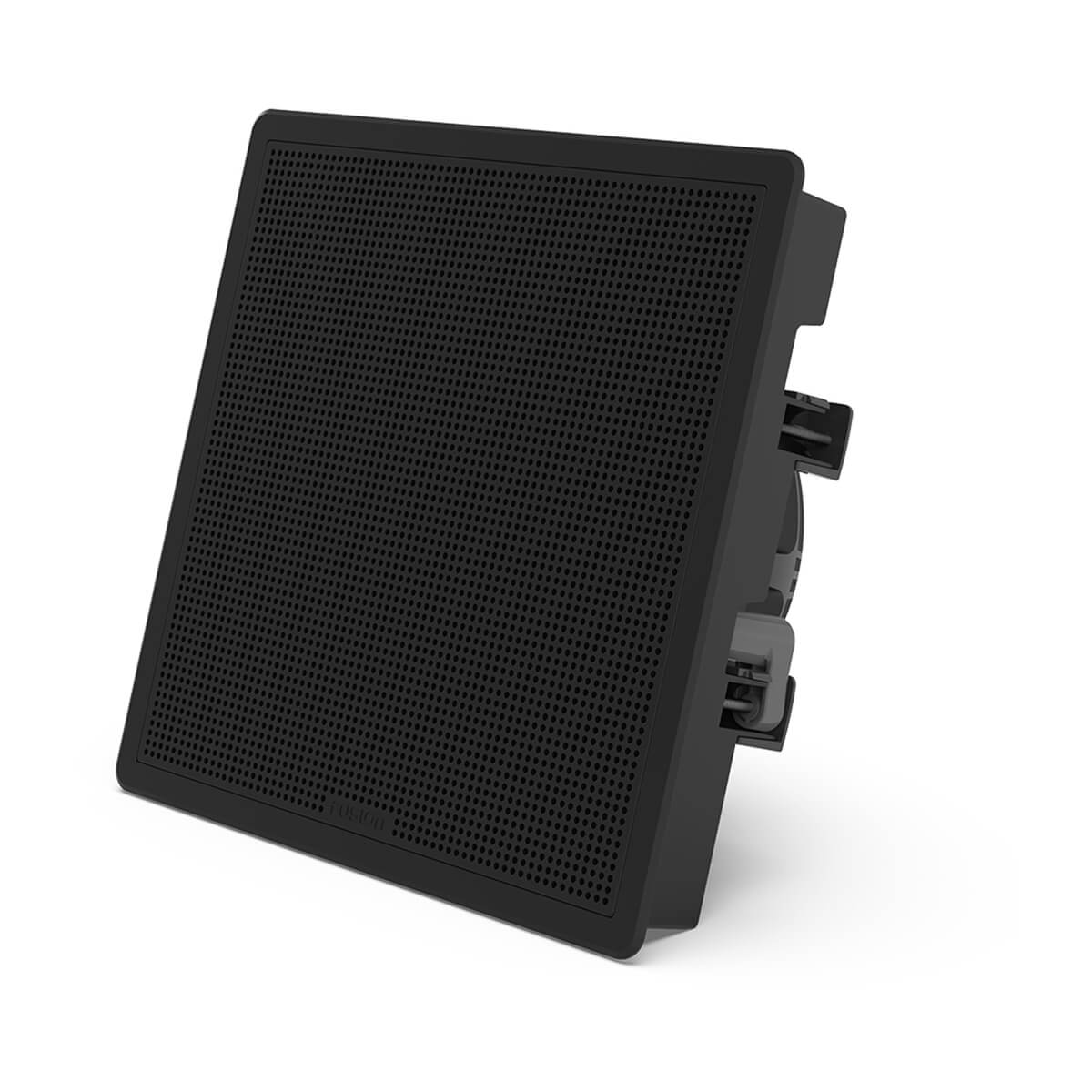

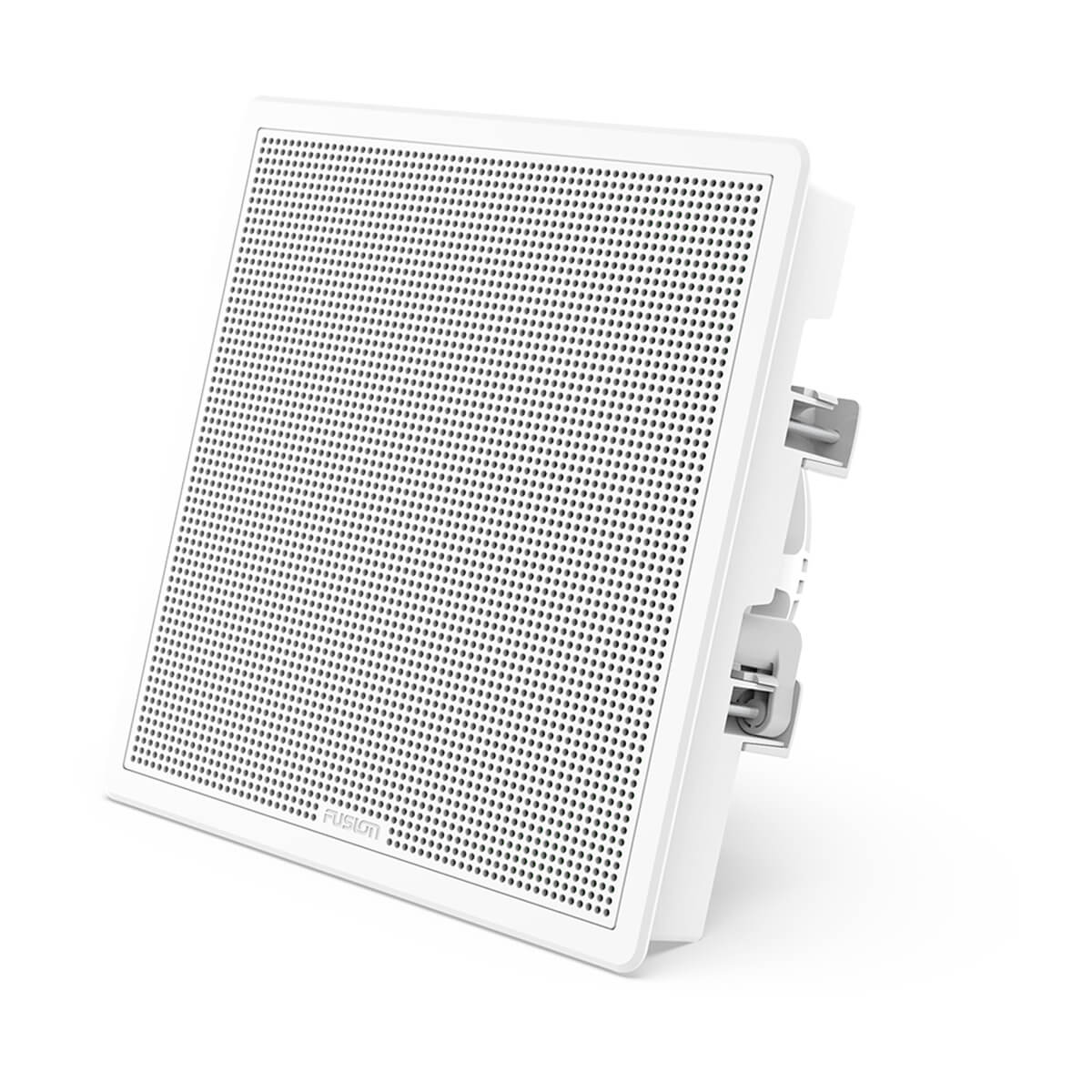

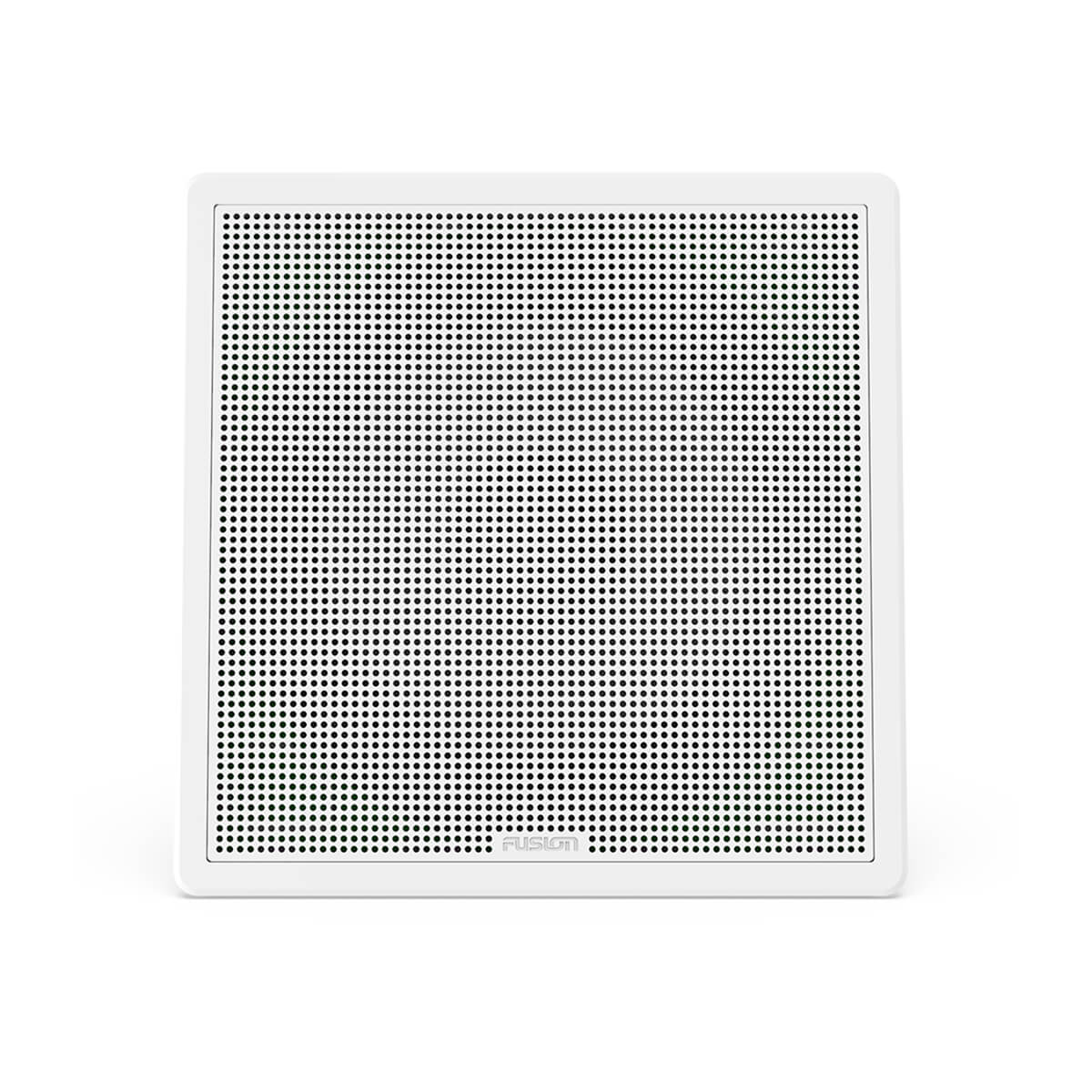

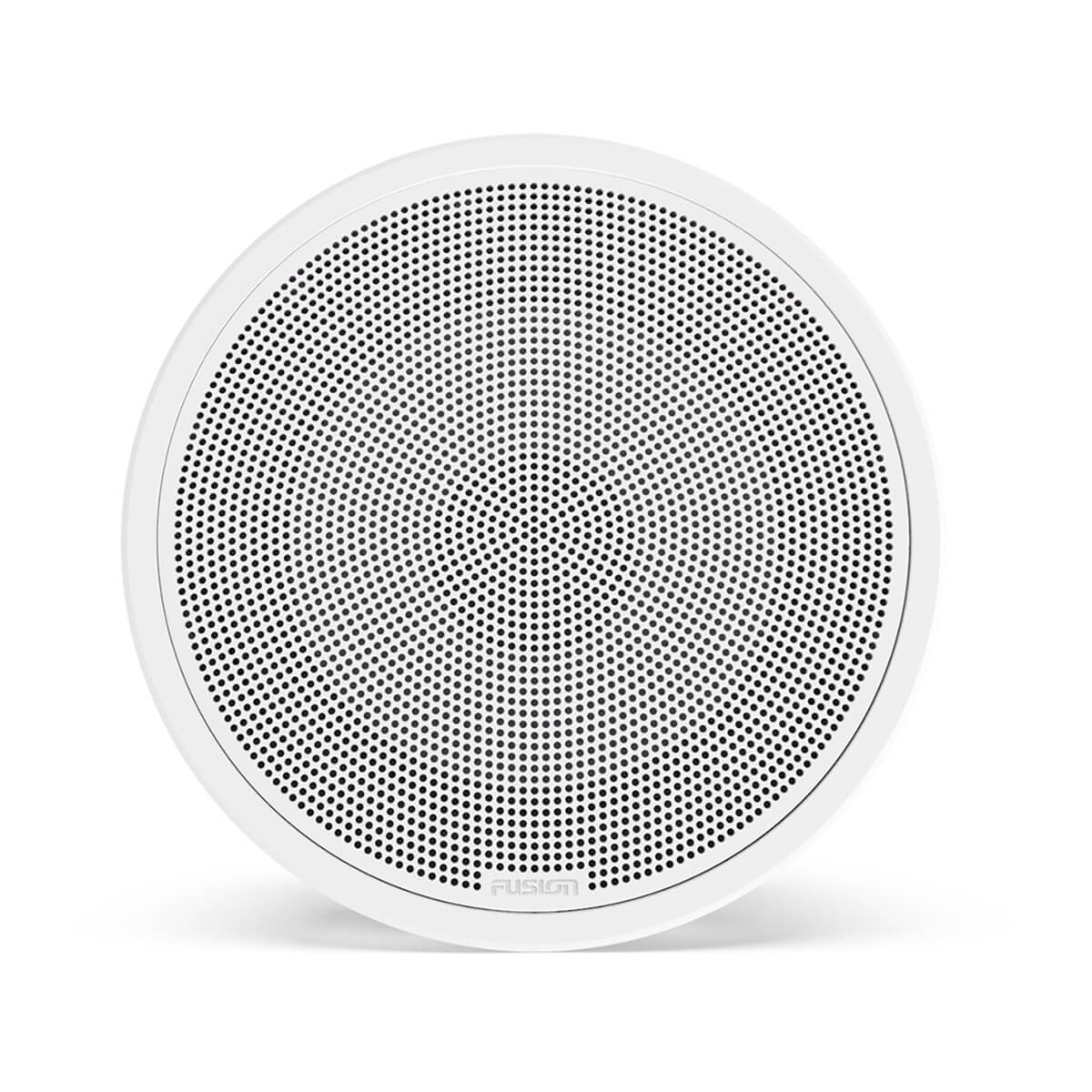

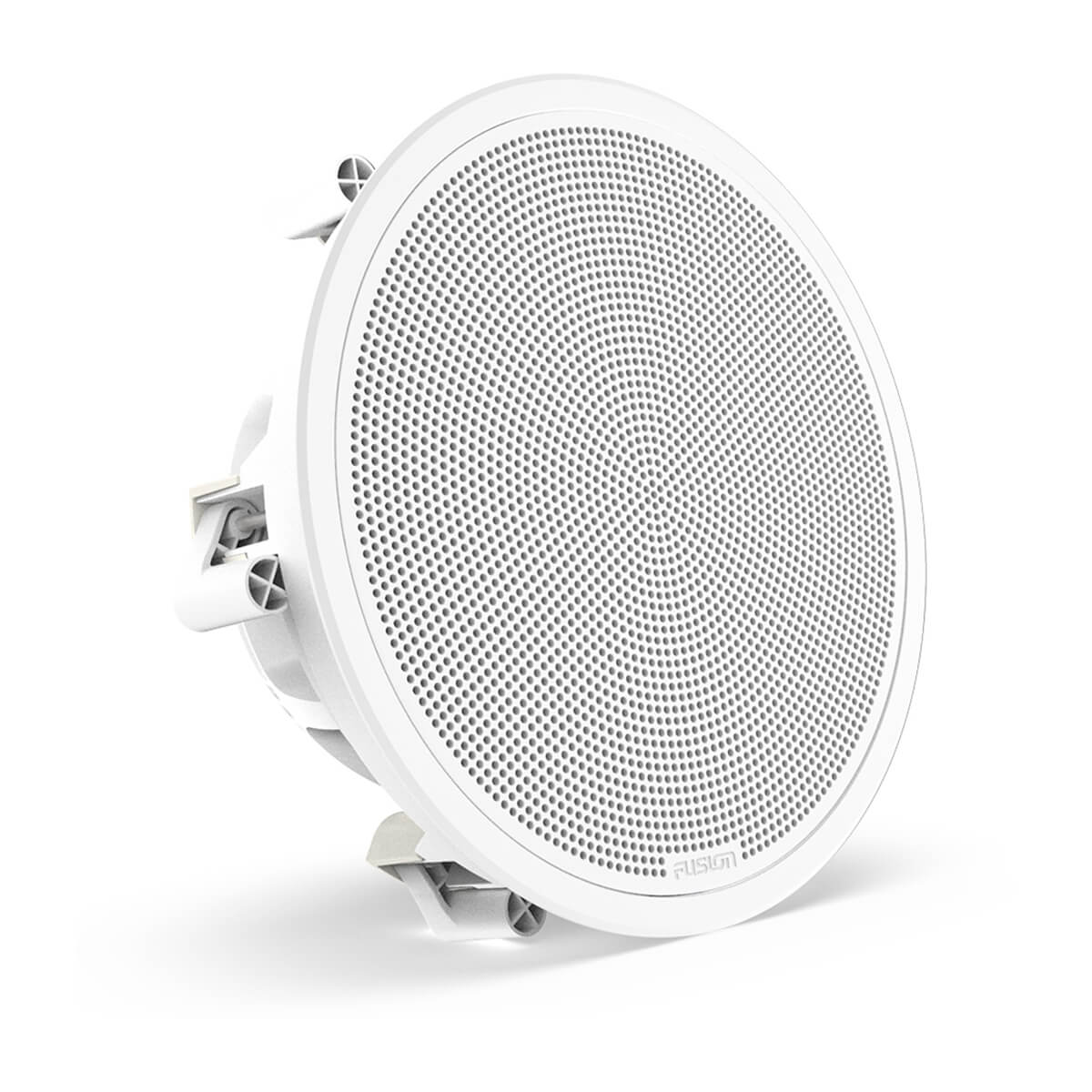

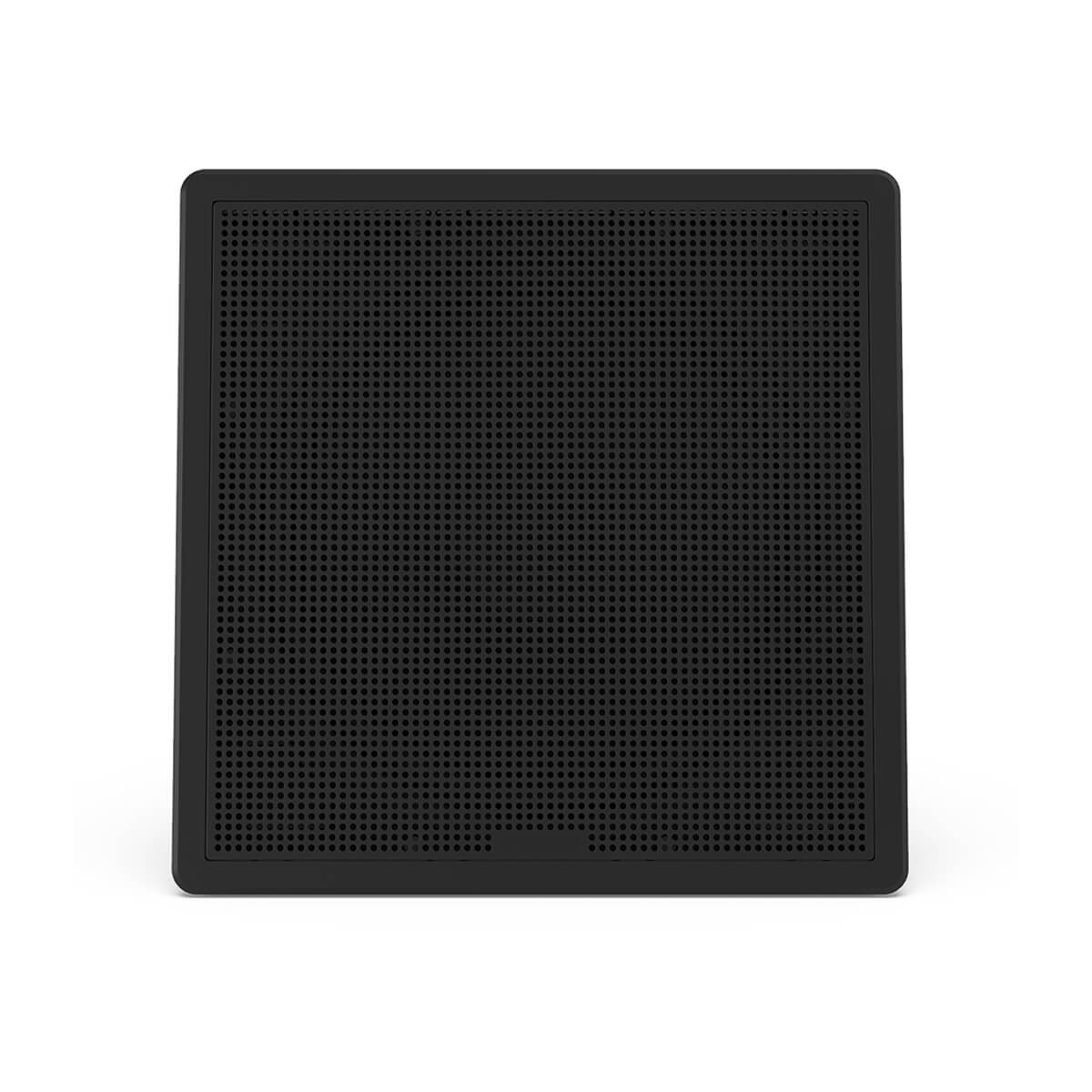

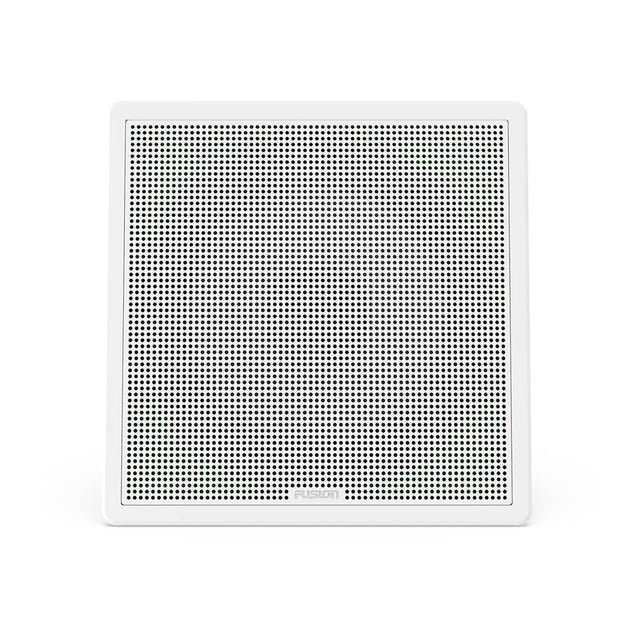

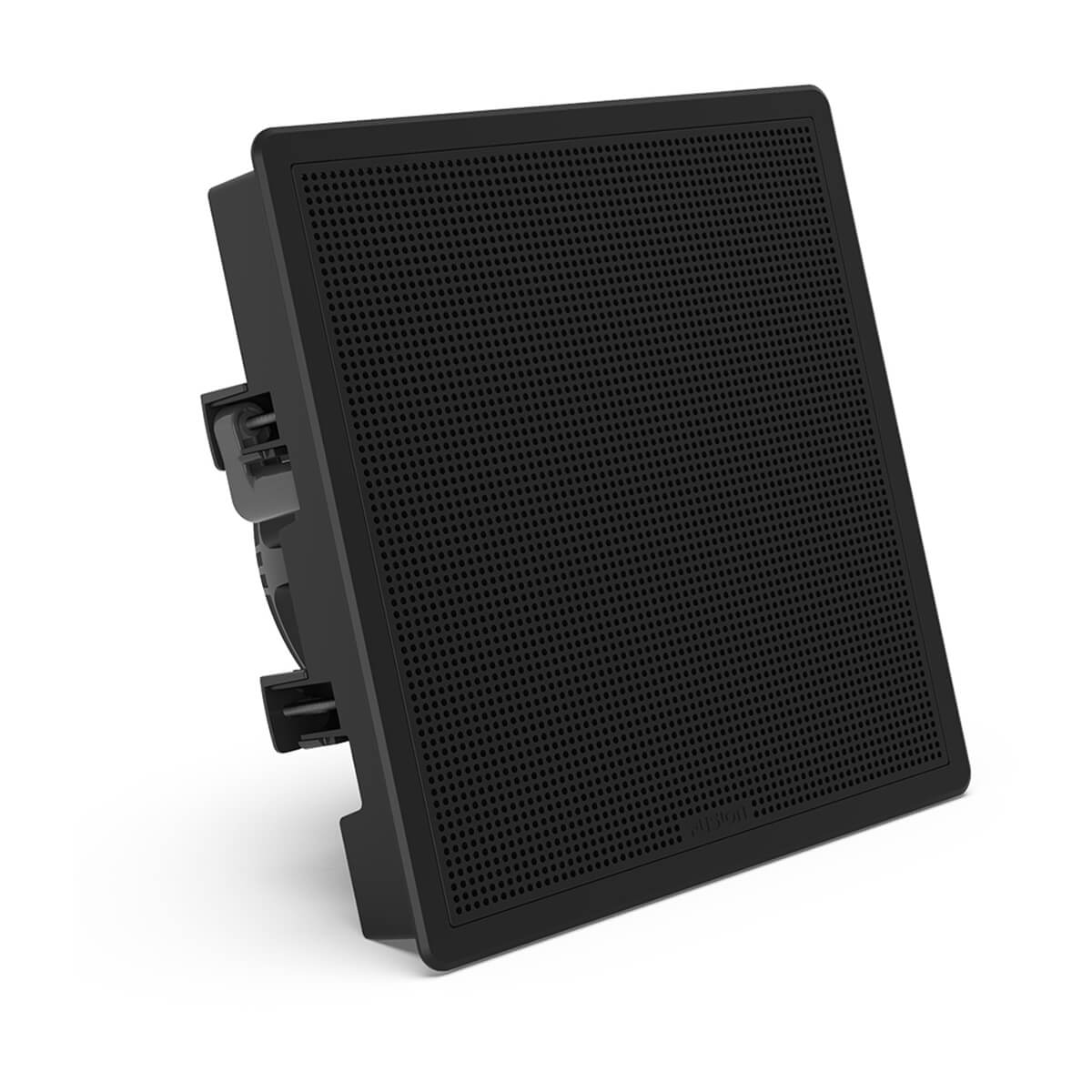

- Round or square grille in white or black
- IP65 rated; designed to comply with ISO 12216
- 3-year warranty
| Brand | Fusion |
| Model | FM Series 10 in Flush-Mount Marine Subwoofer |
| Part Numbers | 010-02301-10 (Square White); 010-02301-11 (Square Black); 010-02301-00 (Round White); 010-02301-01 (Round Black) |
| UPC | 753759236724 (Square White); 753759236731 (Square Black); 753759236700 (Round White); 753759236717 (Round Black) |
| Speaker Type | Subwoofer, flush mount |
| Size | 10 in |
| Peak Power | 400 W |
| Continuous Power Handling (RMS) | 120 W |
| Sensitivity (1 W / 1 m) | 87 dB |
| Frequency Response (+/- 3 dB) | 30 Hz-2 kHz |
| Nominal Impedance | 4 ohm |
| Cone Material | Polypropylene cone with rubber surround |
| Depth | 5.49 in (139.5 mm) |
| Weight | Square White: 6.5 lb (2.95 kg); Square Black: 6.83 lb (3.1 kg); Round: 6.61 lb (3 kg) |
| Mounting Diameter Clearance | 10.59 in (269 mm) |
| Mounting Depth Clearance | 5.51 in (140 mm) |
| Frontal Grille Protrusion | 0.12 in (3 mm) |
| Water Rating | IP65 |
| Speaker Connections | Spade connectors |
| Compass-Safe Distance | 150 in (381 cm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Warranty | 3 years |
