Product Information

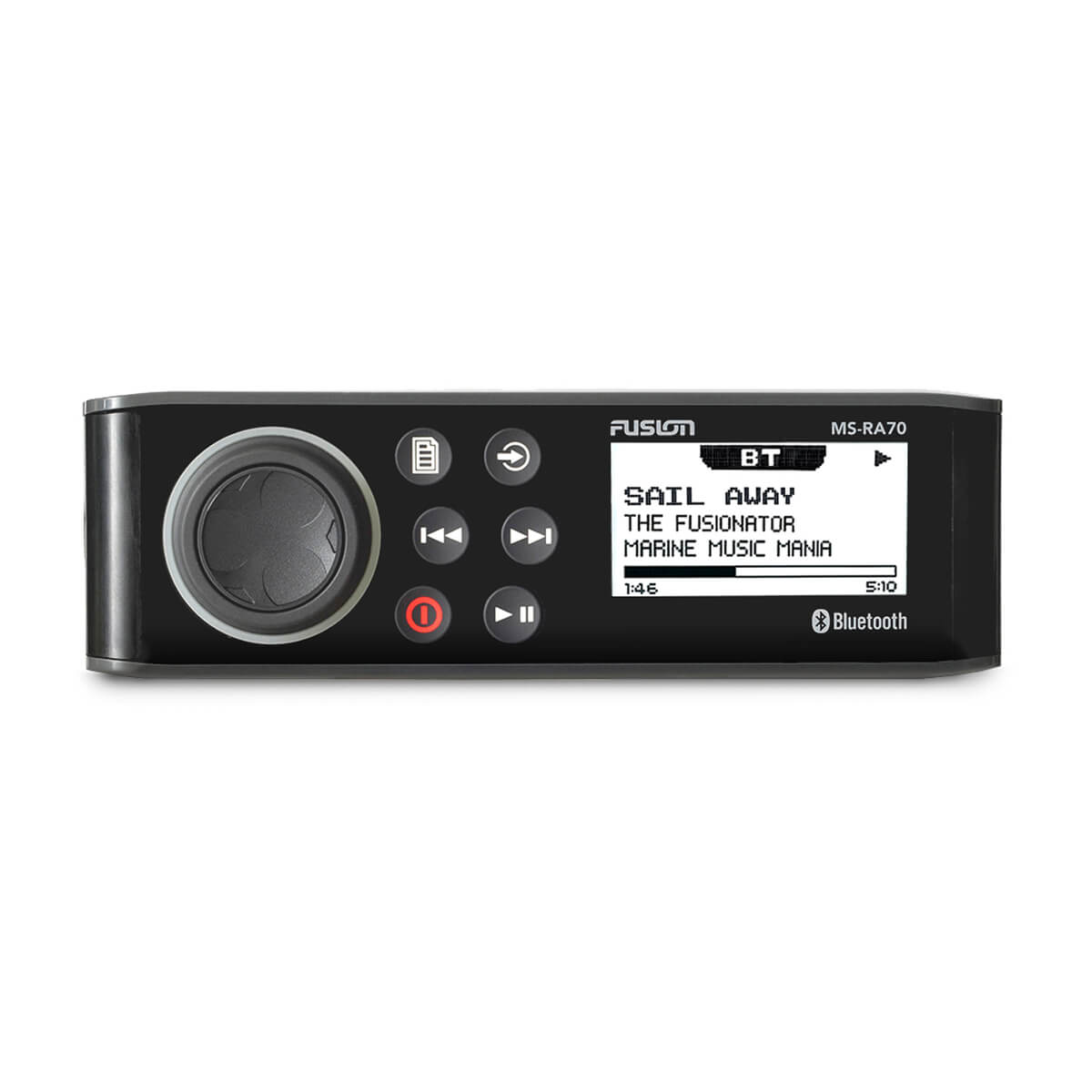

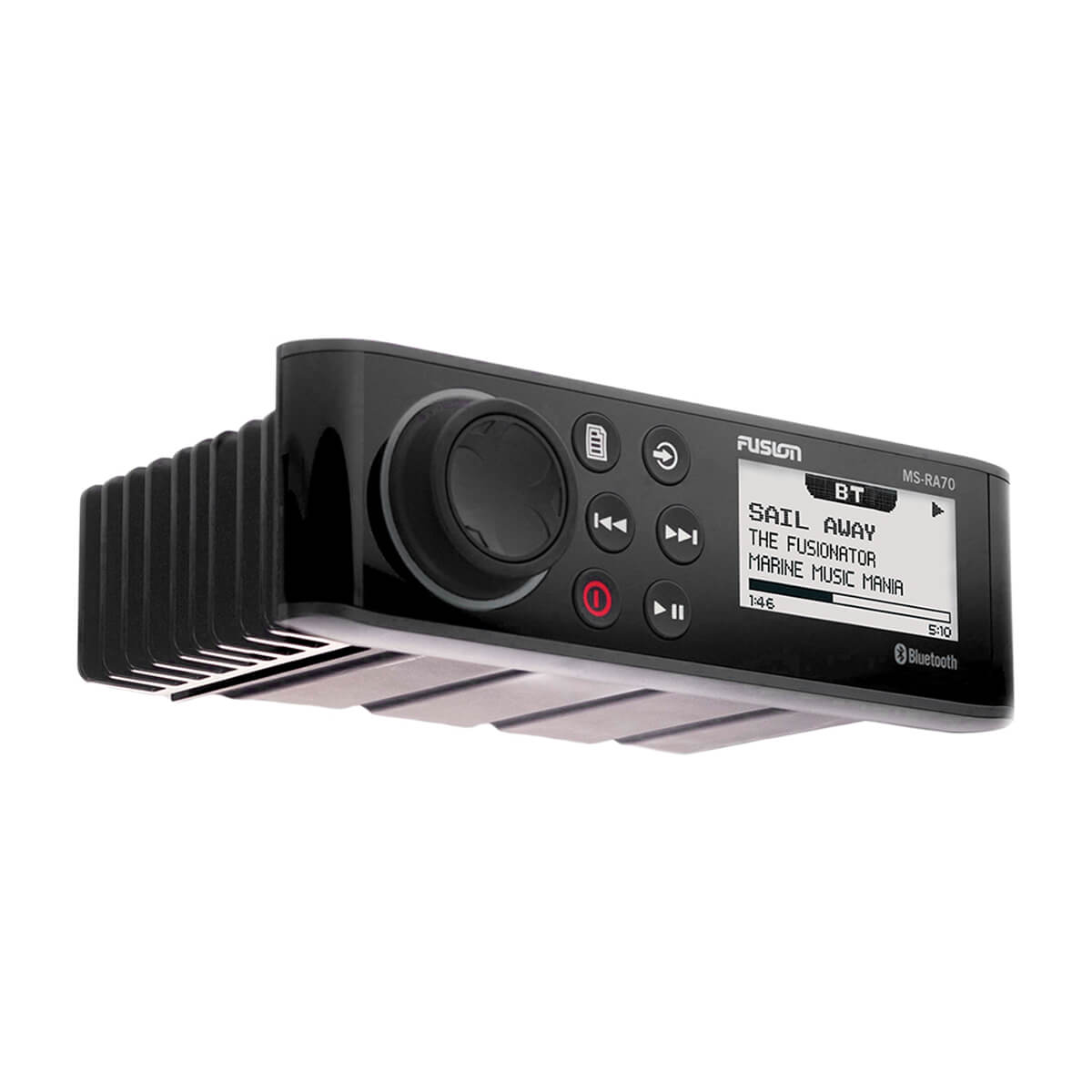

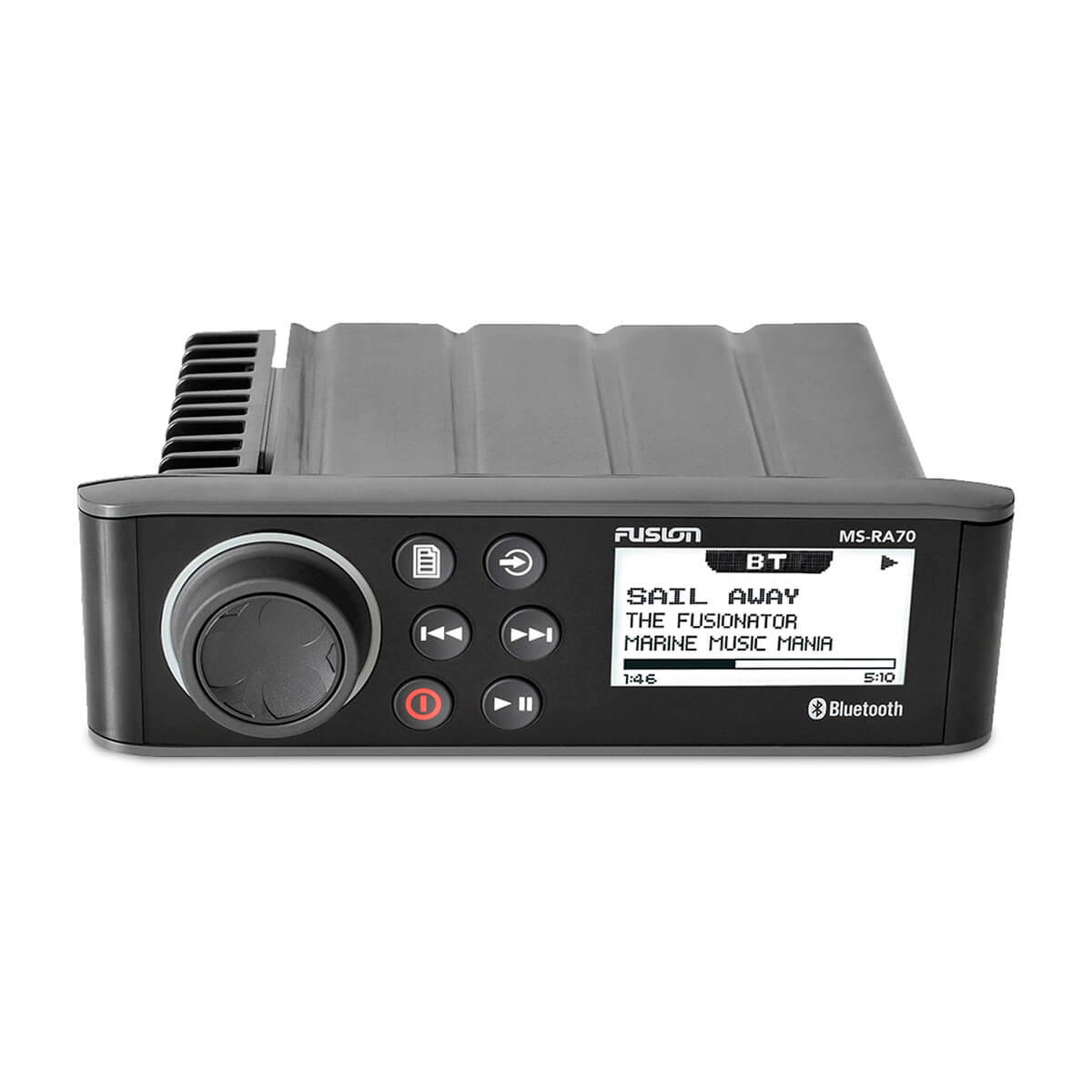

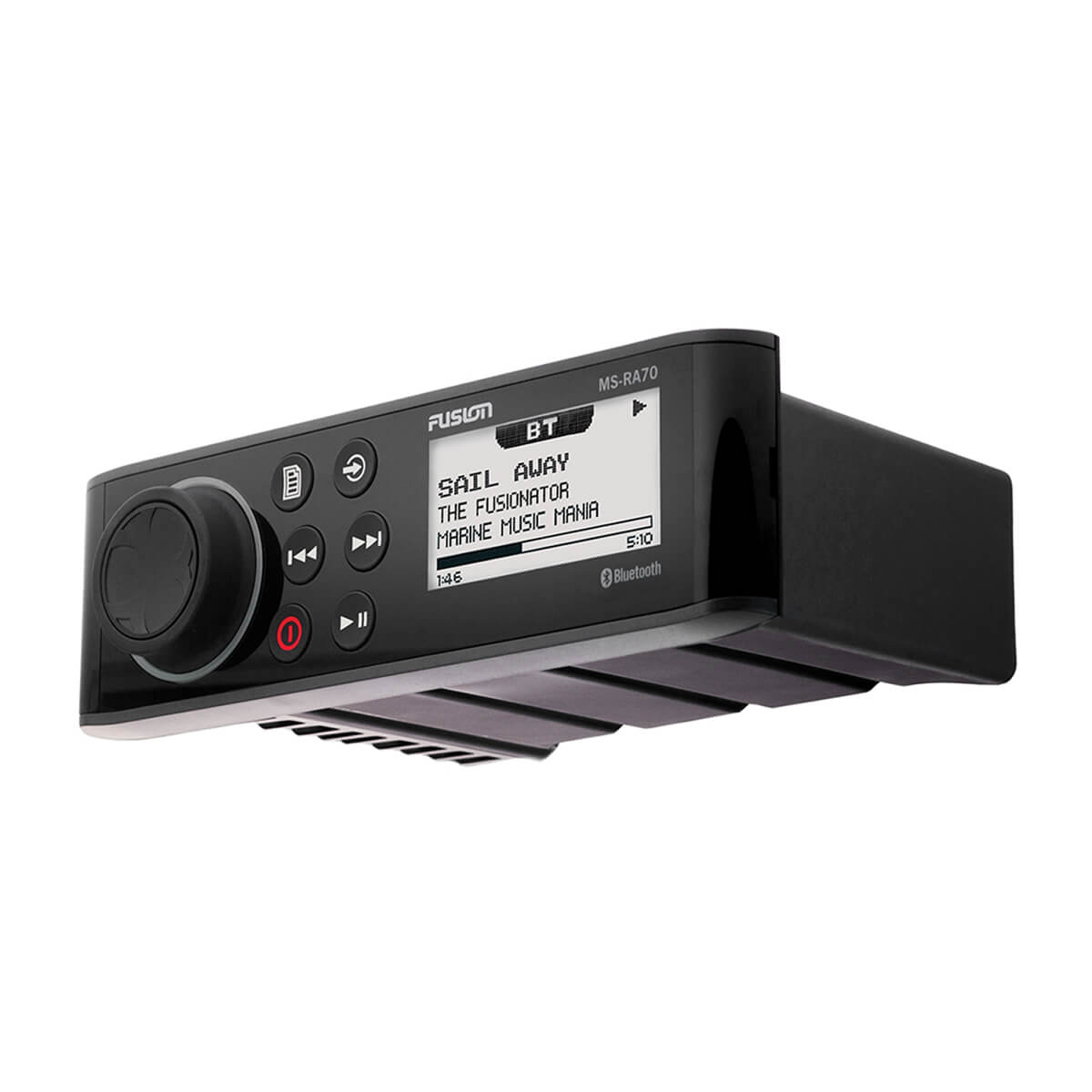

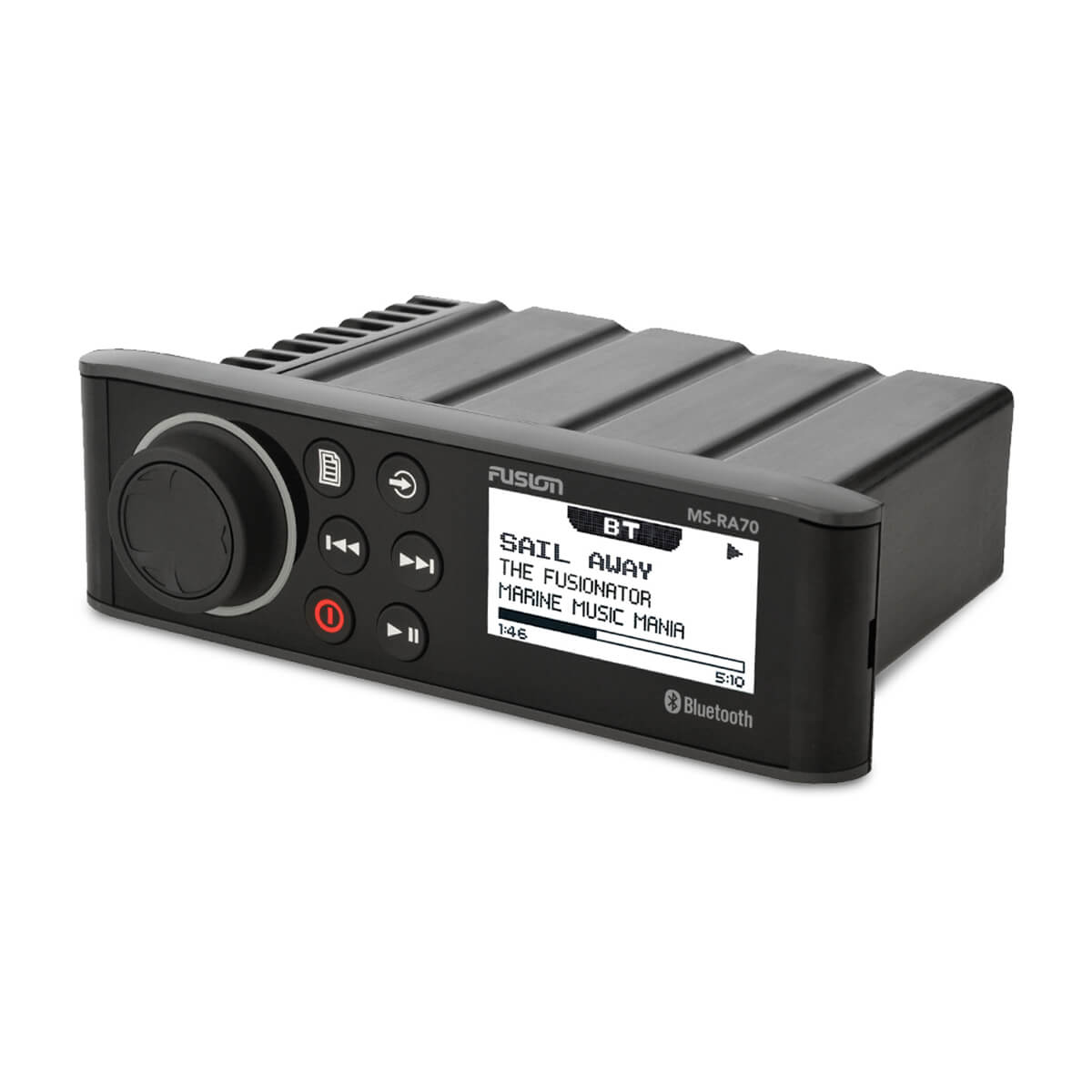

The Fusion MS-RA70 DIN-Size Marine Stereo is a marine head unit built to the standard DIN size so it can replace an existing DIN stereo without reworking the dash. It has a 2.6-inch optically bonded monochrome LCD and a Class AB amplifier rated at 26 watts RMS x 4 into 4 ohms (200 watts peak).
Two audio zones can be controlled separately, with line and RCA pre-outs for both zones and a subwoofer output for adding external amplification. Sources include AM/FM, Bluetooth, USB audio and an auxiliary input. The MS-RA70 is controlled from its own panel, a smart device or a Garmin watch; it does not have the NMEA 2000 port found on the RA70N and RA70NSX versions.
The front panel is rated IPX7 when properly installed, and a DIN mounting plate is included. The stereo measures 7.4 x 2.36 x 4.87 inches and carries a 1-year warranty.
- DIN-size chassis retrofits existing DIN stereo cutouts
- 2.6 in optically bonded monochrome LCD
- Class AB amplifier: 26 W RMS x 4 at 4 ohms, 200 W peak
- Multi-Zone technology with 2 zones
- Bluetooth and ANT wireless
- Sources: AM, FM, Bluetooth, USB audio, AUX
- Control from a smart device or Garmin watch
- Line, subwoofer and RCA pre-outs for external amplification
- IPX7 rated front panel; DIN mounting plate included
- 1-year warranty
| Brand | Fusion |
| Model | MS-RA70 |
| Part Number | 010-01516-01 |
| UPC | 753759149826 |
| Display | 2.6 in optically bonded monochrome LCD |
| Built-in Amplifier | Class AB (4 ohm) |
| Peak Power | 200 W |
| Rated Power Output (4 ohm) | 26 W RMS x 4 at 14.4 V, < 10% THD |
| Multi-Zone Technology | 2 zones |
| Fusion-Link Control | Smart device and Garmin watch |
| Bluetooth | Yes (range up to 30 ft / 10 m) |
| ANT Wireless | Yes (range up to 10 ft / 3 m) |
| Supported Sources | AM, FM, Bluetooth, USB audio, iPhone, iPod, AUX x1, AOA |
| Ports | 1 RCA aux in, 1 USB, AM/FM (Motorola) |
| Speaker Connections | 4 (2 zones amplified) |
| Pre-Outs | RCA left, right and subwoofer for 2 zones (external amplification) |
| Power Input | 10.8-16 VDC |
| Current (Max) | 15 A |
| Dimensions | 7.4 x 2.36 x 4.87 in (188 x 60 x 123.5 mm) |
| Weight | 1.23 lb (556 g) |
| Water Rating | IPX7 (front panel, when properly installed) |
| Compass-Safe Distance | 5.9 in (150 mm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Software Updates | USB |
| In the Box | Stereo, DIN mounting plate, four 8-gauge screws, wiring harnesses |
| Warranty | 1 year |
