Product Information
Fusion XS Series Marine Speakers are coaxial marine speakers sold in pairs in 4-, 6.5- and 7.7-inch sizes, rated at 120, 200 and 240 watts peak (30, 50 and 60 watts RMS). Each uses an injection-molded polypropylene cone and an aluminum dome tweeter, and the range is rated IP65 against water and dust.

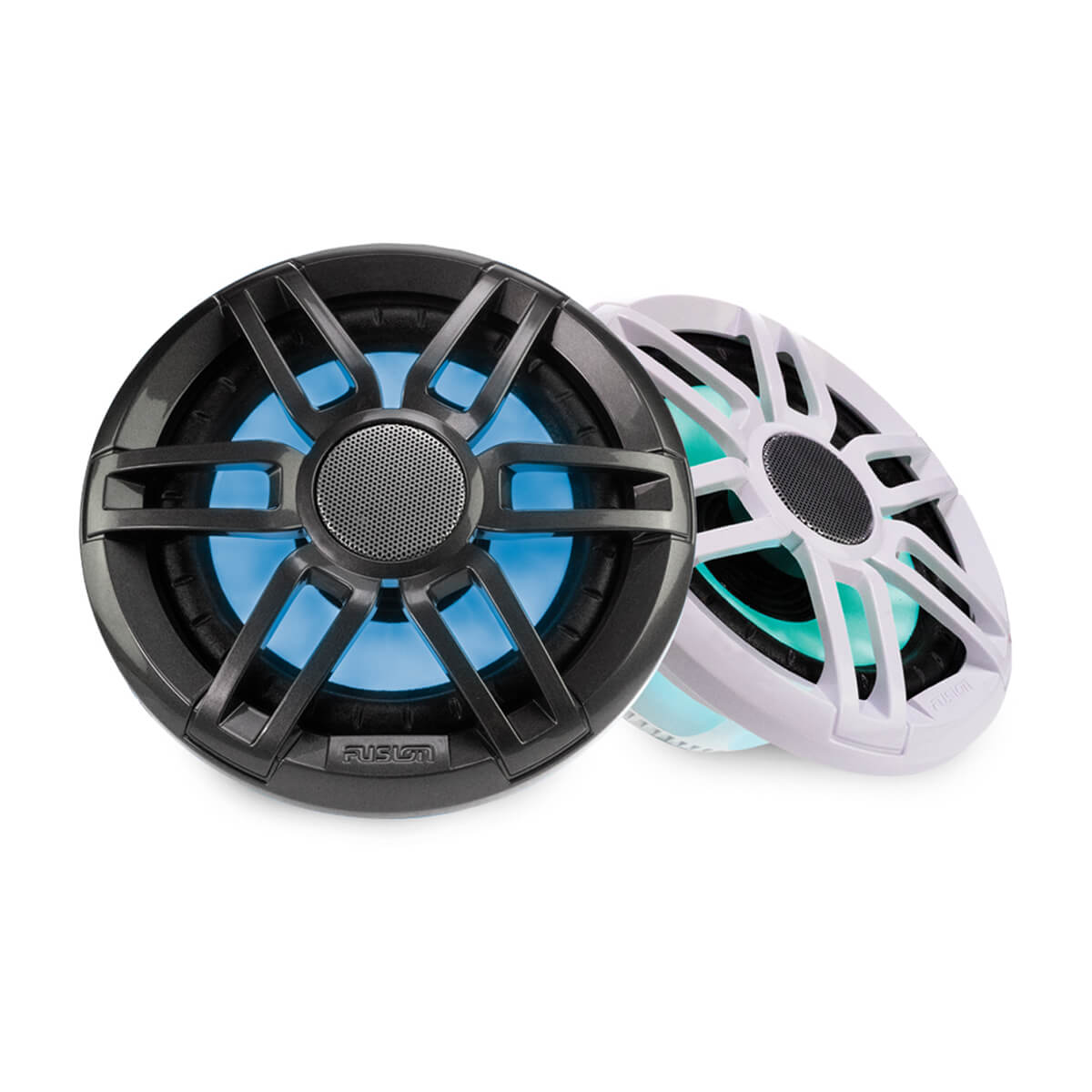

Two grille styles are offered. Classic models include both a white and a black pair of classic grilles, while Sports models include sports gray and sports white grilles, so the finish can be matched to the boat. The 6.5-inch Sports with RGB LED version adds multicolor lighting powered from 10.8-16 VDC through bullet connectors.
Sensitivity ranges from 87 dB on the 4-inch to 92 dB on the 7.7-inch model, and the 7.7-inch reaches down to 70 Hz. Mounting cutouts are 3.9, 5.31 and 6.38 inches with 2.13 to 3.03 inches of depth, connections are spade terminals, and the speakers carry a 3-year warranty.
- Coaxial marine speakers sold in pairs: 4, 6.5 or 7.7 in
- 120 / 200 / 240 W peak; 30 / 50 / 60 W RMS by size
- Injection-molded polypropylene cone; aluminum dome tweeter

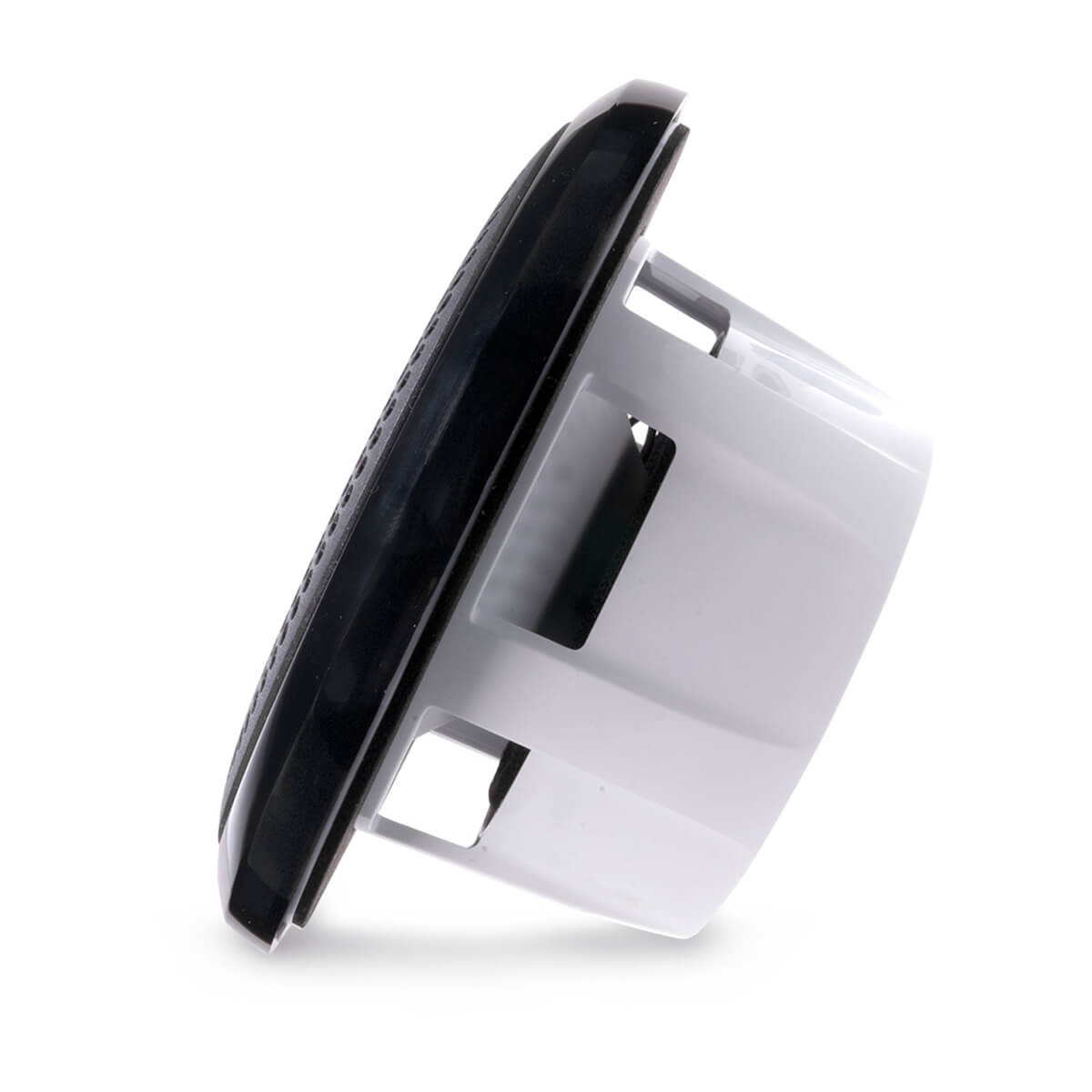

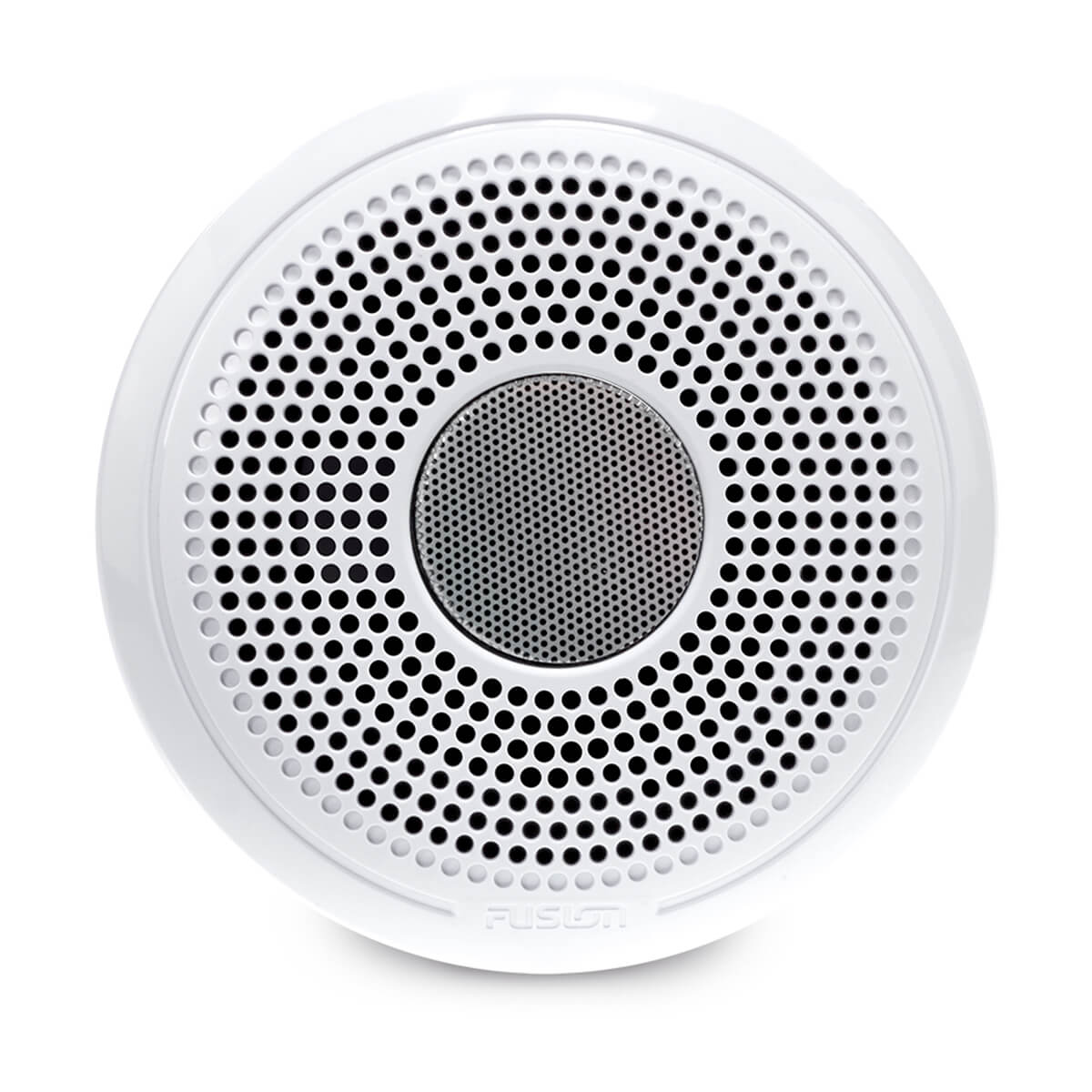

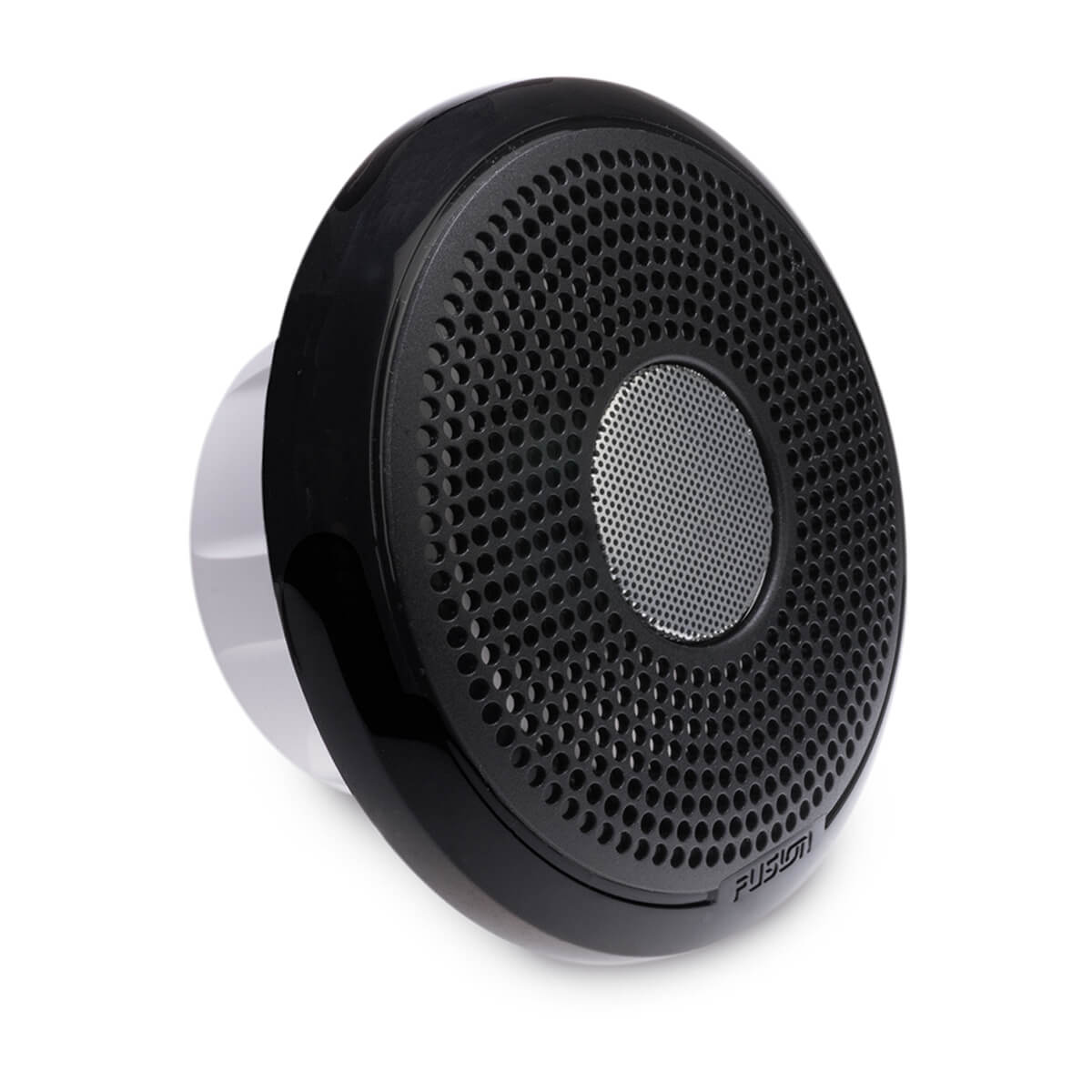

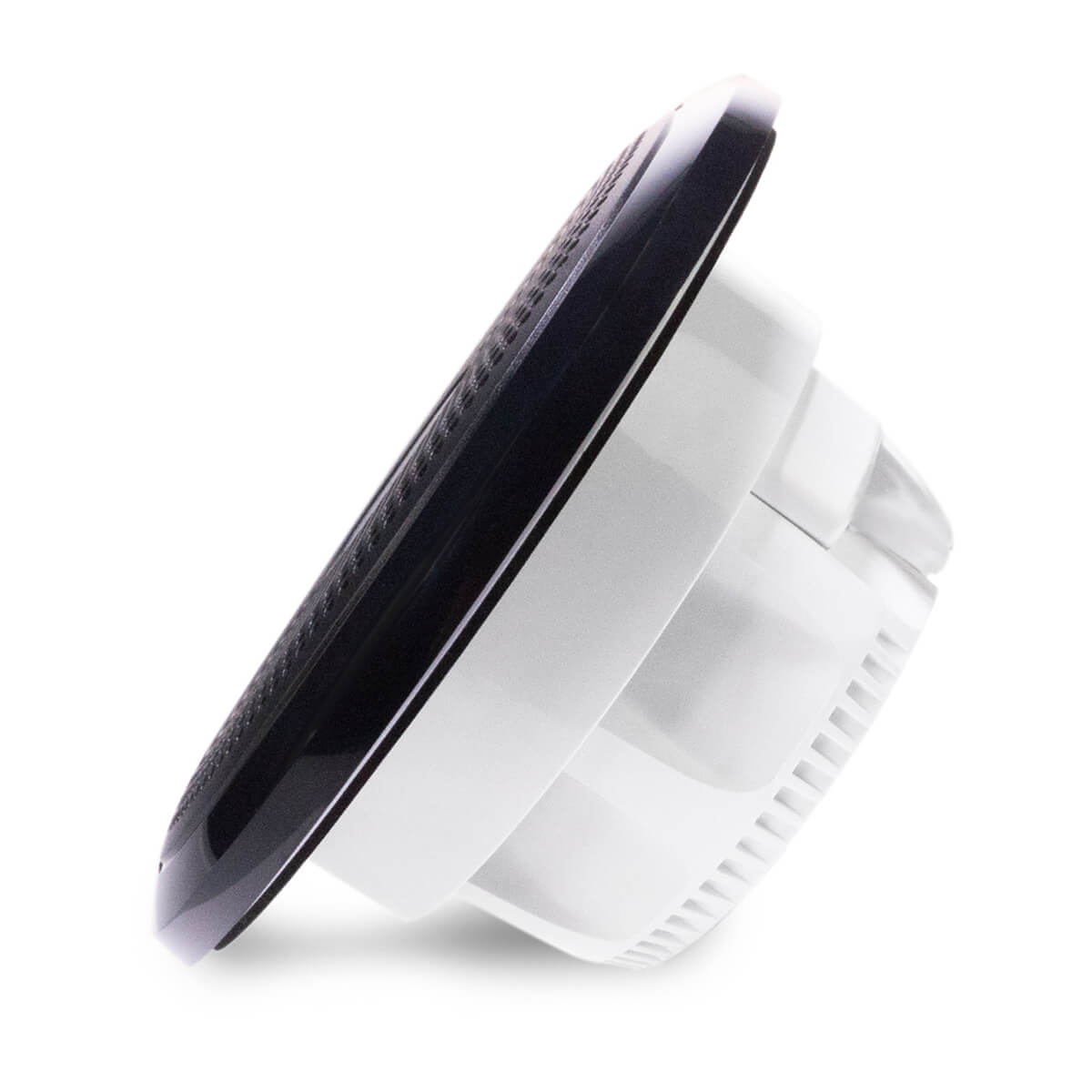

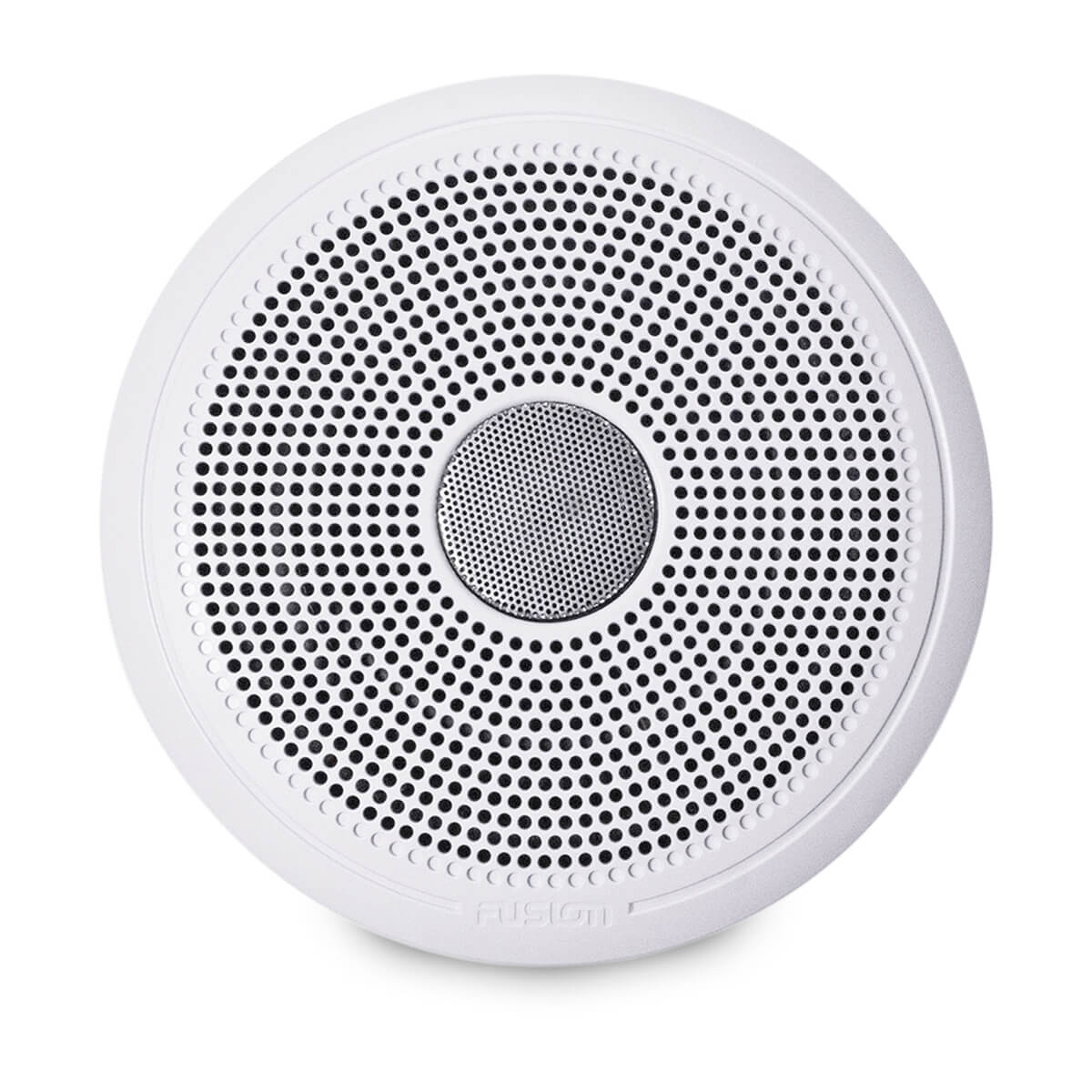

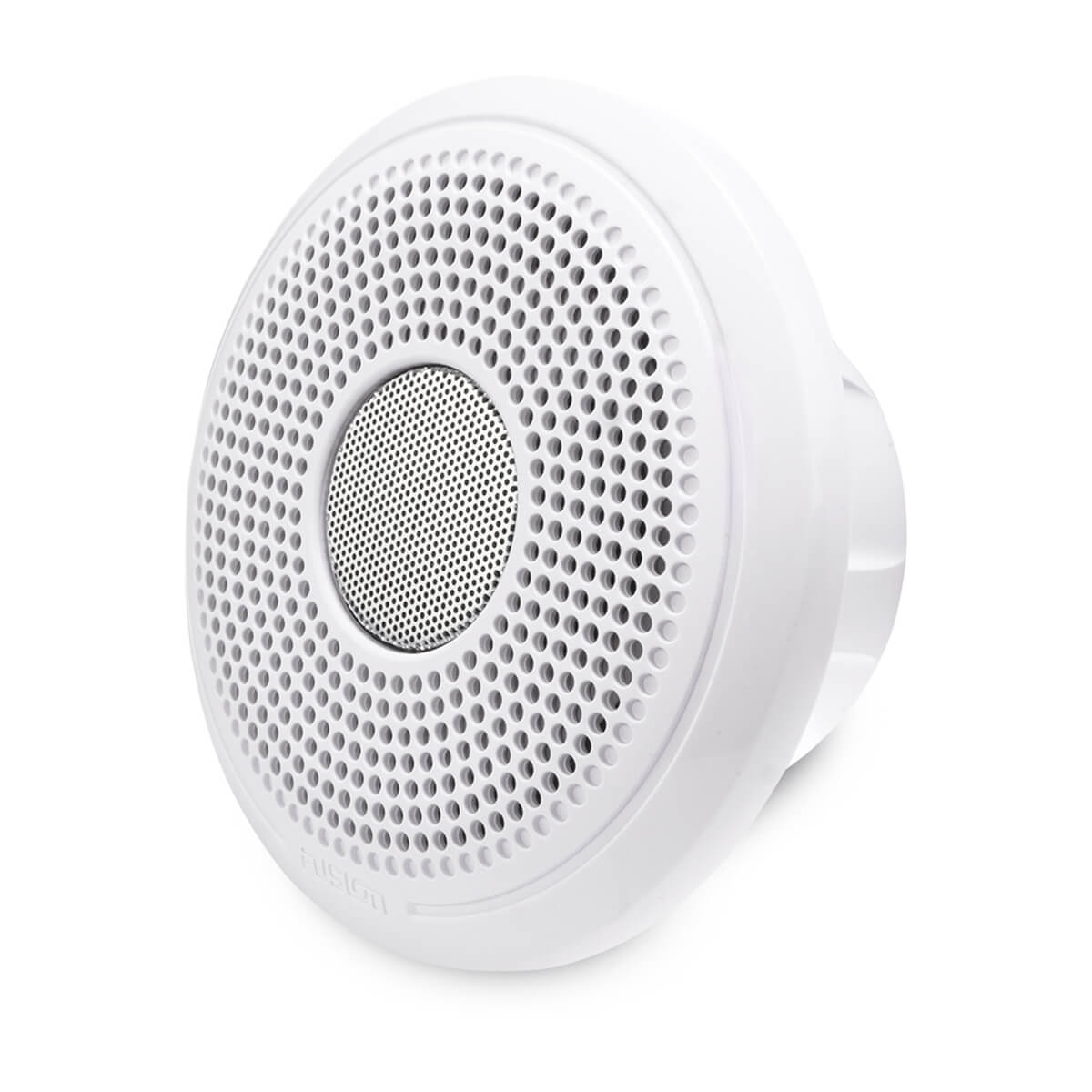

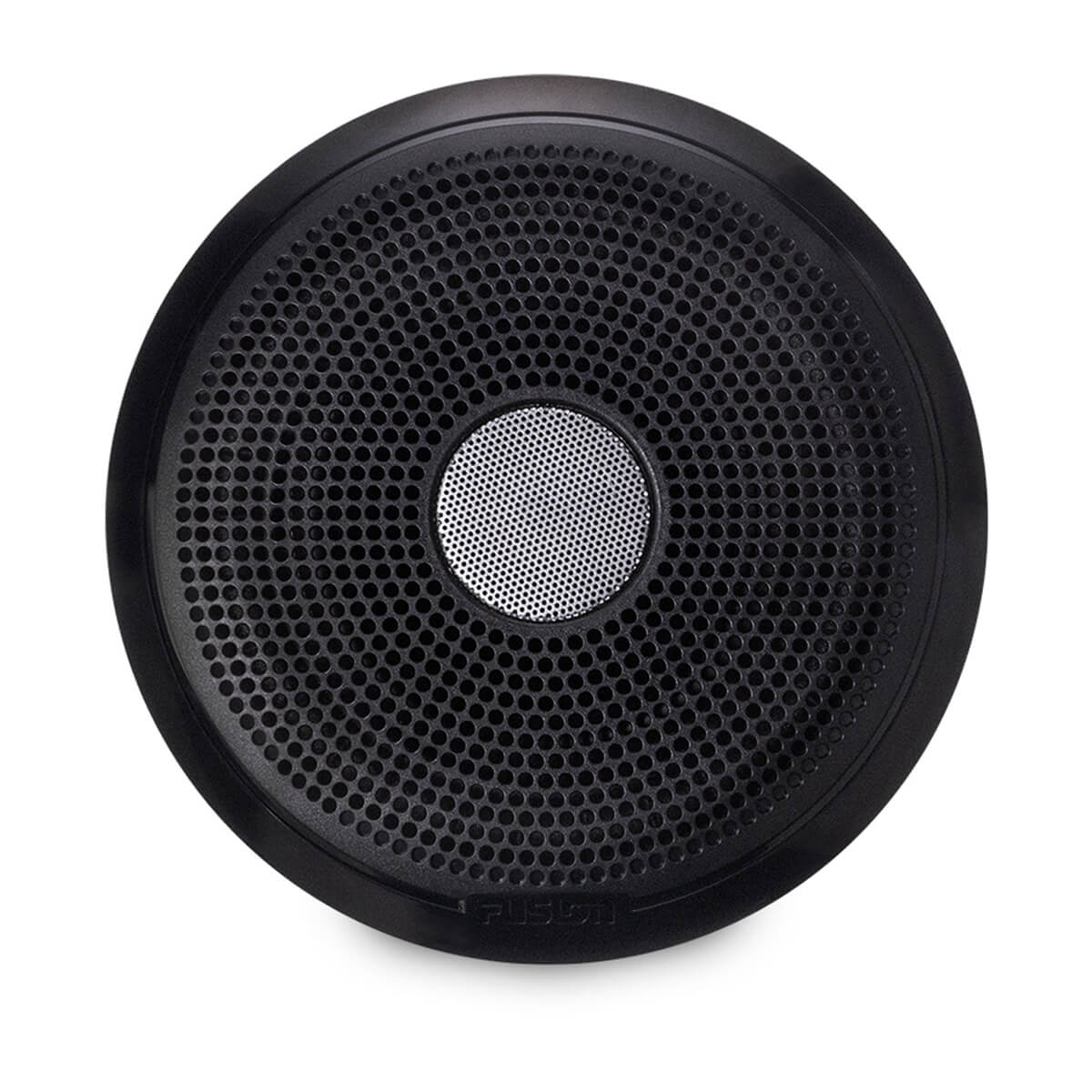

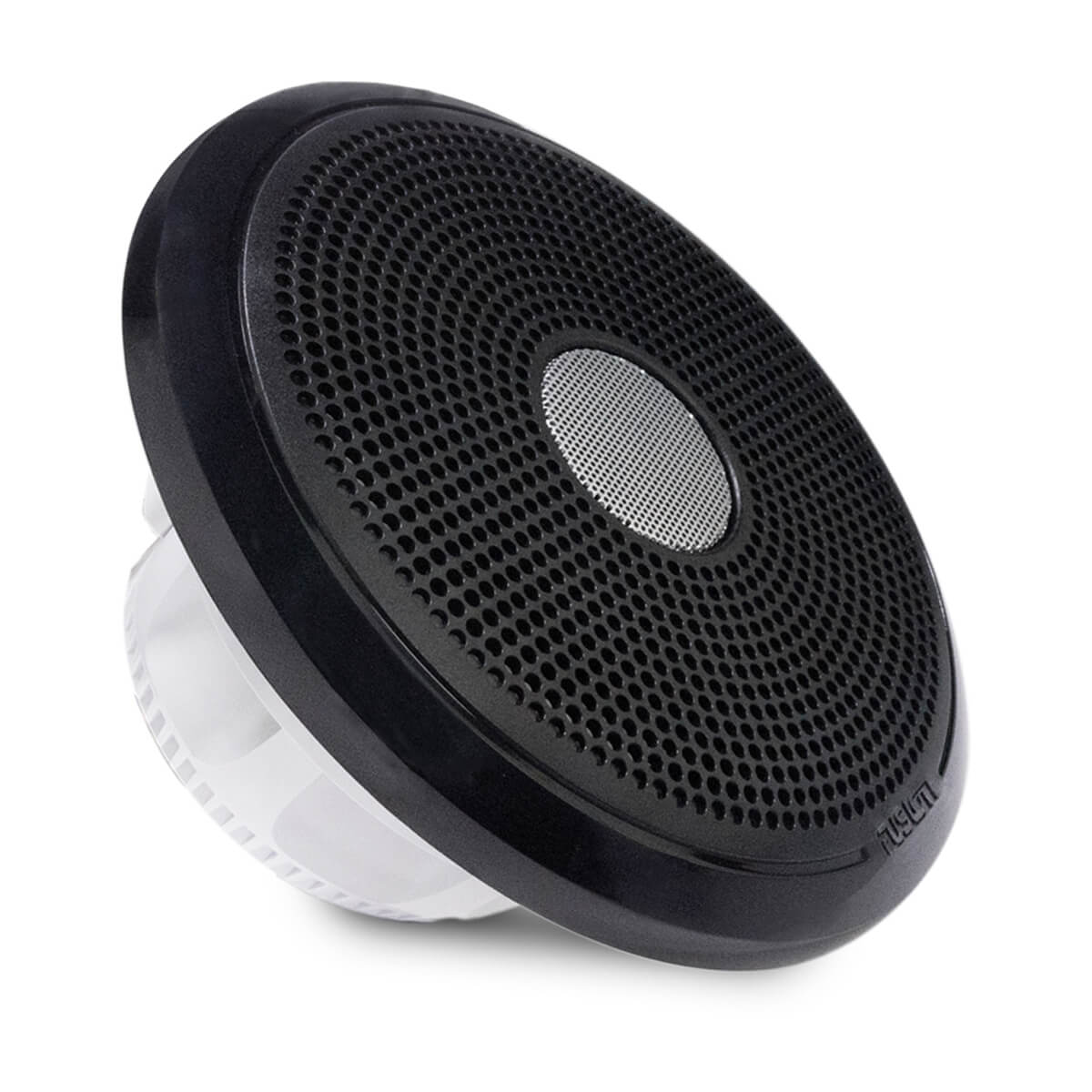

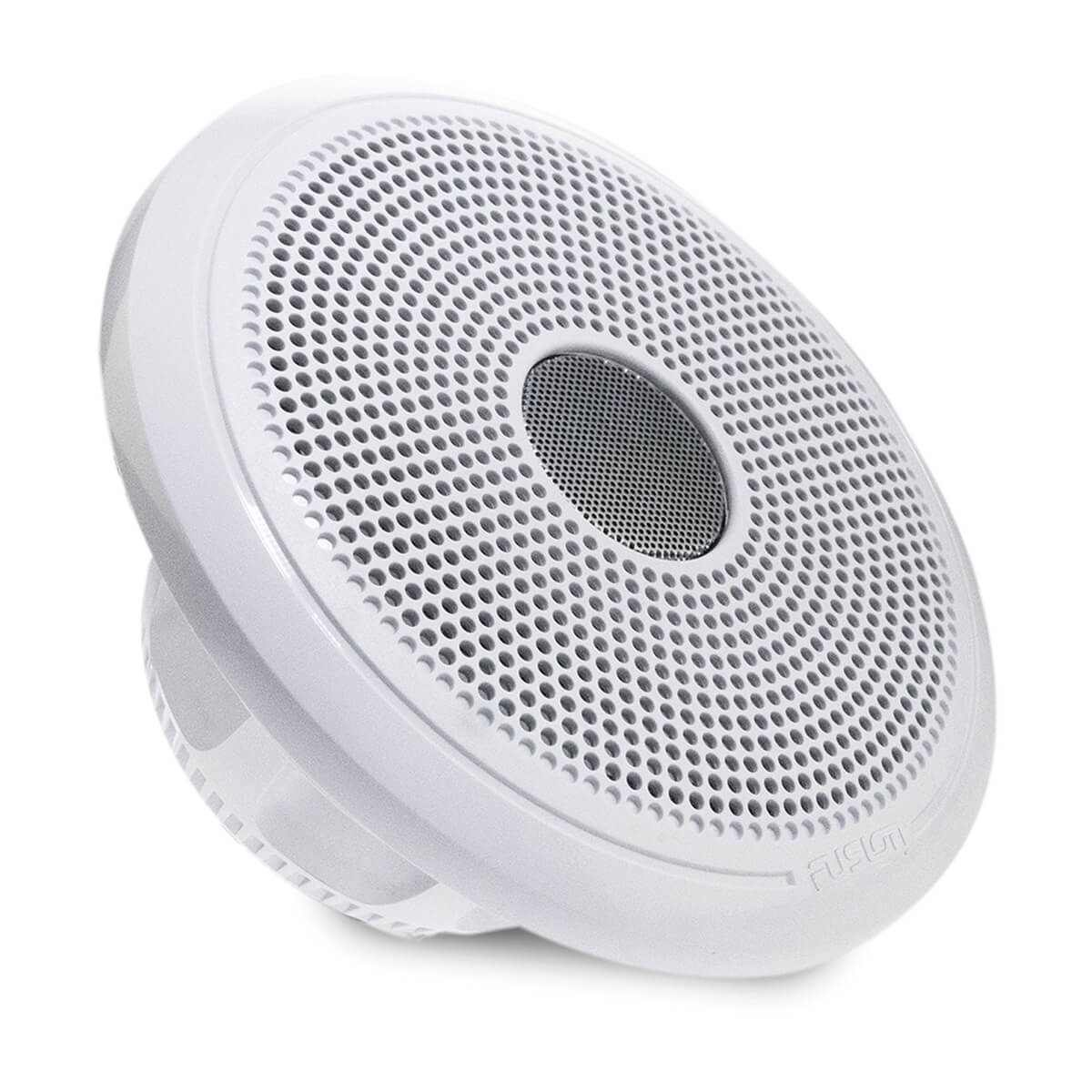

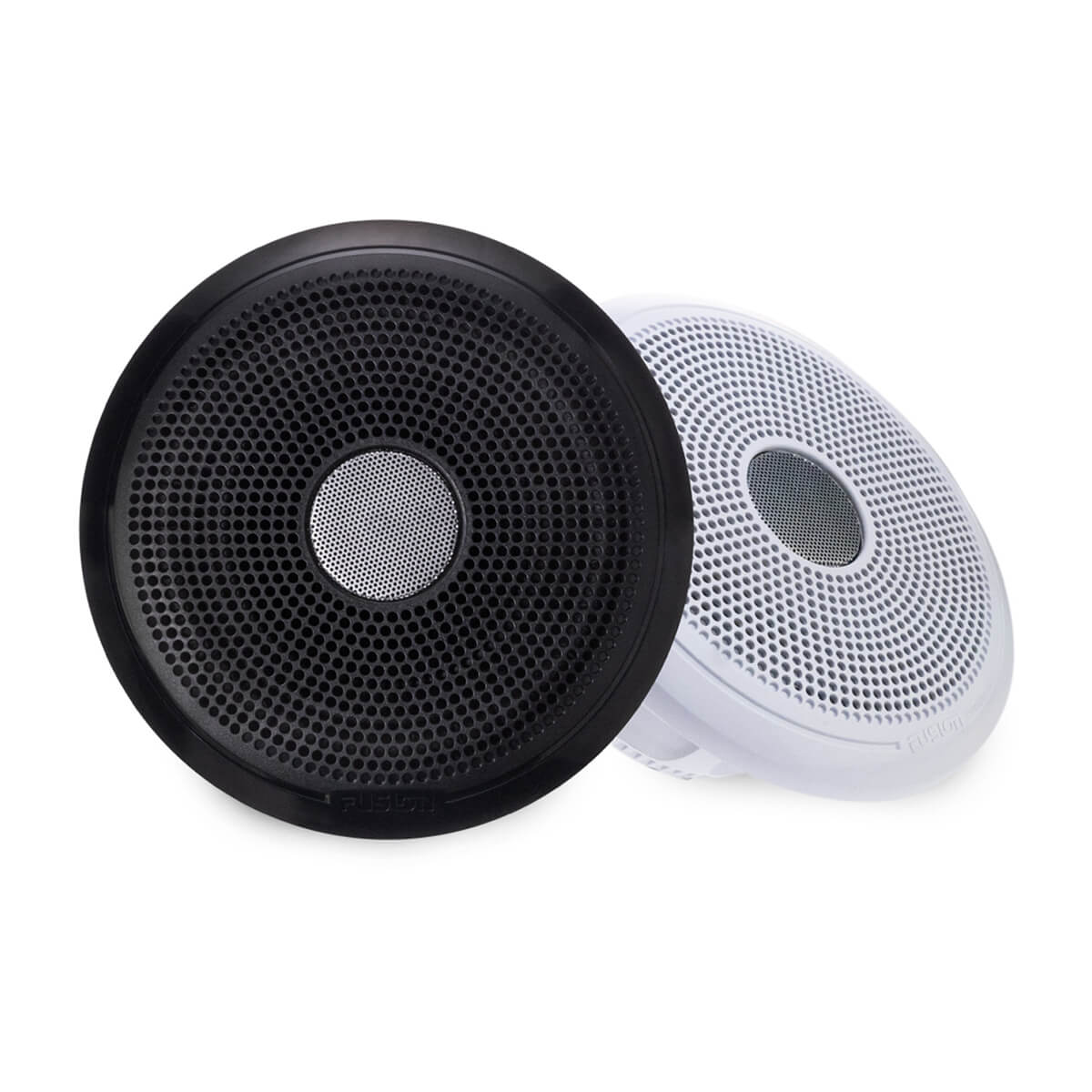

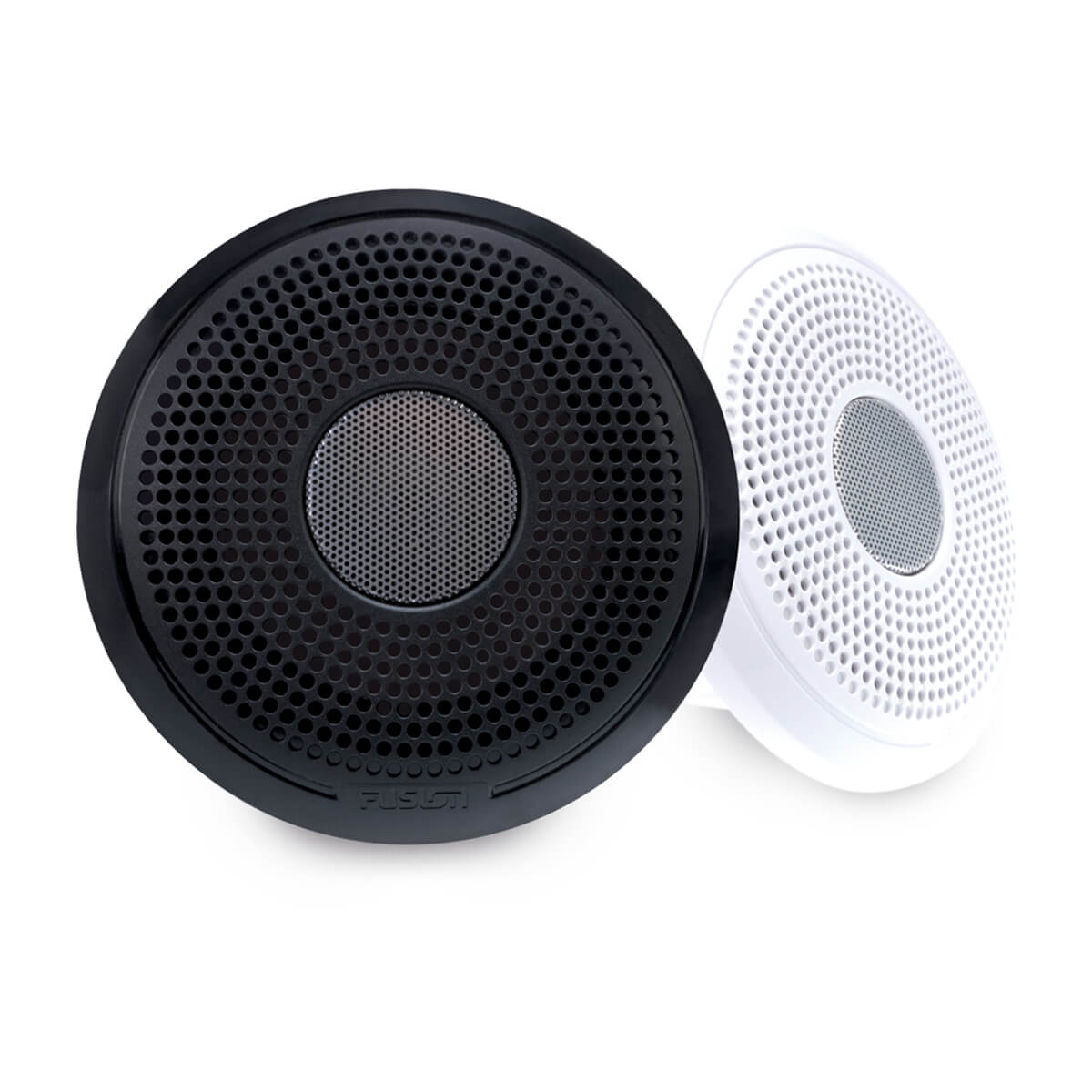

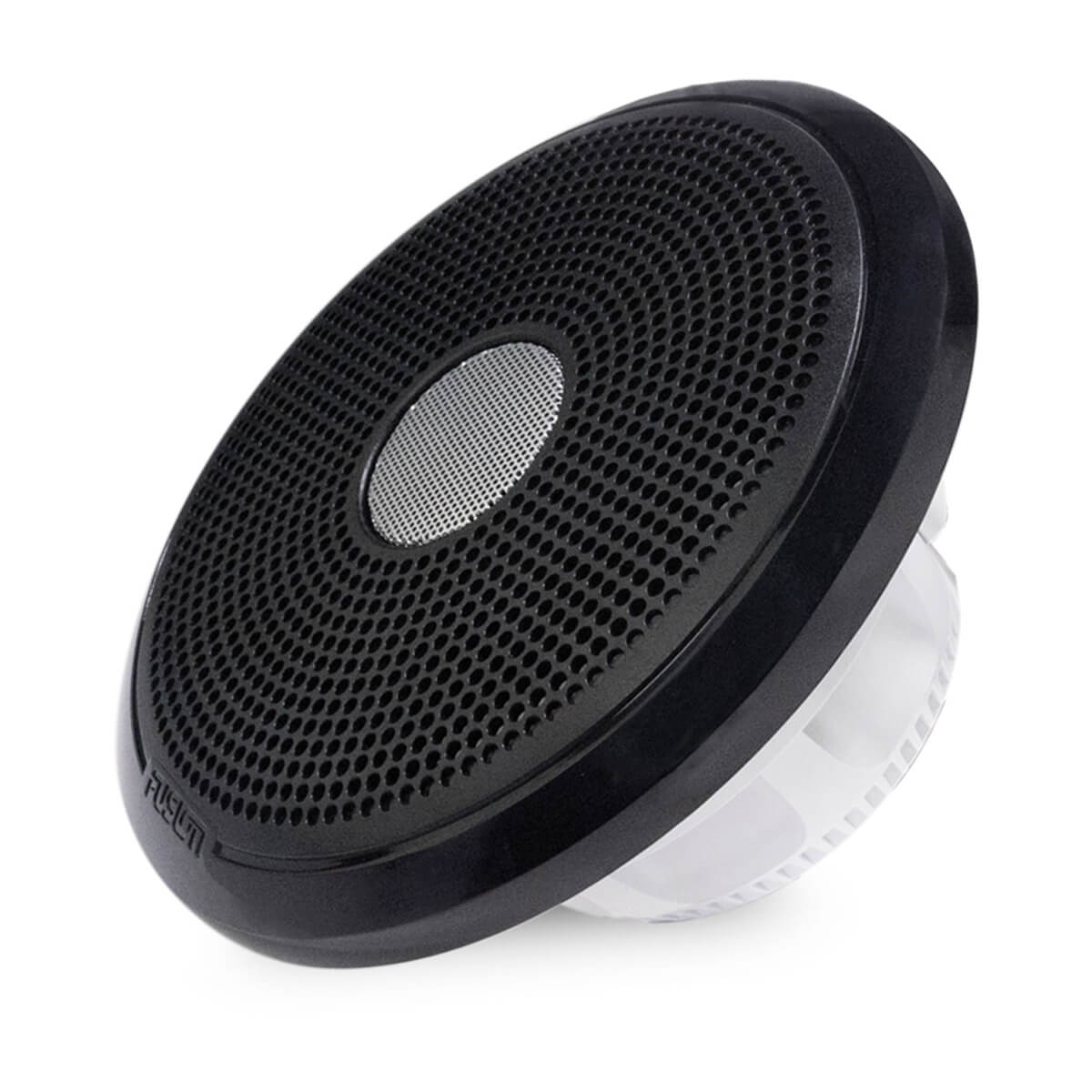

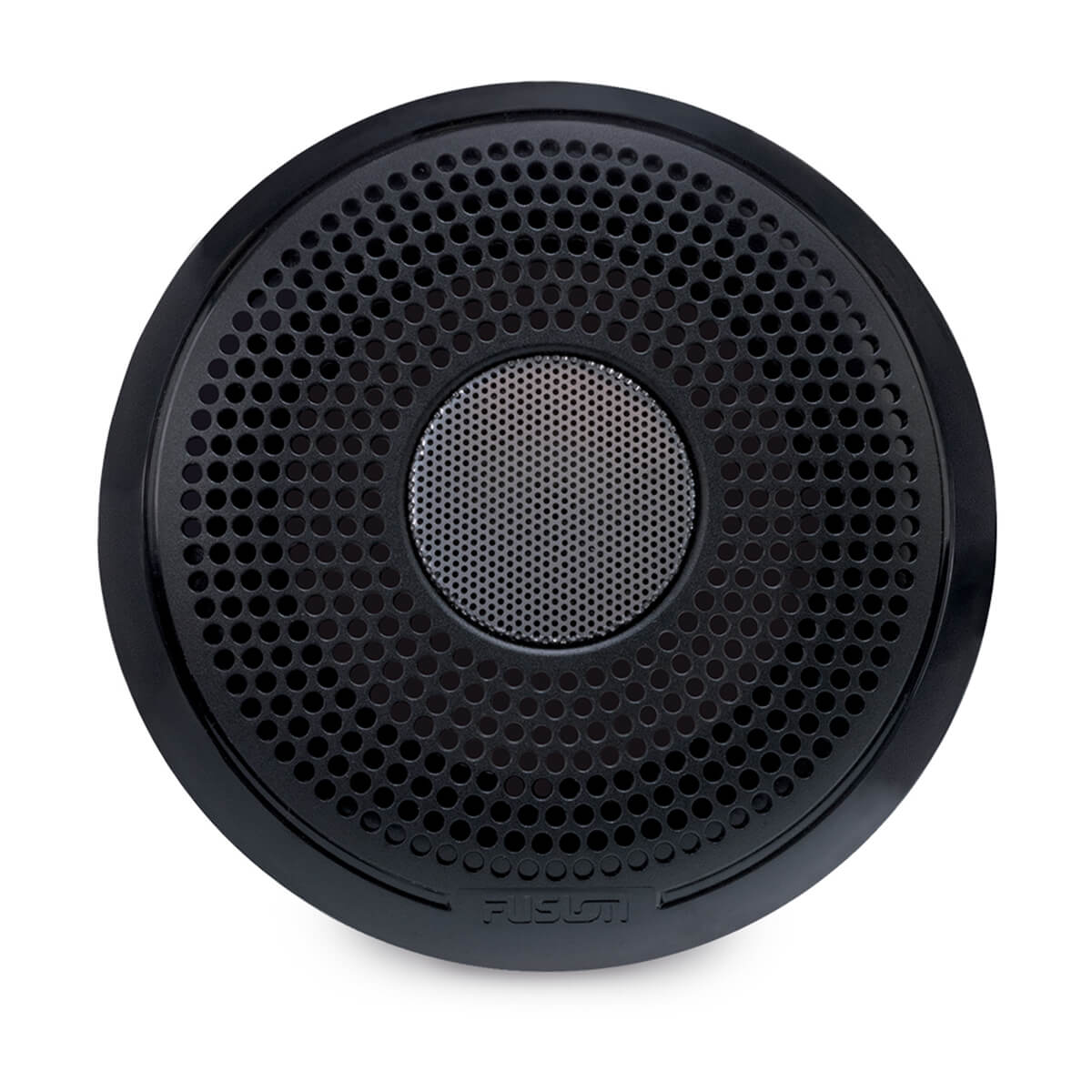

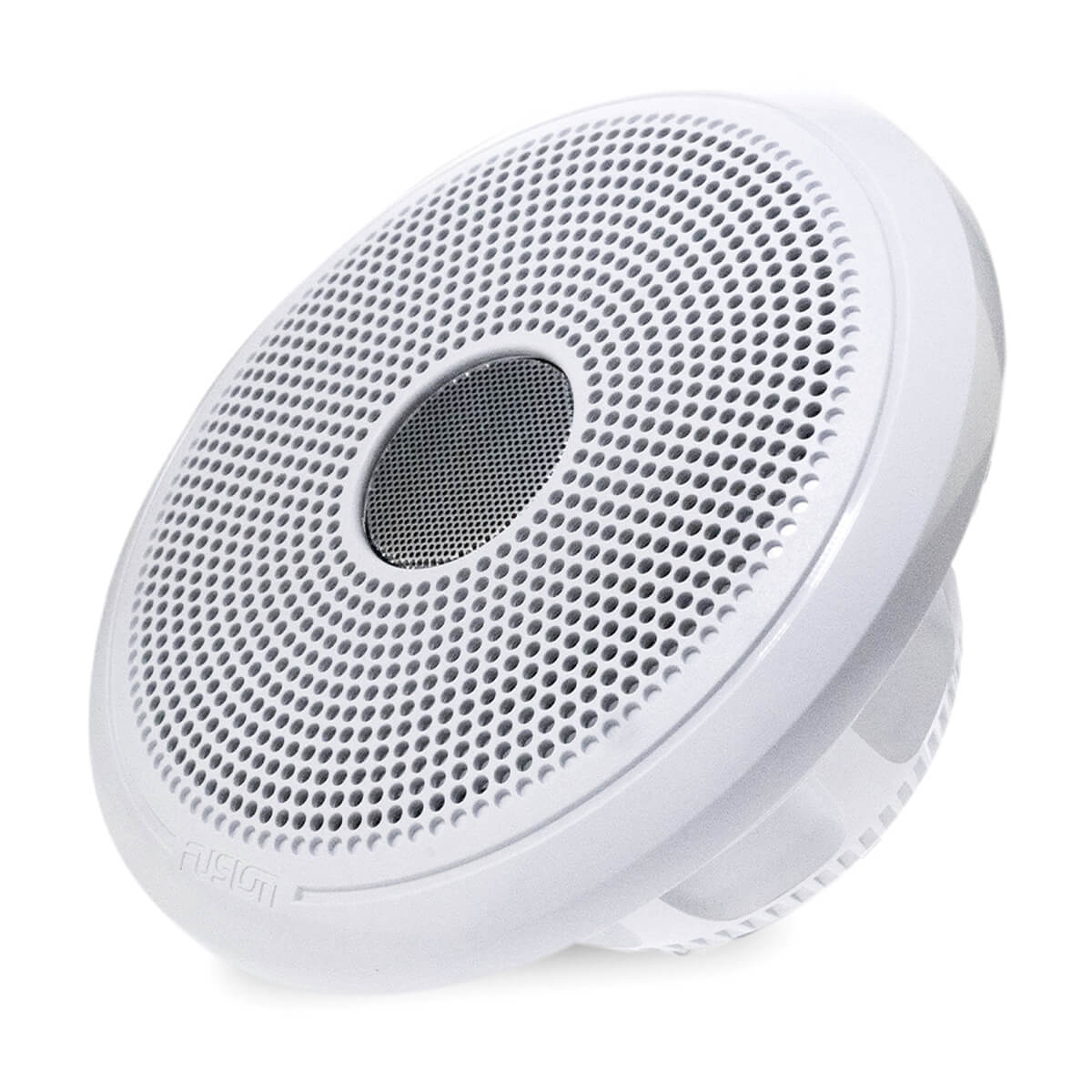

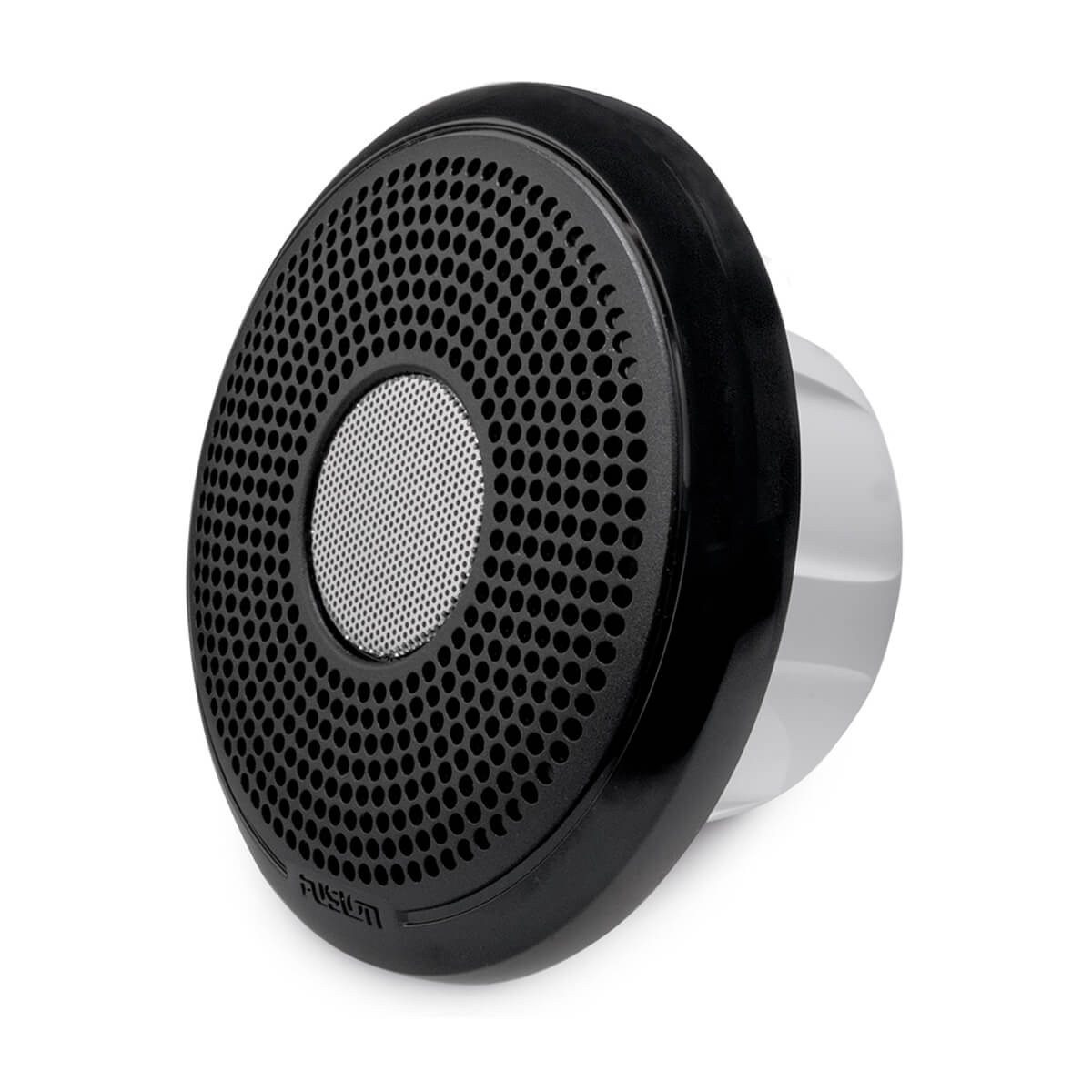

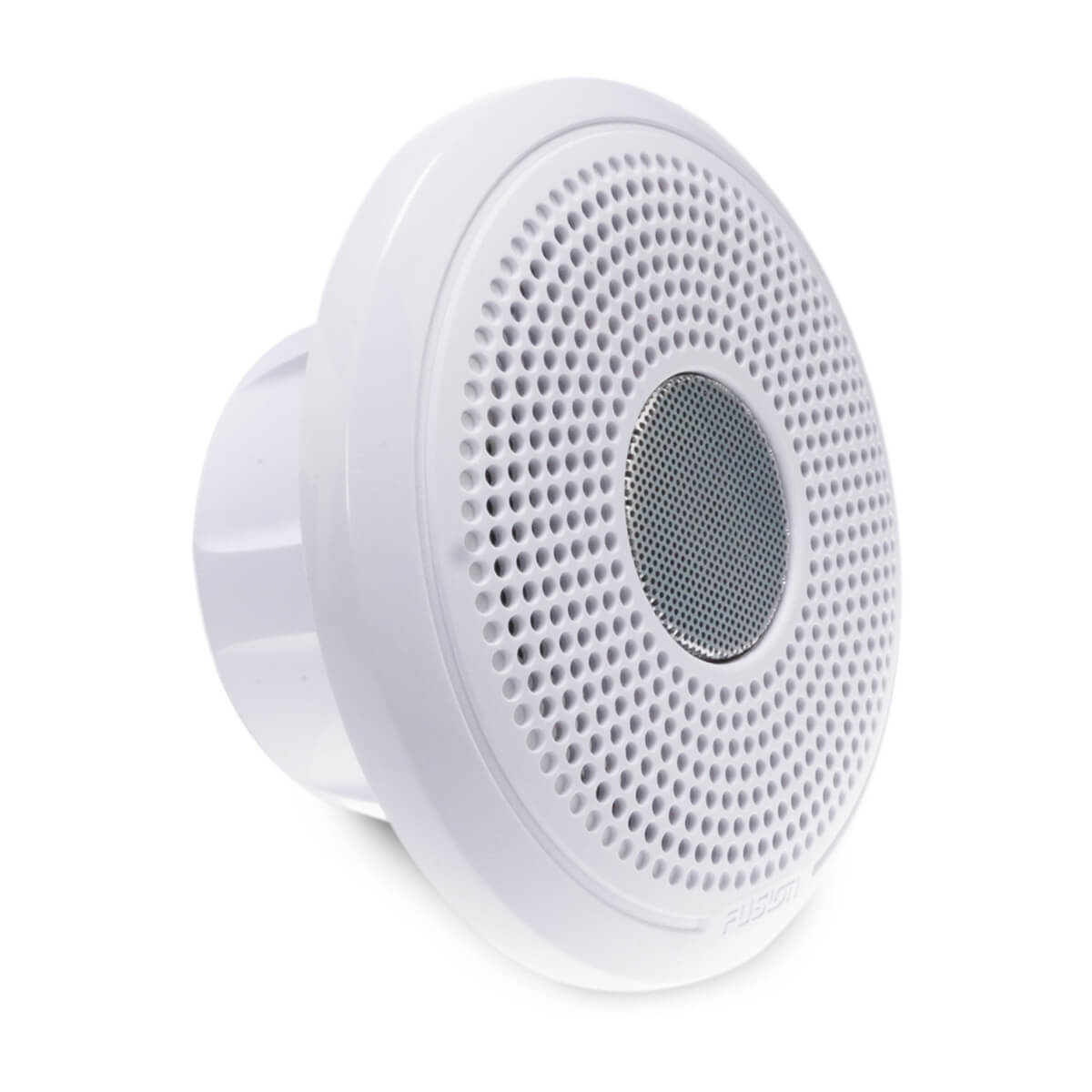

- Classic models include white and black grilles

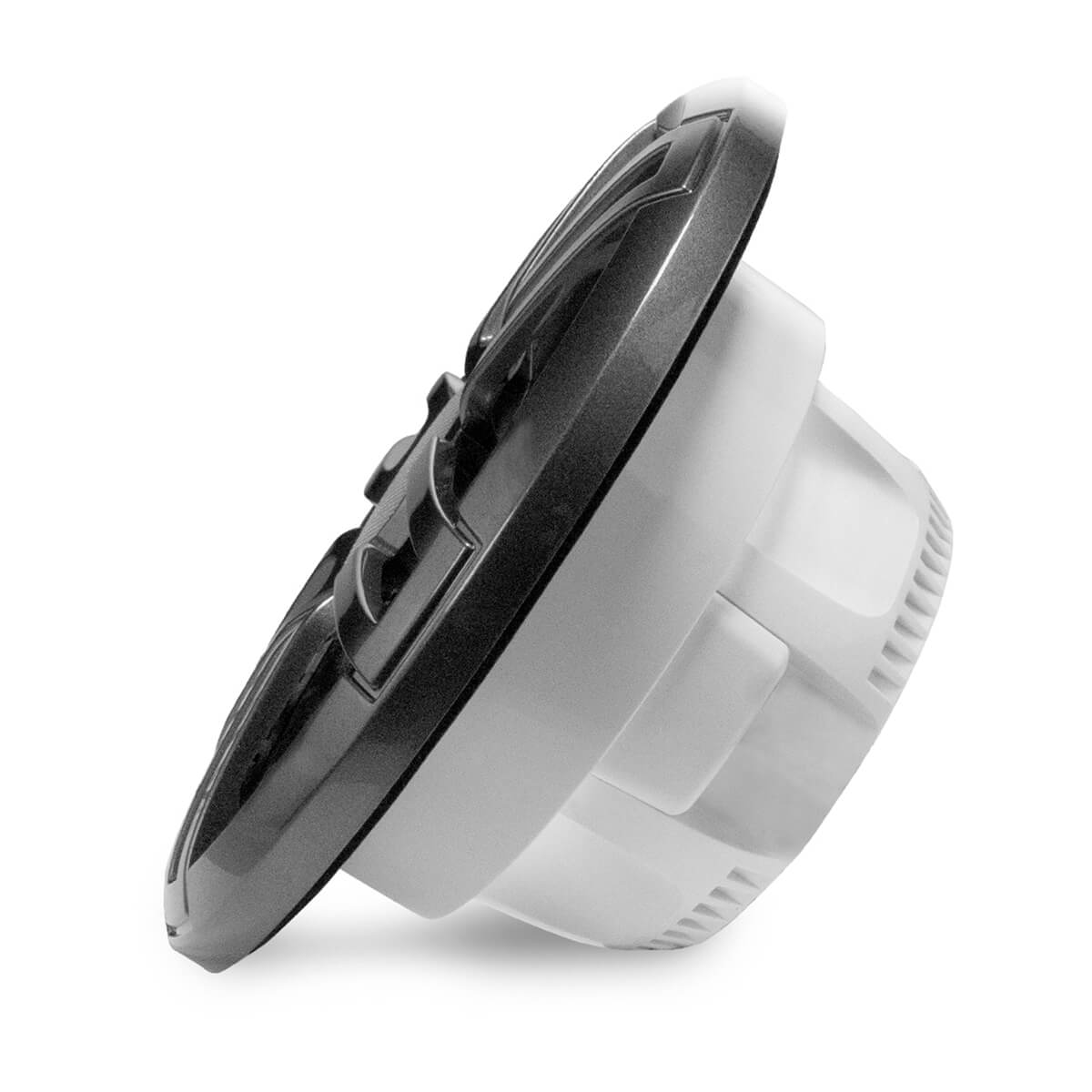

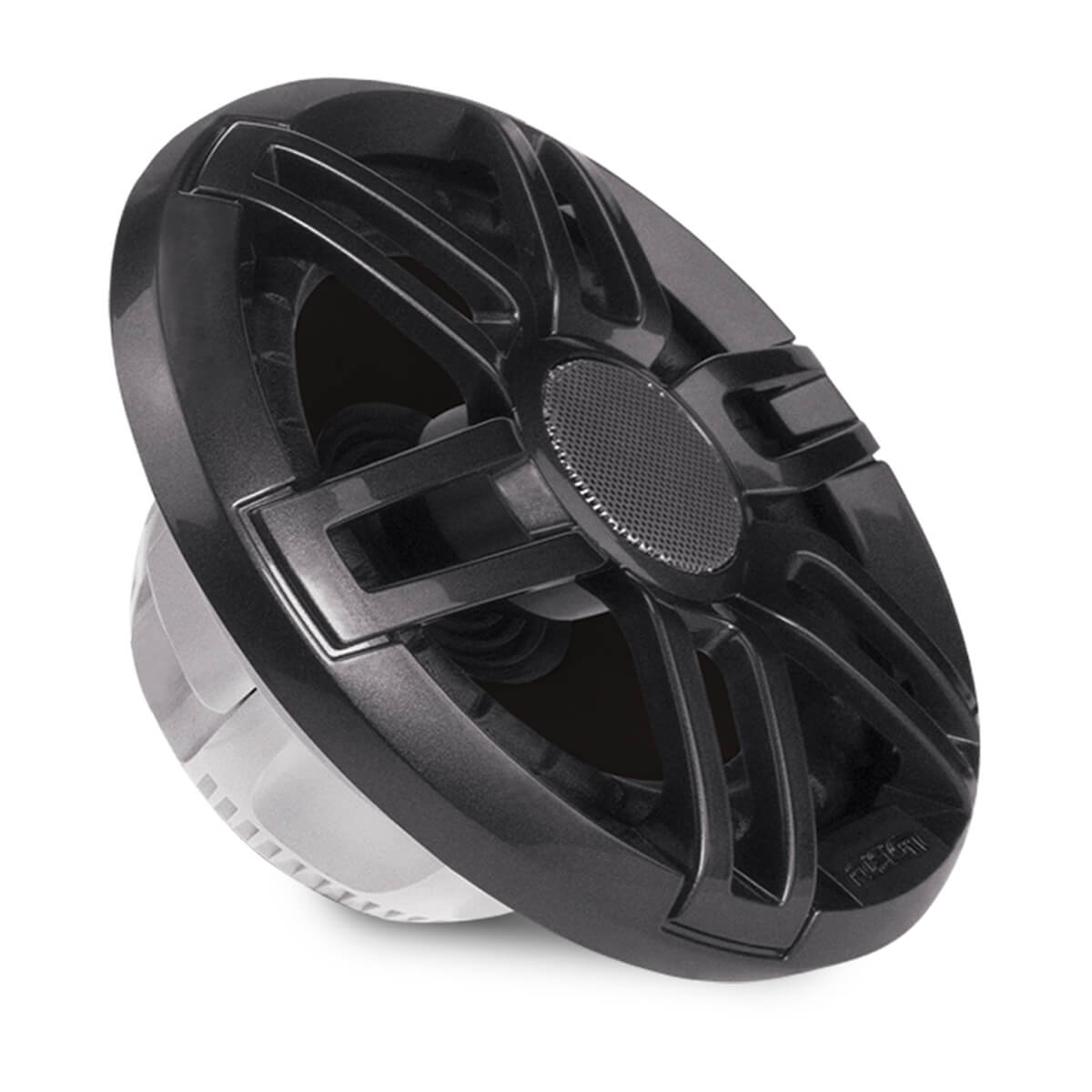

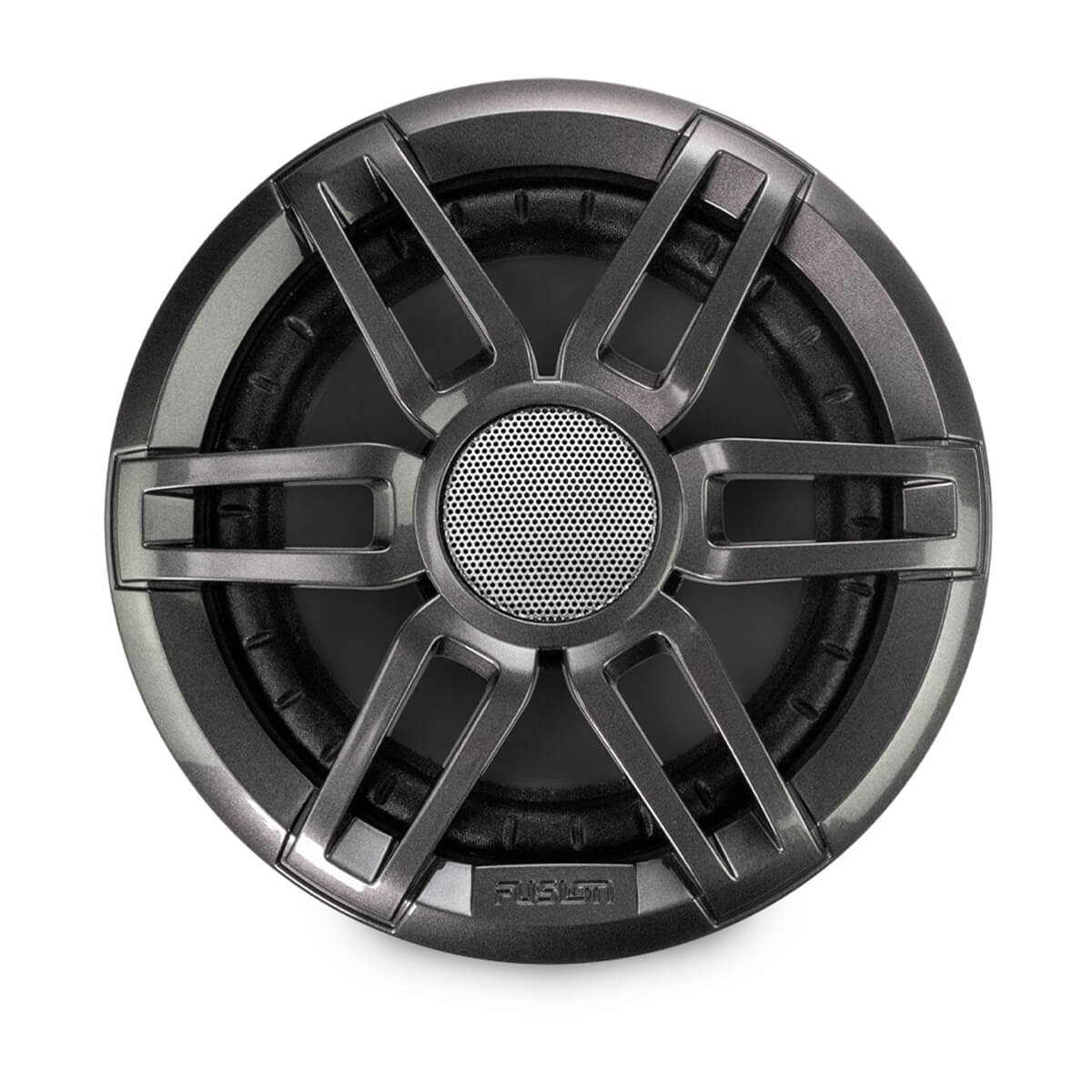

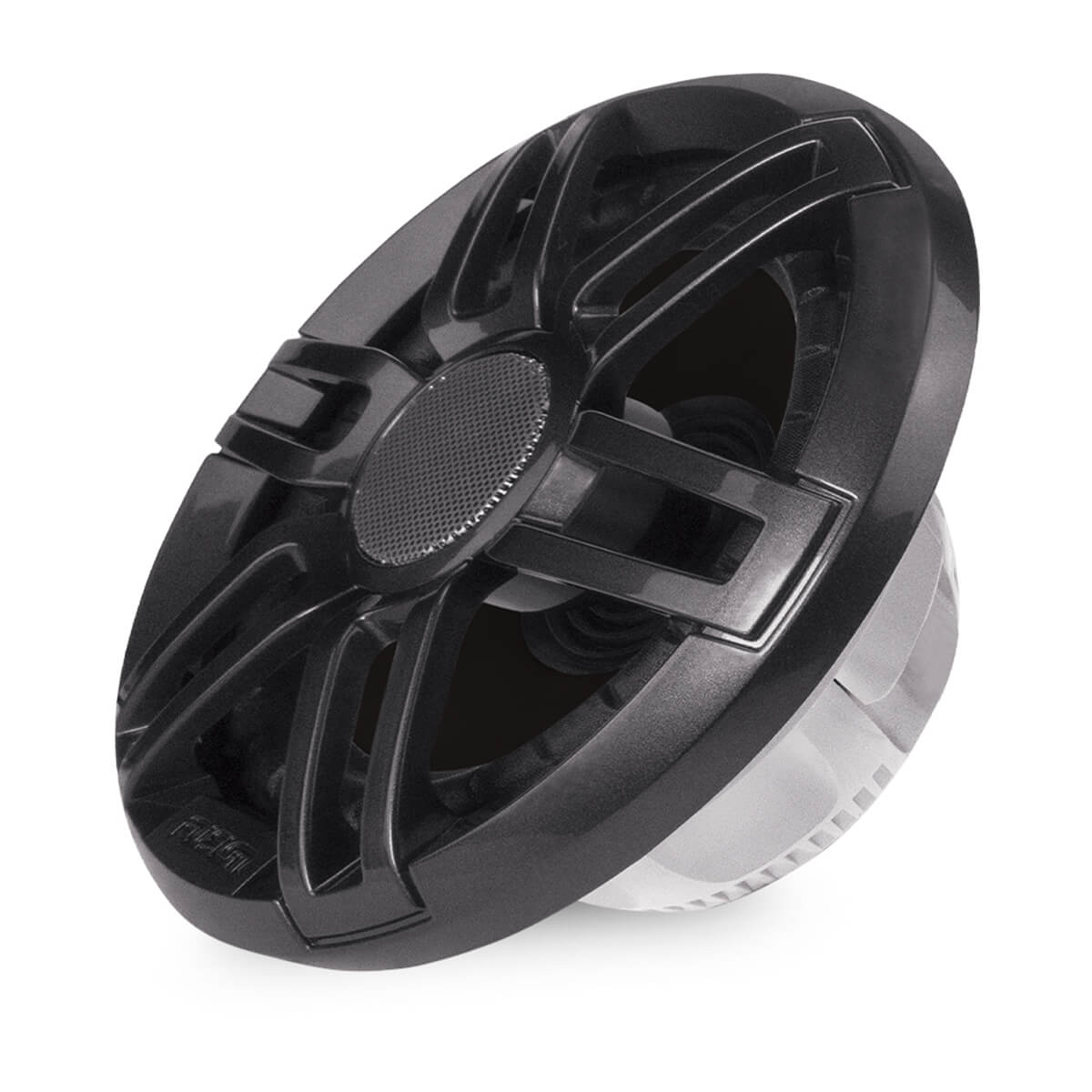

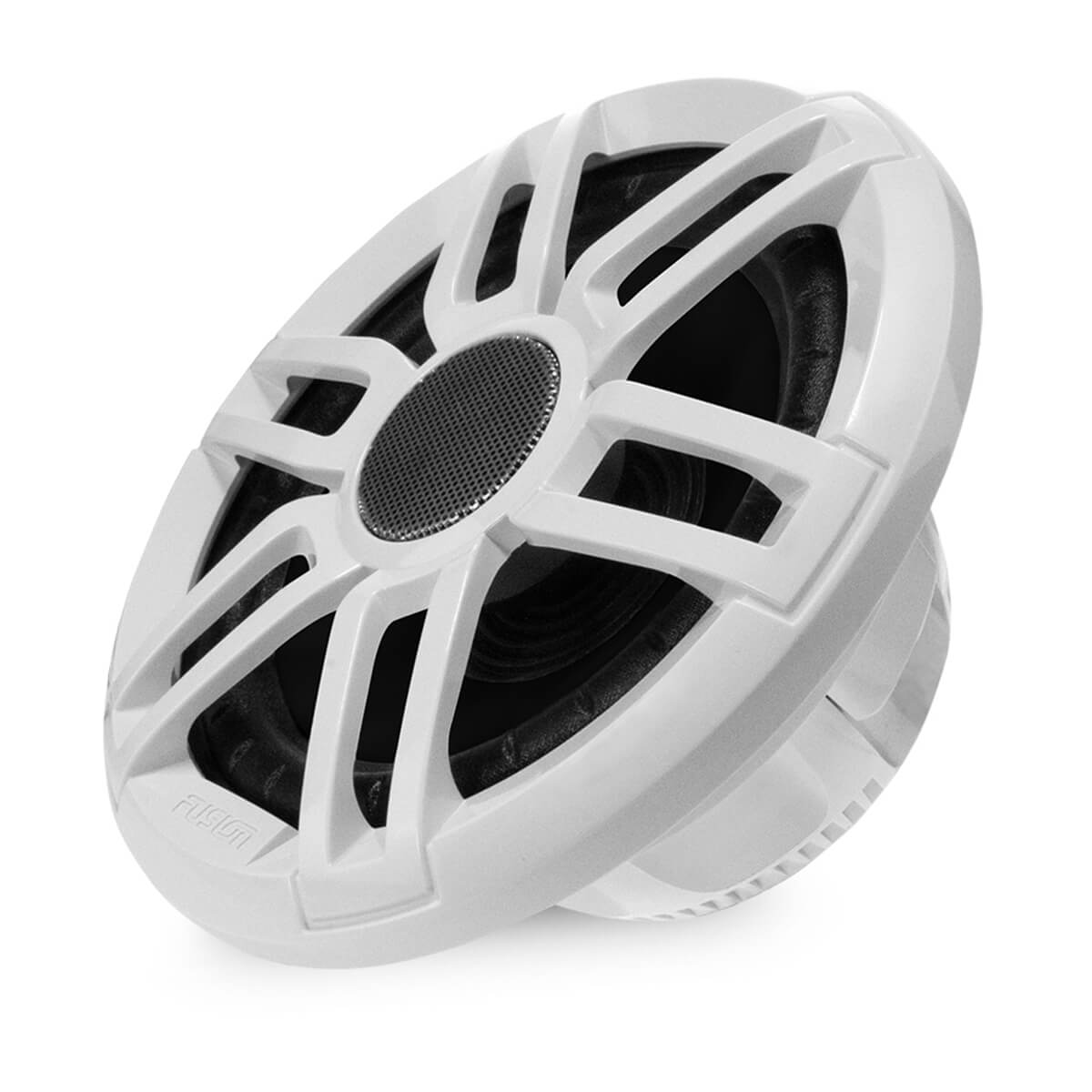

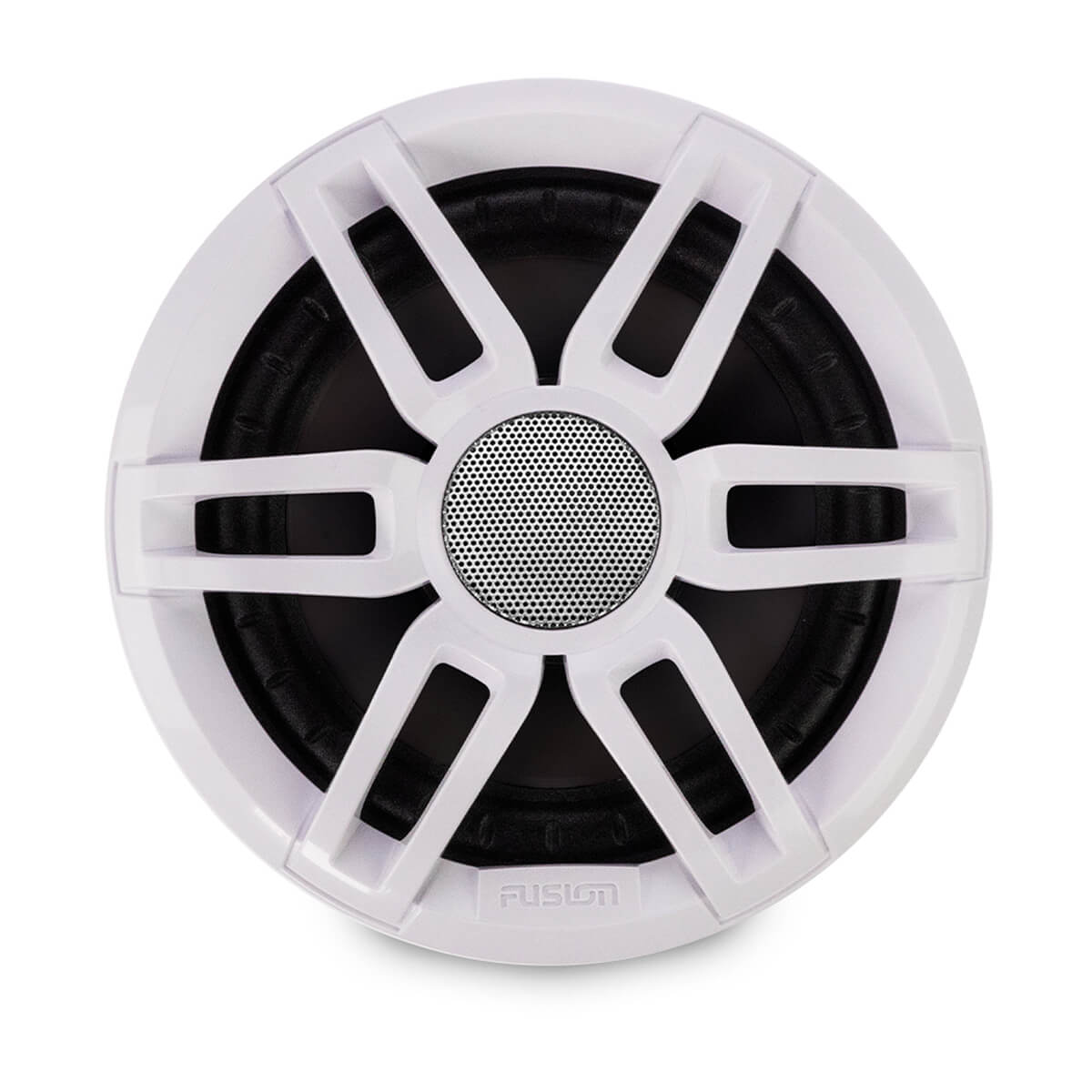

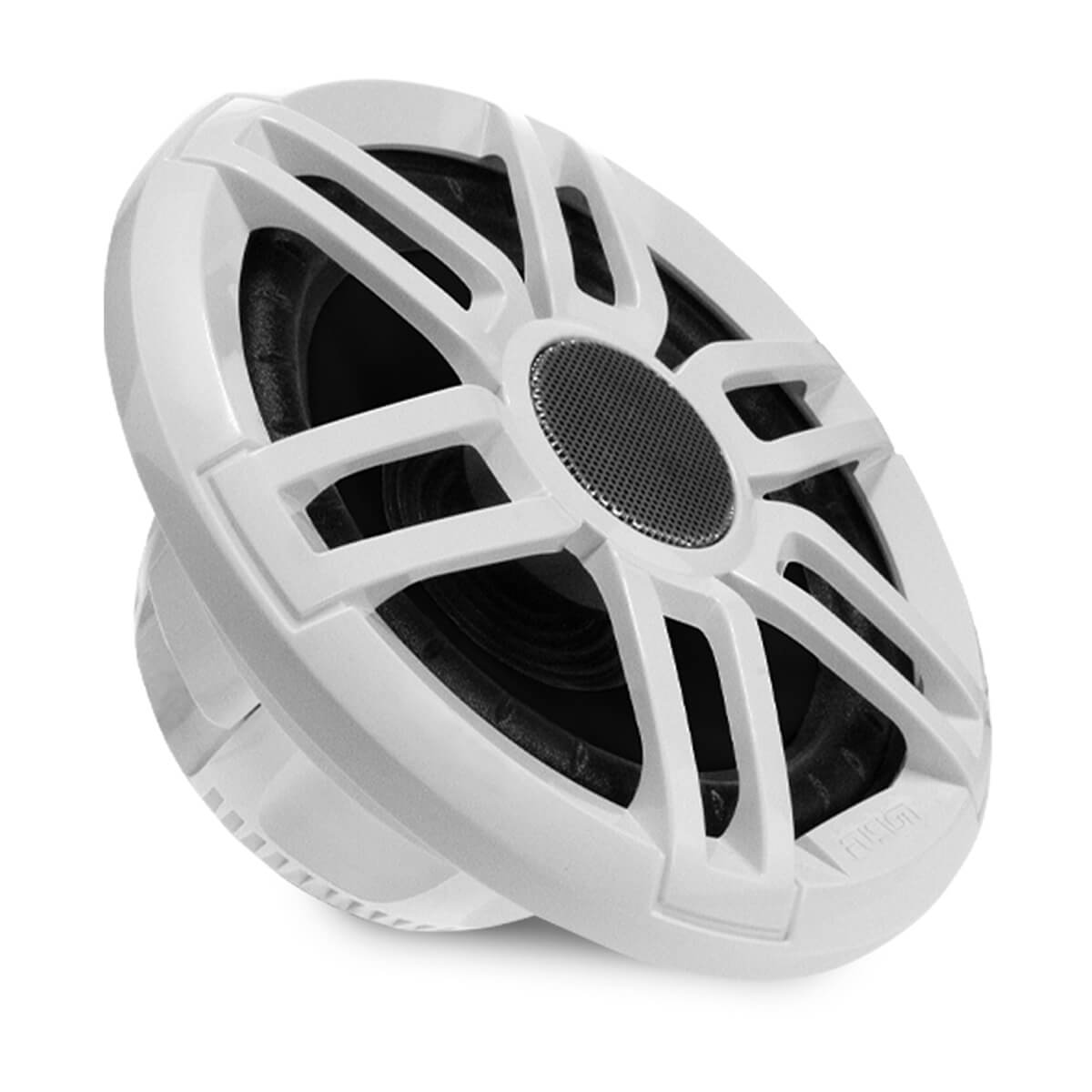

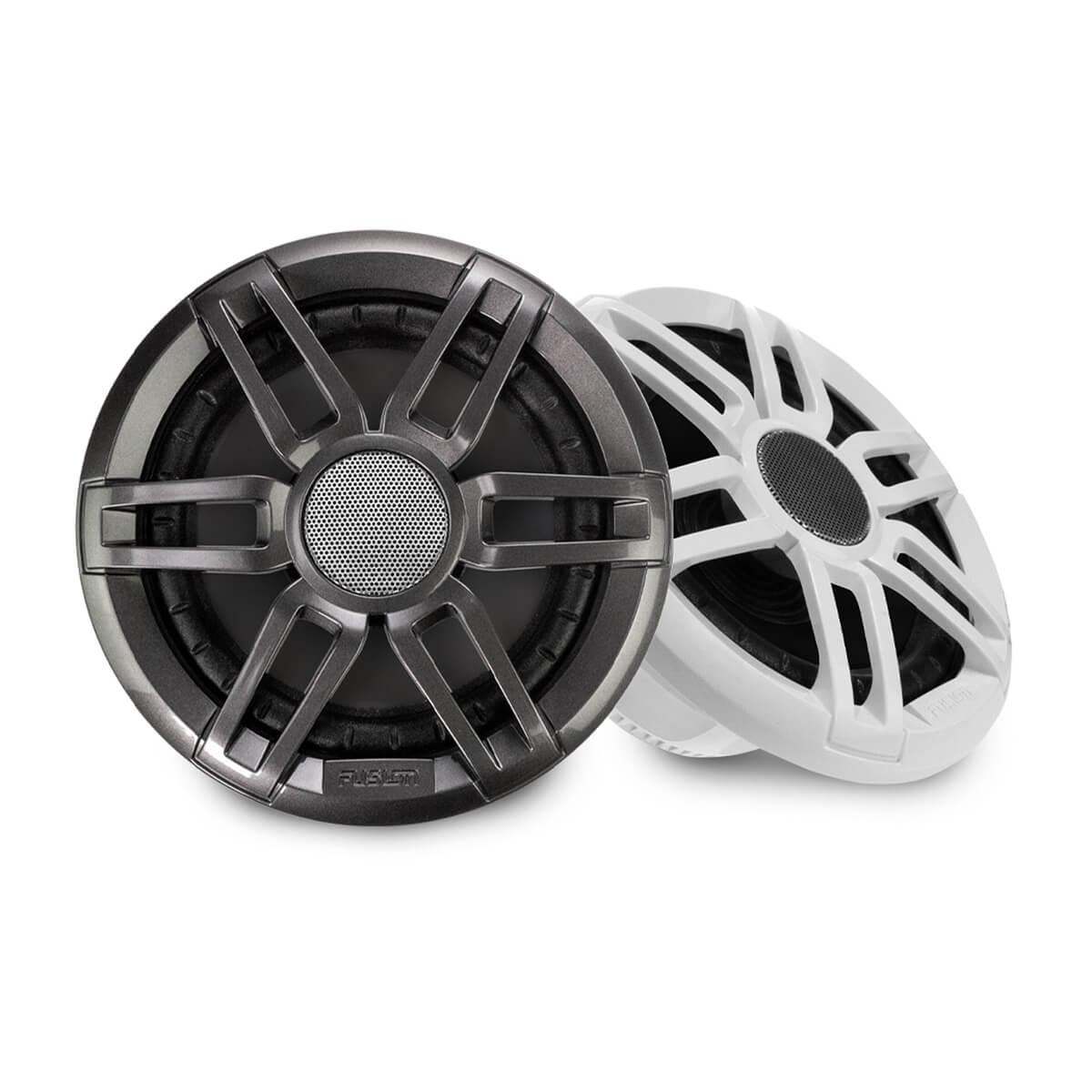

- Sports models include sports gray and sports white grilles

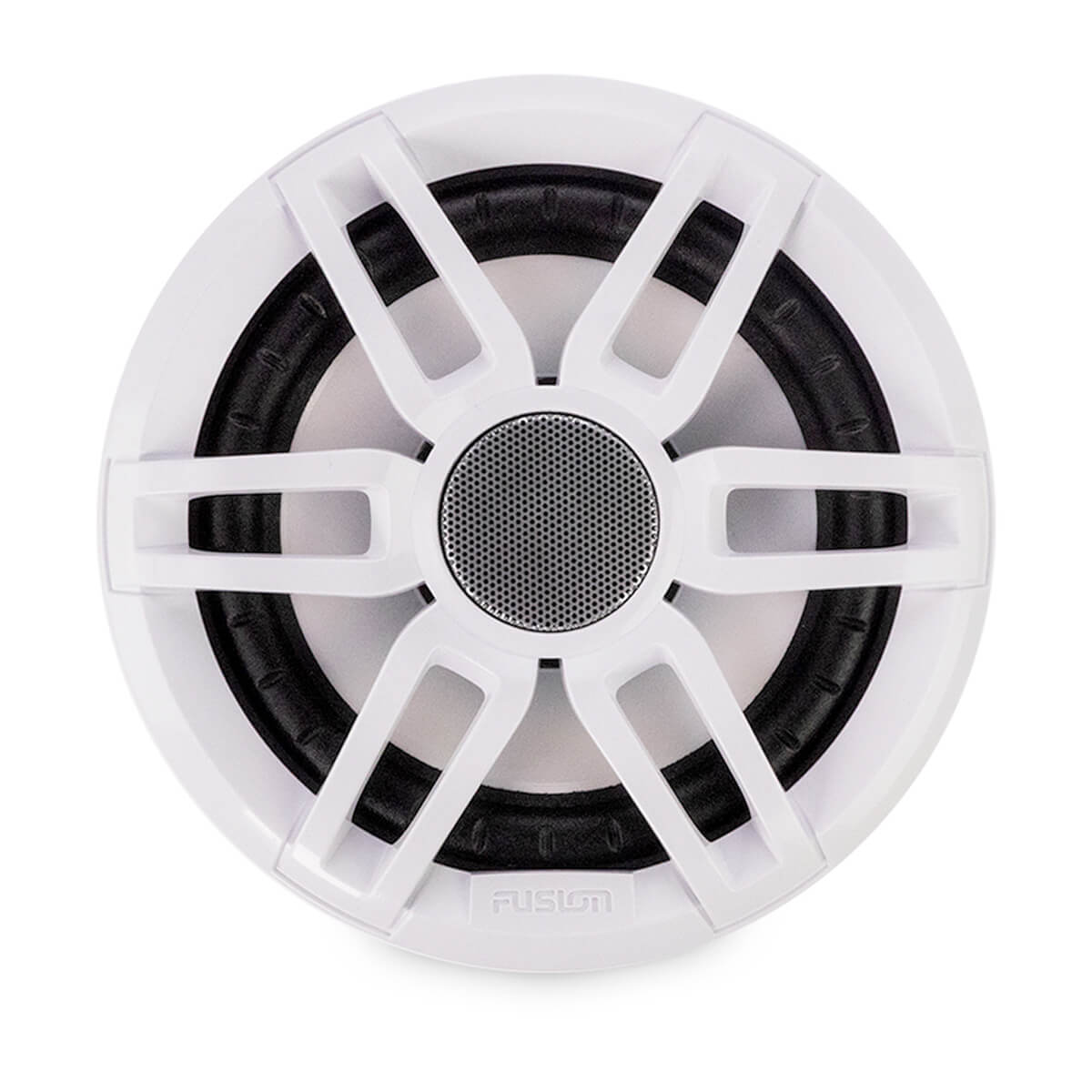

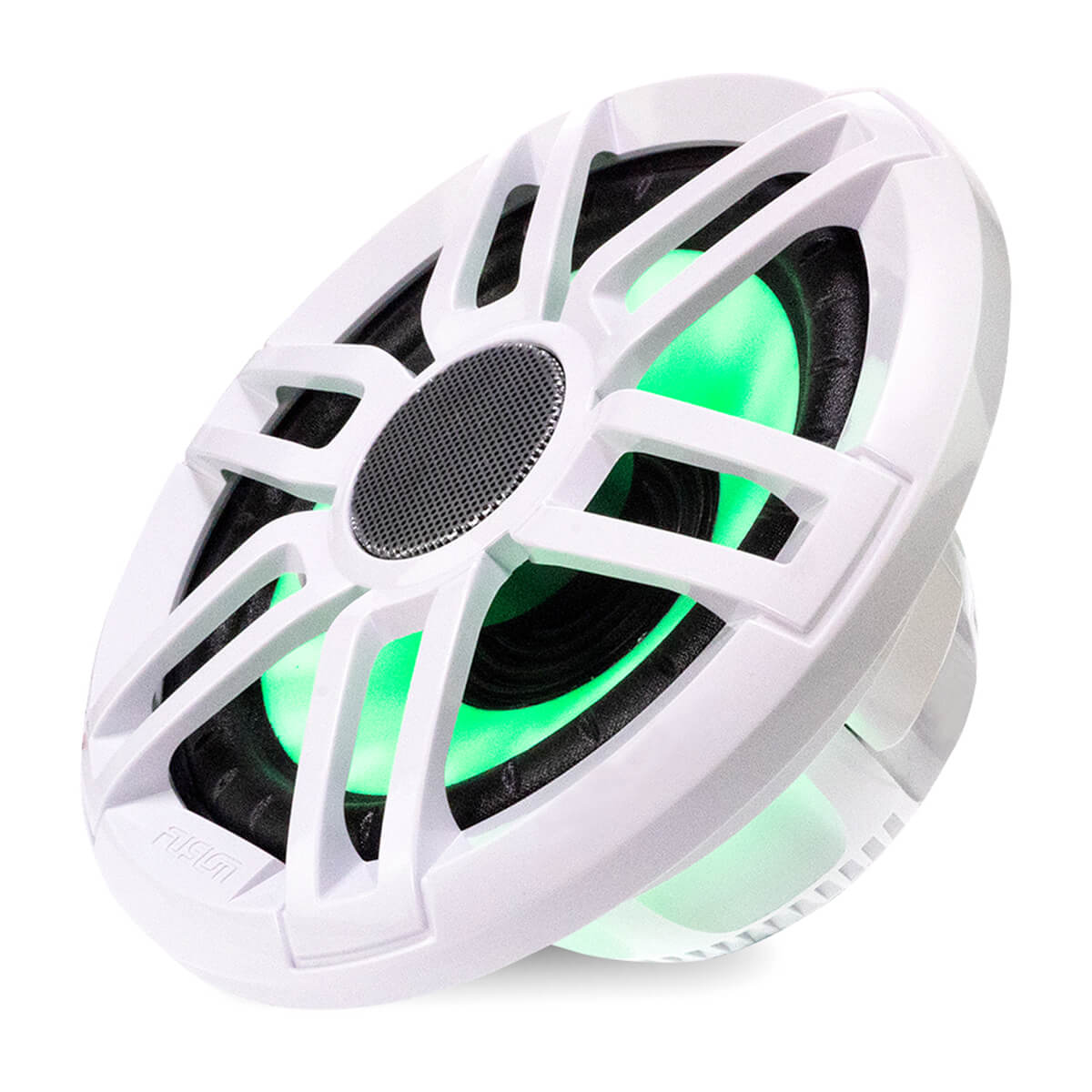

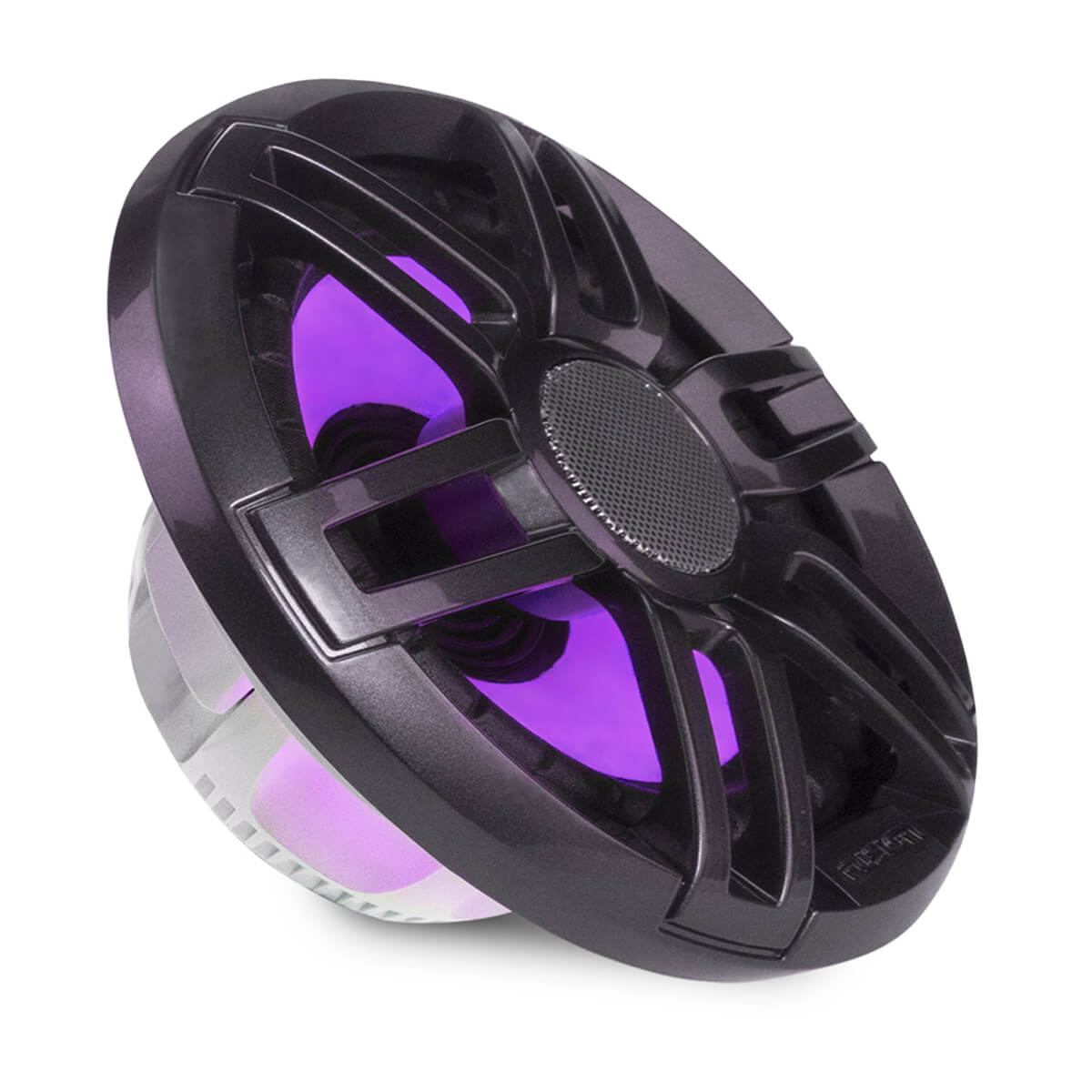

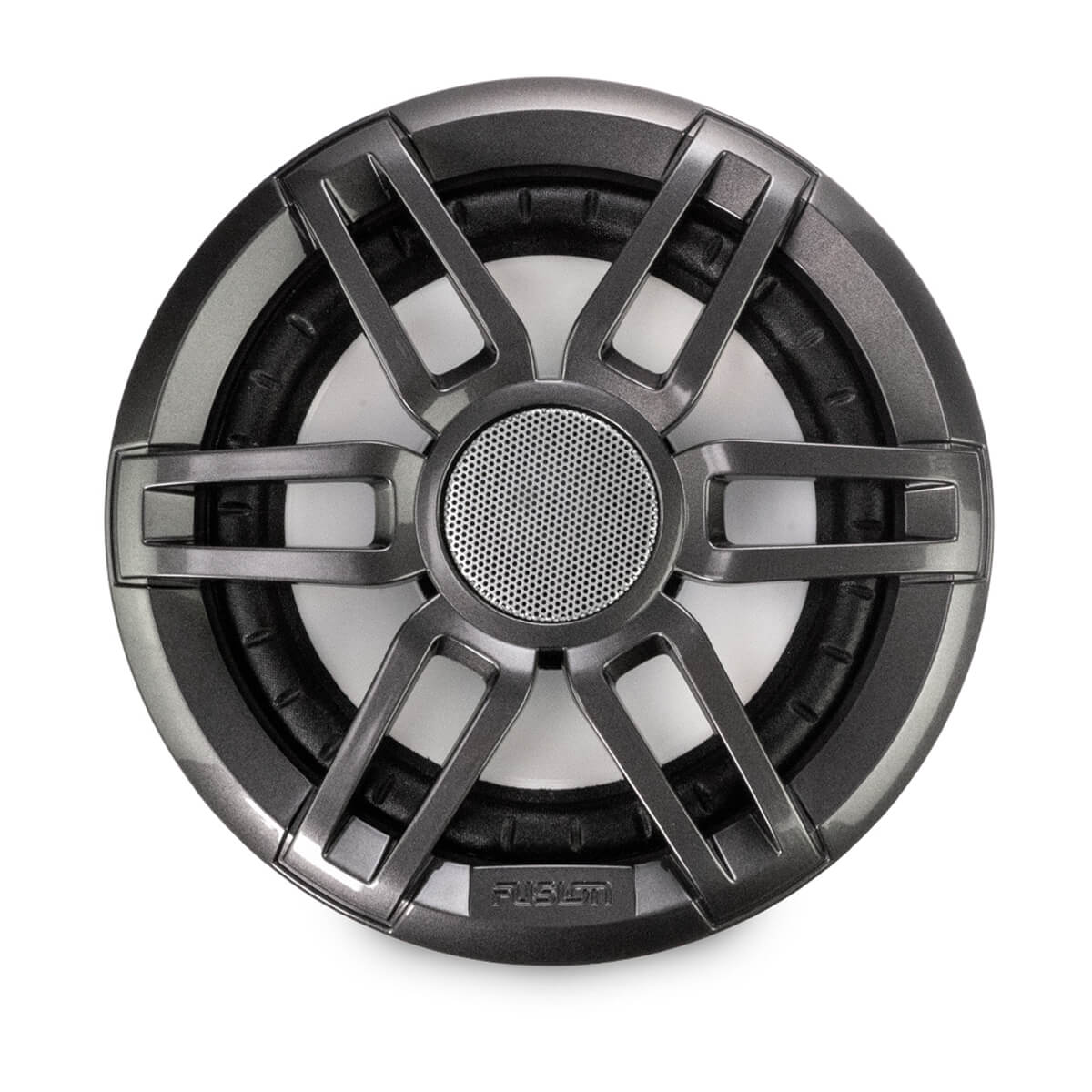

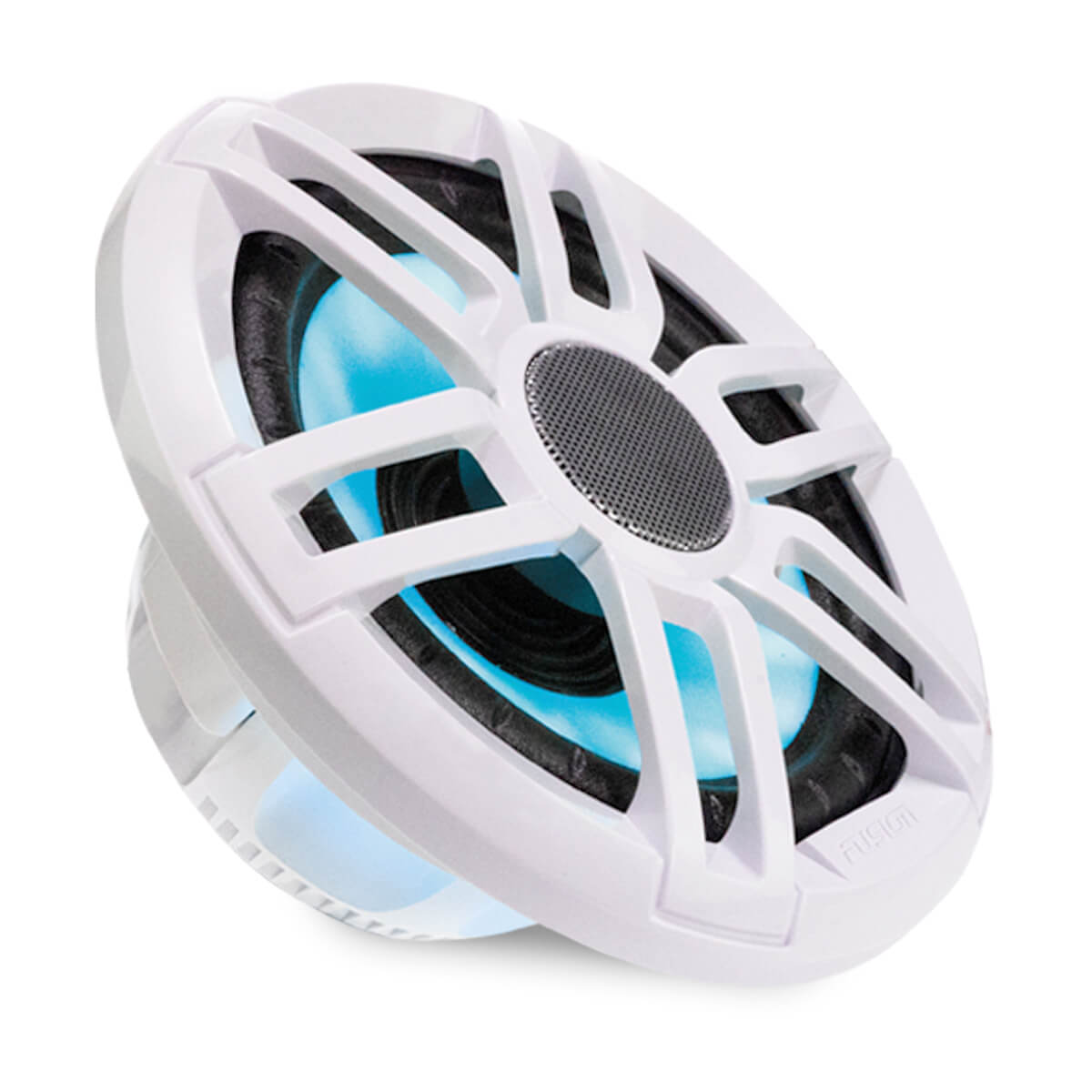

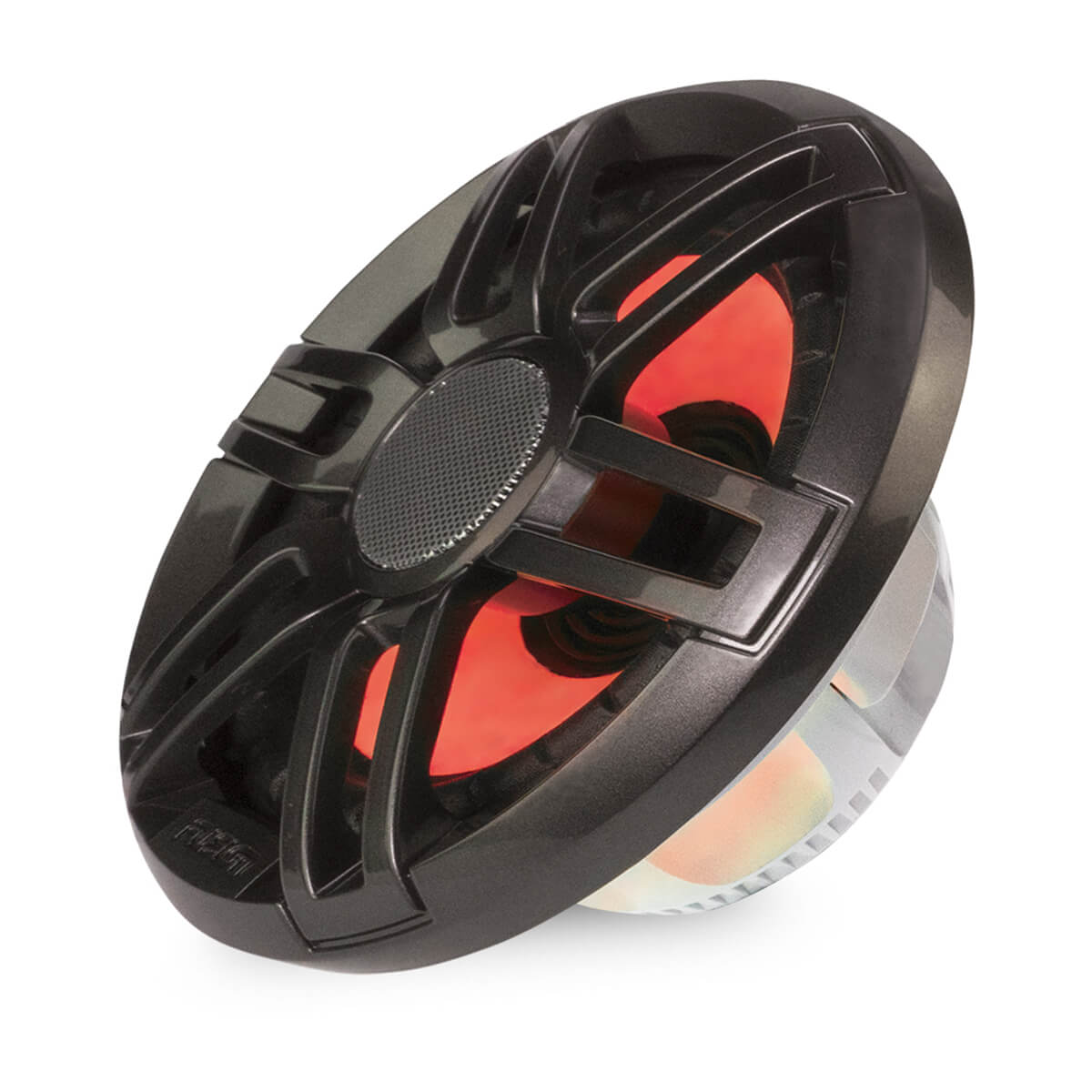

- 6.5 in Sports with RGB LED adds multicolor lighting
- IP65 water and dust rating
- Spade speaker connections; stainless mounting screws included
- 3-year warranty
| Brand | Fusion |
| Model | XS Series Marine Speaker |
| Part Numbers | 010-02199-00 (4 in 120 W, Classic); 010-02196-00 (6.5 in 200 W, Classic); 010-02196-01 (6.5 in 200 W, Sports); 010-02196-20 (6.5 in 200 W, Sports with RGB LED); 010-02197-00 (7.7 in 240 W, Classic) |
| UPC | 753759221393 (4 in 120 W, Classic); 753759221409 (6.5 in 200 W, Classic); 753759274962 (6.5 in 200 W, Sports); 753759221423 (6.5 in 200 W, Sports with RGB LED); 753759221454 (7.7 in 240 W, Classic) |
| Sold As | Pair |
| Speaker Type | Coaxial |
| Peak Power | 4 in: 120 W; 6.5 in: 200 W; 7.7 in: 240 W |
| Continuous Power Handling (RMS) | 4 in: 30 W; 6.5 in: 50 W; 7.7 in: 60 W |
| Sensitivity (1 W / 1 m) | 4 in: 87 dB; 6.5 in: 91 dB; 7.7 in: 92 dB |
| Frequency Response (+/- 3 dB) | 4 in: 100 Hz-18 kHz; 6.5 in: 80 Hz-18 kHz; 7.7 in: 70 Hz-18 kHz |
| Nominal Impedance | 4 ohm |
| Cone Material | 4 in: Polypropylene cone with rubber surround; 6.5 in, 7.7 in: Polypropylene cone with cloth surround |
| Tweeter Type | Aluminum dome |
| Included Grilles | Classic: 1 pair classic white and 1 pair classic black; Sports: 1 pair sports gray and 1 pair sports white |
| LED Lighting | Sports with RGB LED: RGB; 10.8-16 VDC; 150 mA max at 14.4 VDC; bullet connectors |
| Diameter | 4 in: 5.31 in (135 mm); 6.5 in: 6.97 in; 7.7 in: 7.72 in (196 mm) |
| Mounting Diameter Clearance | 4 in: 3.9 in (99 mm); 6.5 in: 5.31 in (135 mm); 7.7 in: 6.38 in (162 mm) |

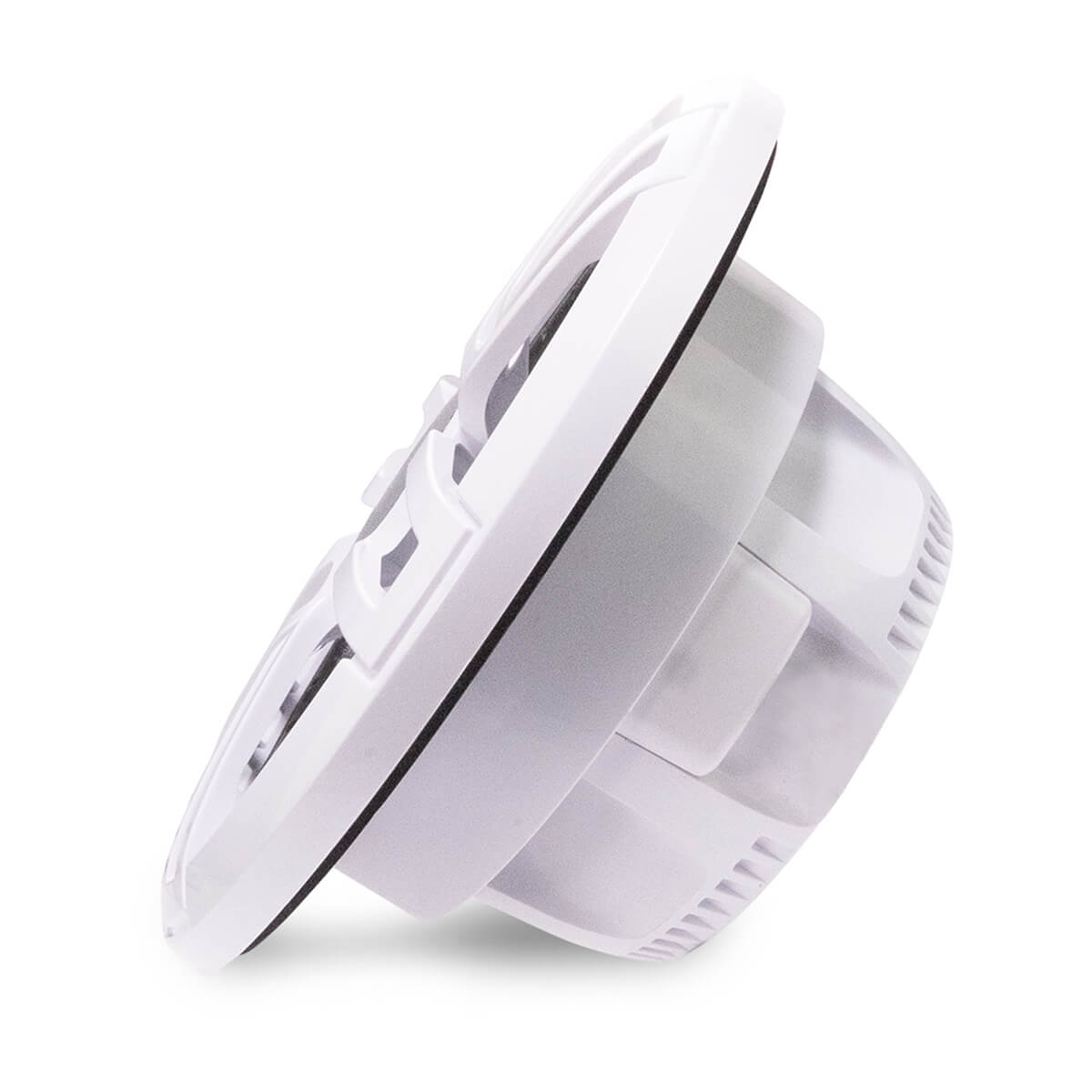

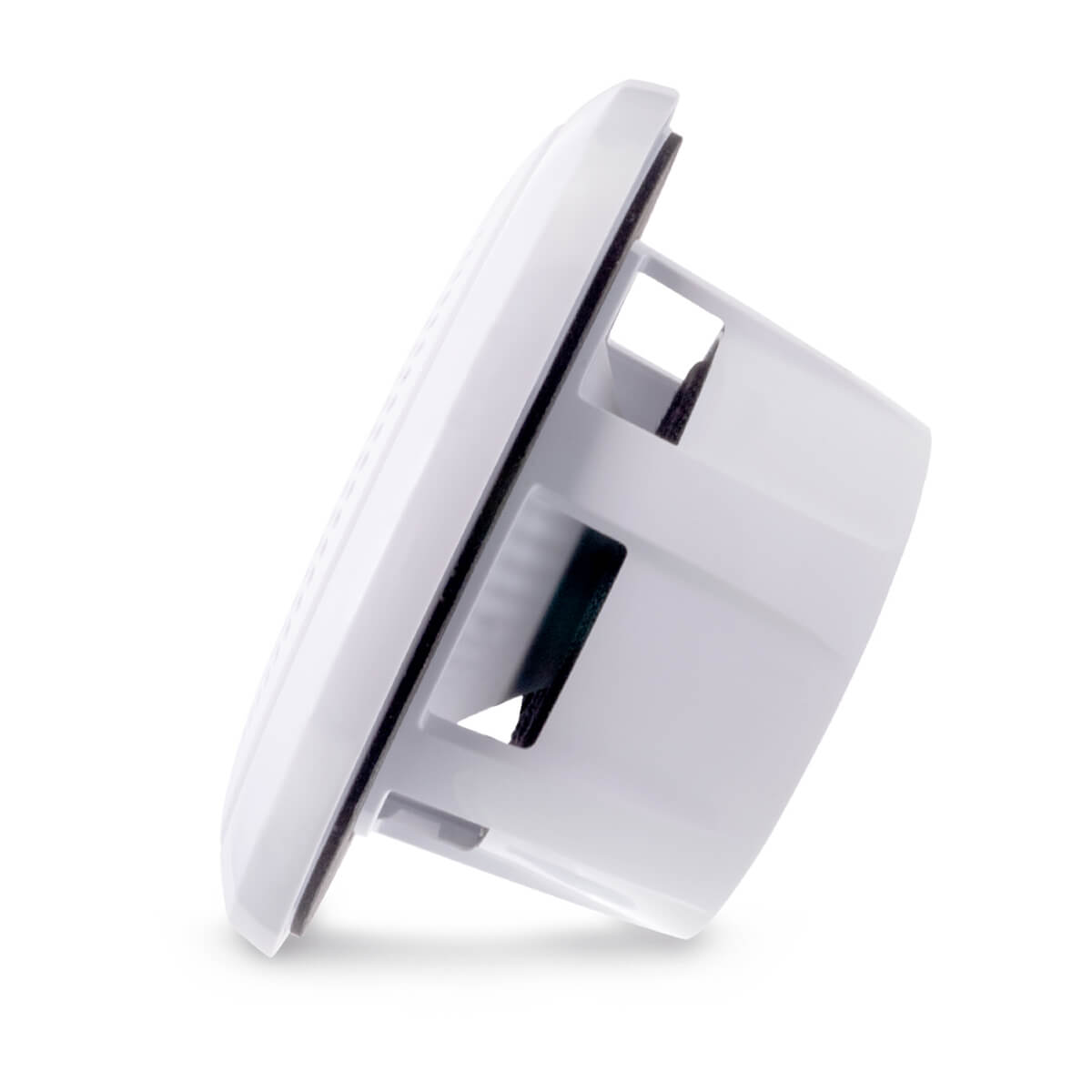

| Mounting Depth Clearance | 4 in: 2.13 in (54 mm); 6.5 in: 2.64 in (67 mm); 7.7 in: 3.03 in (77 mm) |
| Frontal Grille Protrusion | 4 in: 0.67 in (17 mm); 6.5 in: 0.75 in (19 mm); 7.7 in: 0.91 in (23 mm) |
| Water Rating | IP65 |
| Speaker Connections | Spade connectors |
| Compass-Safe Distance | 4 in: 100.5 in (255 cm); 6.5 in: 122 in (310 cm); 7.7 in: 157.5 in (400 cm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Warranty | 3 years |
