Product Information

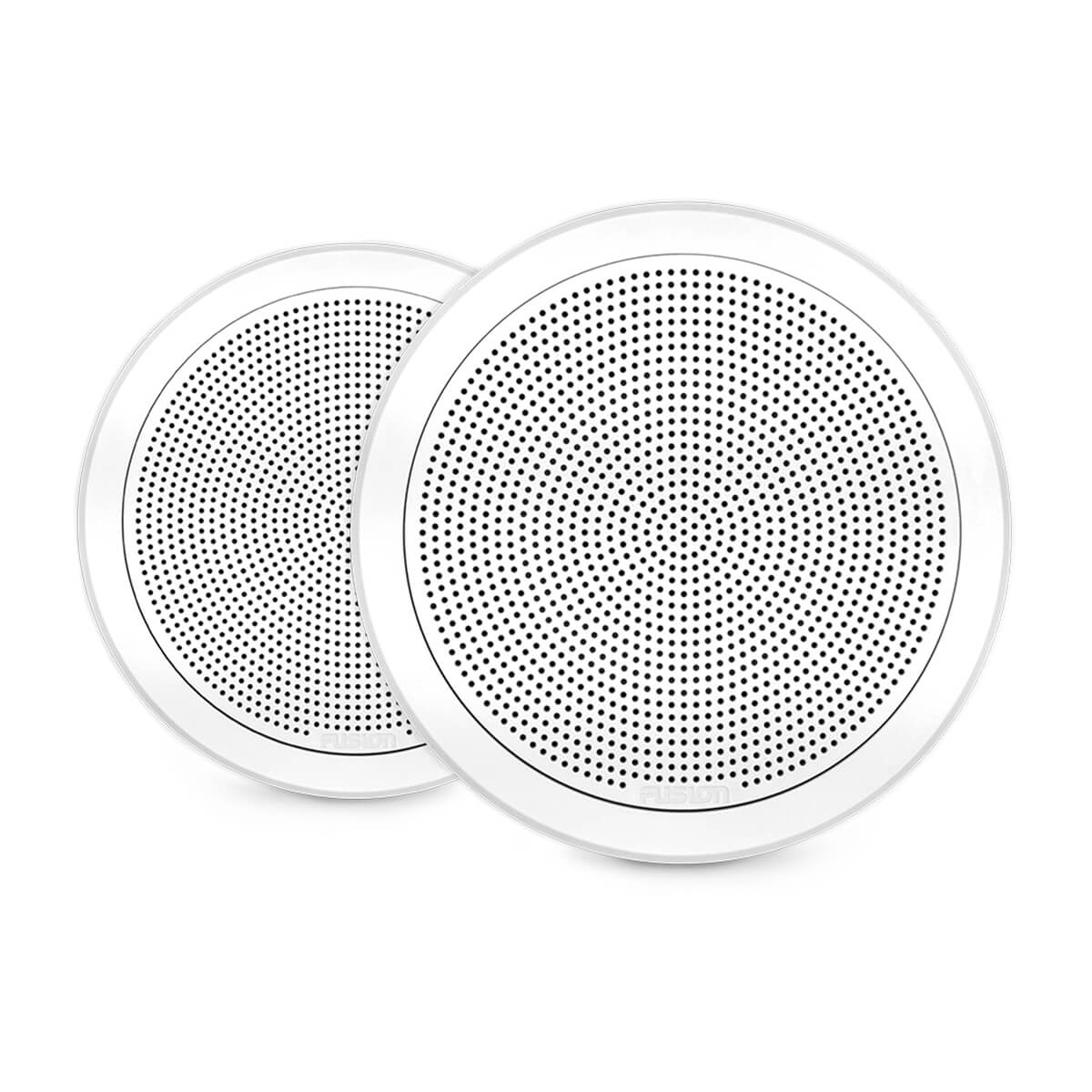

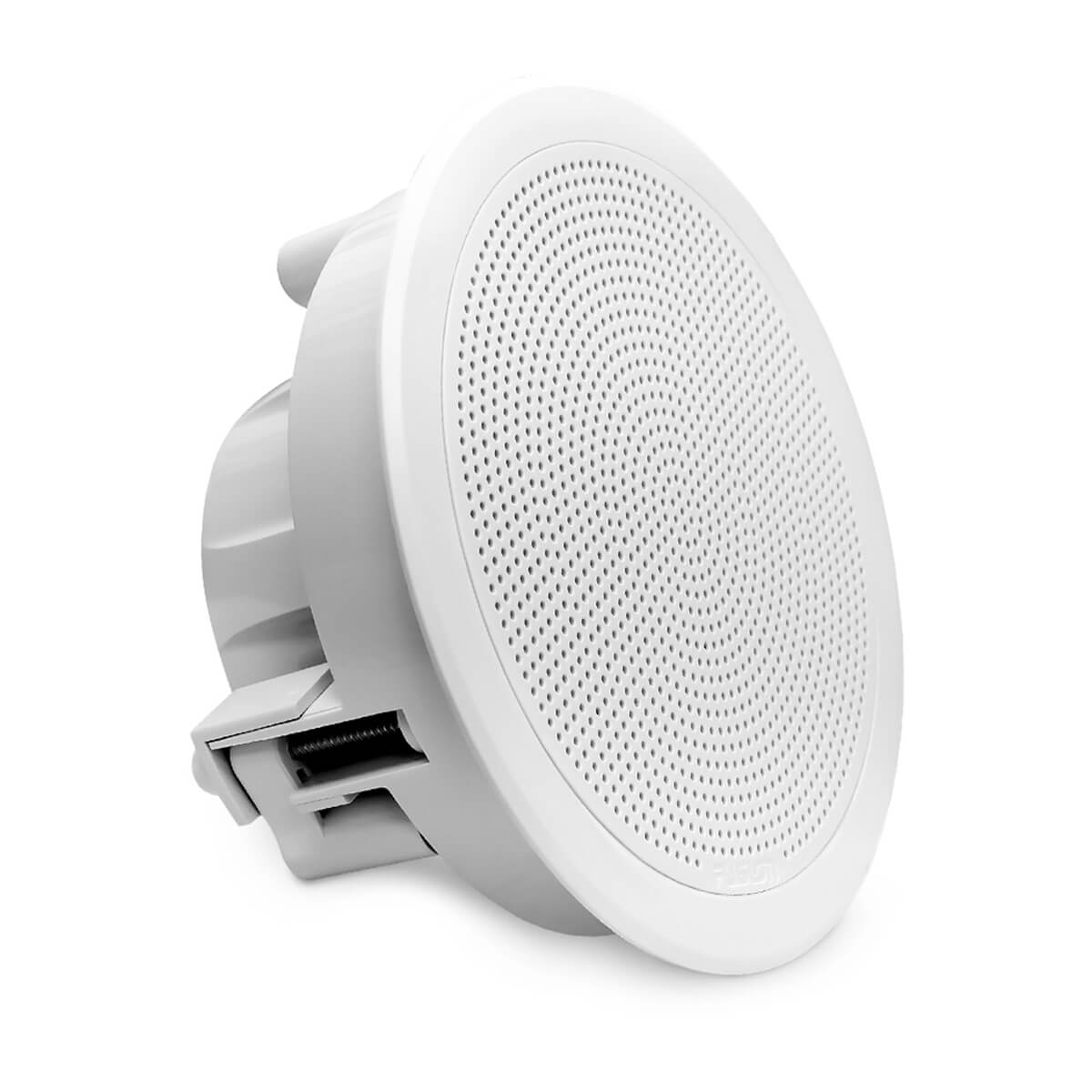

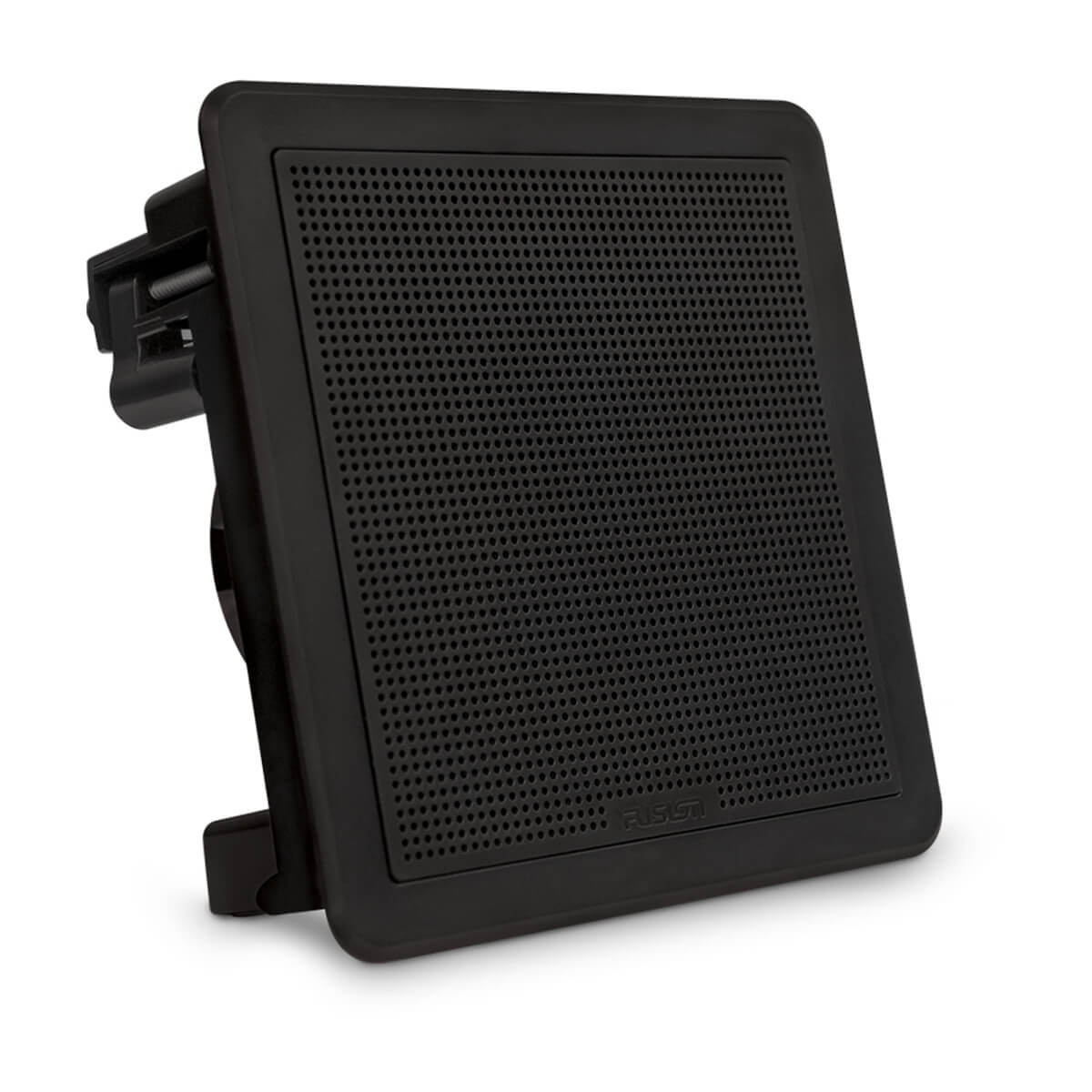

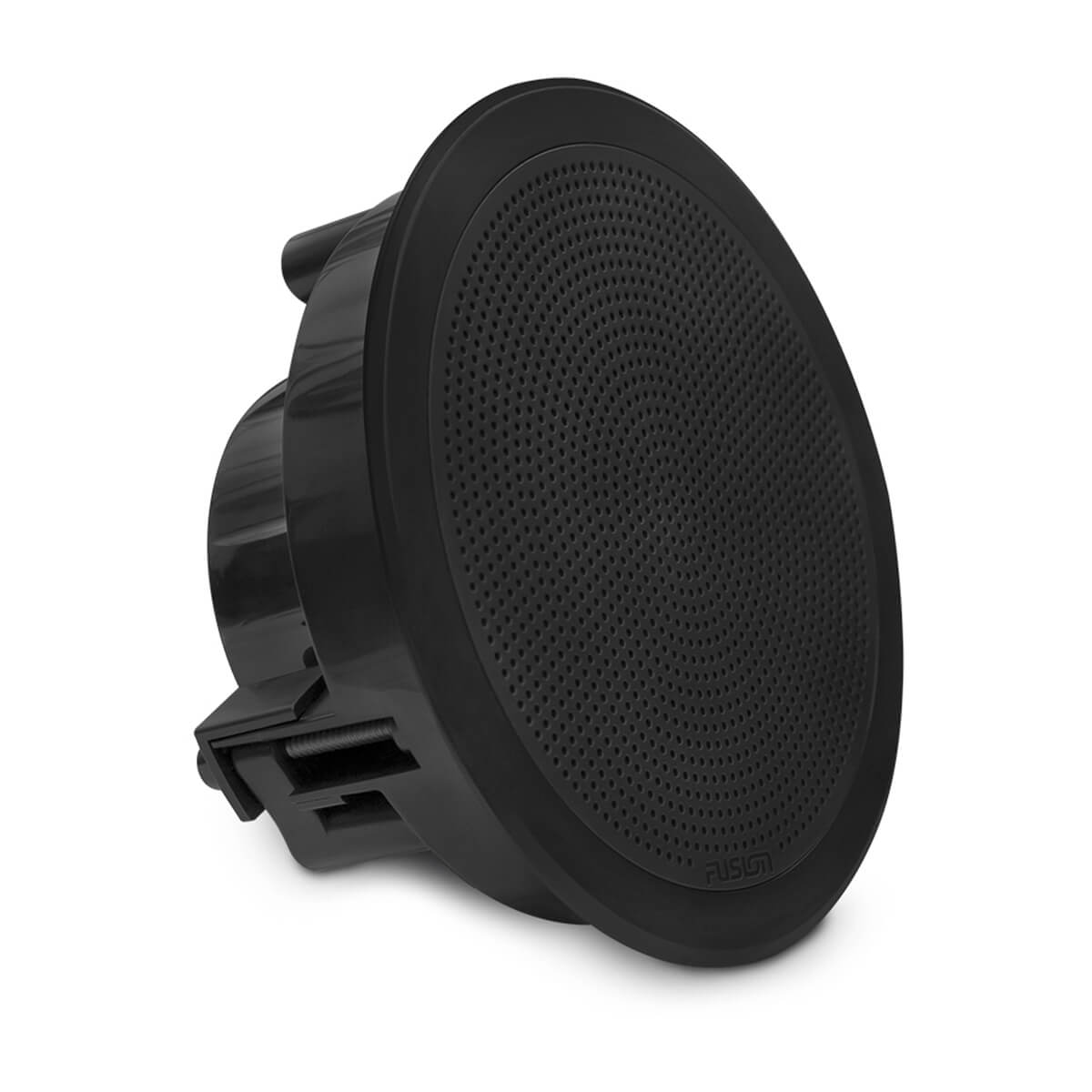

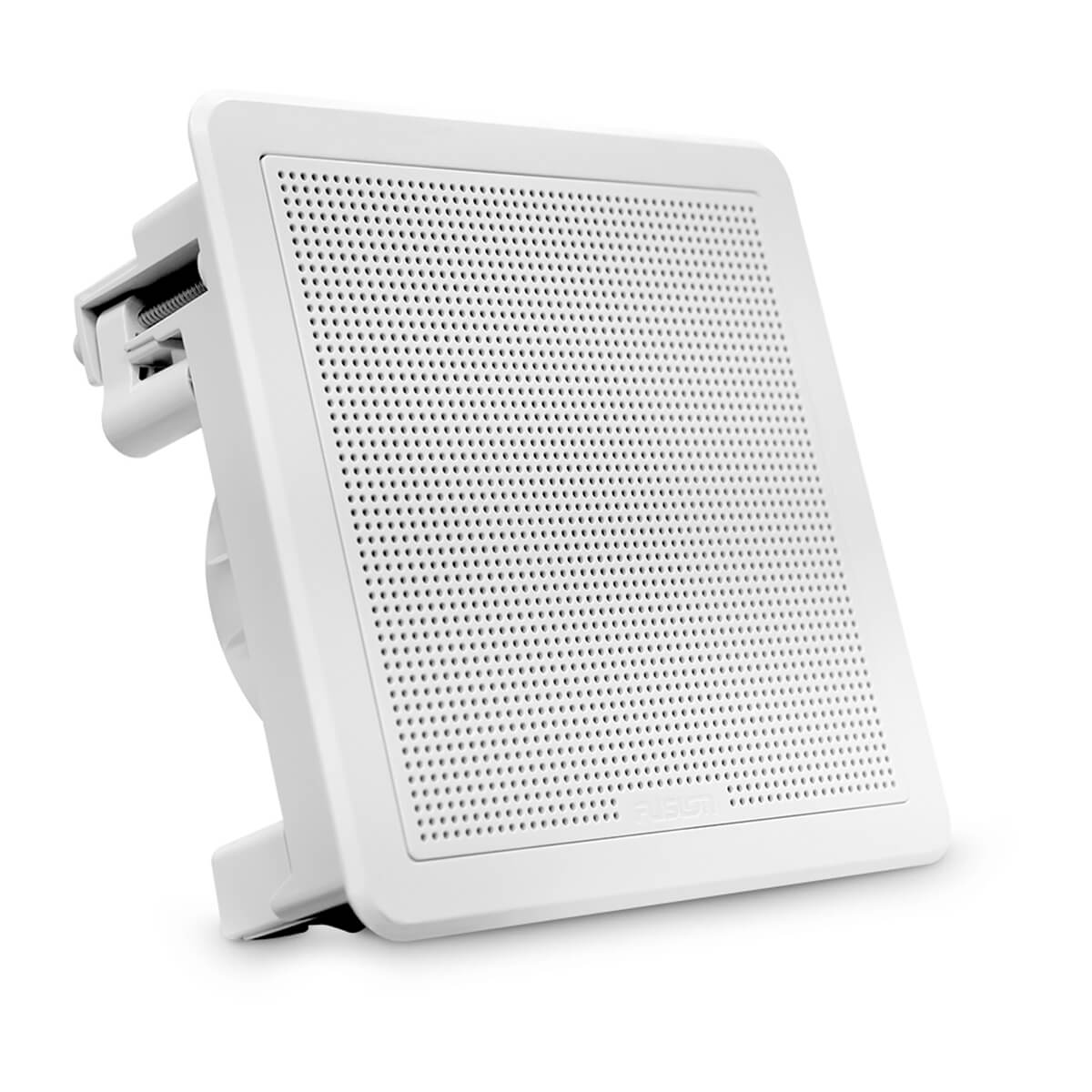

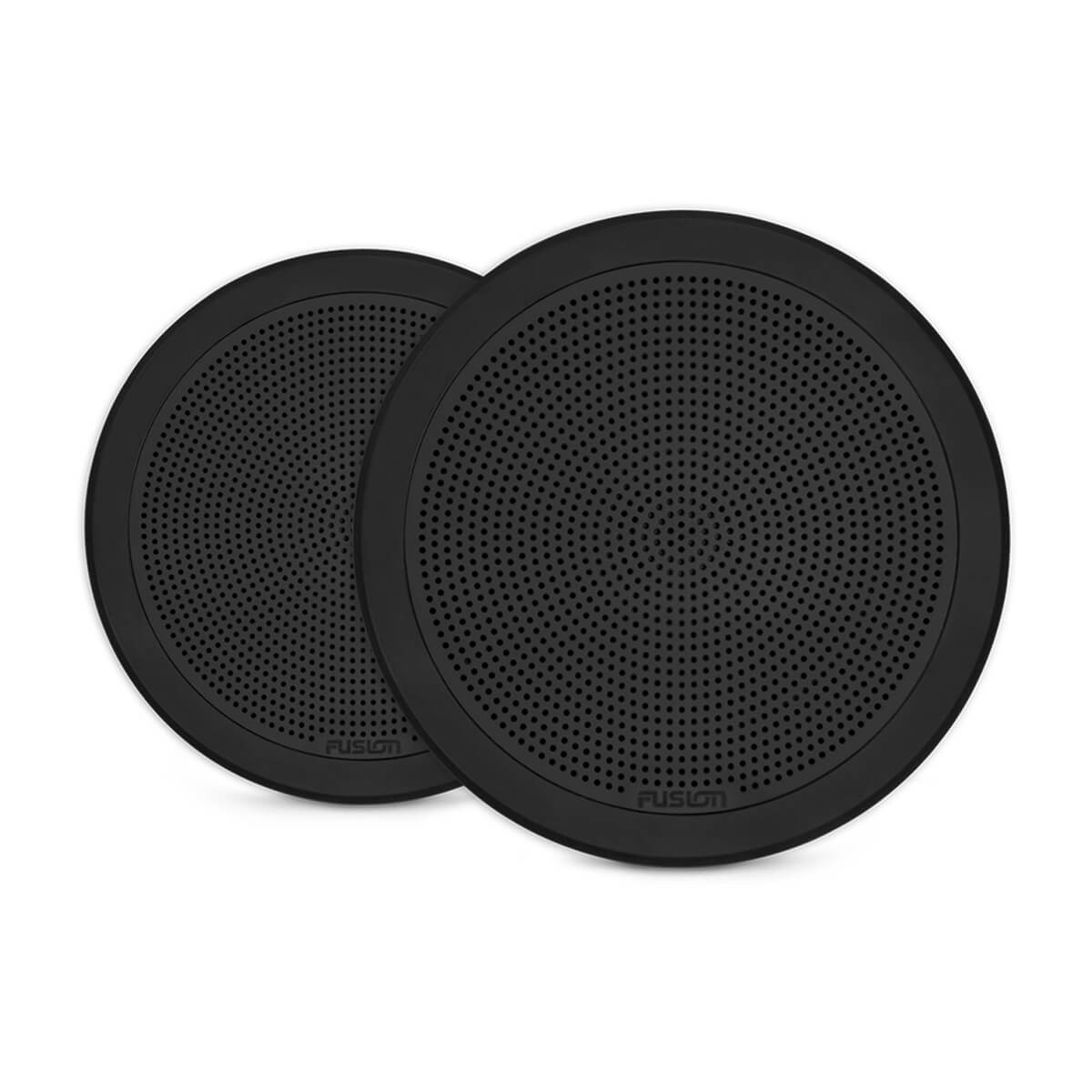

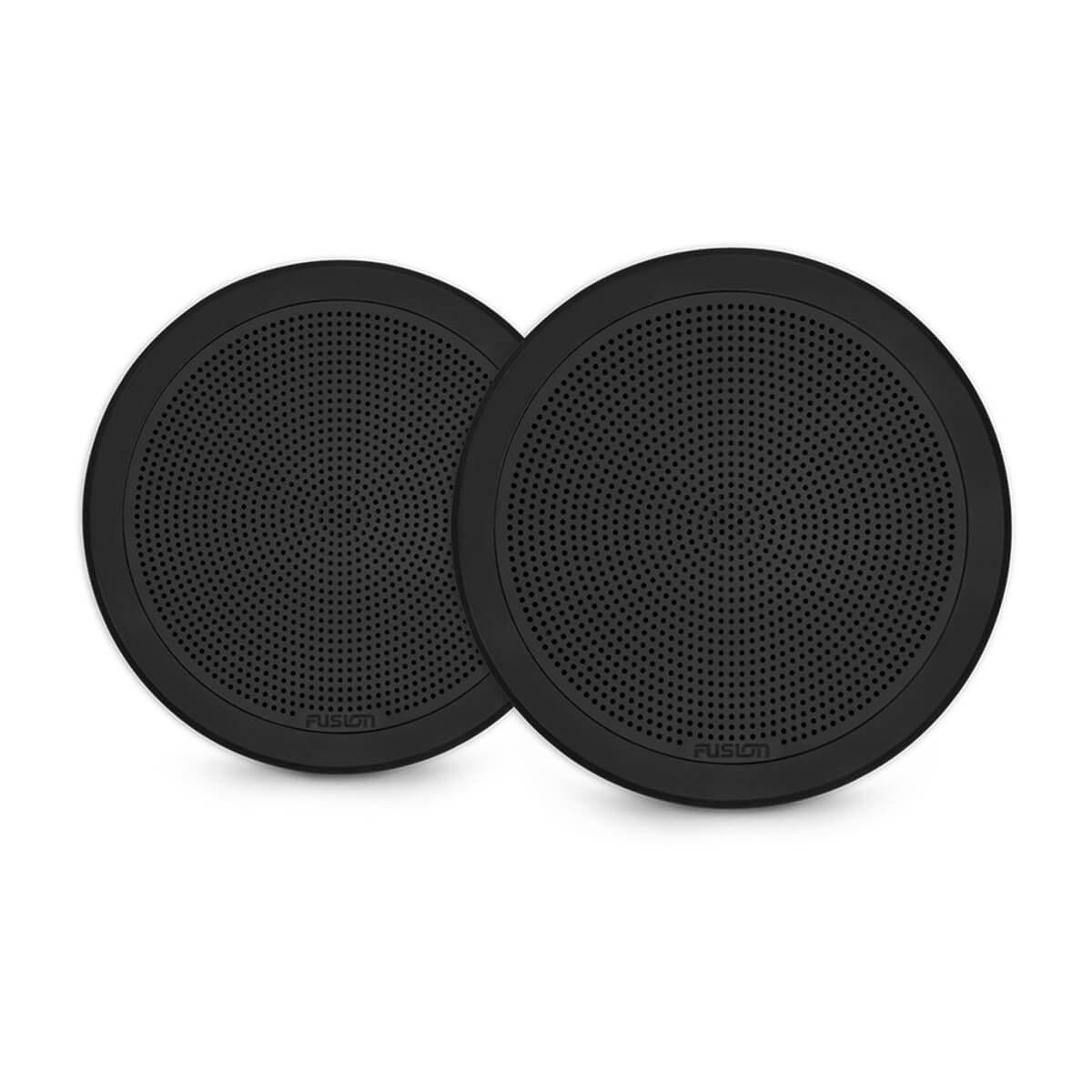

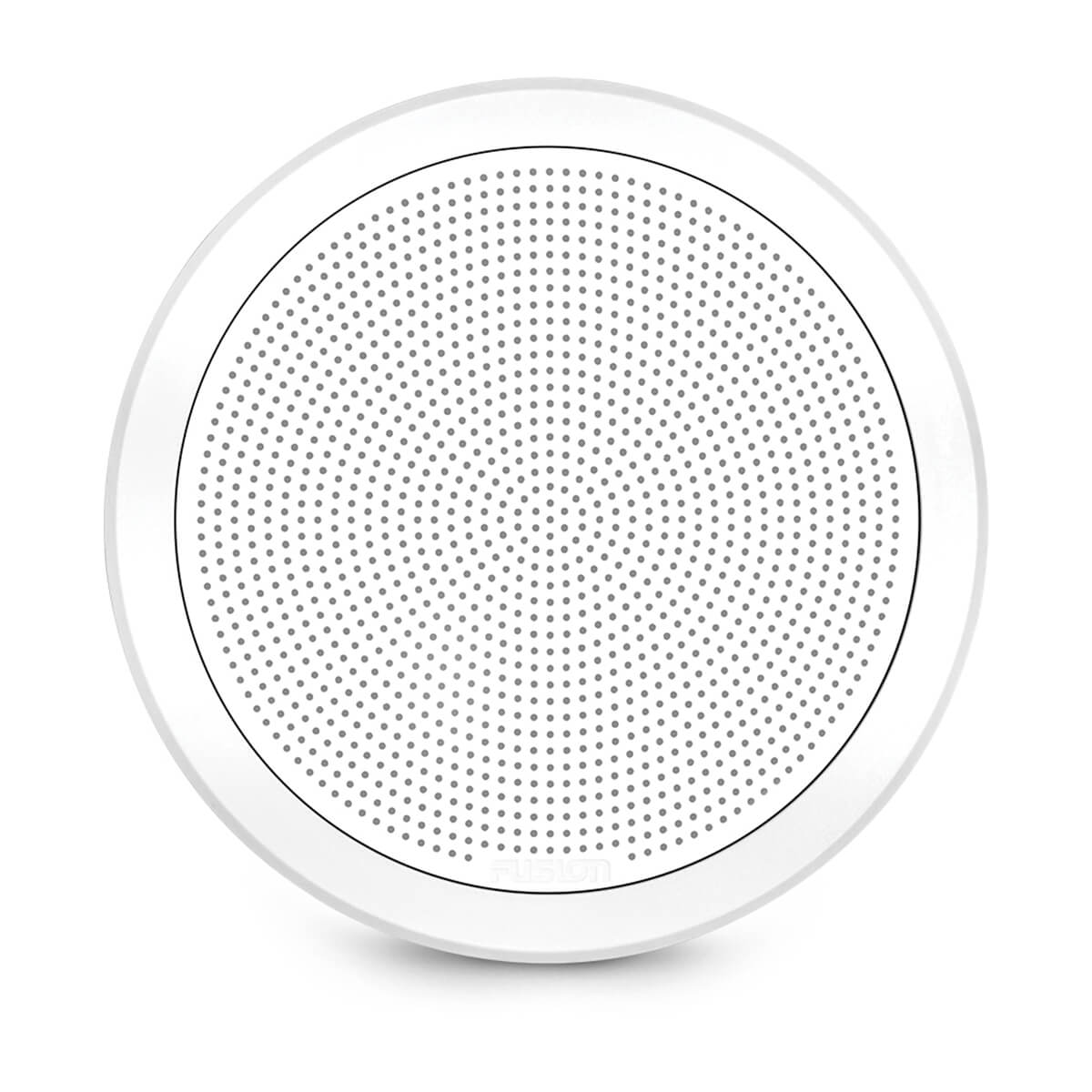

Fusion FM Series Flush-Mount Marine Speakers are coaxial marine speakers sold in pairs that sit nearly flat against the panel, with a visible profile of about 2.5 mm. They come in a 6.5-inch 120-watt and a 7.7-inch 200-watt size (30 and 50 watts RMS), each with round or square grilles in white or black.
Each speaker uses an injection-molded polypropylene cone and an aluminum dome tweeter. Sensitivity is 87 dB on the 6.5-inch and 91 dB on the 7.7-inch, with frequency response down to 100 Hz and 80 Hz respectively at 4 ohms.
The speakers are IP65 rated, designed to comply with ISO 12216 and built to Fusion's True-Marine standard. They need a 5.43-inch or 6.5-inch cutout with 2.76 or 3.27 inches of depth, connect through spade terminals, and carry a 3-year warranty.

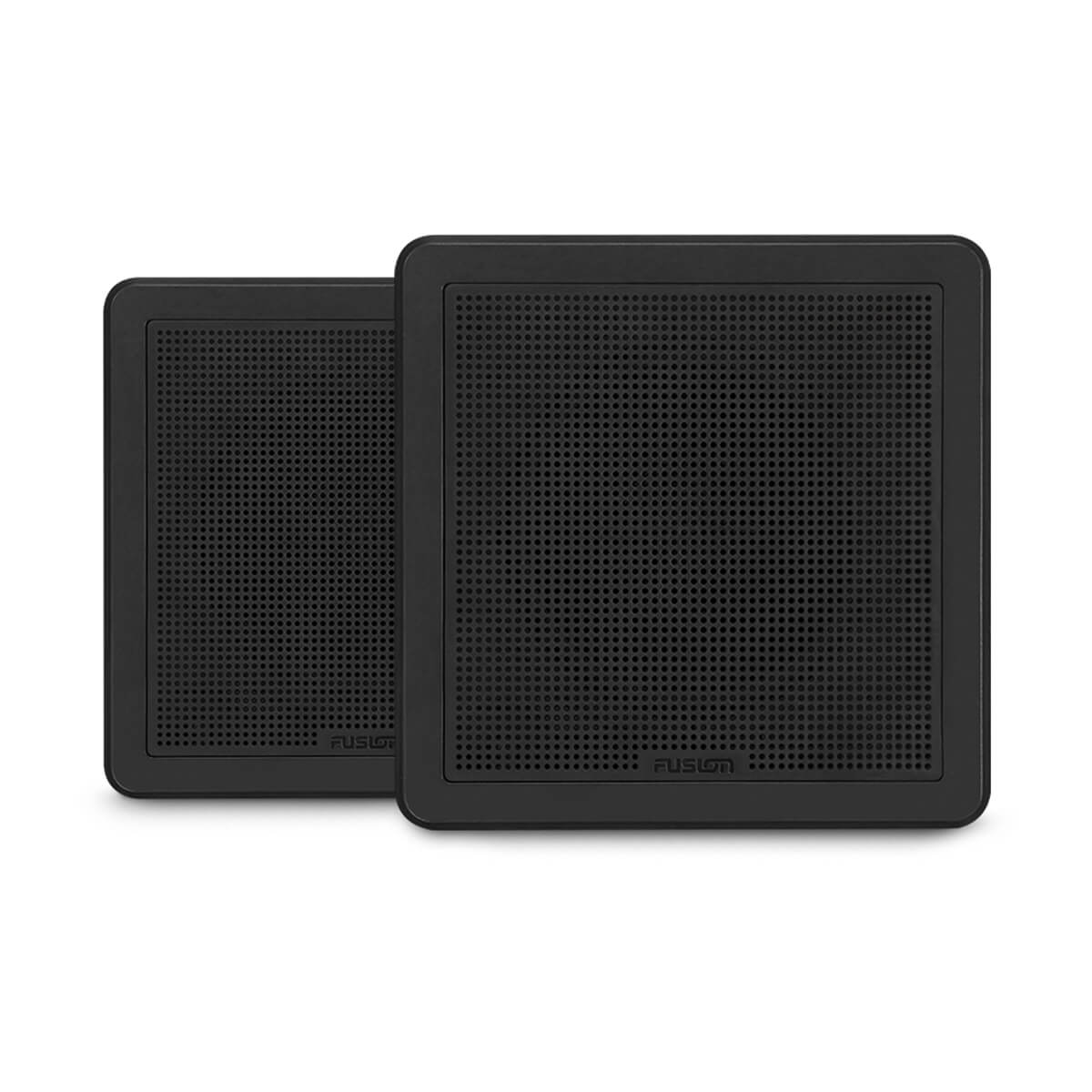

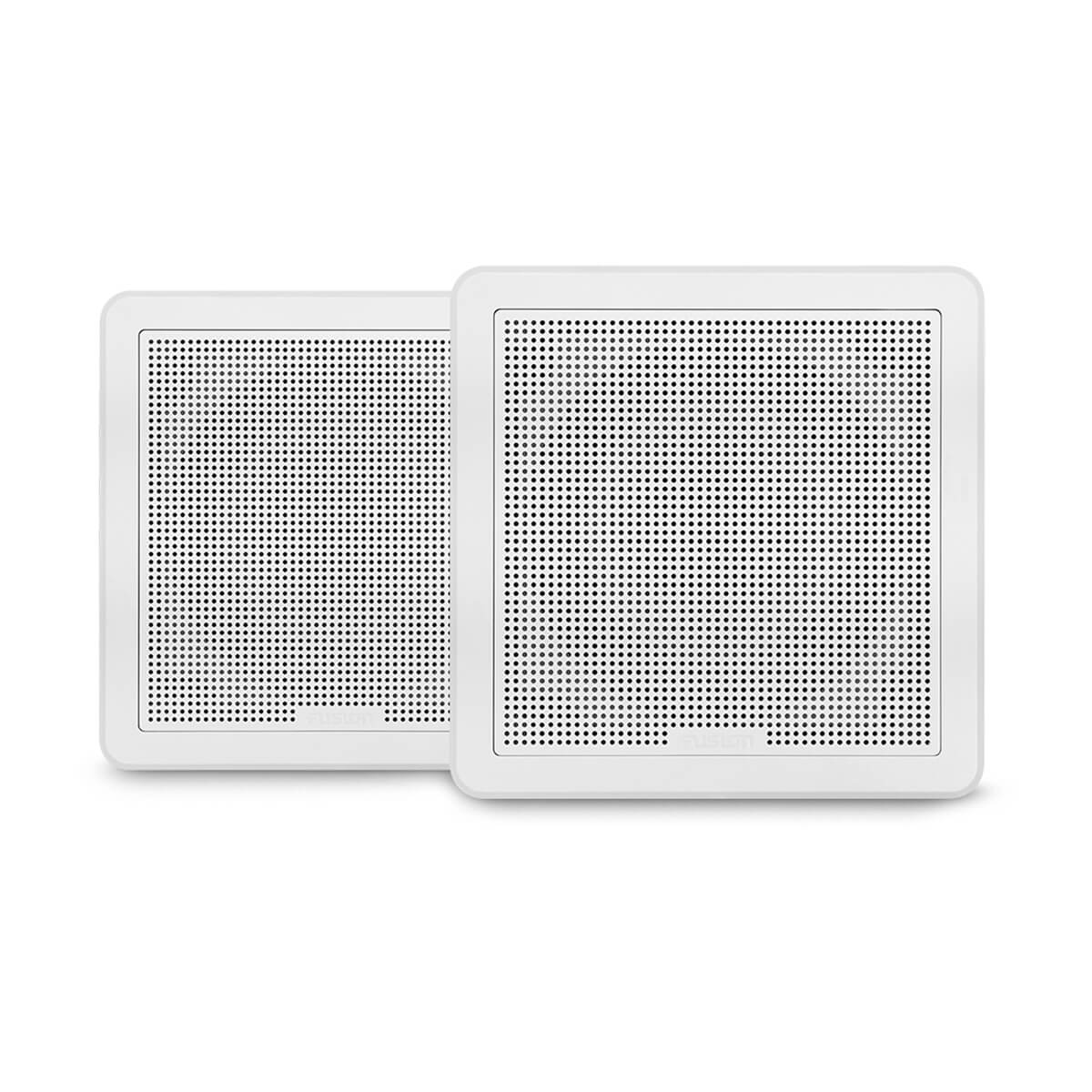

- Flush-mount coaxial marine speakers sold in pairs
- 6.5 in 120 W peak / 30 W RMS, or 7.7 in 200 W peak / 50 W RMS

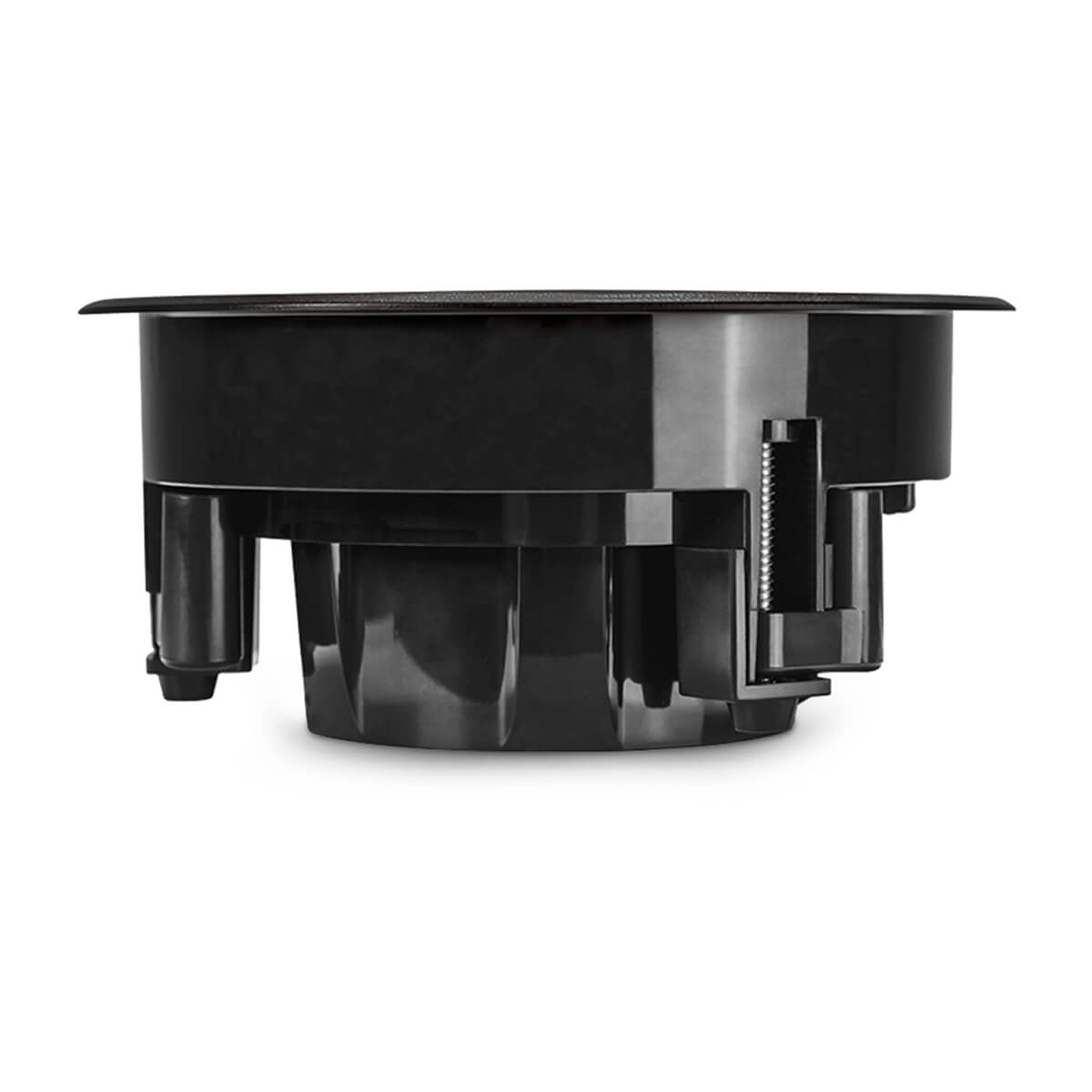

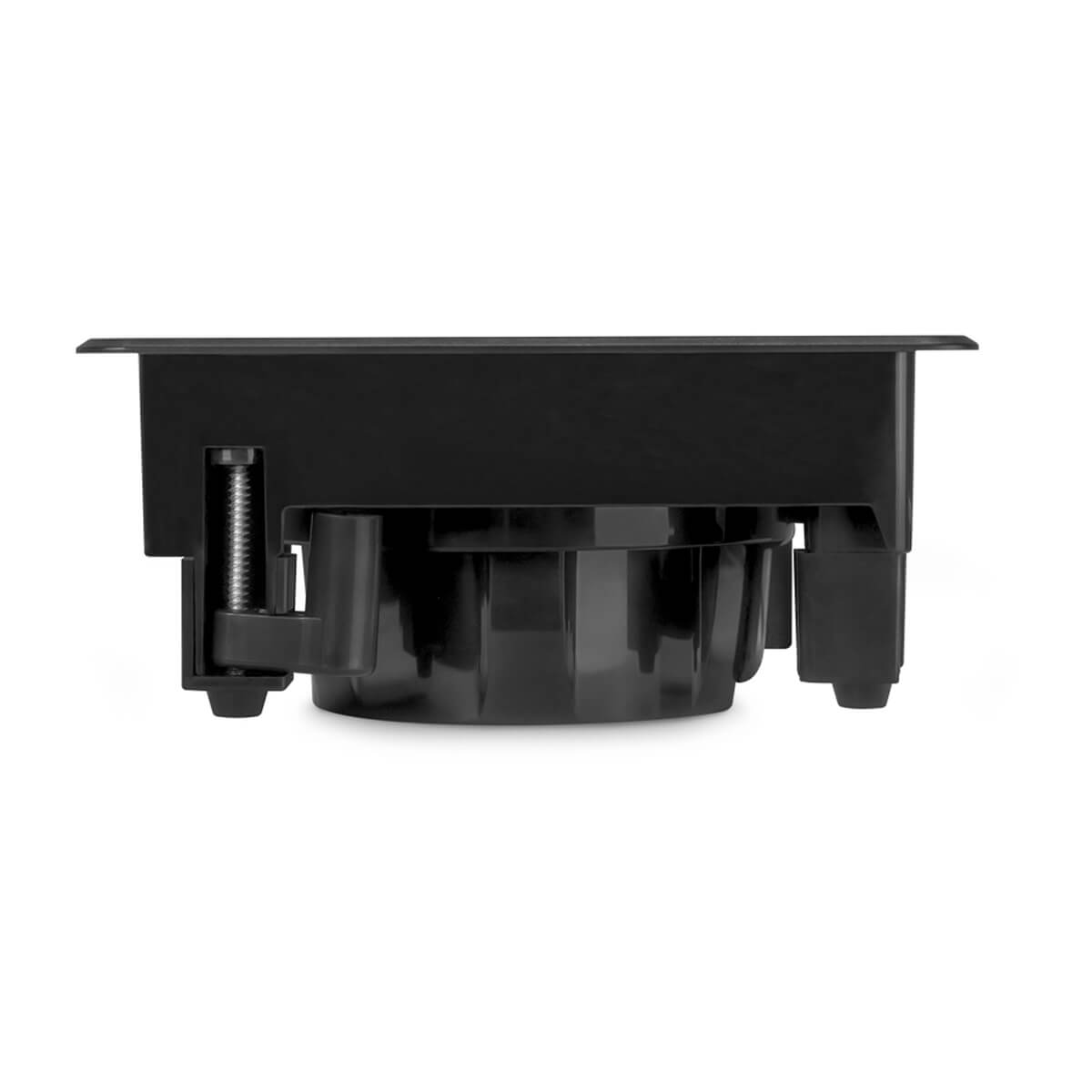

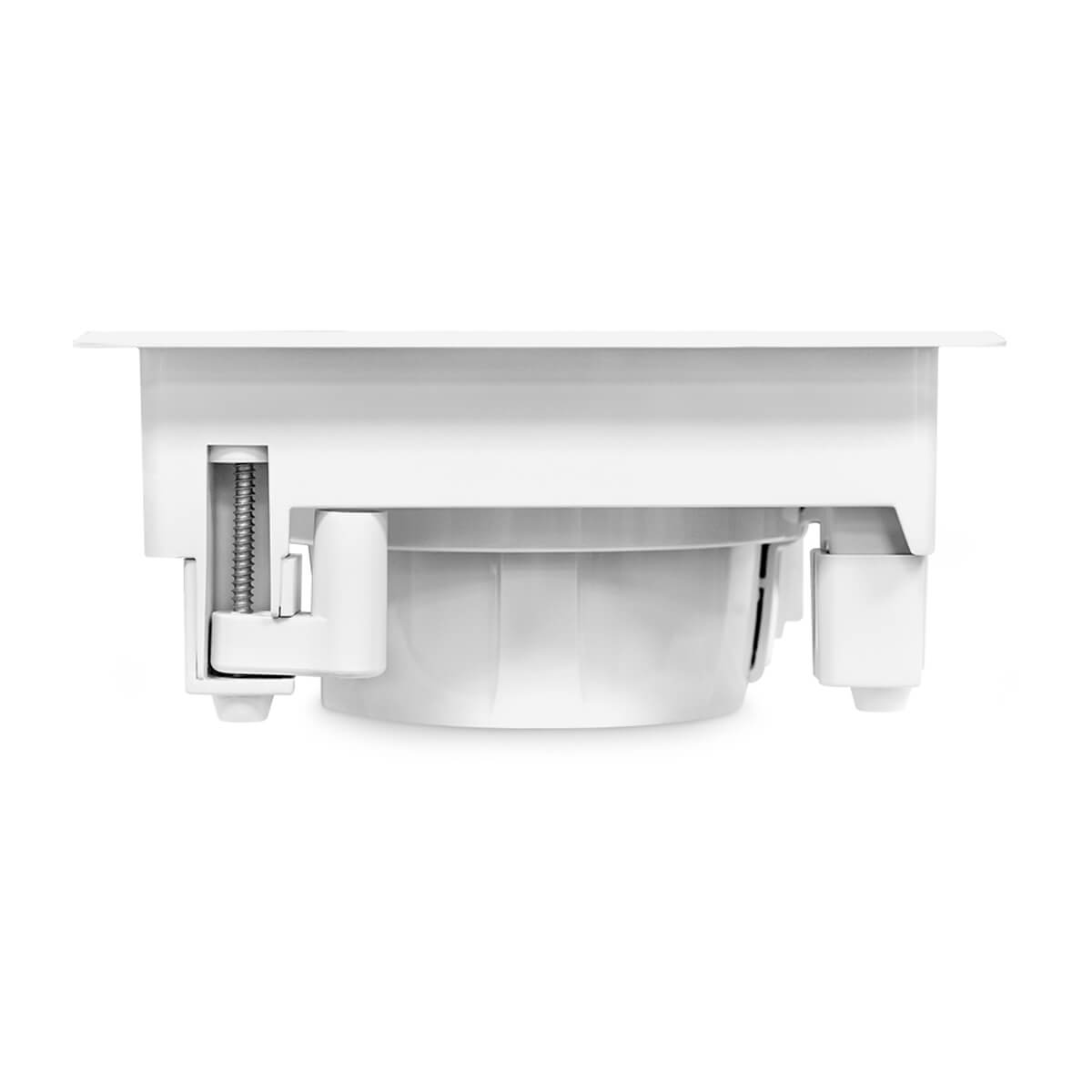

- Near-flat installation with about 2.5 mm profile

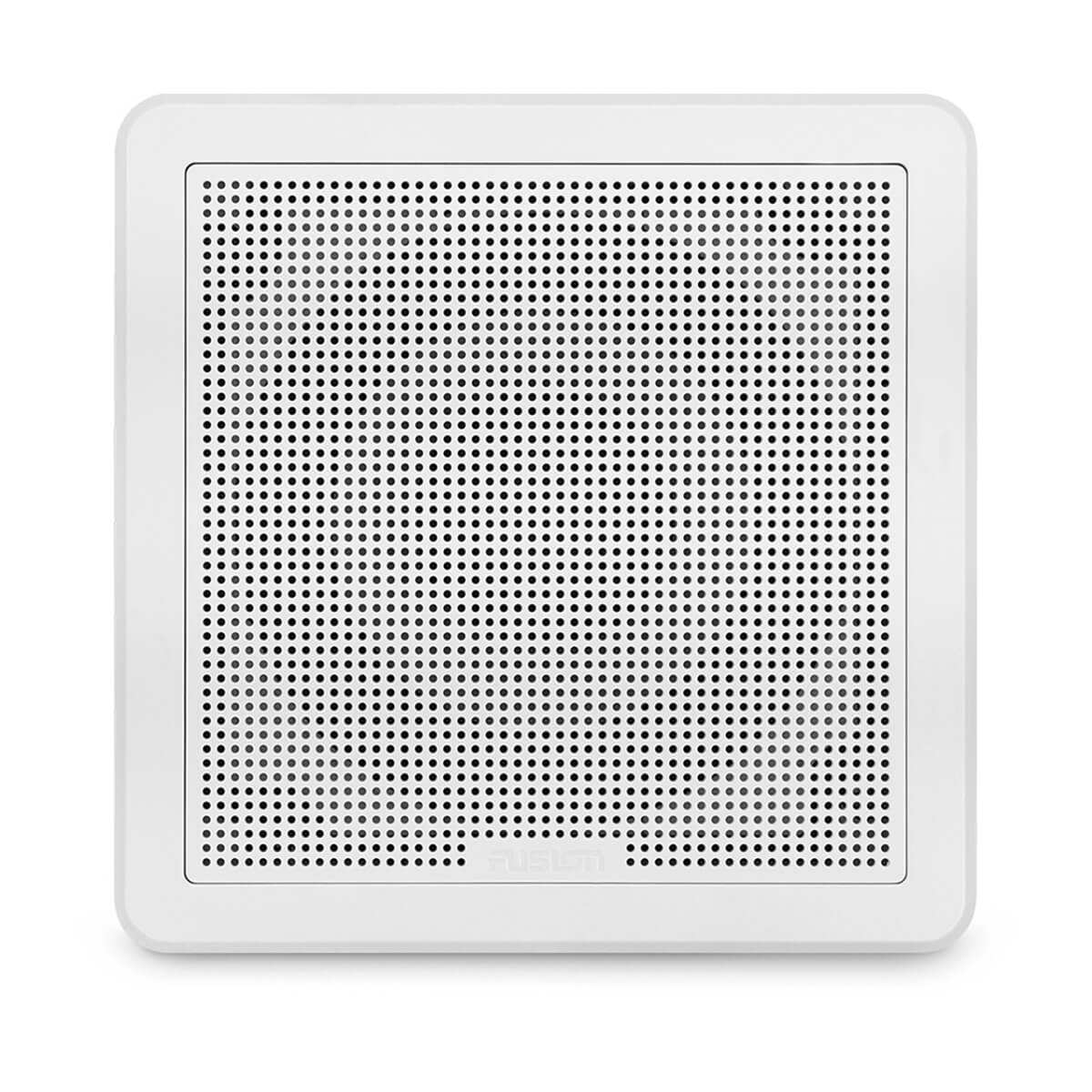

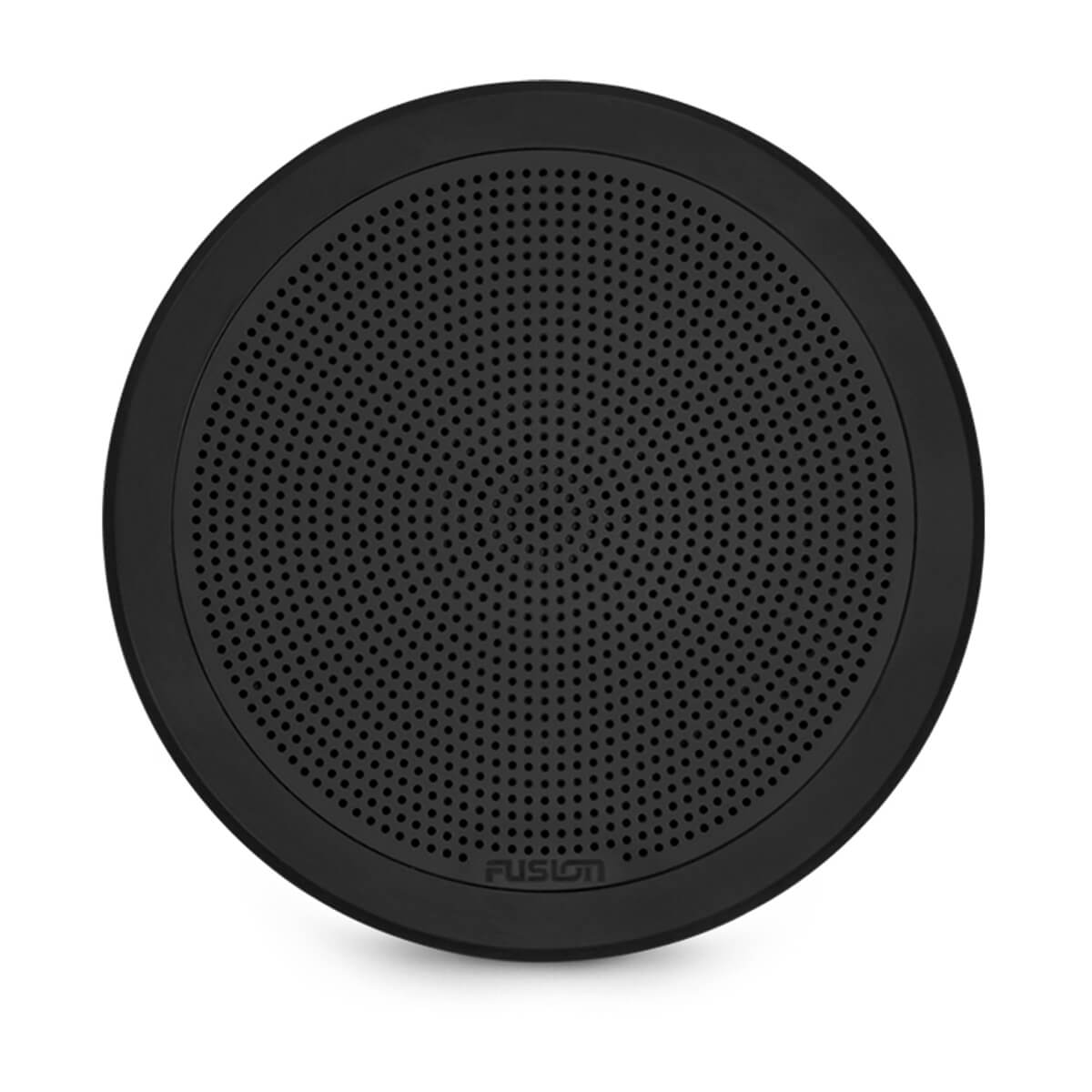

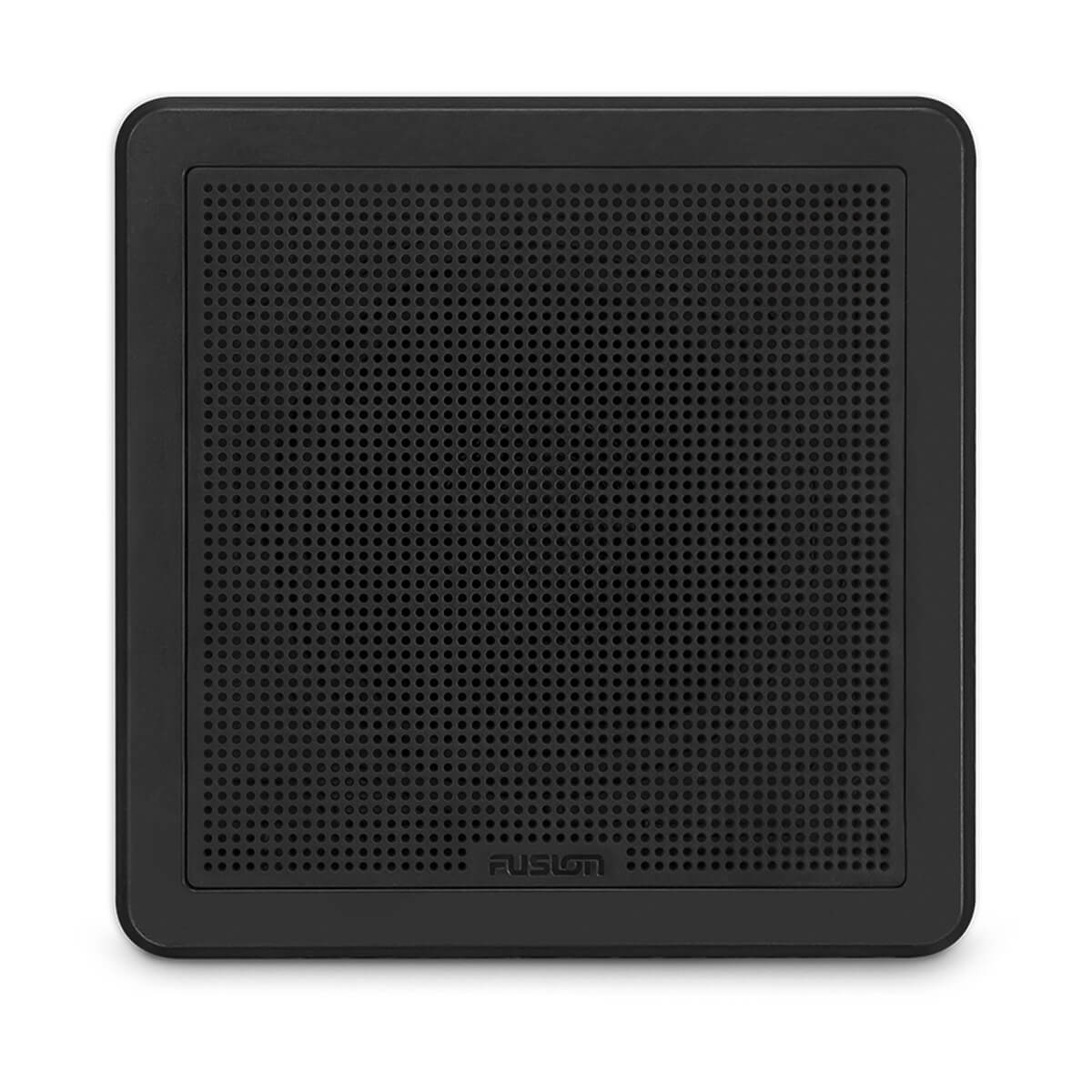

- Round or square grilles in white or black
- Polypropylene cone; aluminum dome tweeter
- IP65 rated; designed to comply with ISO 12216
- Spade speaker connections
- 3-year warranty
| Brand | Fusion |
| Model | FM Series Flush-Mount Marine Speaker |
| Part Numbers | 010-02299-10 (6.5 in 120 W, Square White); 010-02299-01 (6.5 in 120 W, Round Black); 010-02300-11 (7.7 in 200 W, Square Black); 010-02300-00 (7.7 in 200 W, Round White); 010-02300-01 (7.7 in 200 W, Round Black) |
| UPC | 753759236649 (6.5 in 120 W, Square White); 753759236632 (6.5 in 120 W, Round Black); 753759236694 (7.7 in 200 W, Square Black); 753759236663 (7.7 in 200 W, Round White); 753759236670 (7.7 in 200 W, Round Black) |
| Sold As | Pair |
| Speaker Type | Coaxial, flush mount |
| Peak Power | 6.5 in: 120 W; 7.7 in: 200 W |
| Continuous Power Handling (RMS) | 6.5 in: 30 W; 7.7 in: 50 W |
| Sensitivity (1 W / 1 m) | 6.5 in: 87 dB; 7.7 in: 91 dB |
| Frequency Response (+/- 3 dB) | 6.5 in: 100 Hz-18 kHz; 7.7 in: 80 Hz-18 kHz |
| Nominal Impedance | 4 ohm |
| Cone Material | 6.5 in: Polypropylene cone with rubber surround; 7.7 in: Polypropylene cone with cloth surround |
| Tweeter Type | Aluminum dome |
| Diameter | 6.5 in: 6.02 in (153 mm); 7.7 in: 7.13 in (181 mm) |

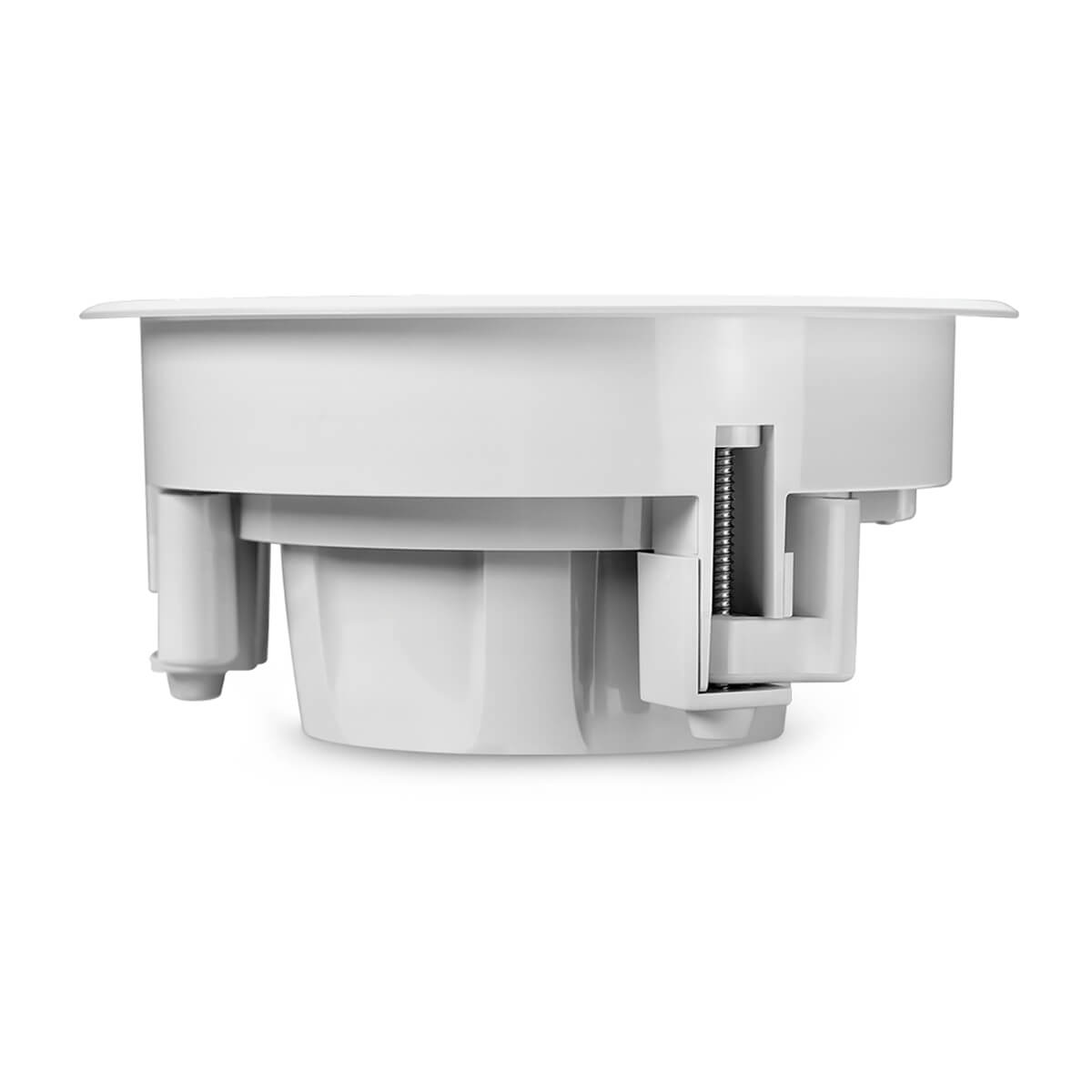

| Depth | 6.5 in: 2.74 in (69.6 mm); 7.7 in: 3.26 in (82.9 mm) |
| Mounting Diameter Clearance | 6.5 in: 5.43 in (138 mm); 7.7 in: 6.5 in (165 mm) |
| Mounting Depth Clearance | 6.5 in: 2.76 in (70 mm); 7.7 in: 3.27 in (83 mm) |
| Frontal Grille Protrusion | 0.12 in (3 mm) |
| Water Rating | IP65 |
| Speaker Connections | Spade connectors |
| Compass-Safe Distance | 6.5 in: 96.5 in (245 cm); 7.7 in: 114.2 in (290 cm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Warranty | 3 years |
