Product Information
Fusion Signature Series 3i Marine Speakers are coaxial marine speakers sold in pairs, offered here as a 6.5-inch 230-watt sports gray pair, a 7.7-inch 280-watt classic white pair and an 8.8-inch 330-watt sports white pair with CRGBW LED lighting. Continuous power handling is 75, 100 and 130 watts RMS respectively.
Each speaker combines a CURV cone with a rubber surround and a silk dome tweeter. The 3i generation adds water-resistant connectors as standard: audio runs through a 5.9-inch flying lead with a two-pin connector, and LED models add a six-pin lighting lead that runs on 10.8-16 VDC. Garmin rates the speakers IP65 and tests them to its True-Marine standard.
Frequency response extends to 70 Hz on the 6.5-inch, 60 Hz on the 7.7-inch and 50 Hz on the 8.8-inch model, with 90-91 dB sensitivity. Mounting cutouts are 5.35, 6.14 and 7.44 inches, and all models carry a 3-year warranty.
- Coaxial marine speakers sold in pairs

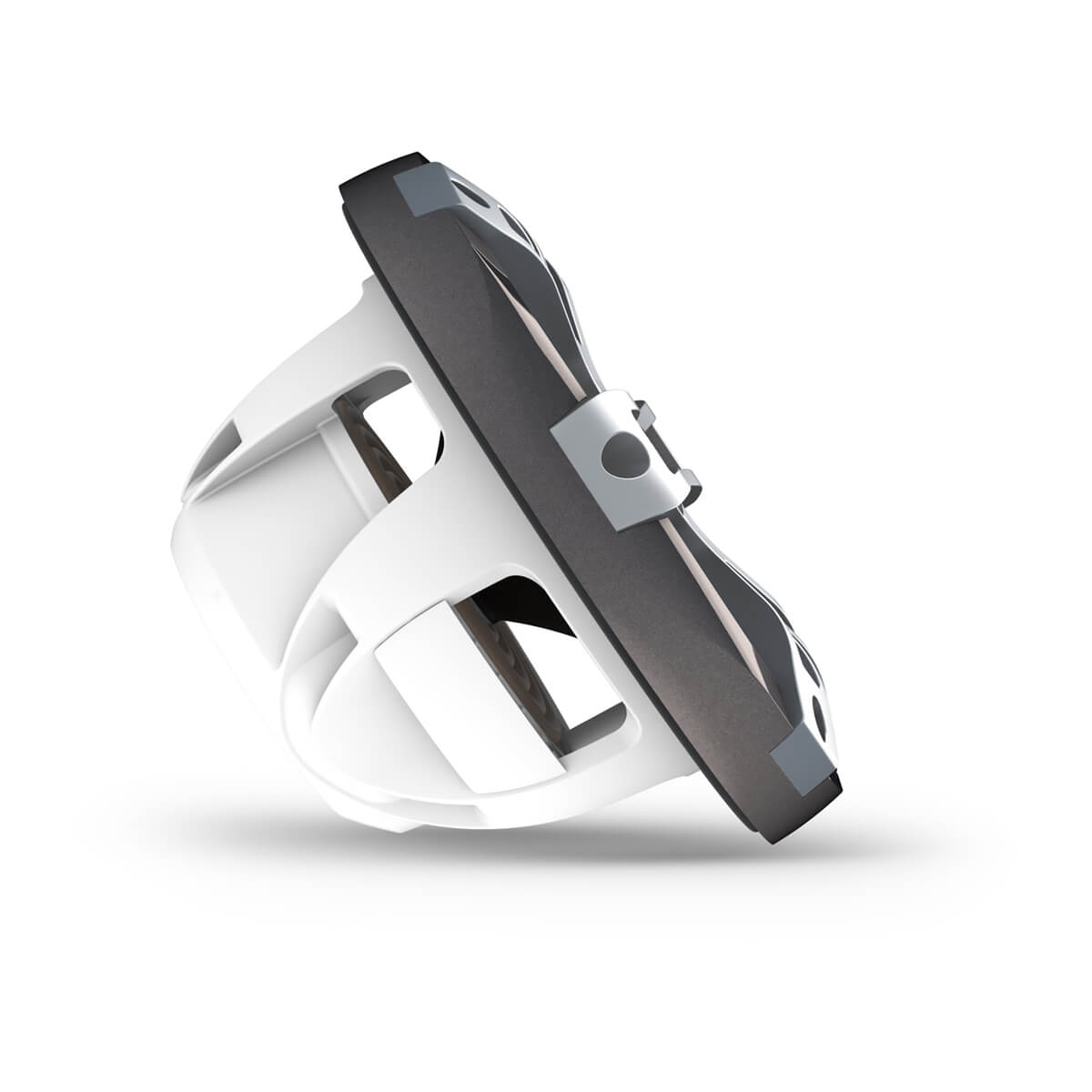

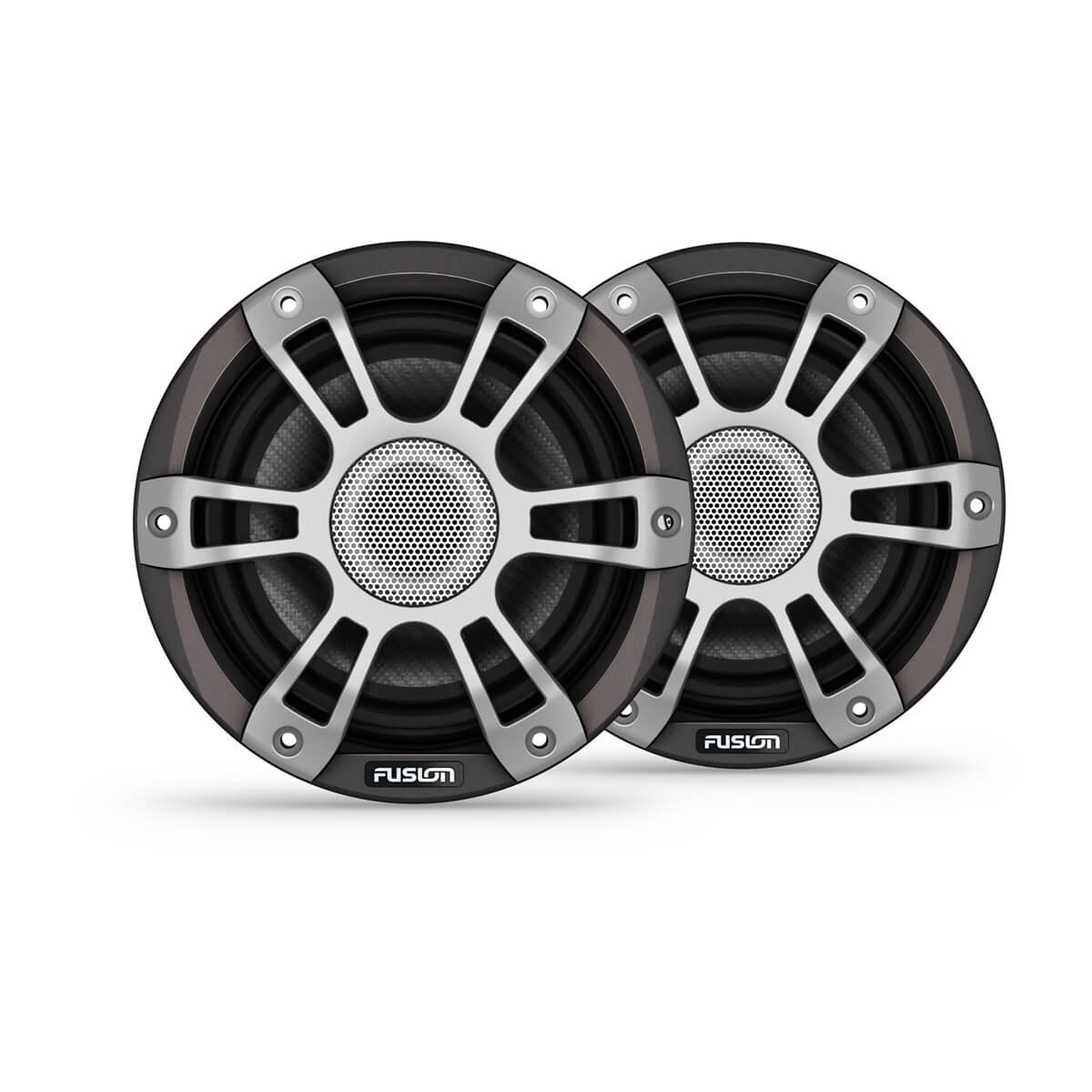

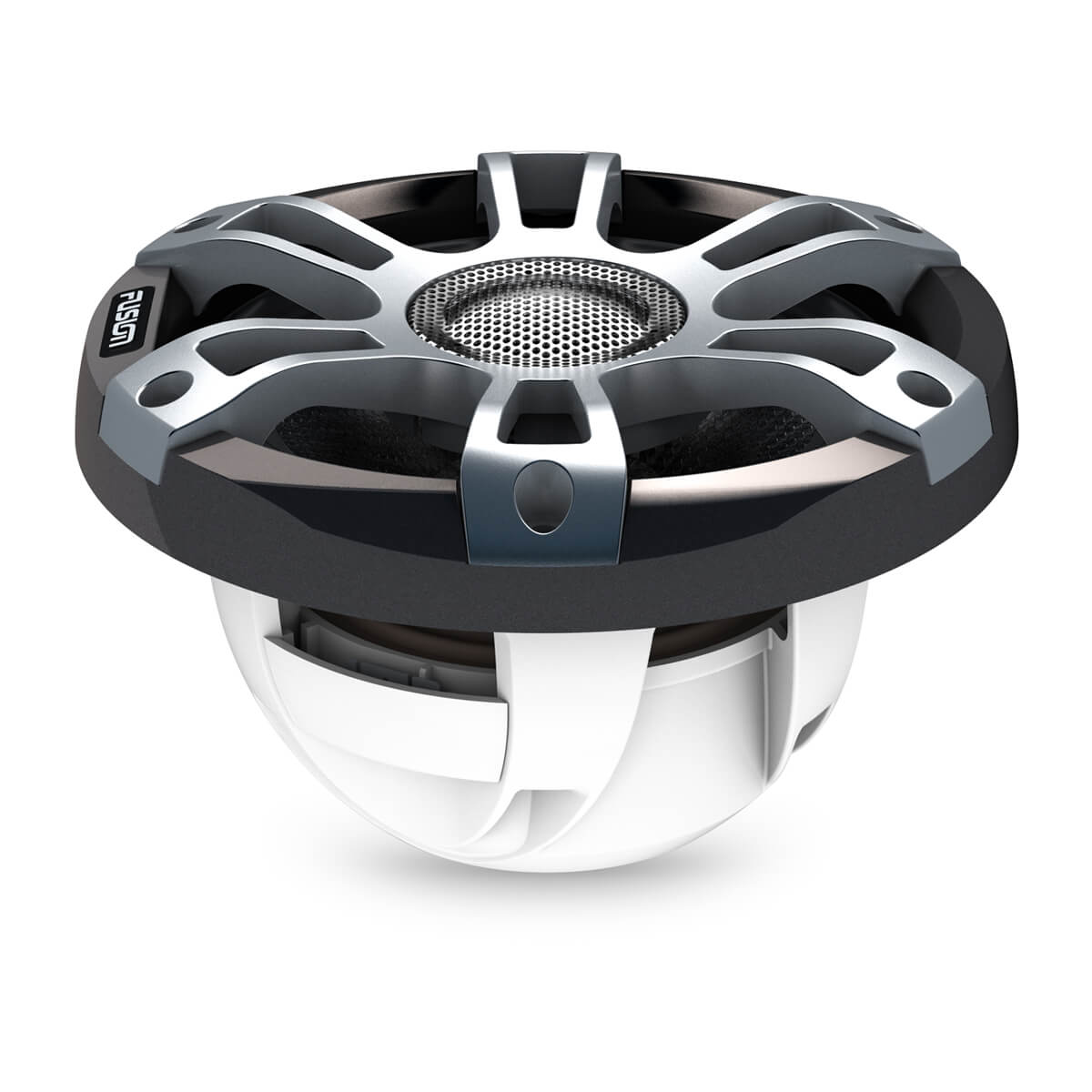

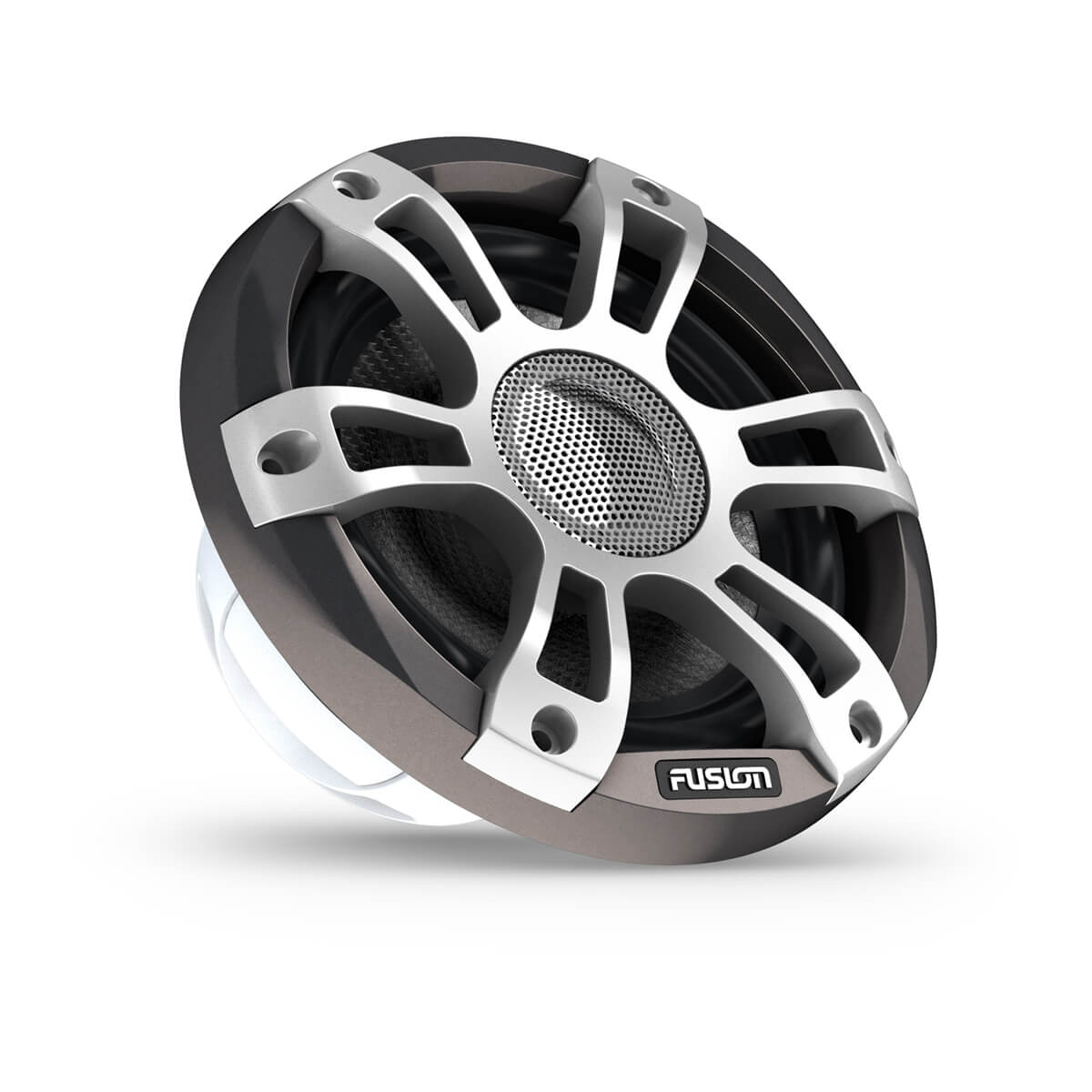

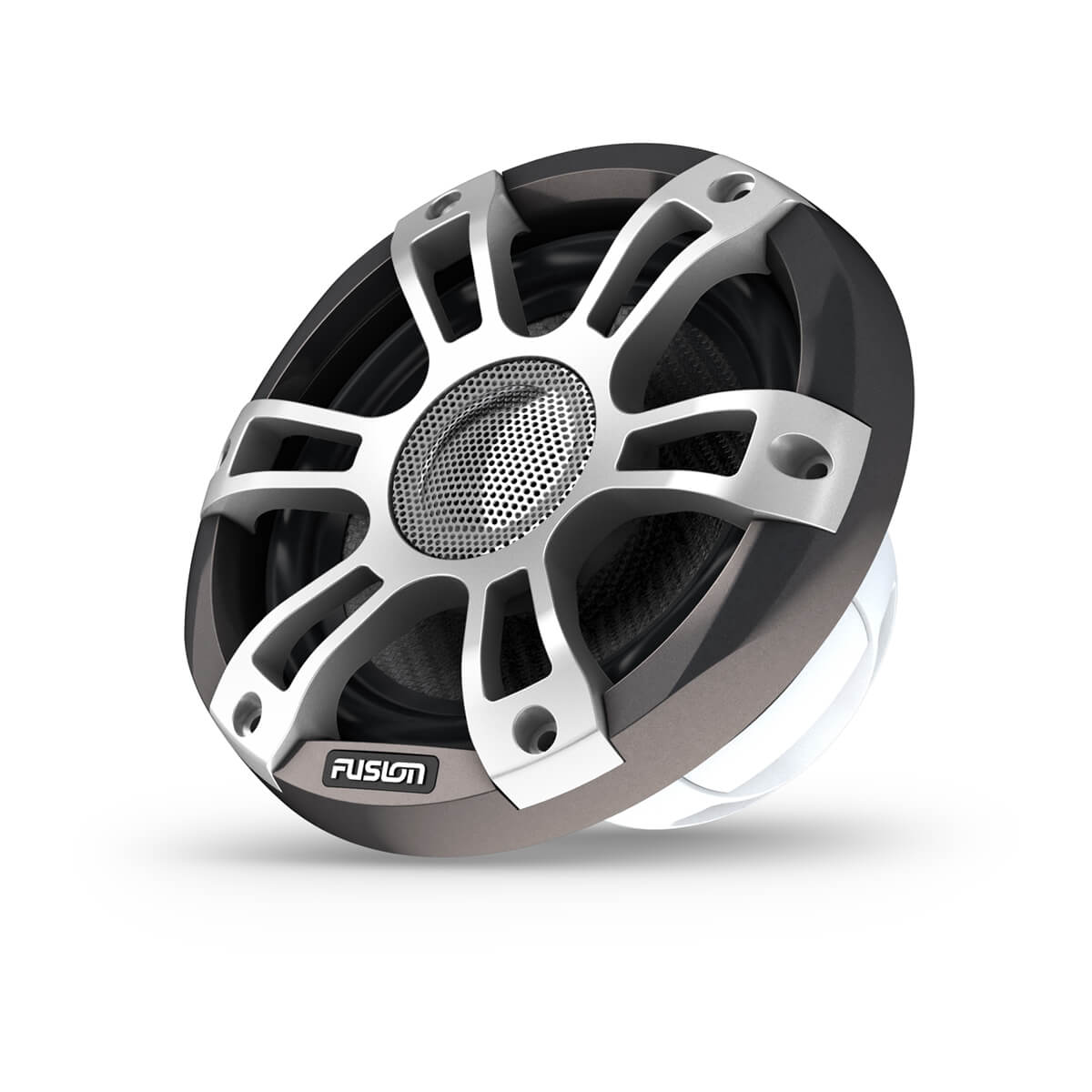

- 6.5 in 230 W peak / 75 W RMS, Sports Gray grilles

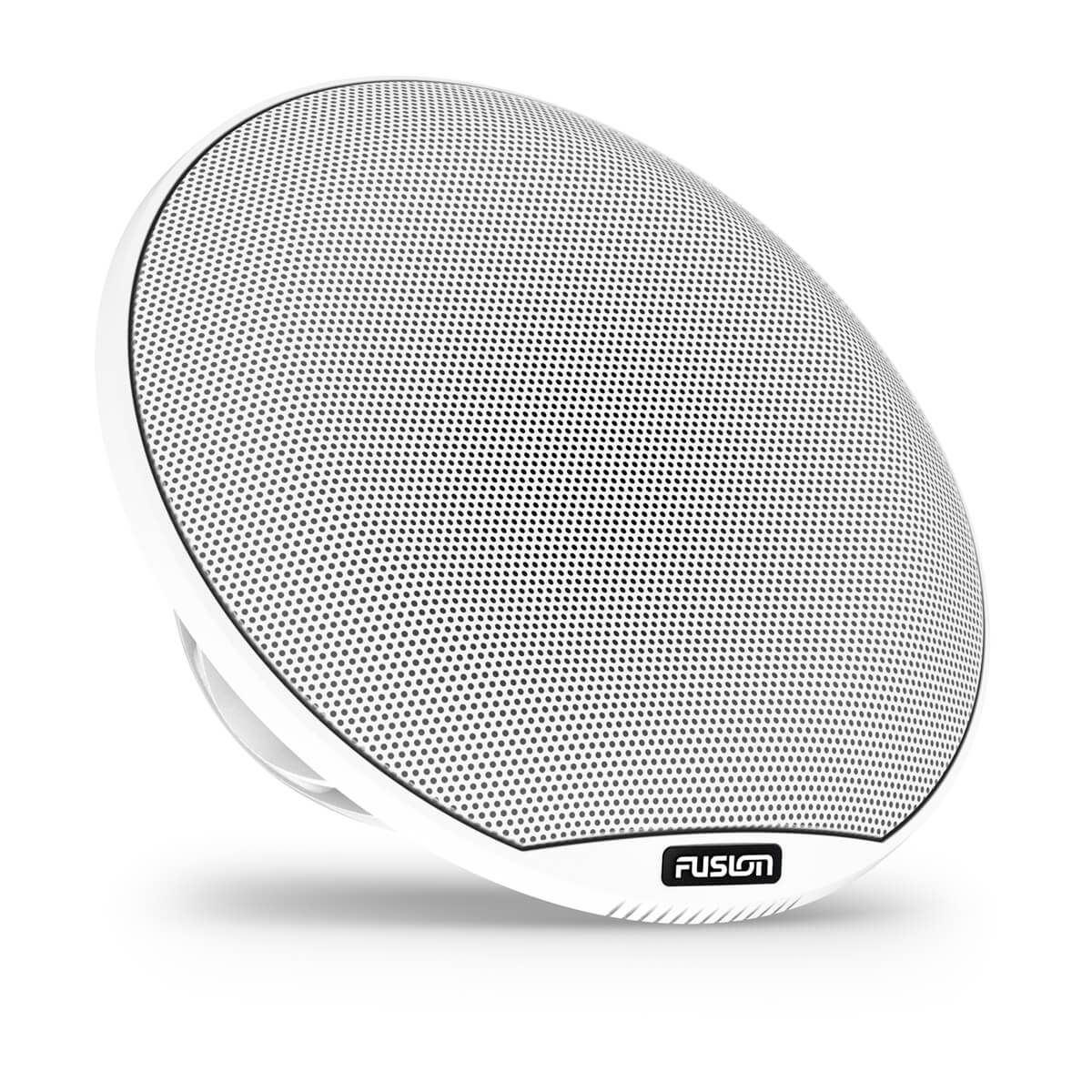

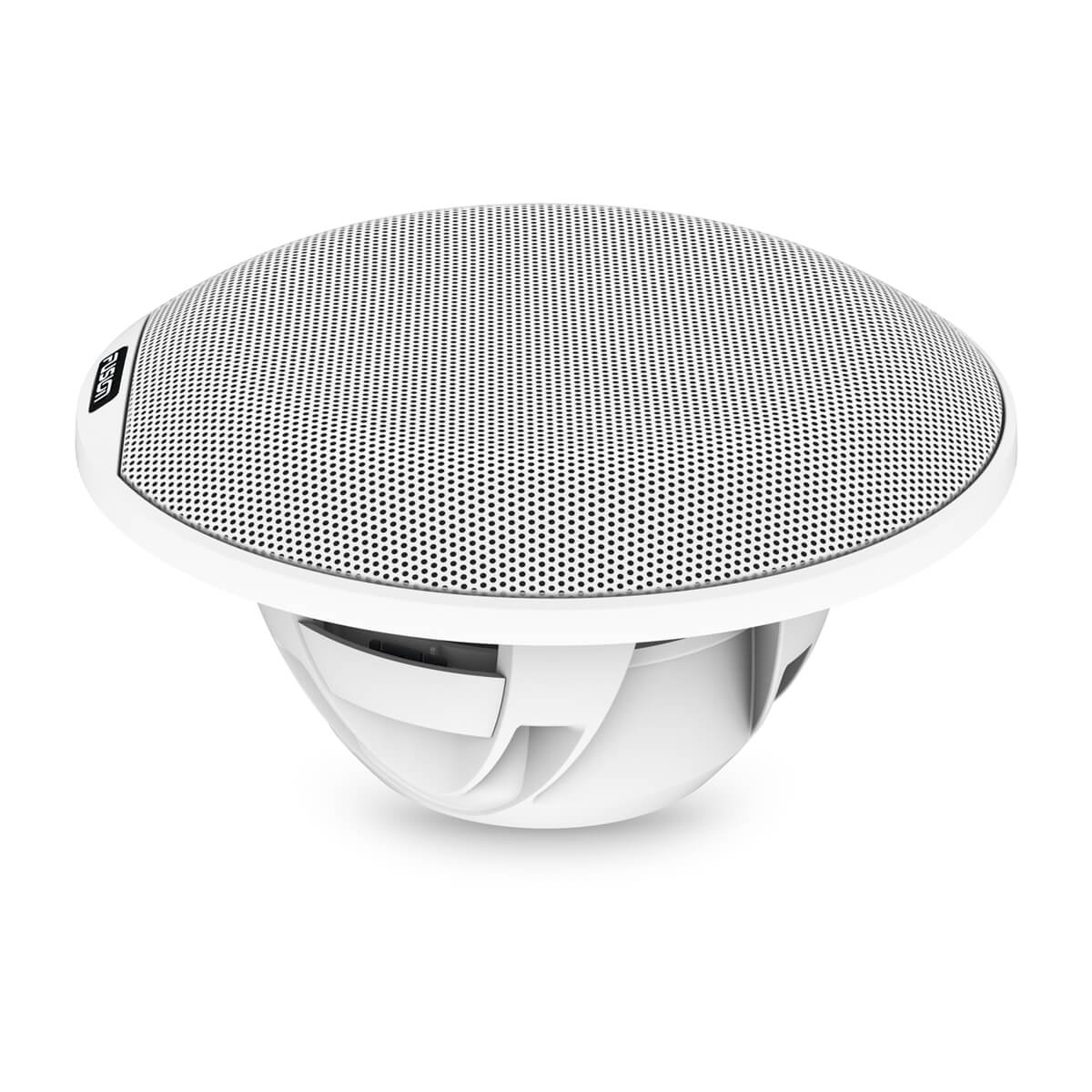

- 7.7 in 280 W peak / 100 W RMS, Classic White grilles

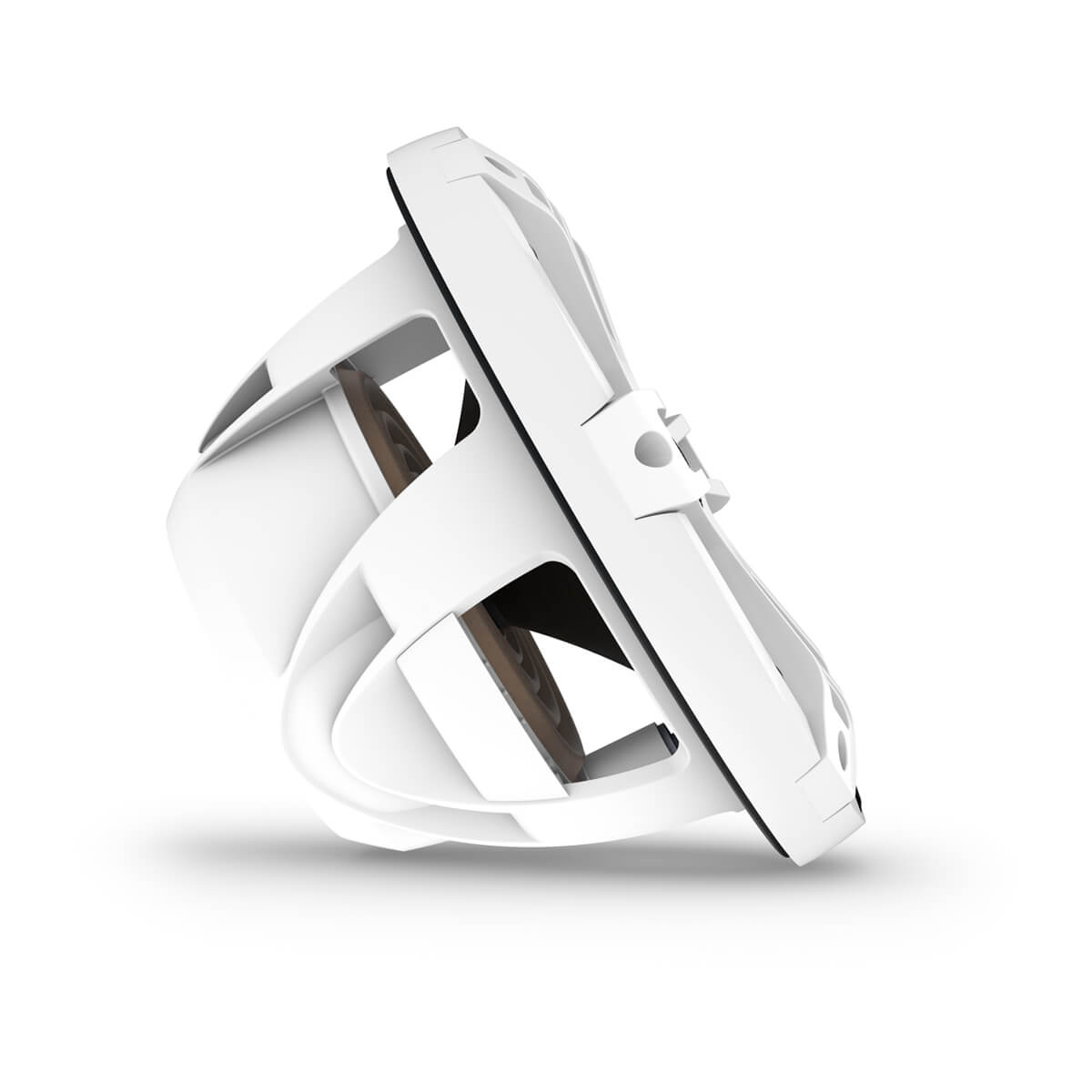

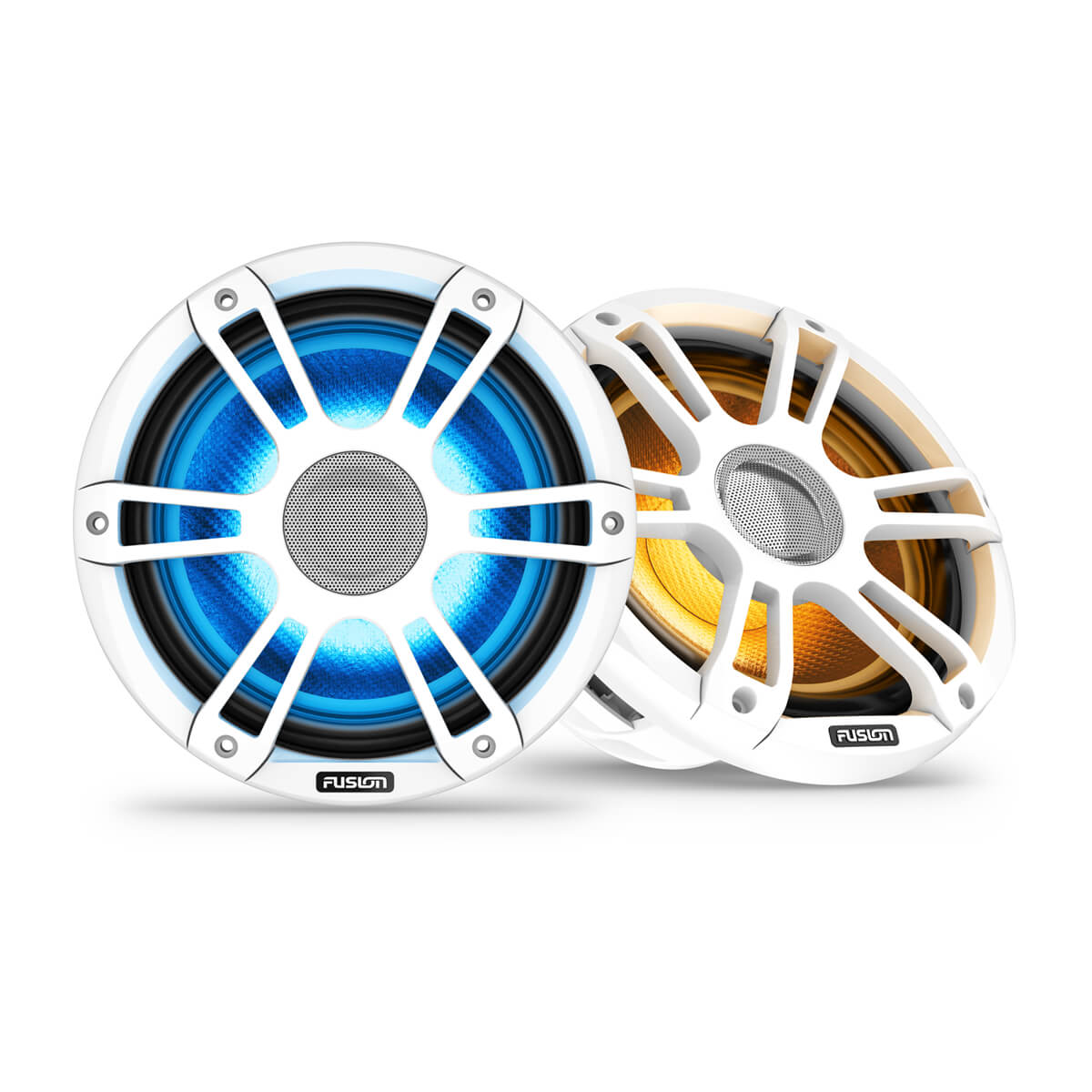

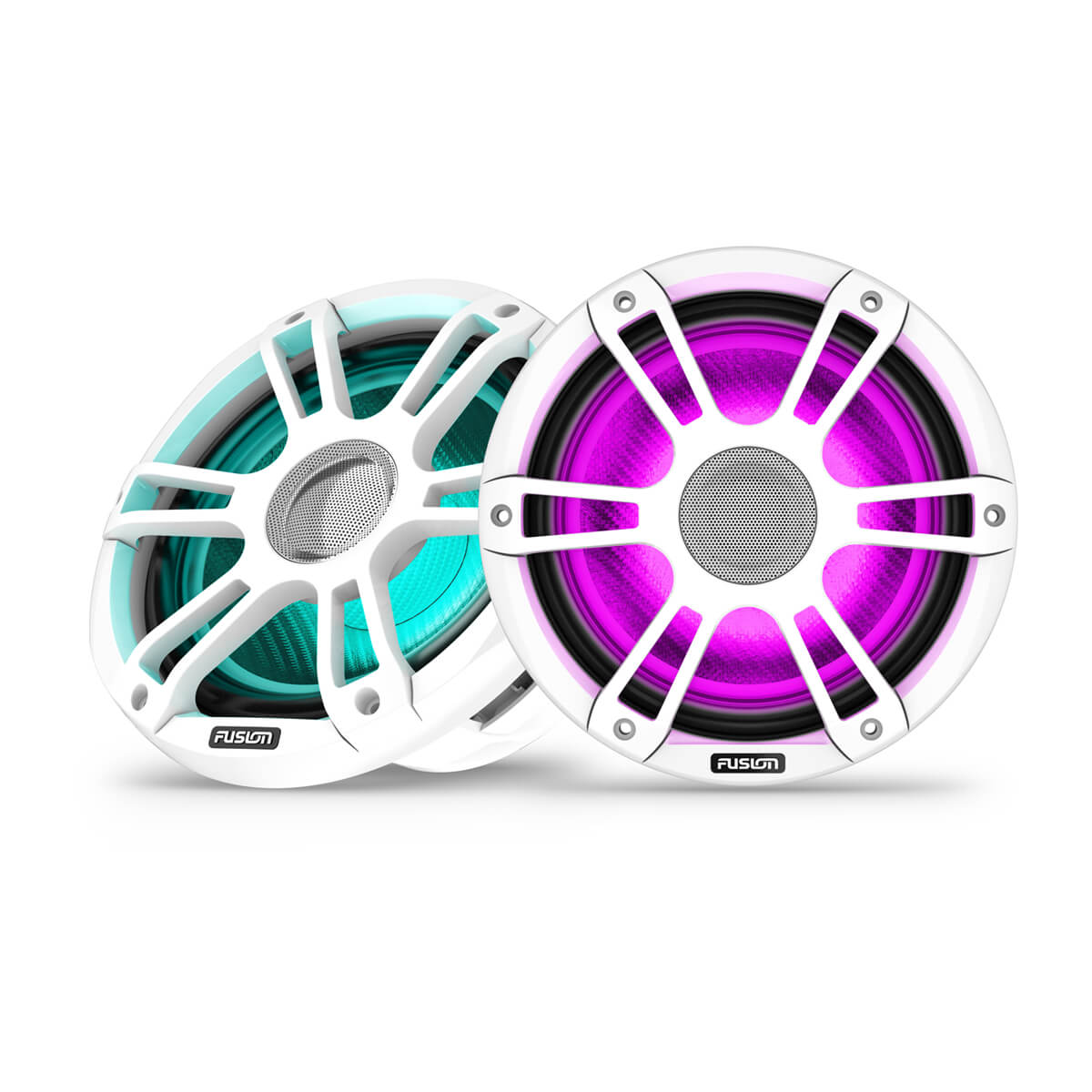

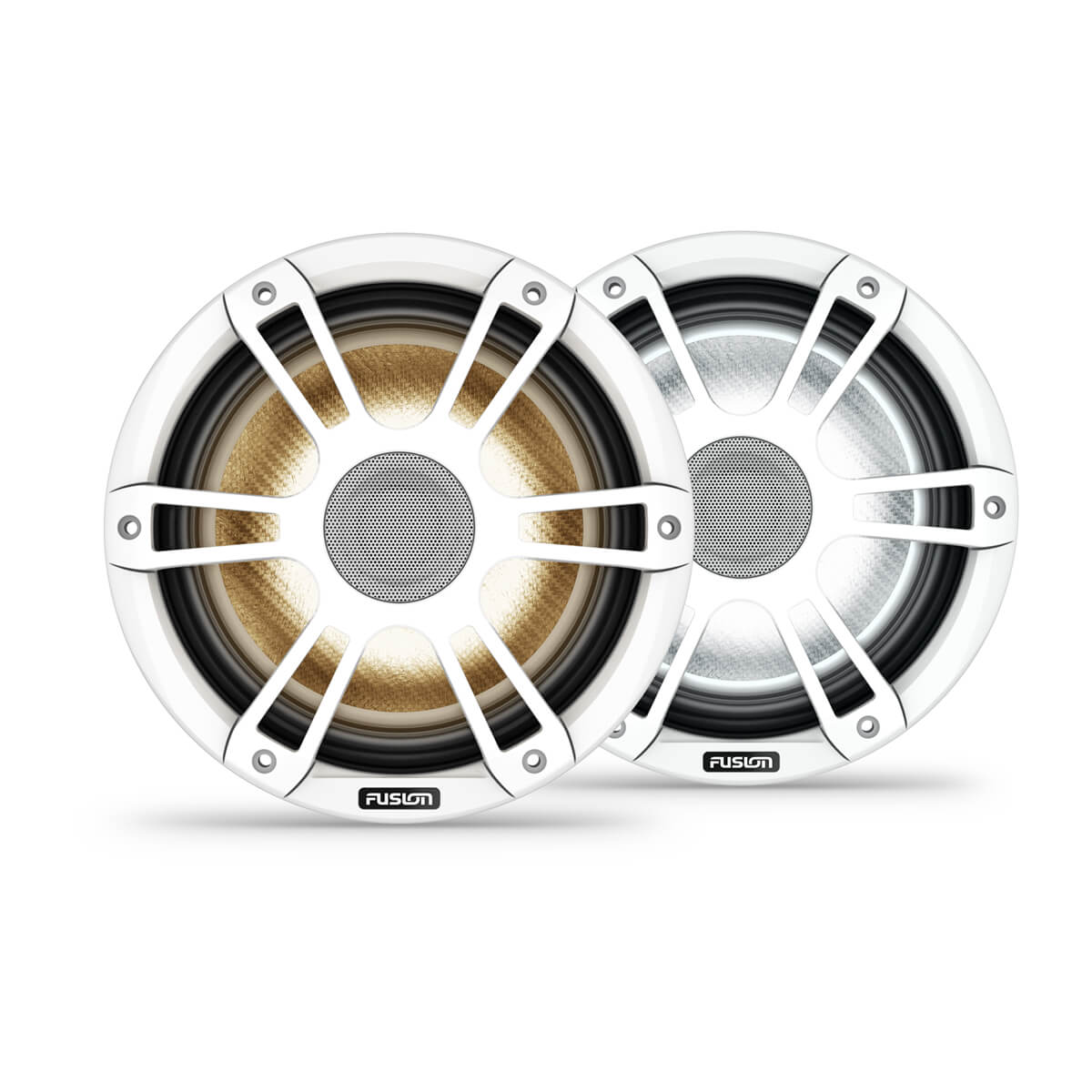

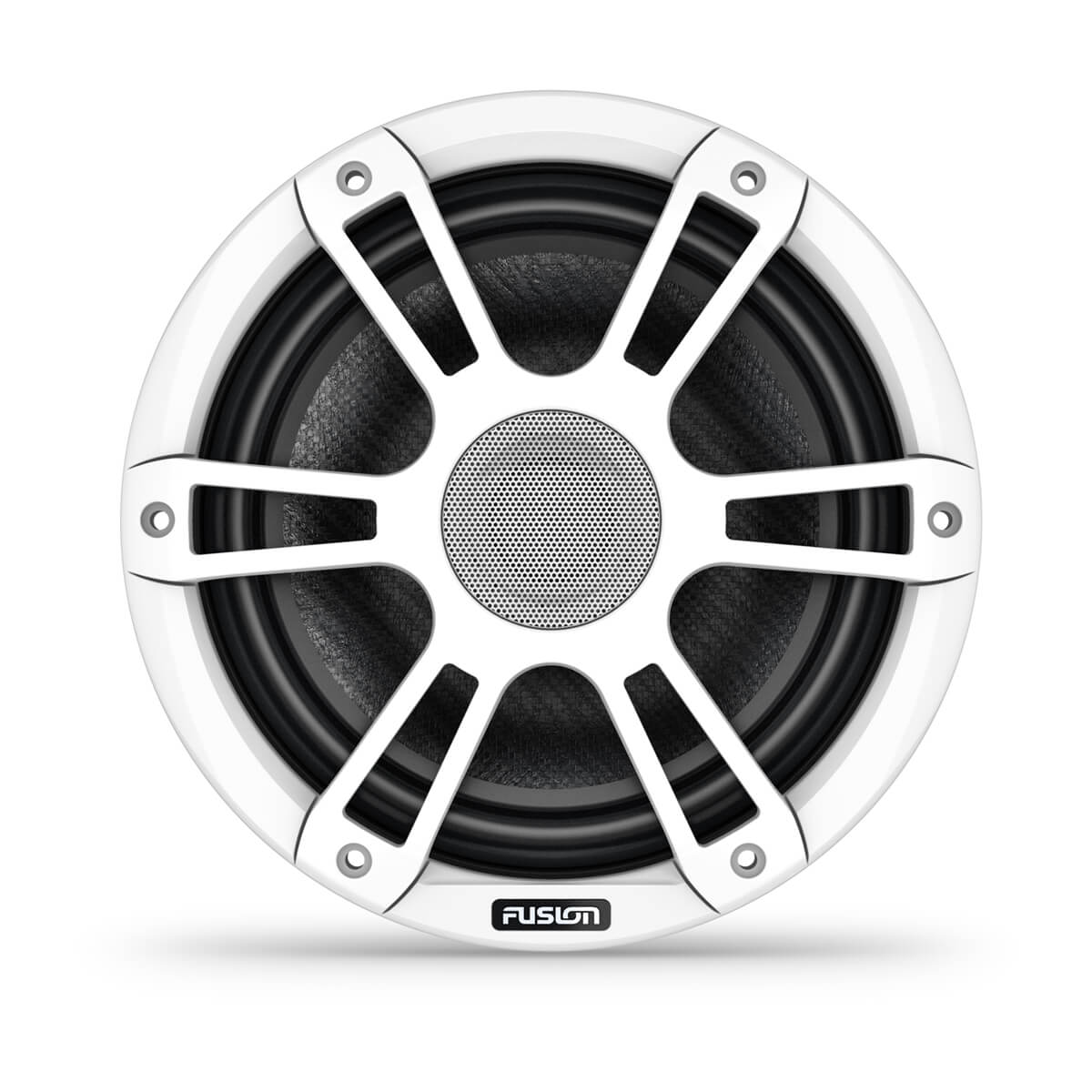

- 8.8 in 330 W peak / 130 W RMS, Sports White grilles with CRGBW LED
- CURV cone technology with rubber surround; silk dome tweeter
- Water-resistant 2-pin audio connectors (6-pin LED lead on LED model)
- IP65 water and dust rating; True-Marine tested
- 3-year warranty
| Brand | Fusion |
| Model | Signature Series 3i Marine Speaker |
| Part Numbers | 010-02771-21 (6.5 in 230 W, Sports Gray); 010-02772-00 (7.7 in 280 W, Classic White); 010-02773-10 (8.8 in 330 W, Sports White with CRGBW LED) |
| UPC | 753759297886 (6.5 in 230 W, Sports Gray); 753759297930 (7.7 in 280 W, Classic White); 753759297992 (8.8 in 330 W, Sports White with CRGBW LED) |
| Sold As | Pair |
| Speaker Type | Coaxial |
| Size / Style | 6.5 in: 6.5 in, Sports Gray grilles; 7.7 in: 7.7 in, Classic White grilles; 8.8 in: 8.8 in, Sports White grilles with CRGBW LED |
| Peak Power | 6.5 in: 230 W; 7.7 in: 280 W; 8.8 in: 330 W |
| Continuous Power Handling (RMS) | 6.5 in: 75 W; 7.7 in: 100 W; 8.8 in: 130 W |
| Recommended Amplifier Power (RMS) | 6.5 in: 25-160 W per channel; 7.7 in: 25-220 W per channel; 8.8 in: 30-300 W per channel |
| Sensitivity (1 W / 1 m) | 6.5 in: 90 dB; 7.7 in, 8.8 in: 91 dB |
| Frequency Response (+/- 3 dB) | 6.5 in: 70 Hz-22 kHz; 7.7 in: 60 Hz-22 kHz; 8.8 in: 50 Hz-20 kHz |
| Nominal Impedance | 4 ohm |
| Cone Material | CURV cone technology with rubber surround |
| Tweeter Type | Silk dome |
| LED Lighting | 8.8 in: CRGBW; 10.8-16 VDC; 300 mA max at 14.4 VDC |
| Diameter | 6.5 in: 6.93 in (176 mm); 7.7 in: 8.66 in (220 mm); 8.8 in: 8.82 in (224 mm) |
| Depth | 6.5 in: 4.11 in (104.5 mm); 7.7 in: 4.31 in (109.5 mm); 8.8 in: 5.24 in (133 mm) |
| Weight | 6.5 in: 2.8 lb (1.29 kg); 7.7 in: 4 lb (1.8 kg); 8.8 in: 5.8 lb (2.61 kg) |
| Mounting Diameter Clearance | 6.5 in: 5.35 in (136 mm); 7.7 in: 6.14 in (156 mm); 8.8 in: 7.44 in (188 mm) |
| Mounting Depth Clearance | 6.5 in: 3.11 in (79 mm); 7.7 in: 3.39 in (86 mm); 8.8 in: 4.13 in (106 mm) |
| Water Rating | IP65 |
| Connections | Flying lead with water-resistant 2-way connector, 5.9 in (150 mm); LED models add a 6-way connector |
| Compass-Safe Distance | 6.5 in: 122 in (310 cm); 7.7 in: 141 in (358 cm); 8.8 in: 162 in (412 cm) |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Warranty | 3 years |
