Product Information

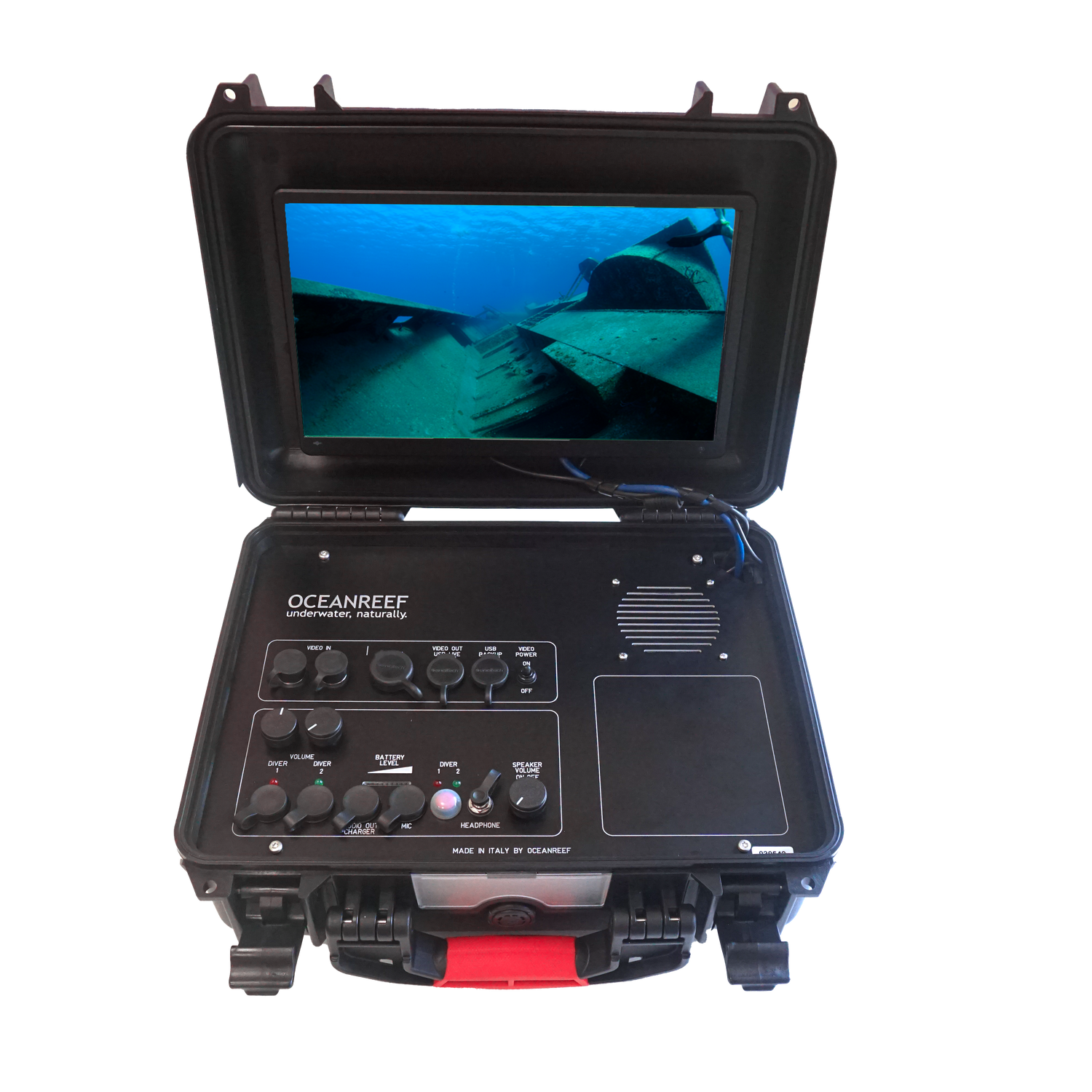

The Ocean Reef GAMMA ALPHA HD is a hardwired, full-duplex underwater audio and video communication system that lets a surface operator talk with one or two divers while watching a live camera feed on a 13" full HD screen. It records audio and video internally through a programmable DVR with 320GB of storage, expandable to 1TB, and runs on a 12V rechargeable battery.
Who it is for
This system is built for surface-supplied dive communication setups where a topside operator needs real-time audio and video contact with divers wearing Ocean Reef professional Full-Face Masks. The GAMMA ALPHA HD connects to the ALPHA PRO X-DIVERS underwater communication unit and can display split-screen video when two divers are connected at once.
Key details
The surface unit has a 13-inch full HD, backlit, anti-reflective screen with digital audio/video output via HDMI and a USB-A connection that lets the system be recognized as a plug-and-play external webcam on PC or Mac (USB-A cable not included). The included AHD 1080p wide angle camera has a 120-degree field of view, a 1/3-inch Sony CMOS sensor, a 2.8mm board lens, and a housing rated to 40m/130ft. Backup recording is possible via USB-A to an external pen drive or hard drive, neither of which is included. On battery, stand-by autonomy is 24 hours, maximum recharge time is 2 hours 45 minutes, and run time ranges from 5 hours 20 minutes with one video and one audio channel over a 50m cable down to 4 hours 30 minutes with two video and two audio channels over 200m cables.
Compatibility and sizing
The GAMMA ALPHA HD pairs with the ALPHA PRO X-DIVERS underwater communication unit and connects to Ocean Reef professional Full-Face Masks through an Extender Frame or NACS mount.

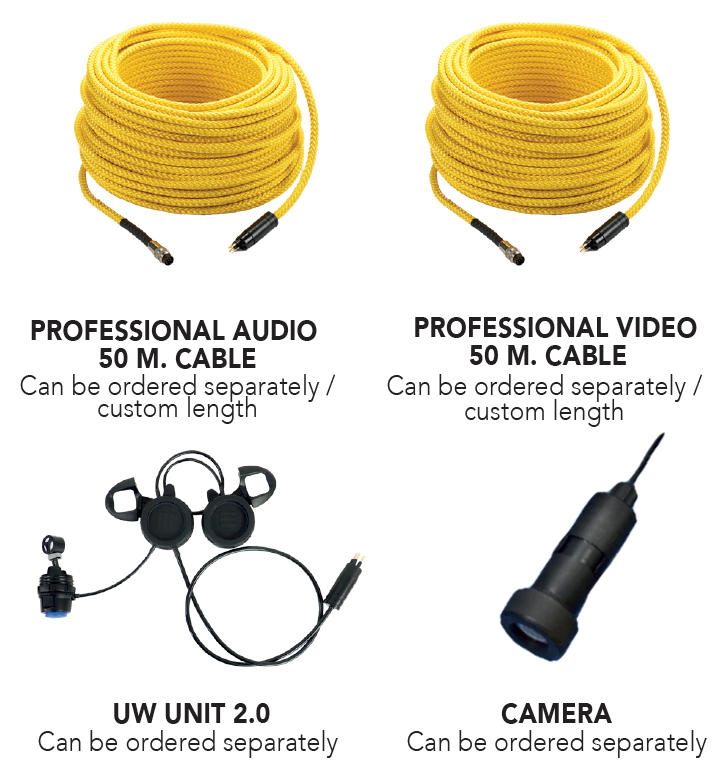

What's in the box
- Alpha Pro 2.0 hardwired underwater communication unit
- Professional audio cable, 50 meters (165 ft)
- Professional video cable, 50 meters (165 ft)
- AHD 1080p wide angle camera
- Remote control
- Mouse
- 12V charger
- Microphone
DiveCatalog.com is an authorized Ocean Reef dealer and a dive shop in Irvine, California, serving divers since 2003. Call or chat with us at 888-701-4017 if you have questions about fit, cable lengths, or compatibility with your full-face mask setup.
- Hardwired full-duplex communication: Enables two-way audio and video conversations between the surface and up to two divers.
- 13" full HD screen: Backlit, anti-reflective display on the surface unit for viewing live diver video.
- AHD 1080p wide angle camera: 120-degree field of view with a 1/3" Sony CMOS sensor and a 2.8mm board lens, housed to a 40m/130ft depth rating.
- Split-screen viewing: Supports simultaneous display of two camera feeds when two divers are connected.
- HDMI output: Digital audio/video output for routing the feed to an external display.
- Plug and Play USB connection: Recognized as an external webcam on PC or Mac via USB-A (cable not included).
- Internal DVR recording: Programmable 320GB internal storage, expandable to 1TB, for recording both audio and video.
- Backup recording: Audio and video can be backed up via USB-A to a pen drive or external hard drive, neither included.
- Audio/video recall: Audio/video recall function included on the surface unit.
- 12V rechargeable battery: 24-hour stand-by autonomy and a maximum recharge time of 2 hours 45 minutes.
- Extended battery runtime: 5 hours 20 minutes with one video/one audio channel at 50m, down to 4 hours 30 minutes with two video/two audio channels at 200m.
- Full-face mask compatible: Connects to Ocean Reef professional Full-Face Masks via an Extender Frame or NACS mount, and to the ALPHA PRO X-DIVERS underwater communication unit.
| Screen | 13" full HD, backlit, anti-reflective |
| Camera type | AHD 1080p wide angle camera, 120° field of view |
| Camera sensor | 1/3" Sony CMOS sensor |
| Camera lens | 2.8mm board lens |
| Camera depth/water resistance rating | 40m / 130ft |
| Camera housing diameter | 3.4 cm |
| Camera housing length | 12.7 cm |
| Split screen | Supported for two cameras/divers simultaneously |
| Digital audio/video out | HDMI |
| PC/Mac connection | USB-A, Plug & Play (cable not included) |
| Internal recording | Programmable DVR, 320GB, expandable to 1TB |
| Backup recording | Digital audio/video via USB-A (pen drive or HDD not included) |
| Battery | 12V rechargeable |
| Stand-by autonomy | 24 hours |
| Max recharge time | 2h45m |
| Battery duration, 1 video/1 audio, 50m | 5h20m |
| Battery duration, 1 video/1 audio, 200m | 5h |
| Battery duration, 2 video/2 audio, 200m | 4h30m |
| Audio cable length | 50m (165 ft) |
| Video cable length | 50m (165 ft) |
- Alpha Pro 2.0 hardwired underwater communication unit
- Professional audio cable, 50 meters (165 ft)
- Professional video cable, 50 meters (165 ft)
- AHD 1080p wide angle camera
- Remote control
- Mouse
- 12V charger
- Microphone
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Is the GAMMA ALPHA HD camera waterproof?
The included AHD 1080p wide angle camera has a housing rated to 40m/130ft, so it is built to withstand the depth and pressure encountered during a dive while transmitting live video to the surface unit.
Can the GAMMA ALPHA HD communicate with two divers at the same time?
Yes. The system supports split-screen viewing so the surface operator can watch two camera feeds at once when two divers are connected.
What is the viewing angle of the GAMMA ALPHA HD camera?
The included AHD 1080p camera has a 120-degree wide viewing angle, along with a 1/3" Sony CMOS sensor and a 2.8mm board lens, giving the surface operator a broad view of the diver's surroundings.
Does the GAMMA ALPHA HD work with Ocean Reef full-face masks?
Yes. The GAMMA ALPHA HD connects to Ocean Reef professional Full-Face Masks through an Extender Frame or NACS mount, and it pairs with the ALPHA PRO X-DIVERS underwater communication unit for diver-side audio and video.
