Tusa Liberator with New Advanced Weight Loading System III Jacket Type BCD
In stock — ships from Irvine, CA
Tusa Liberator with New Advanced Weight Loading System III Jacket Type BCD - XS (X-Small) is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 23D
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Model # | BC0103B | ||||
| Product Name | Liberator | ||||
| Lift Capacity (n) | 80 | 90 | 120 | 150 | 180 |
| Lift Capacity (lbf) | 18 | 20.2 | 27 | 33.7 | 40.5 |
| Lift Capacity (kgf) | 8.2 | 9.2 | 12.2 | 15.3 | 18.4 |
| Waist (in) | 22.1-24.1 | 23.7-27.6 | 25.6-31.5 | 29.6-35.5 | 33.5-39.4 |
| Waist (cm) | 56-61 | 60-70 | 65-80 | 75-90 | 85-100 |
| BC Weight (dry) (lb) | 6.4 | 6.6 | 6.8 | 7.1 | 7.1 |
| BC Weight (dry) (kg) | 2.9 | 3 | 3.1 | 3.2 | 3.2 |
| Releasable Weight (lb) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Releasable Weight (kg) | 8 | 8 | 8 | 8 | 8 |
| Dump Valves | 3 (O.P.E.V.+2) | 3 (O.P.E.V.+2) | 3 (O.P.E.V.+2) | 3 (O.P.E.V.+2) | 3 (O.P.E.V.+2) |
| Material | 500D CORDURA / 420D Nylon | 500D CORDURA / 420D Nylon | 500D CORDURA / 420D Nylon | 500D CORDURA / 420D Nylon | 500D CORDURA / 420D Nylon |
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information

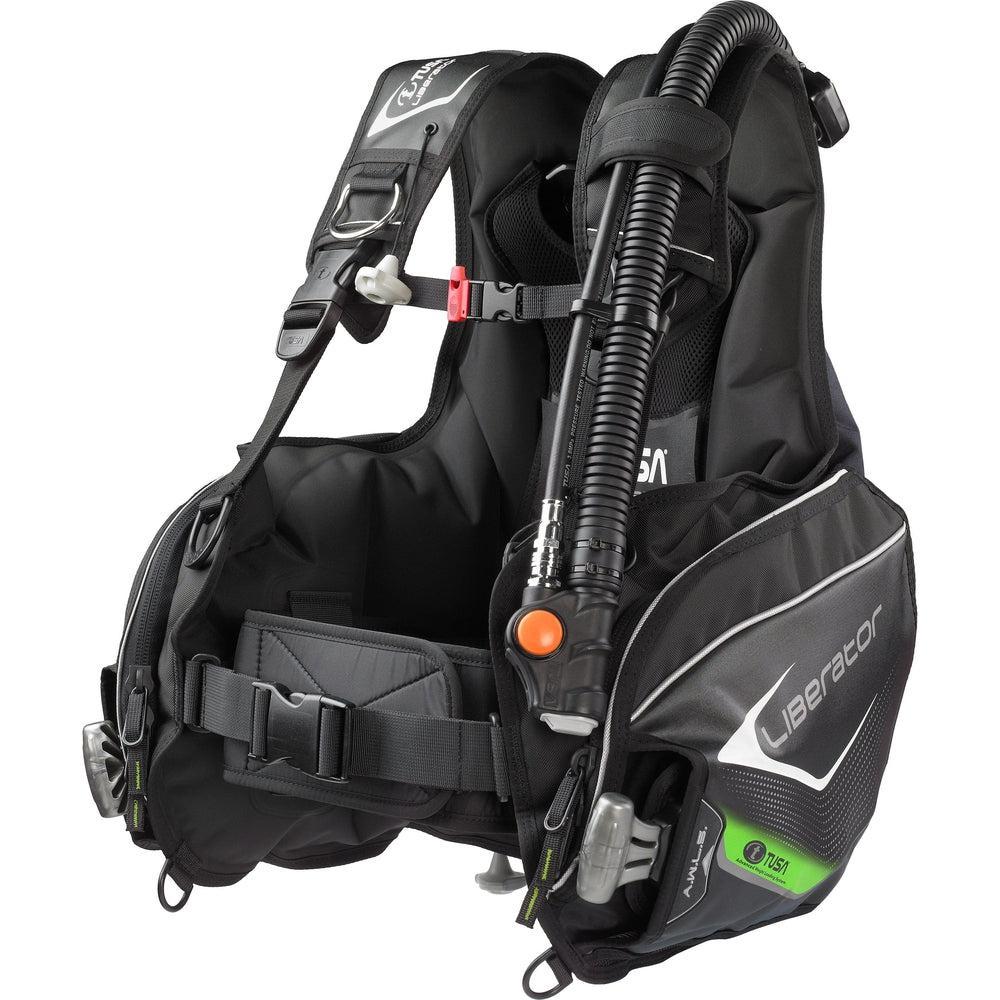

The TUSA Liberator BC0103B is a jacket-style buoyancy compensator designed for durable, reliable performance in scuba diving. Its wrap-around construction works with a dependable tilt valve inflator to provide predictable buoyancy control underwater.

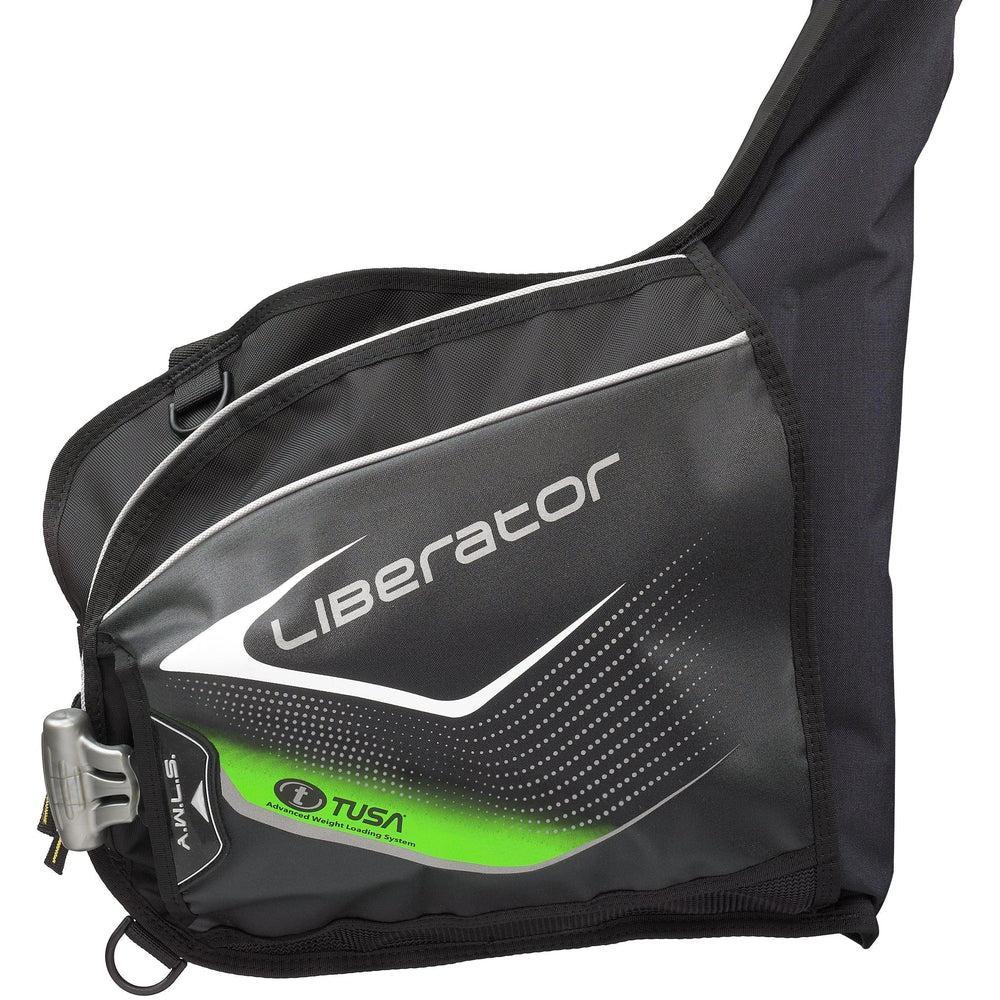

Advanced Weight Loading System III (AWLS III) enables quick and secure loading of weights into front pockets, reducing setup time between dives. The Independent Harness System (I.H.S.) isolates the harness from the air cell to minimize tank slippage and maintain a close, stable fit as buoyancy changes occur. The Ultimate Stabilizing Harness further enhances tank stability for better handling in varying depths.
RiteTite Buckle offers easy, two-position adjustment while keeping the strap secure during motion. The Liberator is compatible with TUSA Duo Air II for integrated second stage and power inflator functionality, expanding compatibility with common diving setups.
Additional features include two zippered pockets and stainless and resin D-rings for versatile gear attachment. This model is available in XS through XL, with lift capacities tailored to each size to support a balanced, comfortable fit during dives.
- AWLS III Advanced Weight Loading System III for secure front-weight loading
- I.H.S. Independent Harness System isolates harness from air cell to reduce tank slippage
- U.S.H. Ultimate Stabilizing Harness for enhanced tank stability and buoyancy control
- RiteTite Buckle quick, two-position adjustment for stable fit
- DUO AIR II compatible integrated second stage/power inflator support
- 2 zippered pockets convenient storage for small gear
- Stainless and Resin D-rings durable attachment points
- Sizes XS, S, M, L, XL
- Lift Capacity XS 18.0 lbf, S 20.2 lbf, M 27.0 lbf, L 33.7 lbf, XL 40.5 lbf

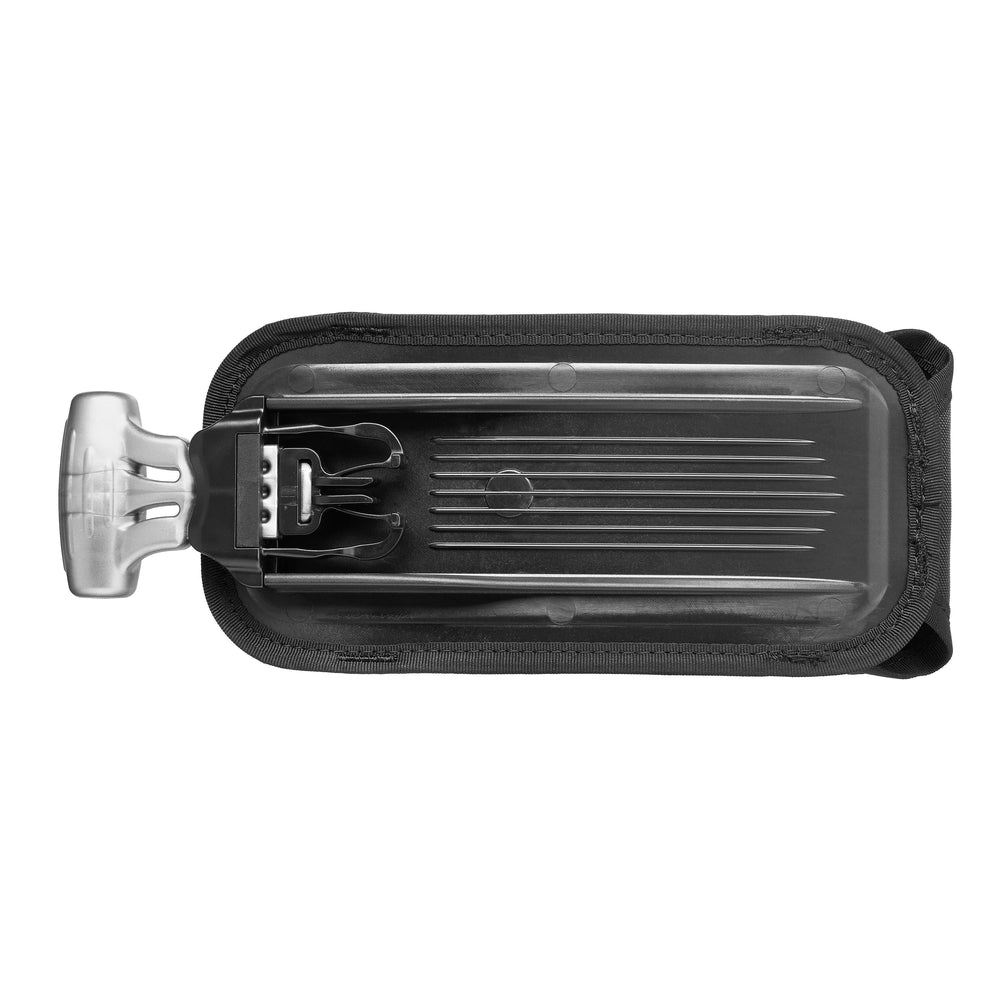

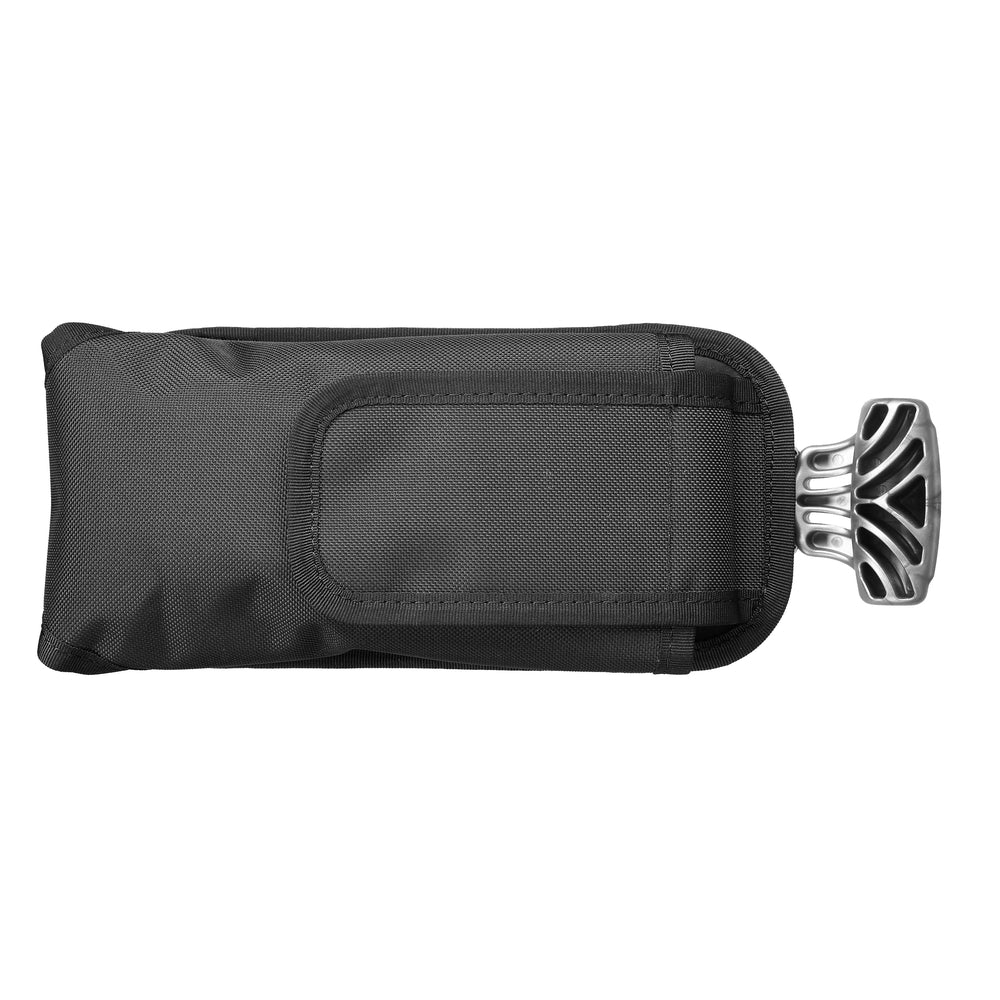

A secure single locking integrated weight system that allows you to quickly and easily secure your weight pockets. The A.W.L.S. III allows the diver to insert weights into the weight-cartridges and load them easily into the front of the BC jacket.

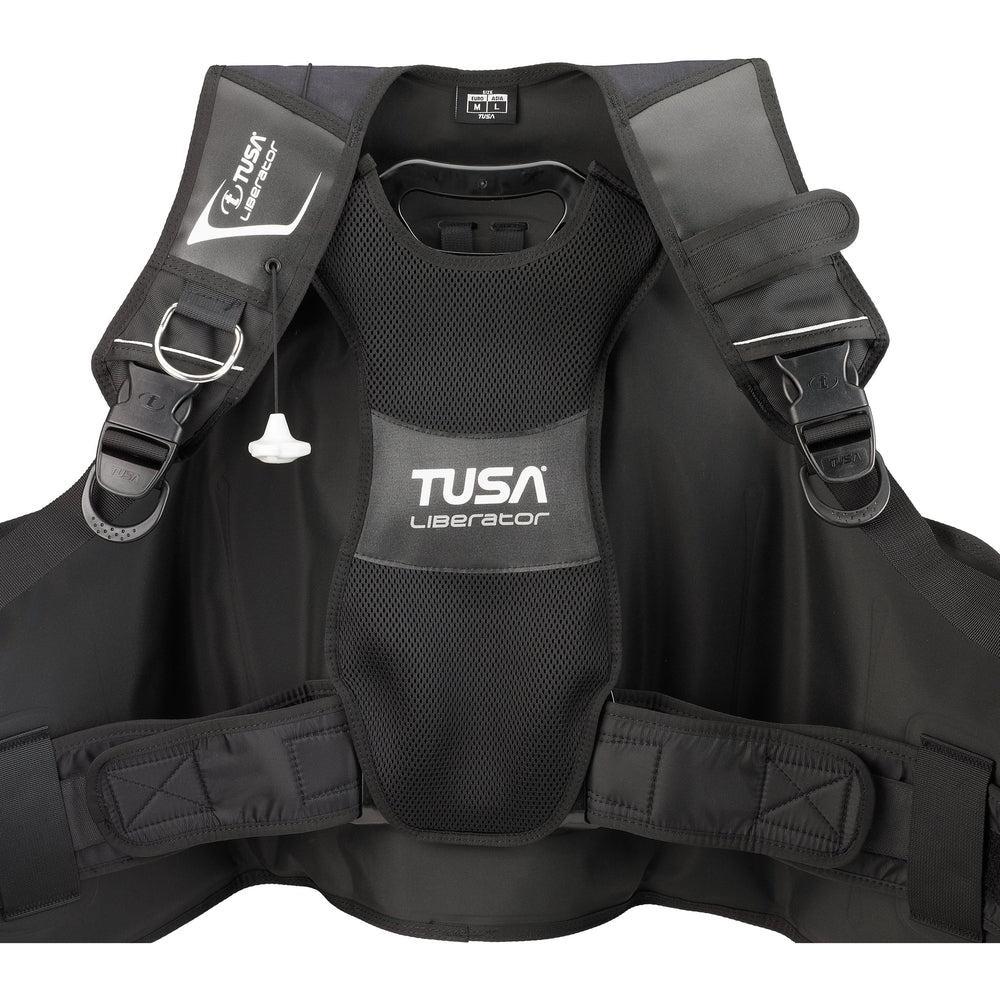

The Independent Harness System isolates the BC jacket's harness from the air cell, tightly supporting the tank even with changes in air cell inflation/deflation. The I.H.S. prevents tank slippage and eliminates any gaps between the tank and your back.
The RiteTite Buckle is a two (2)-position cam strap for quick and easy adjustment. While the strap is being looped through the buckle, the buckle stays in place without needing to be held. This allows for more control and stability. This feature is part of all TUSA BC’s.
TUSA’s Ultimate Stabilizing Harness completely eliminates tank roll and delivers an amazing fit. The U.S.H. securely holds the air cylinder in place with optimally placed rails and brings the tank closer to the body increasing tank control while reducing weight.
TUSA Duo Air II, integrated second stage regulator/power inflator is compatible.
⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
How should a scuba BCD fit?
A BCD should fit snugly enough that it does not ride up toward your ears when inflated, while still letting you breathe fully. Fasten the waist and cummerbund first, then adjust the shoulder straps so the tank sits close to your back and the shoulders cannot slide off. With the BCD fully inflated at the surface you should still be able to take a deep, comfortable breath; if it squeezes your chest, loosen it or move up a size.
How do I rinse and care for a BCD after diving?
Rinse the outside in fresh water and also flush the inside of the bladder, because salt water gets in through the inflator and dump valves. Fill the bladder roughly a third full of fresh water through the oral inflator, slosh it around, then drain it out through the inflator and each dump valve. Hang it to dry out of direct sunlight and store it partially inflated so the bladder walls do not stick together.
Should I use integrated weights or a weight belt?
Integrated weight pockets carry the lead in the BCD itself, which many divers find more comfortable and easier on the hips, while a weight belt keeps the weight independent of your BCD. Either way, you must be able to release your ditchable weight quickly with one hand, and your buddy should know how your system releases. Non-ditchable trim pockets are useful for balance but should never hold weight you might need to drop.
How do I pack a BCD for travel?
Make sure the BCD is completely dry inside and out before packing so it does not mildew in transit. Remove all weights, deflate it fully, and fold or roll it around softer items such as a wetsuit to cushion the inflator and valves. Avoid hard creases in the air cell, and unpack and air it out as soon as you arrive.
When does a BCD need to be serviced?
Follow the service interval in the manufacturer's manual, which is commonly an annual inspection alongside the rest of your life-support gear. Have the inflator, dump valves, and bladder checked any time the inflator sticks, free-flows, feels rough, or the BCD holds air poorly. Between services, confirm that it inflates and deflates properly as part of every pre-dive check.
What is the difference between a jacket-style and a back-inflate BCD?
A jacket-style BCD holds air in panels that wrap around your sides as well as your back, while a back-inflate BCD keeps the entire air cell behind you. Jacket styles tend to feel very stable and upright at the surface, and back-inflate styles keep the chest clear and are often preferred for horizontal trim underwater. Neither is objectively better, so treat it as a fit and preference decision and try both if you can.
Will my BCD fit any scuba tank?
Most recreational BCDs use an adjustable cam band sized for common single-cylinder diameters, so standard aluminum and steel tanks generally work. Re-check the band tension after the first wetting, because webbing can relax slightly and let the tank shift. If you dive doubles or unusual cylinder diameters, confirm compatibility with the manufacturer before assuming it will hold.
