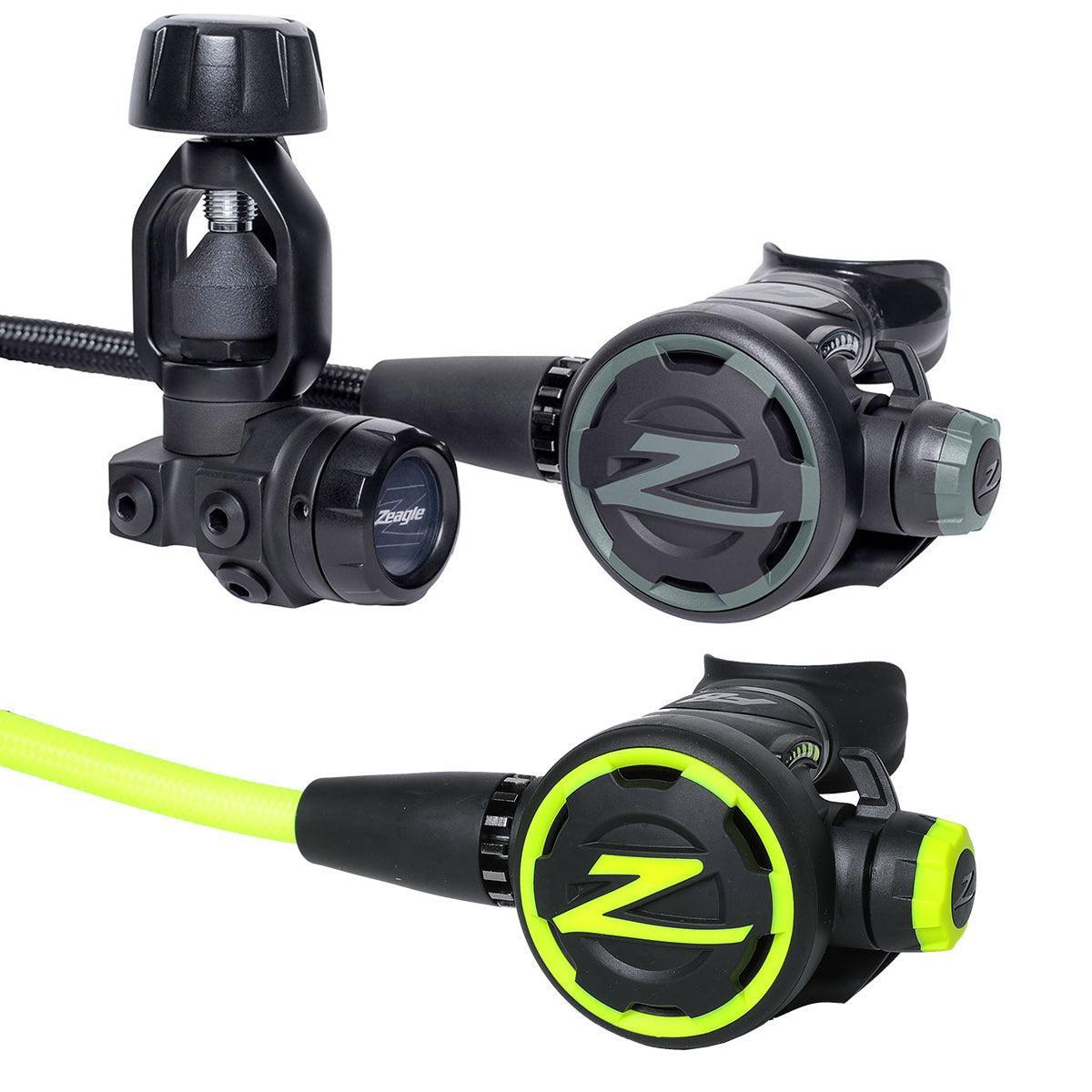

Zeagle F8 Yoke Regulator with F8 Octopus

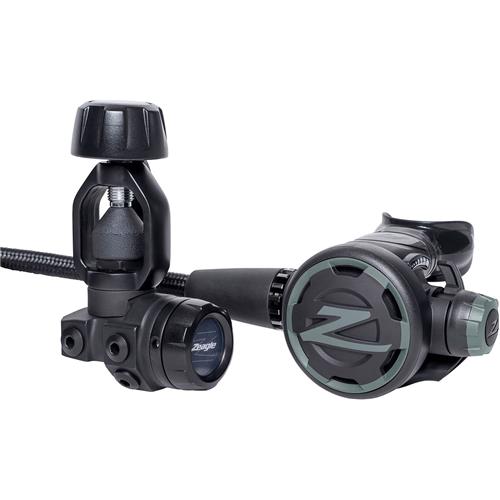

Zeagle F8 Regulator

The Zeagle F8 Regulator is a top-tier, US-made diving regulator featuring over 20 improvements for enhanced performance. This low-profile regulator minimizes tank valve extension and optimizes hose routing for all types of diving.

• First Stage: Black chrome plated marine brass, environmentally sealed, balanced diaphragm design prevents exposure to contaminants, ensuring long-lasting performance.
• Valves and Ports: Conical precision stainless steel high-pressure valve, 2 HP ports (7/16"), 5 LP ports (3/8").
• Second Stage: Lightweight, compact, adjustable resistance, free-flow control, and anti-freezing features. Made from thermoplastic, elastomeric polymer, and silicone rubber.
• Additional Features: New heat sink for improved cold dissipation, zirconium-plated inlet tube for corrosion resistance, enhanced inhalation diaphragm, patented seat-saving orifice, and a super alloy second stage spring.
• Specifications: Standard 30" (76 cm) hose, weighs 41 oz (1,161 g), Nitrox ready up to 40%.

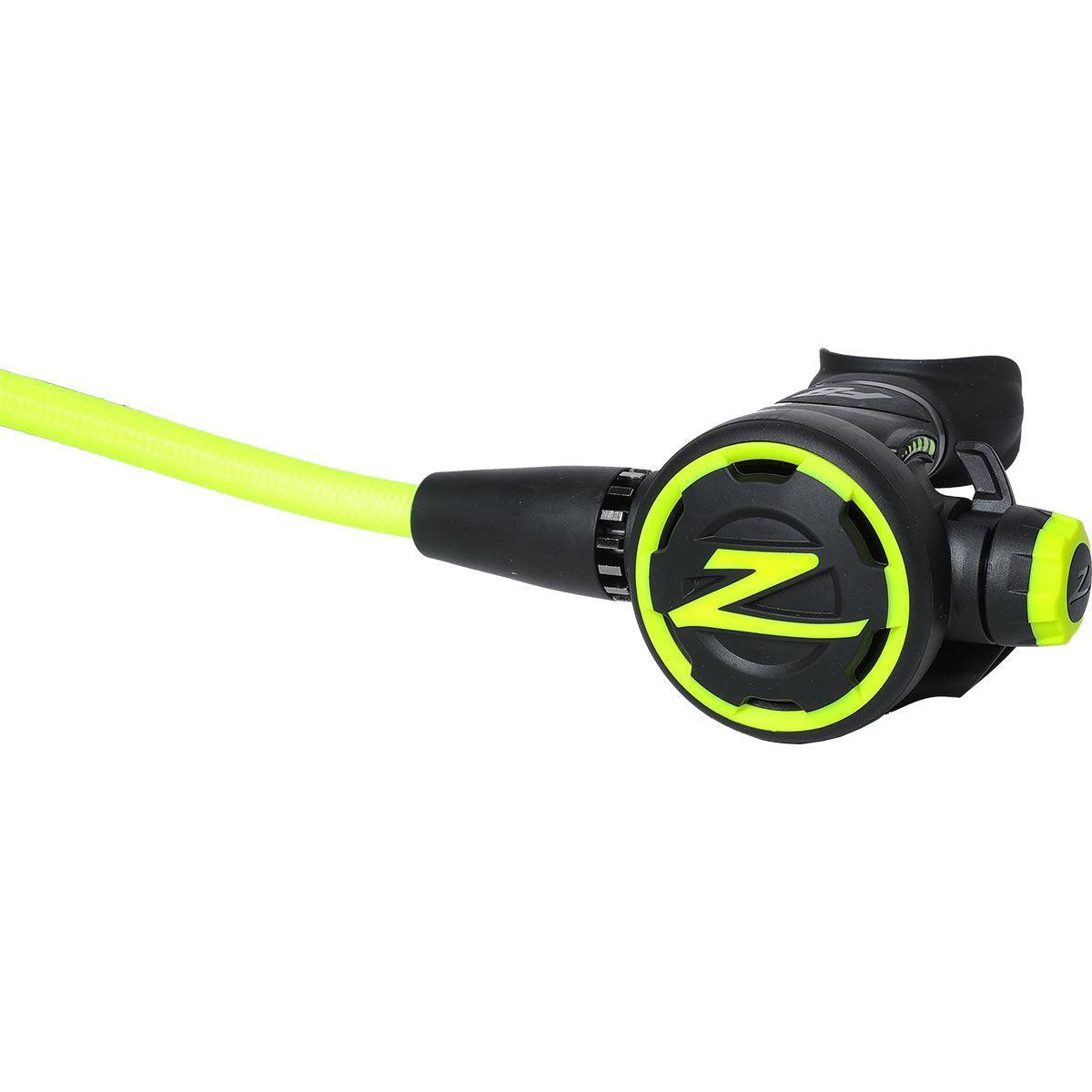

Zeagle F8 Octopus with Hose

The Zeagle F8 Octopus with Hose is a lightweight, high-performance, pneumatically balanced second stage regulator designed for superior comfort and ease of use.

• Comfort: New inhalation diaphragm for better response and tear strength, improved exhaust valve for dryness and lower exhalation effort, co-molded silicone mouthpiece for reduced jaw fatigue.
• Durability: Seat-saving orifice extends the life of the breathing tube seat, zirconium-plated inlet tube and heat sink for superior corrosion resistance, impact-resistant design.
• Features: Free-flow control, built-in anti-freezing features, 36" (91.4 cm) yellow hose.
• Materials: Thermoplastic, elastomeric polymer, silicone rubber, Buna-N O-rings.

Upgrade to the Zeagle F8 series for unparalleled diving performance and reliability.

• Zeagle's best-performing regulator yet
• Low-profile design for optimal hose routing
• Environmentally sealed first stage
• Pneumatically Balance Valve
• Adjustable Inhalation Resistance

• F8 Yoke Regulator
• Zeagle Introduces a New Flagship Regulator Model
• Completely New Platform Second Stage Design
• Factory Ready: EAN/ Nitrox to 40% O2
• First Stage:
  • Balanced Diagram Design
  • Inherently Environmentally Sealed
  • Dry Environmental Seal with Hydro Transmitter
  • Precision Stainless Steel HP Valve w/Advanced-Polymer Seat
  • HP Valve: Improves Responsiveness & Performance at All Breathing Rates
  • High Performance Porting
  • 5 Low Pressure 3/8" Threaded Ports
  • 2 High Pressure 7/16" Threaded Ports
• First Stage Materials:
  • Body: Marine Grade Black Chromed Brass
  • HP Valve: Stainless Steel
  • Seat: Advanced Polymer
  • O-Rings: Buna-N
• Second Stage:
  • Downstream Valve
  • Pneumatically Balanced Design
  • Dive/Pre-Dive Venturi Control
  • Diver Adjustable Inhalation Resistance
  • Anti-Freeze Heat Transfer Device
• Second Stage Materials:
  • Cover: Flexible Thermoplastics
  • Case: Ridged Thermoplastics
  • Diaphragm: Elastomeric Polymer
  • Exhaust Valve: Elastomer
  • Mouthpiece: Silicone Rubber
  • Inlet Tube: Zirconium Plated
  • O-Rings: Buna-N
• More than 20 New Improvements!
• Compact Profile
• Case Snap-In Insert to Personalize F8 for Color Style
• Front Cover: Anti-Surge & Stylized Z Logo
• Smaller Mouthpiece: Super Soft Silicone, Color Accented Tear Resistant Bite Lugs
• Exhaust Valve w/Improved Dryness & Lower Exhalation Effort
• Inhalation Effort Control Knob: Better Grip & Style
• Threaded Cover Ring for Improved Safety
• Heat Sink w/Improved Materials & Greater Surface Area to Dissipate Cold
• Zirconium Plated Inlet Tube for Increased Corrosion Resistance
• Inhalation Diaphragm w/Improved Response & Tear Strength
• Redesigned Poppet w/Improved Tolerances
• Patented Seat Saving Orifice
• Low Pressure Second Stage Seat
• Second Stage Spring Made from Super Alloy
• F8 Octopus with Hose
• Pneumatically Balanced Downstream Demand Valve
• Lightweight, Compact and Comfortable
• Diver Adjustable Inhalation Resistance
• Venturi (Free-Flow) Control
• Built in Heat-Sink for Freezing Resistance
• Materials: Anodized Aluminum, Flexible & Ridged Thermoplastics, Elastomeric Polymers, Silicone Rubber
• Flexible, Lightweight MiFlex Hose
